Model # WCE55US0HW01 Official Whirlpool electric counter unit

Here are the diagrams and repair parts for Official Whirlpool WCE55US0HW01 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Range Radiant Surface Element 8273994
#11

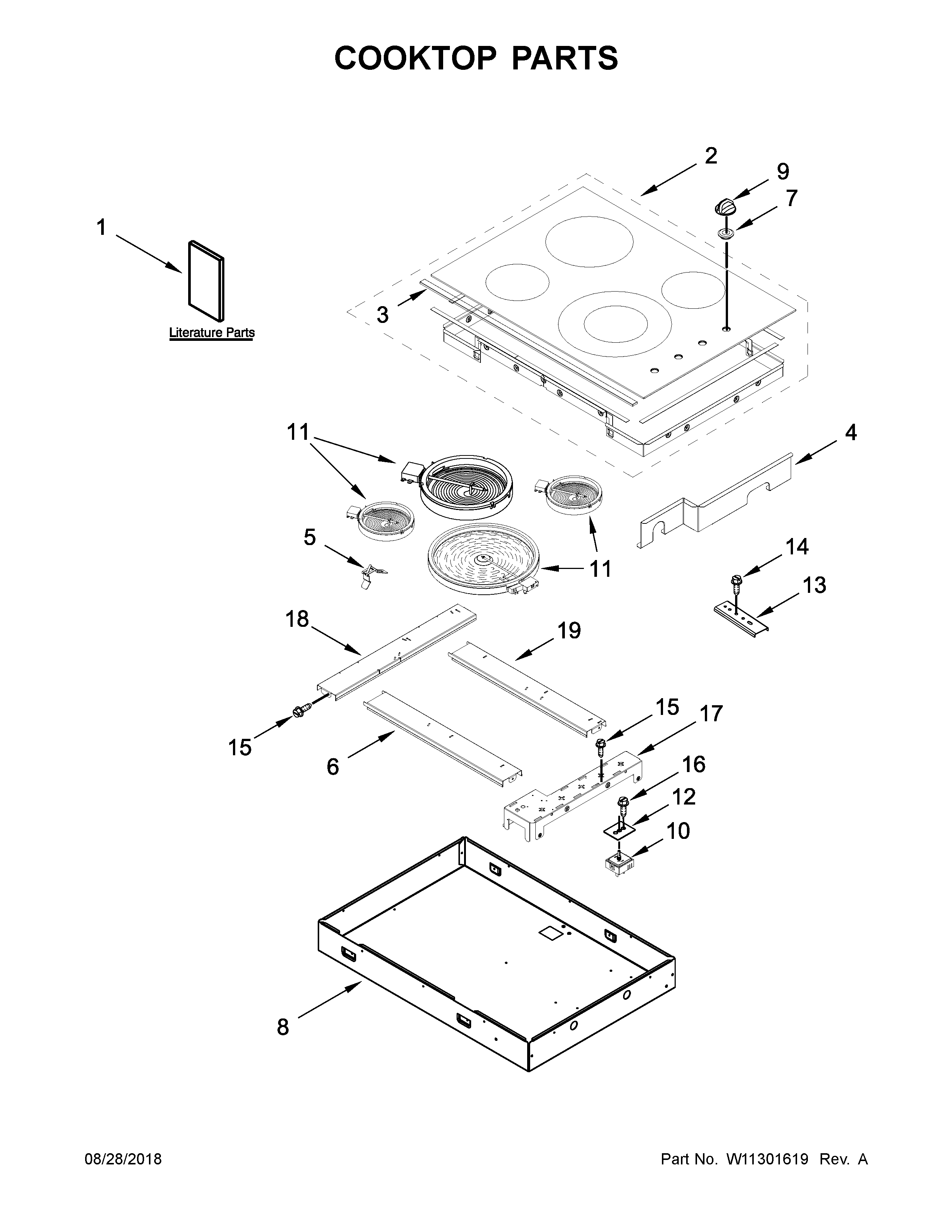

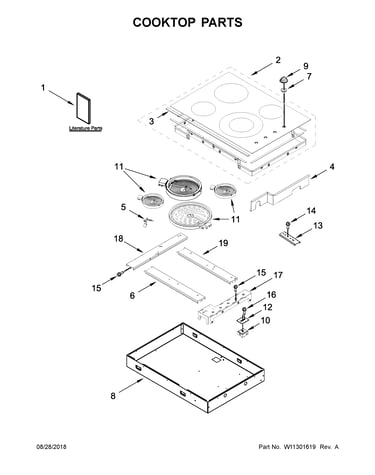

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Cleaner 31464
#NI

Optional parts (not included) diagram

Cleaner

Part #31464

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 31464. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Dual Surface Element Control Switch W10437092
#10B

Cooktop parts diagram

Range dual surface element control switch

Part #W10437092

Replaced by #W10857622

?
Manufacturer substitution
This part replaces W10437092. Substitute parts can look different from the original.
BEST SELLER
$132.86 |
8% OFF Phone Price : $144.86
In Stock
Range Surface Element Control Switch W10578768
#10

Cooktop parts diagram

Range surface element control switch

Part #W10578768

Replaced by #W10911303

?
Manufacturer substitution
This part replaces W10578768. Substitute parts can look different from the original.
BEST SELLER
$66.34 |
8% OFF Phone Price : $72.34
In Stock
Cooktop Scraper WA906B
#NI

Optional parts (not included) diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Cooktop Knob Grommet W10293874
#7

Cooktop parts diagram

Cooktop knob grommet

Part #W10293874

Replaced by #WPW10293874

?
Manufacturer substitution
This part replaces W10293874. Substitute parts can look different from the original.
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Cooktop Element Control Knob (stainless) W11130627
#9B

Cooktop parts diagram

Cooktop element control knob (stainless)

Part #W11130627

Replaced by #W11418244

?
Manufacturer substitution
This part replaces W11130627. Substitute parts can look different from the original.
$45.49 |
12% OFF Phone Price : $51.49
In Stock
Whirlpool Cooktop Cleaning Kit 31605
#NI

Optional parts (not included) diagram

Whirlpool cooktop cleaning kit

Part #31605

Replaced by #W10336909

?
Manufacturer substitution
This part replaces 31605. Substitute parts can look different from the original.
This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Glass Assy-w W11120973
#2A

Cooktop parts diagram

Glass assy-w

Part #W11120973

Replaced by #W11223304

?
Manufacturer substitution
This part replaces W11120973. Substitute parts can look different from the original.
$334.56 |
$12.00 OFF Phone Price : $346.56
In Stock
