Model # DSC-TX7R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX7R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Sheet 417073301
#4

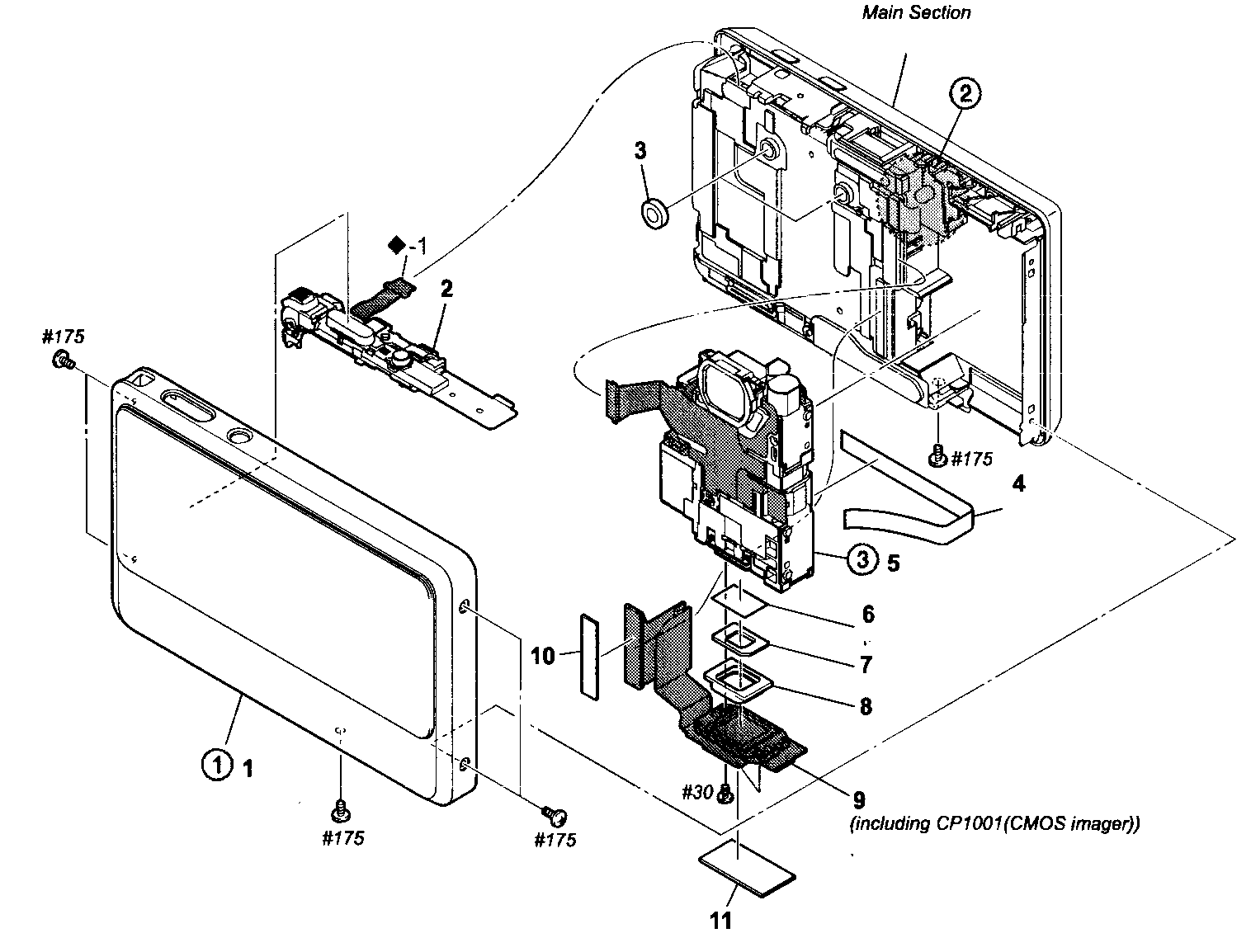

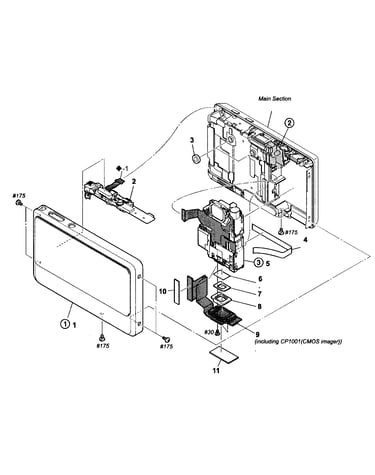

Front assy diagram

Sheet

Part #417073301

This item is not returnable
$3.63
In Stock
Lsv-1370a A1757069A
#5

Front assy diagram

Lsv-1370a

Part #A1757069A

$146.39
In Stock
Sony Bth Asy,j X25461733
#60

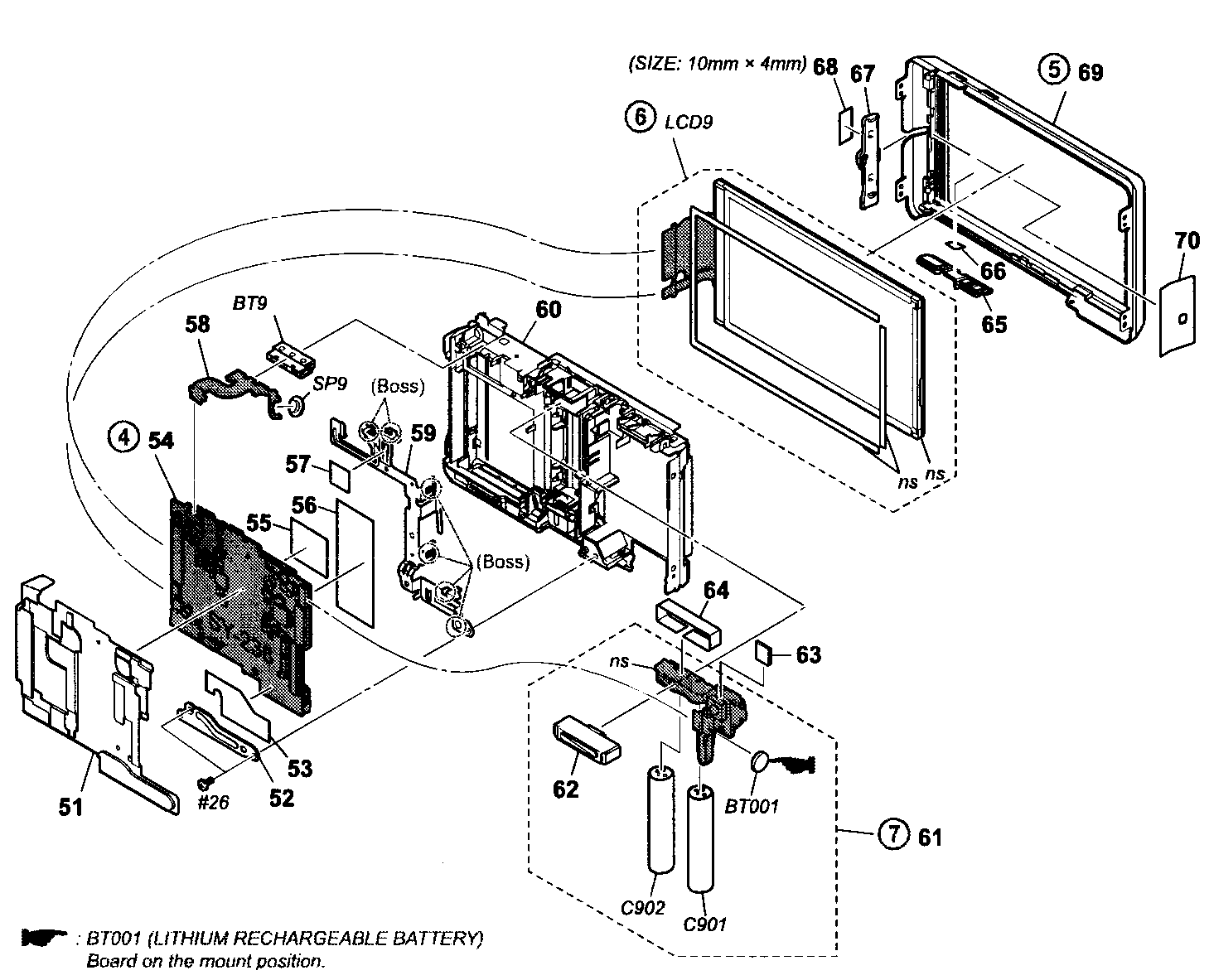

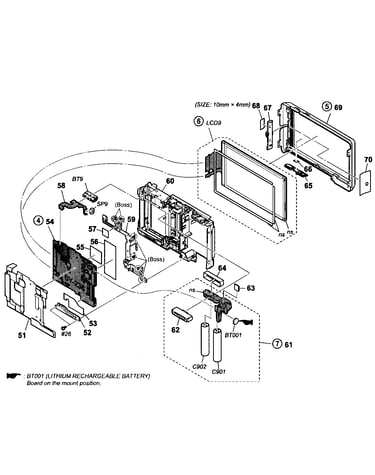

Rear assy diagram

Sony bth asy,j

Part #X25461733

$54.19
In Stock
Lithium Battery 175681311
#BT1

Rear assy diagram

Lithium battery

Part #175681311

$15.95
In Stock
Digital Camera Battery Charger 148752321
#NI

Front assy diagram

Digital camera battery charger

Part #148752321

$93.11
In Stock
Plate 415053802
#7

Front assy diagram

Plate

Part #415053802

This item is not returnable
$2.30
In Stock
Cushion 417640701
#63

Rear assy diagram

Cushion

Part #417640701

This item is not returnable
$2.30
In Stock
Screw 411124831
#175

Front assy diagram

Screw

Part #411124831

This item is not returnable
$2.30
In Stock
Paint Pen 288895201
#NI

Front assy diagram

Paint pen

Part #288895201

$10.31
In Stock
Cd-rom 416517501
#NI

Front assy diagram

Cd-rom

Part #416517501

$80.06
In Stock
