Model # 247776410 Official Craftsman log splitter
Here are the diagrams and repair parts for Official Craftsman 247776410 log splitter, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 238 parts |

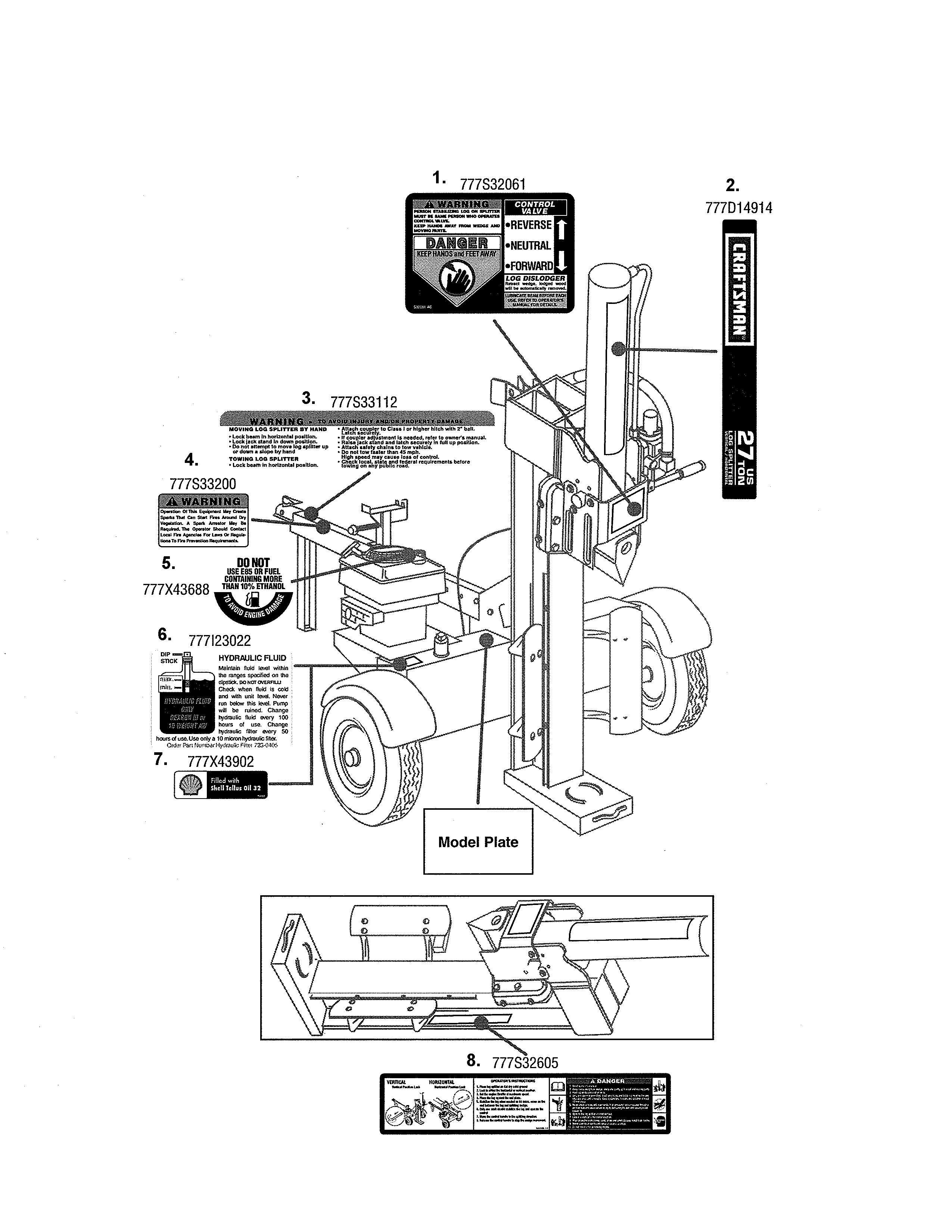

#48

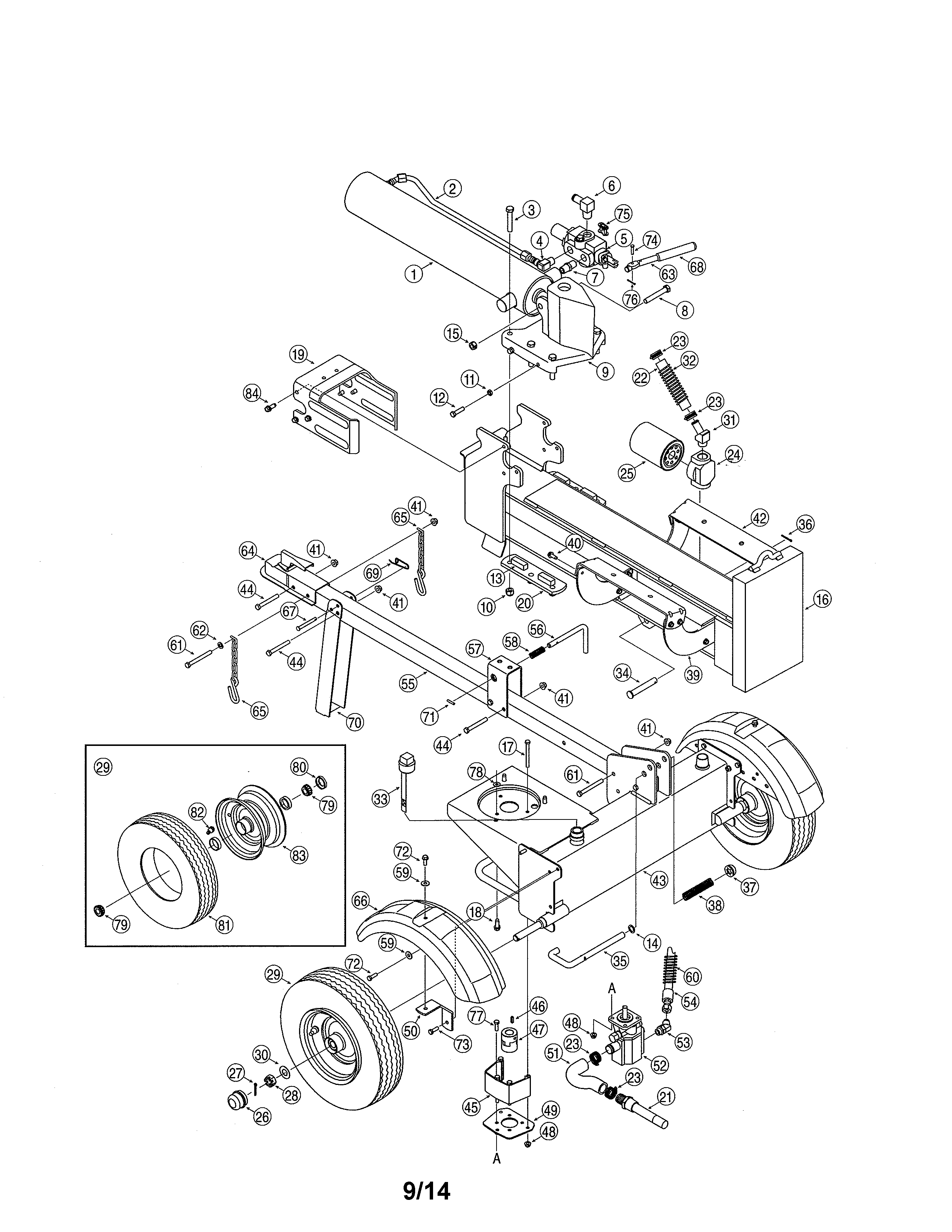

Log splitter diagram
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)
Part #712-04063
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

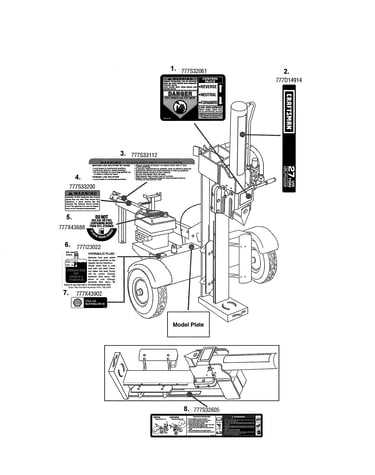

#40

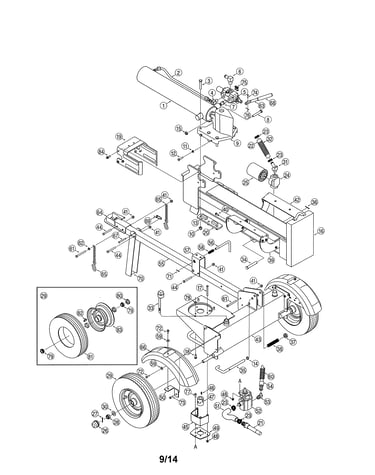

Log splitter diagram
Lawn tractor self-tapping screw, 5/16-18 x 3/4-in (replaces 01008620)
Part #710-04484
This item is not returnable
$4.93 |
17% OFF Phone Price : $5.93
In Stock
#82
Log splitter diagram
Lawn tractor tire valve stem (replaces 136291, 1718086, 734-0255)
Part #934-0255
This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
#37
Log splitter diagram
Lawn & garden equipment push cap (replaces 1917798, 926-0214)
Part #726-0214
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
#25
Log splitter diagram
Log splitter hydraulic filter
Part #723-0405
Replaced by #723P0405
?
Manufacturer substitution
This part replaces 723-0405. Substitute parts can look different from the original.
$45.06 |
12% OFF Phone Price : $51.06
In Stock
#47C
Log splitter diagram
Log splitter pump flex coupling
Part #735-04103
This item is not returnable
$22.99 |
21% OFF Phone Price : $28.99
In Stock
#77
Log splitter diagram
Ryobi lawn tractor screw
Part #710-0376
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
#5
Log splitter diagram
Log splitter control valve (replaces 717-0899-0498, 718-0481a, 918-0481)
Part #918-0481A
$332.74 |
$12.00 OFF Phone Price : $344.74
In Stock
#47A
Log splitter diagram
Log splitter pump flex coupling
Part #718-04392
This item is not returnable
$20.74 |
22% OFF Phone Price : $26.74
In Stock
#12
Log splitter diagram
Lawn & garden equipment hex bolt
Part #710-0459A
This item is not returnable
$10.29
In Stock
