Jenn-Air
Gas Cooktop

Model # CCGX2420B Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCGX2420B gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

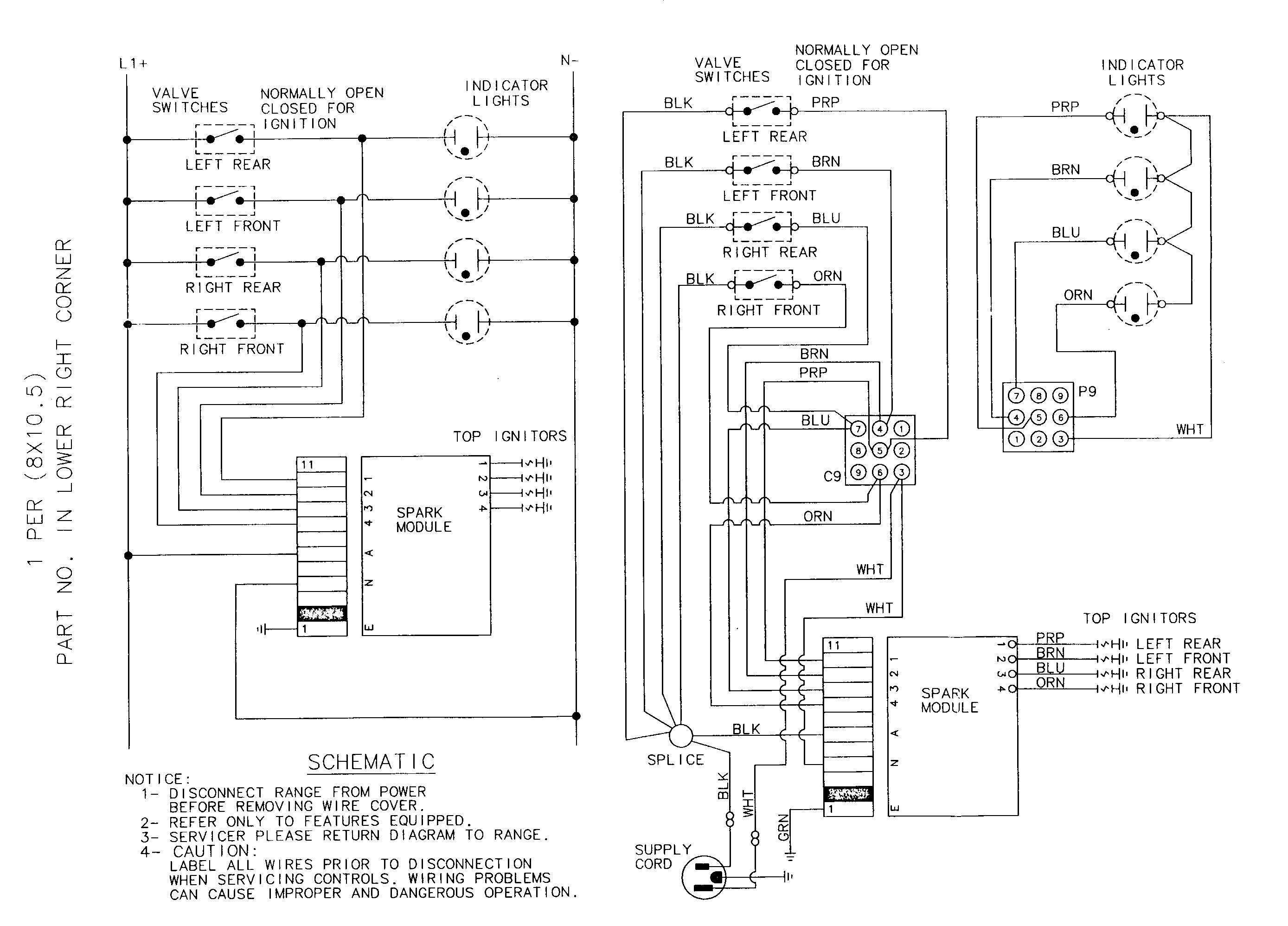

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Cooktop Igniter Switch 71003385
#11

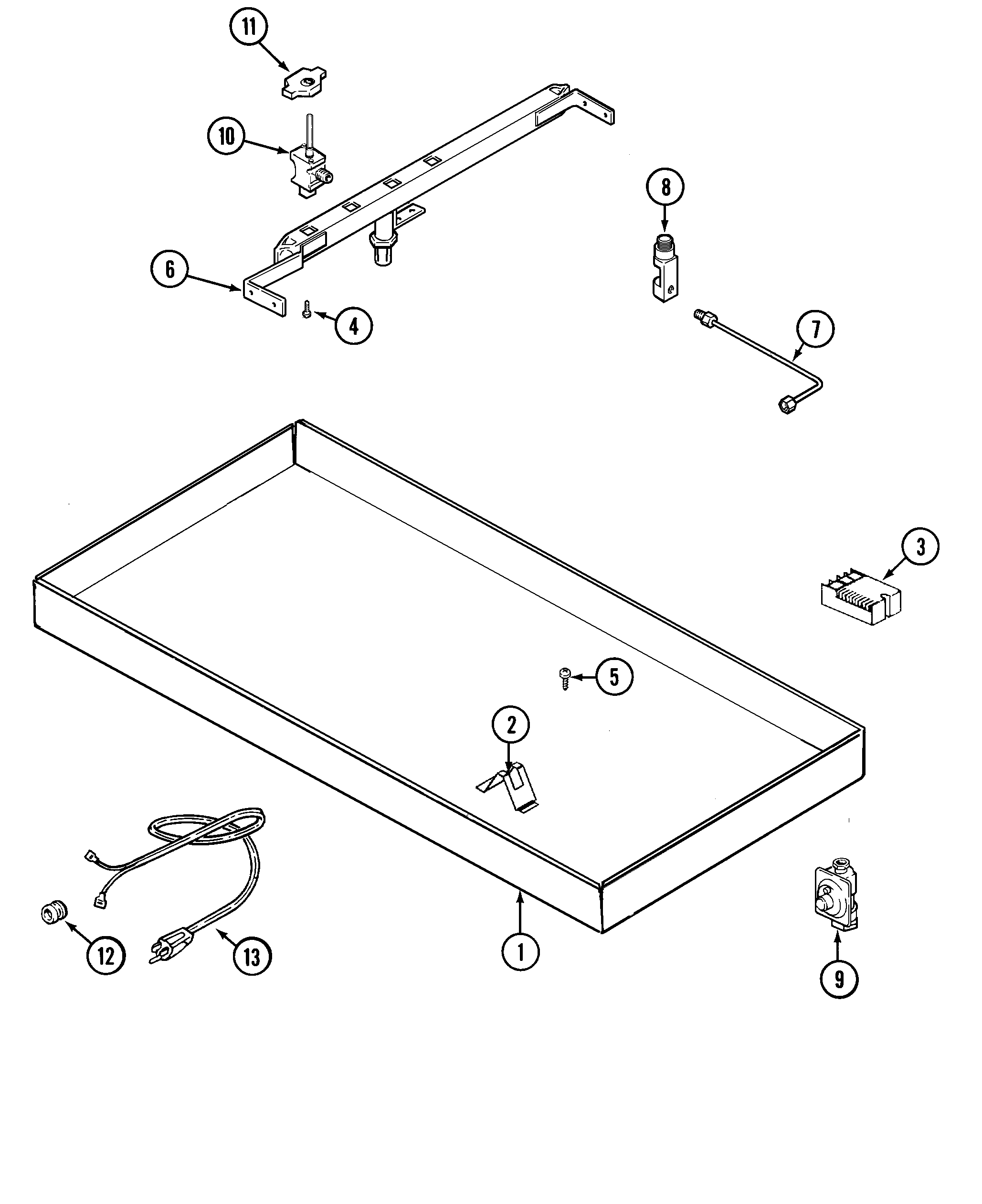

Body diagram

Cooktop igniter switch

Part #71003385

Replaced by #WP71003385

?
Manufacturer substitution
This part replaces 71003385. Substitute parts can look different from the original.
$58.38
In Stock
Cooktop Igniter 71002724
#15

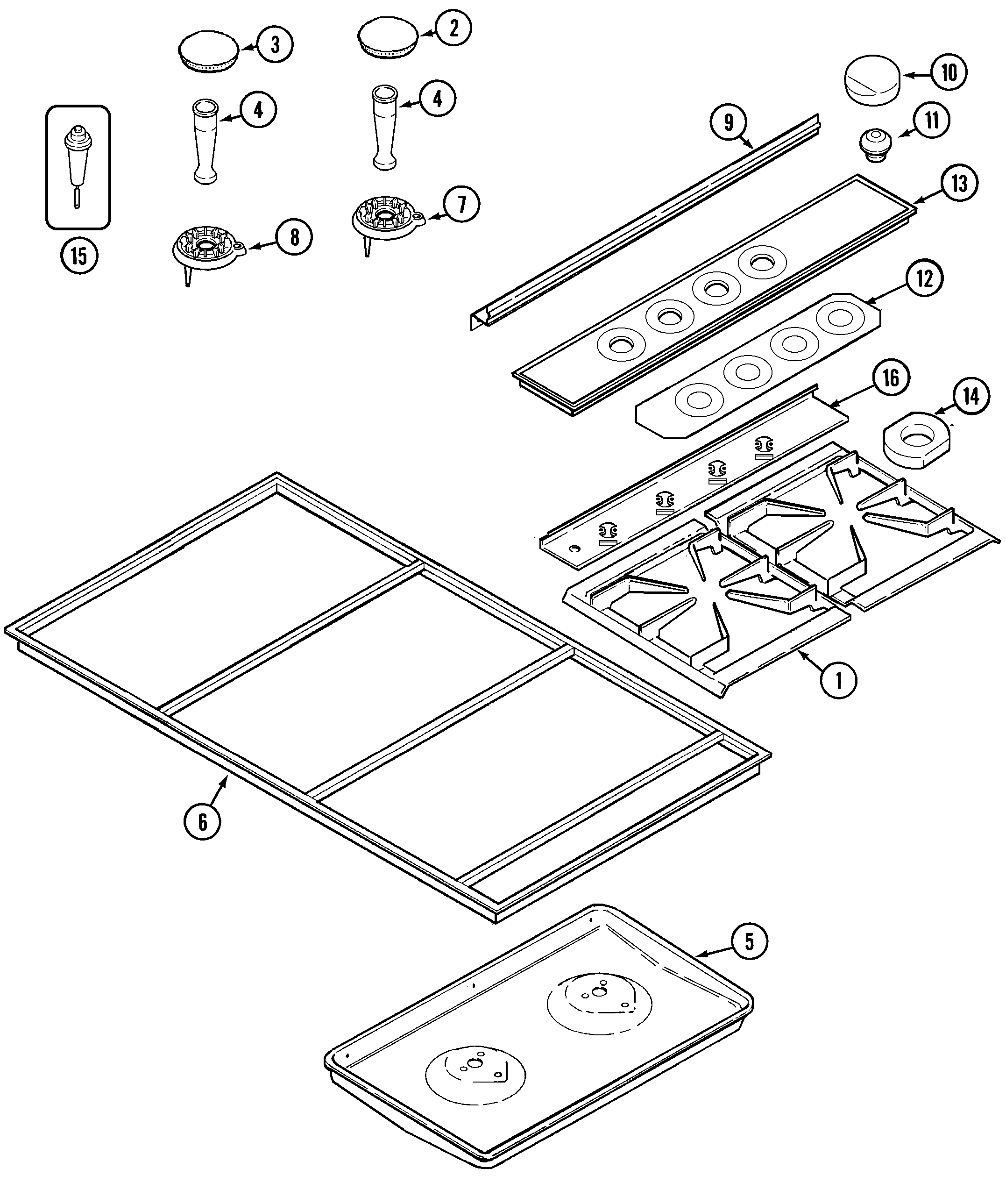

Top assembly diagram

Cooktop igniter

Part #71002724

Replaced by #WP7432P109-60

?
Manufacturer substitution
This part replaces 71002724. Substitute parts can look different from the original.
$38.38 |
14% OFF Phone Price : $44.38
In Stock
Pressure Regulator 704545
#9

Body diagram

Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$107.45 |
10% OFF Phone Price : $119.45
In Stock
Cooktop Lp Gas Orifice 71002726
#8C

Body diagram

Cooktop lp gas orifice

Part #71002726

Replaced by #WP7509P062-60

?
Manufacturer substitution
This part replaces 71002726. Substitute parts can look different from the original.
This item is not returnable
$4.54
In Stock
Tube 71002804
#7

Body diagram

Tube

Part #71002804

Replaced by #7506P213-60

?
Manufacturer substitution
This part replaces 71002804. Substitute parts can look different from the original.
$30.49 |
16% OFF Phone Price : $36.49
In Stock
Holder Orifice 71002723
#8B

Body diagram

Holder orifice

Part #71002723

$53.79 |
10% OFF Phone Price : $59.79
In Stock
Venturi 71002747
#4

Top assembly diagram

Venturi

Part #71002747

Replaced by #WP7538P003-60

?
Manufacturer substitution
This part replaces 71002747. Substitute parts can look different from the original.
$47.39 |
11% OFF Phone Price : $53.39
In Stock
Cooktop Burner Lp Orifice, 4,500-btu 71002728
#8D

Body diagram

Cooktop burner lp orifice, 4,500-btu

Part #71002728

Replaced by #71002728

?
Manufacturer substitution
This part replaces 71002728. Substitute parts can look different from the original.
This item is not returnable
$2.78
In Stock
Cooktop Burner Knob 71002372
#10

Top assembly diagram

Cooktop burner knob

Part #71002372

Replaced by #WP71002372

?
Manufacturer substitution
This part replaces 71002372. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Grommet, Spi 71002370
#11

Top assembly diagram

Grommet, spi

Part #71002370

Replaced by #WP8008P071-60

?
Manufacturer substitution
This part replaces 71002370. Substitute parts can look different from the original.
This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
