Model # JDB9200CWS3 Official Jenn-Air dishwasher
Here are the diagrams and repair parts for Official Jenn-Air JDB9200CWS3 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

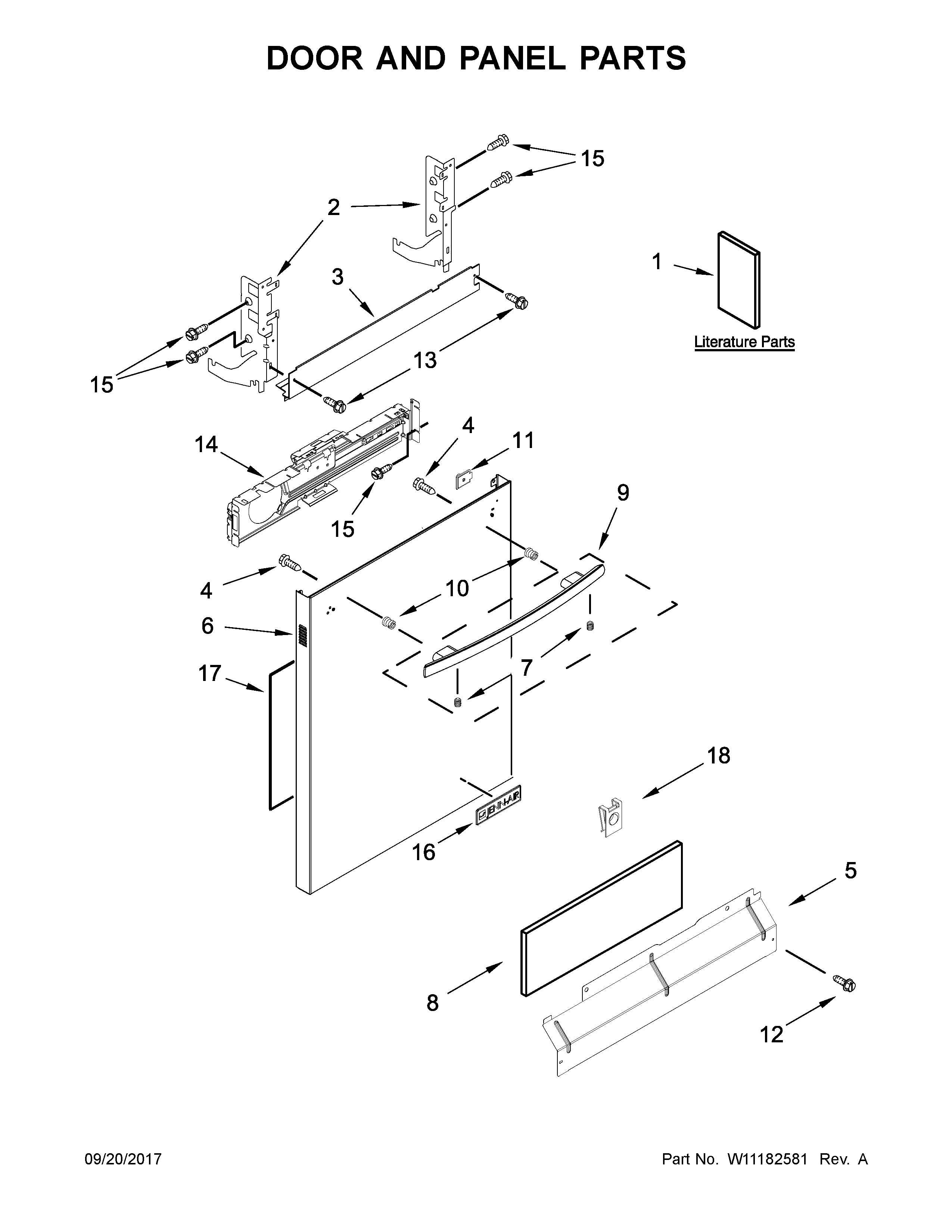

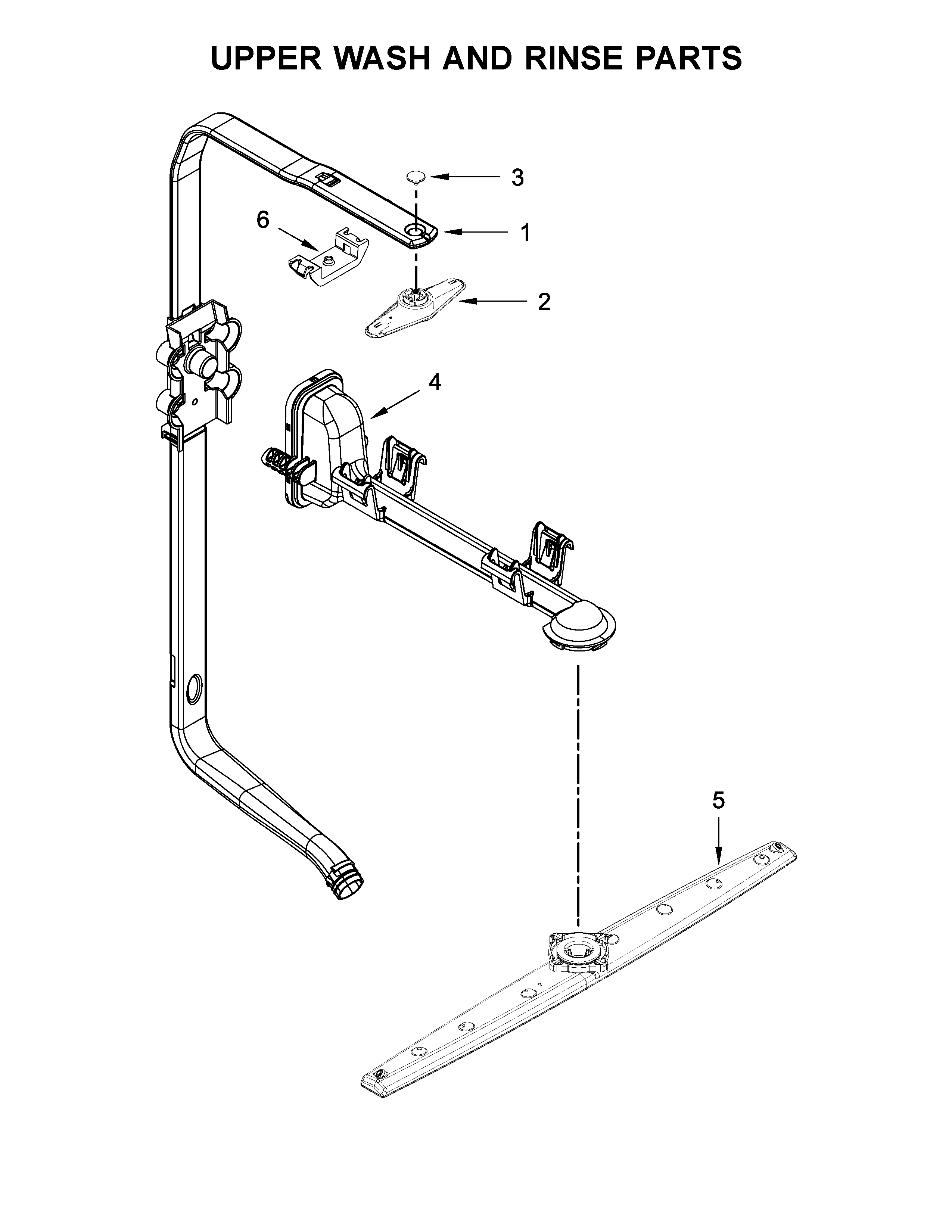

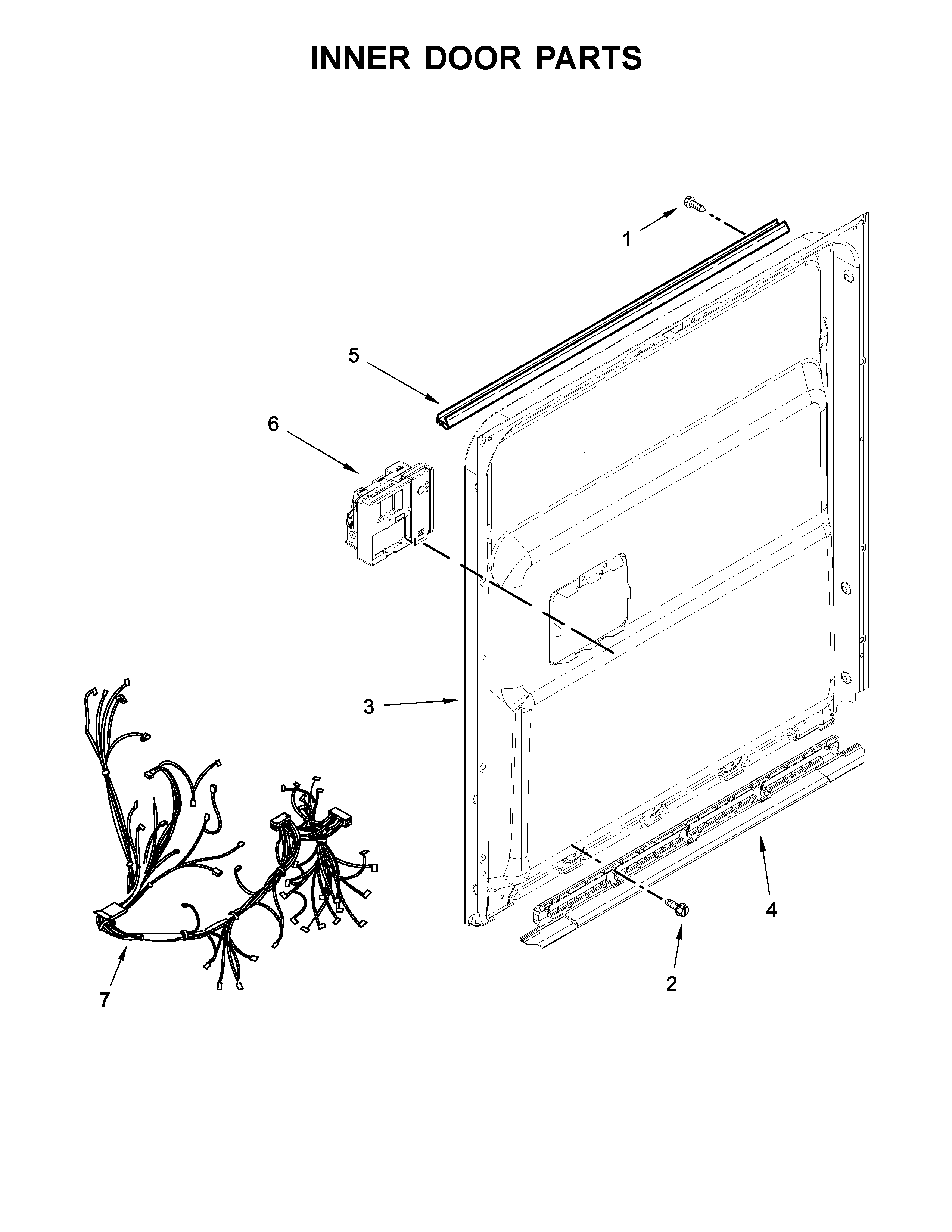

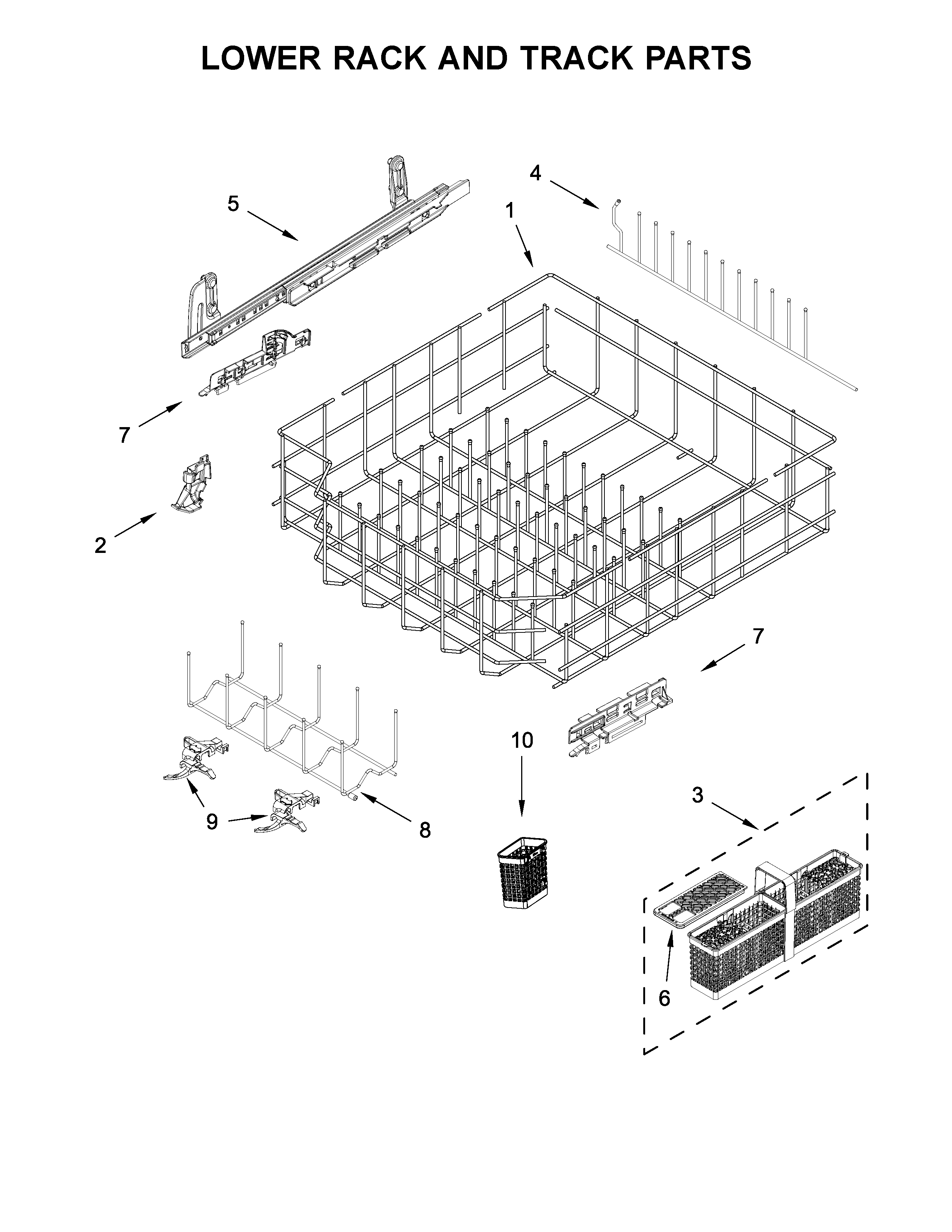

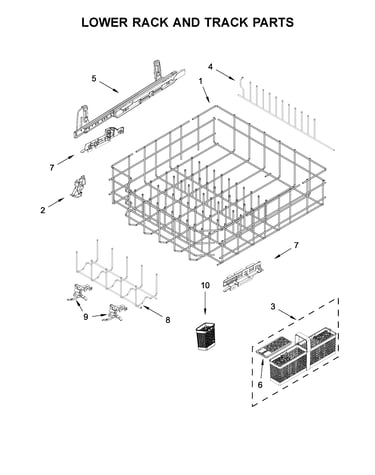

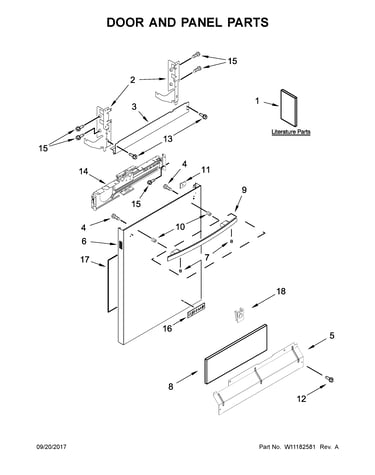

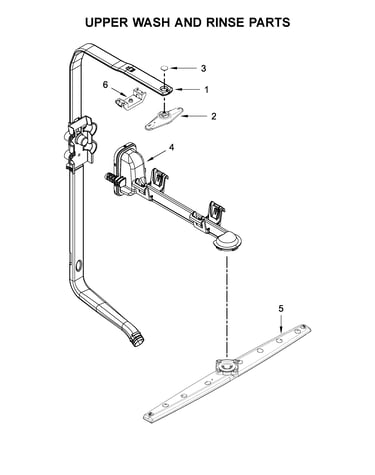

SELECT DIAGRAM
Browse Parts forJDB9200CWS3 Dishwasher
- #3

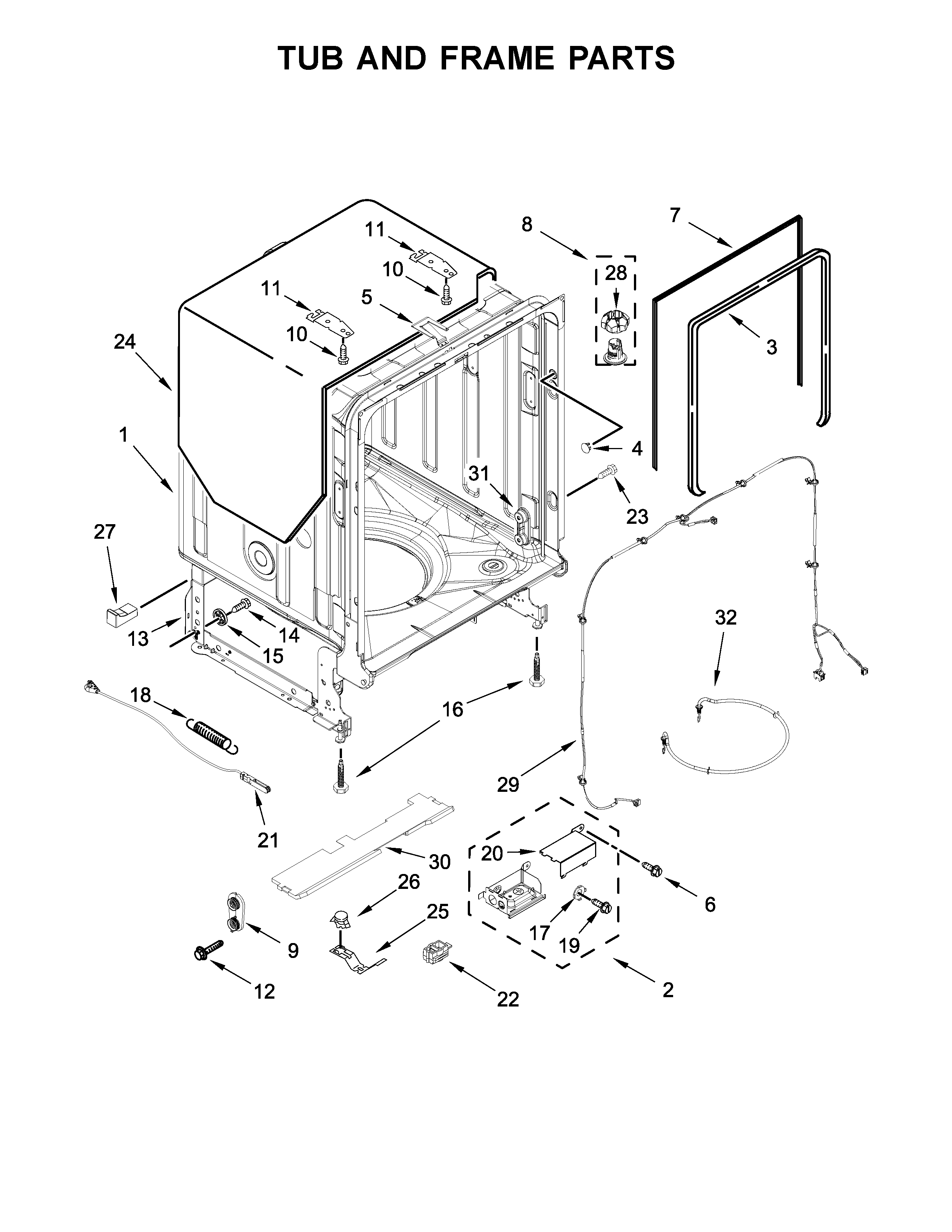

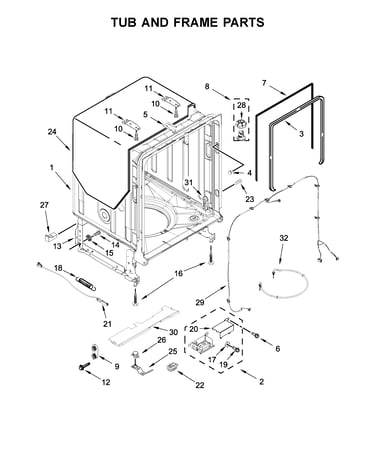

Tub and frame parts diagram
Tub gasketPart #W10660528
Replaced by #W11177741
?Manufacturer substitutionThis part replaces W10660528. Substitute parts can look different from the original.$45.32 |12% OFF Phone Price : $51.32In Stock - #4

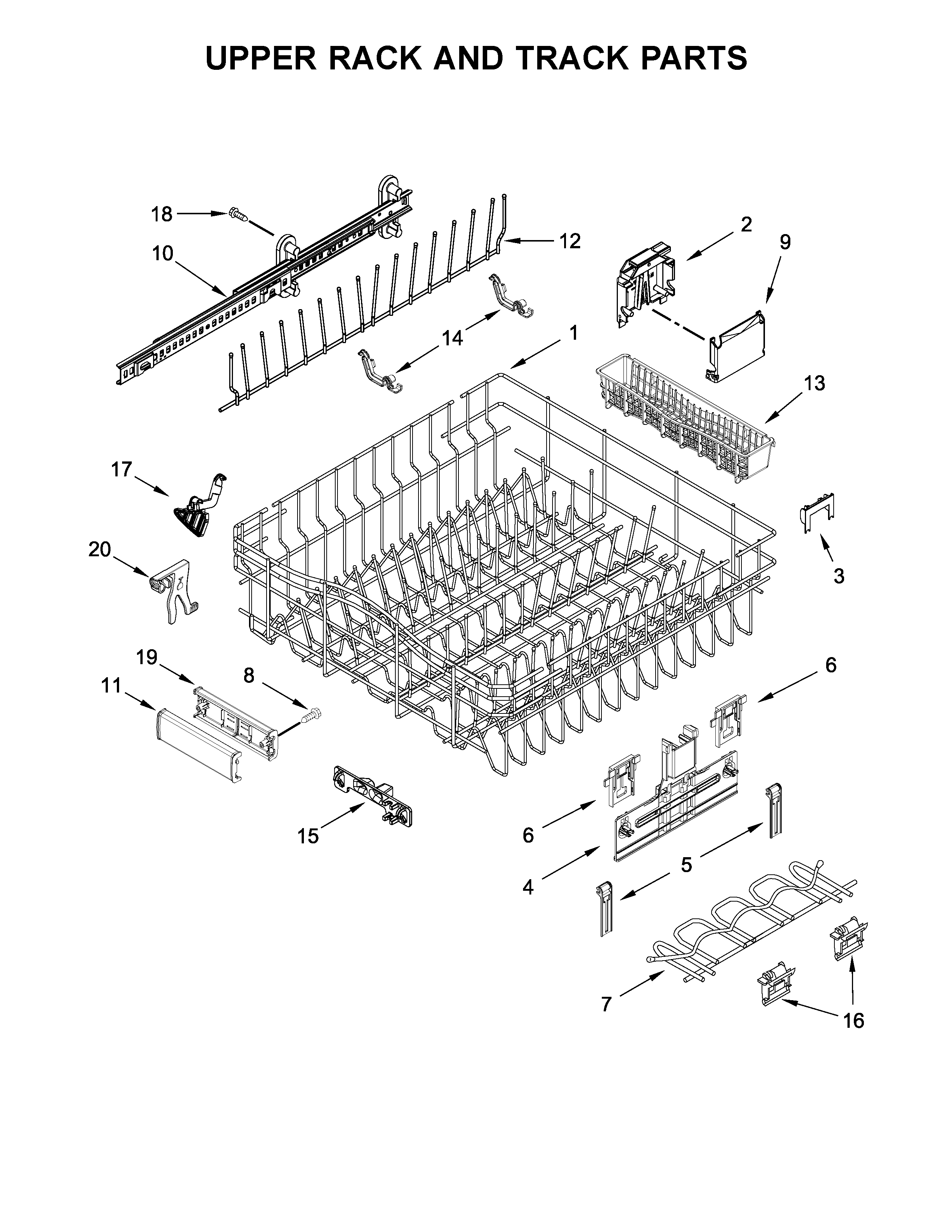

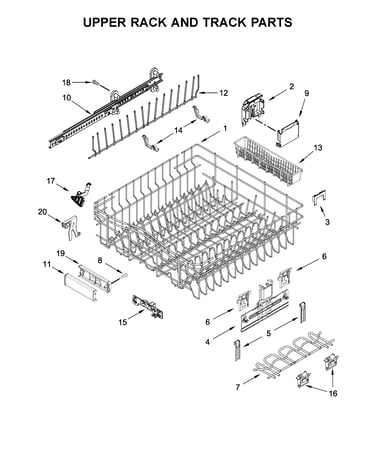

Upper rack and track parts diagram
Dishwasher dishrack adjusterPart #W10546503
Replaced by #WPW10546503
?Manufacturer substitutionThis part replaces W10546503. Substitute parts can look different from the original.$24.07 |20% OFF Phone Price : $30.07In Stock - #21
Tub and frame parts diagram
Dishwasher door balance linkPart #W10158291
Replaced by #8194001
?Manufacturer substitutionThis part replaces W10158291. Substitute parts can look different from the original.$24.69 |20% OFF Phone Price : $30.69In Stock - #11

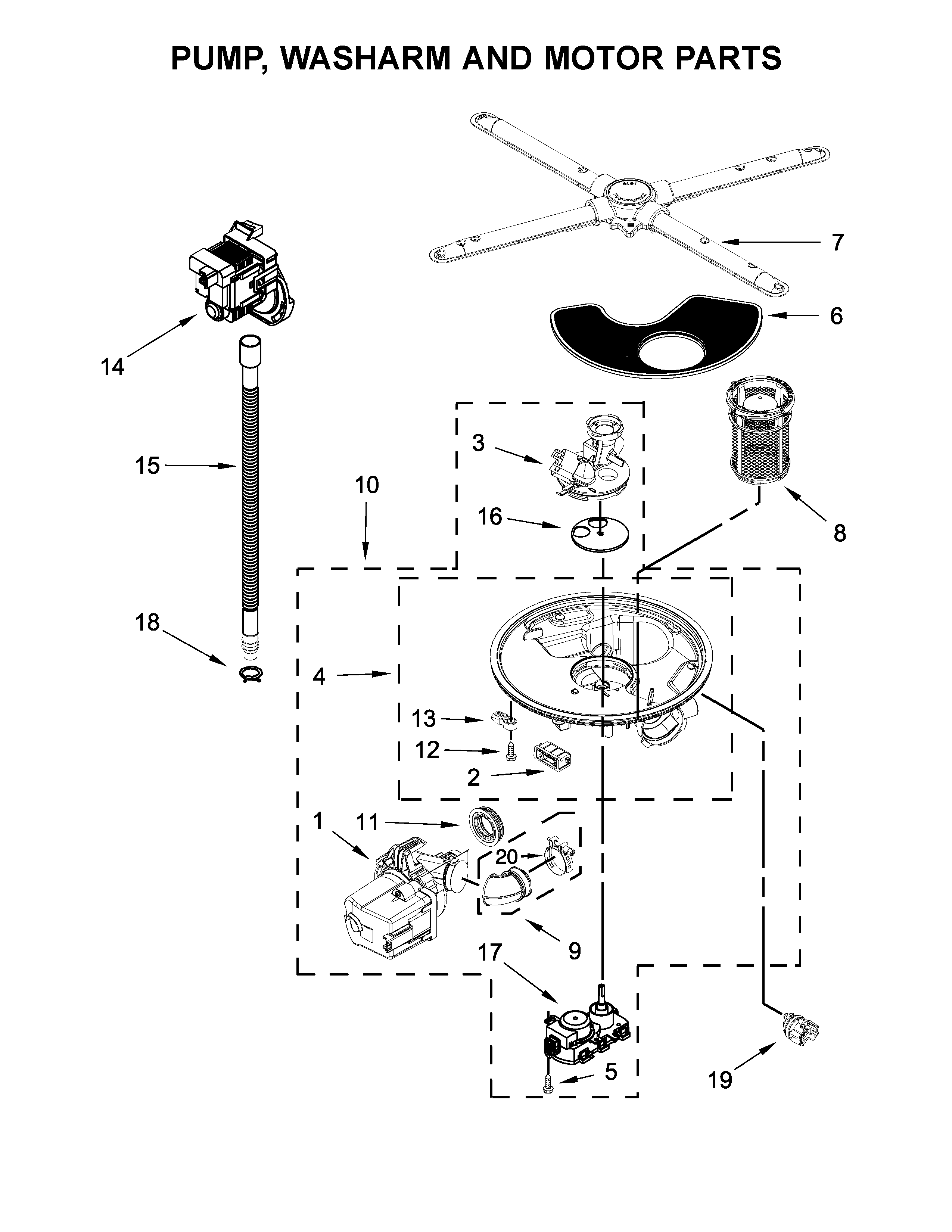

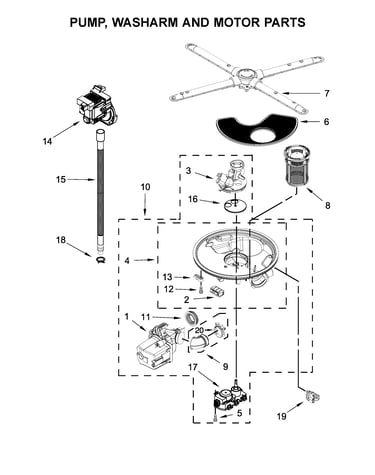

Pump, washarm and motor parts diagram
Dishwasher pump grommetPart #W10538166
Replaced by #WPW10538166
?Manufacturer substitutionThis part replaces W10538166. Substitute parts can look different from the original.$18.73 |10% OFF Phone Price : $20.73In Stock - #32
Tub and frame parts diagram
Element assemblyPart #W10696509
Replaced by #W10703867
?Manufacturer substitutionThis part replaces W10696509. Substitute parts can look different from the original.$66.43 |8% OFF Phone Price : $72.43In Stock - #14
Upper rack and track parts diagram
Dishwasher tine pivot clipPart #W10082853
Replaced by #WPW10082853
?Manufacturer substitutionThis part replaces W10082853. Substitute parts can look different from the original.This item is not returnable$5.71 |15% OFF Phone Price : $6.71In Stock - #17
Pump, washarm and motor parts diagram
Dishwasher diverter motorPart #W10849439
Replaced by #W10537869
?Manufacturer substitutionThis part replaces W10849439. Substitute parts can look different from the original.$57.42 |9% OFF Phone Price : $63.42In Stock - #15
Pump, washarm and motor parts diagram

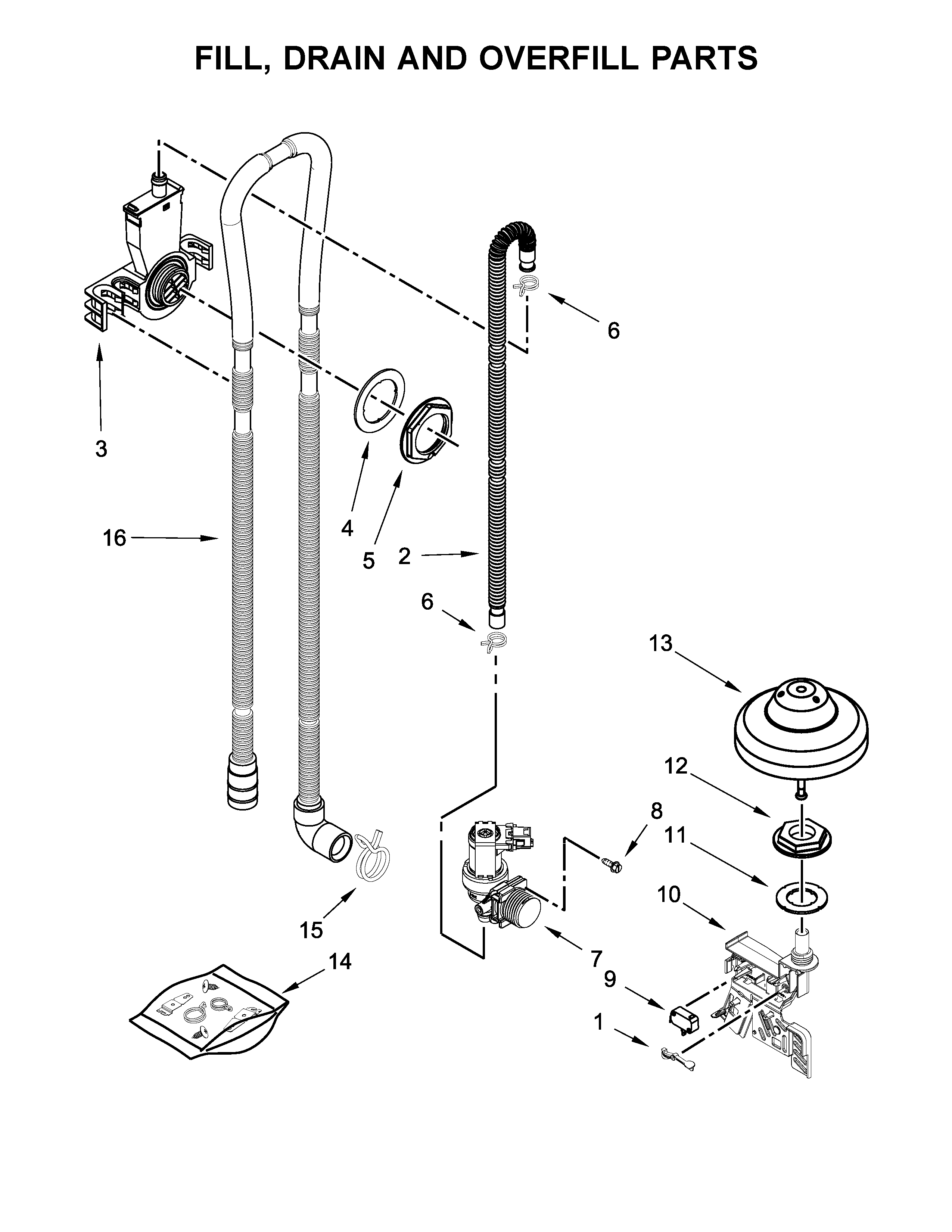

Dishwasher drain hosePart #8269144
Replaced by #8269144A
?Manufacturer substitutionThis part replaces 8269144. Substitute parts can look different from the original.$17.35 |10% OFF Phone Price : $19.35In Stock - #2

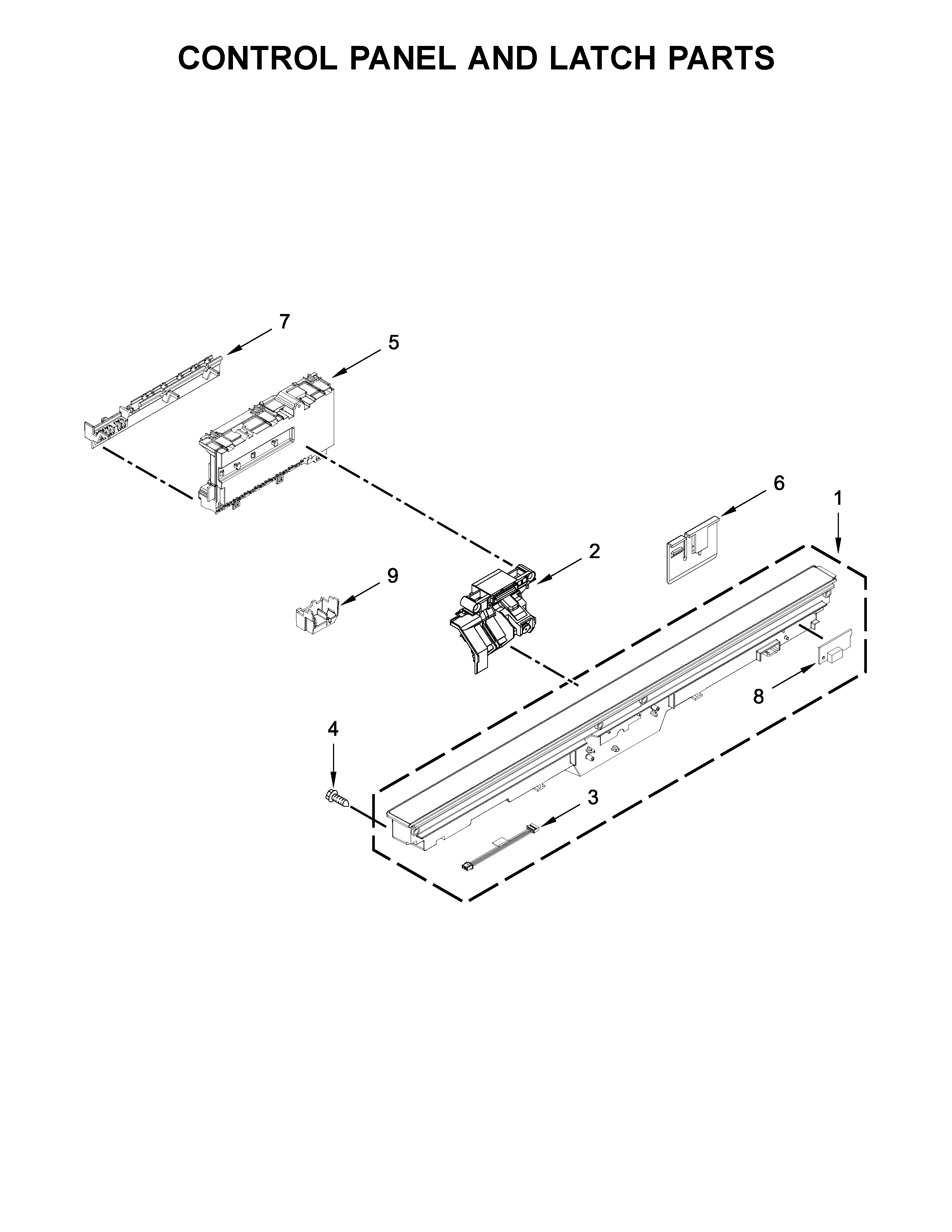

Control panel and latch parts diagram
Dishwasher door latchPart #W10653840
Replaced by #WPW10653840
?Manufacturer substitutionThis part replaces W10653840. Substitute parts can look different from the original.$20.42 |23% OFF Phone Price : $26.42In Stock - #4
Pump, washarm and motor parts diagram
Dishwasher sump and seal assemblyPart #W10455268
Replaced by #WPW10455268
?Manufacturer substitutionThis part replaces W10455268. Substitute parts can look different from the original.$98.55 |11% OFF Phone Price : $110.55In Stock
