Model # 63077932010 Official Kenmore Elite dishwasher

Here are the diagrams and repair parts for Official Kenmore Elite 63077932010 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

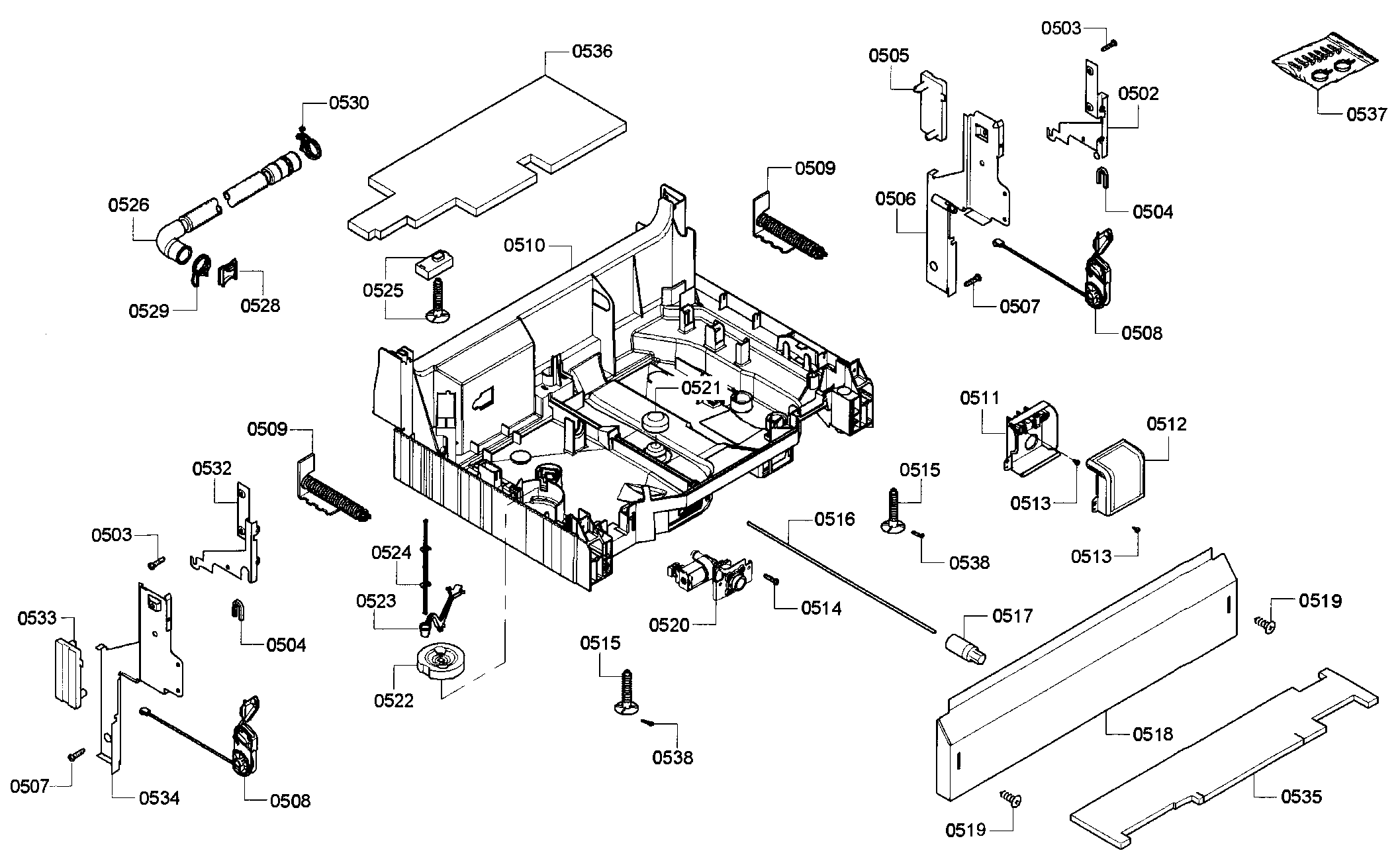

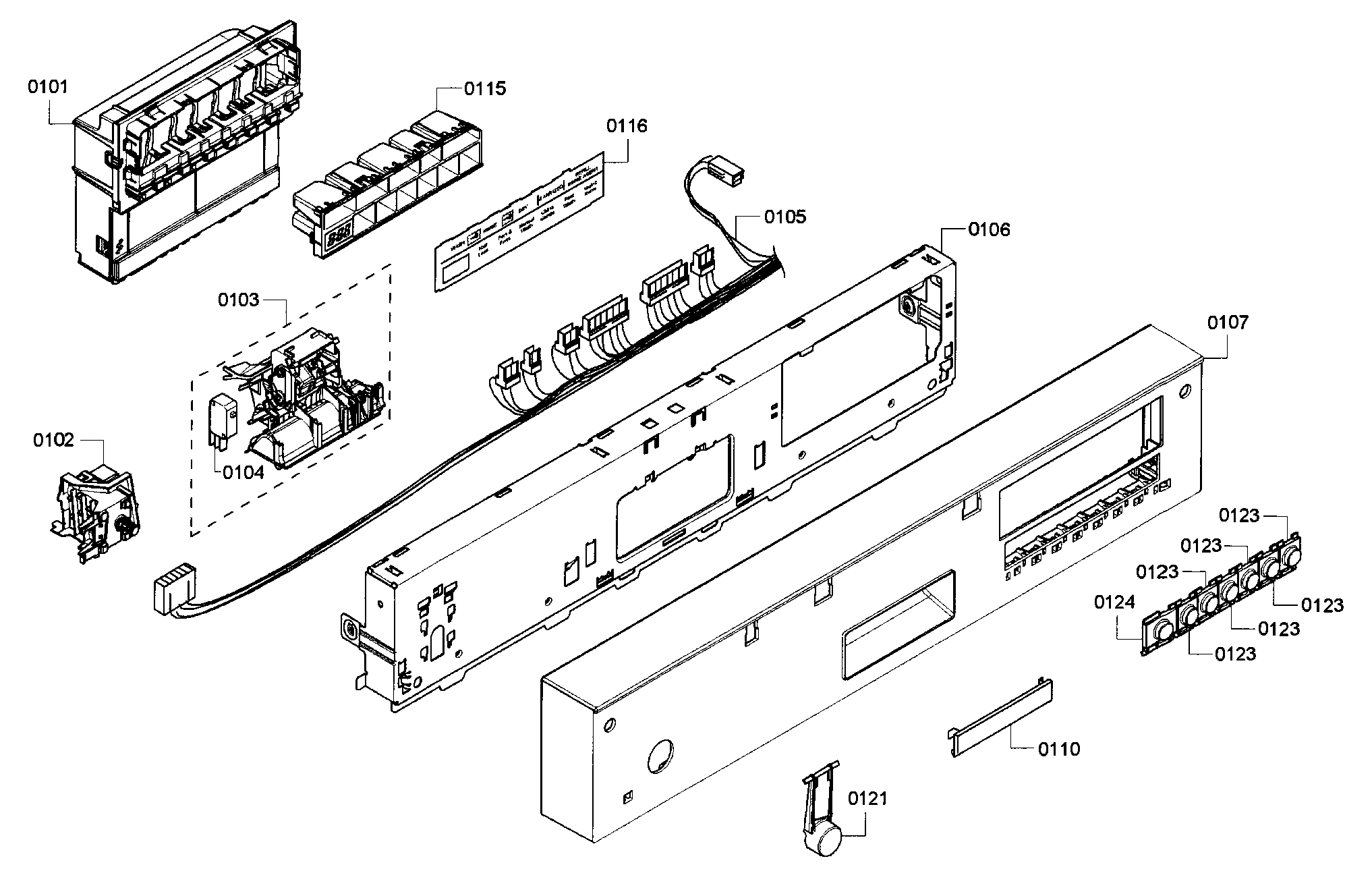

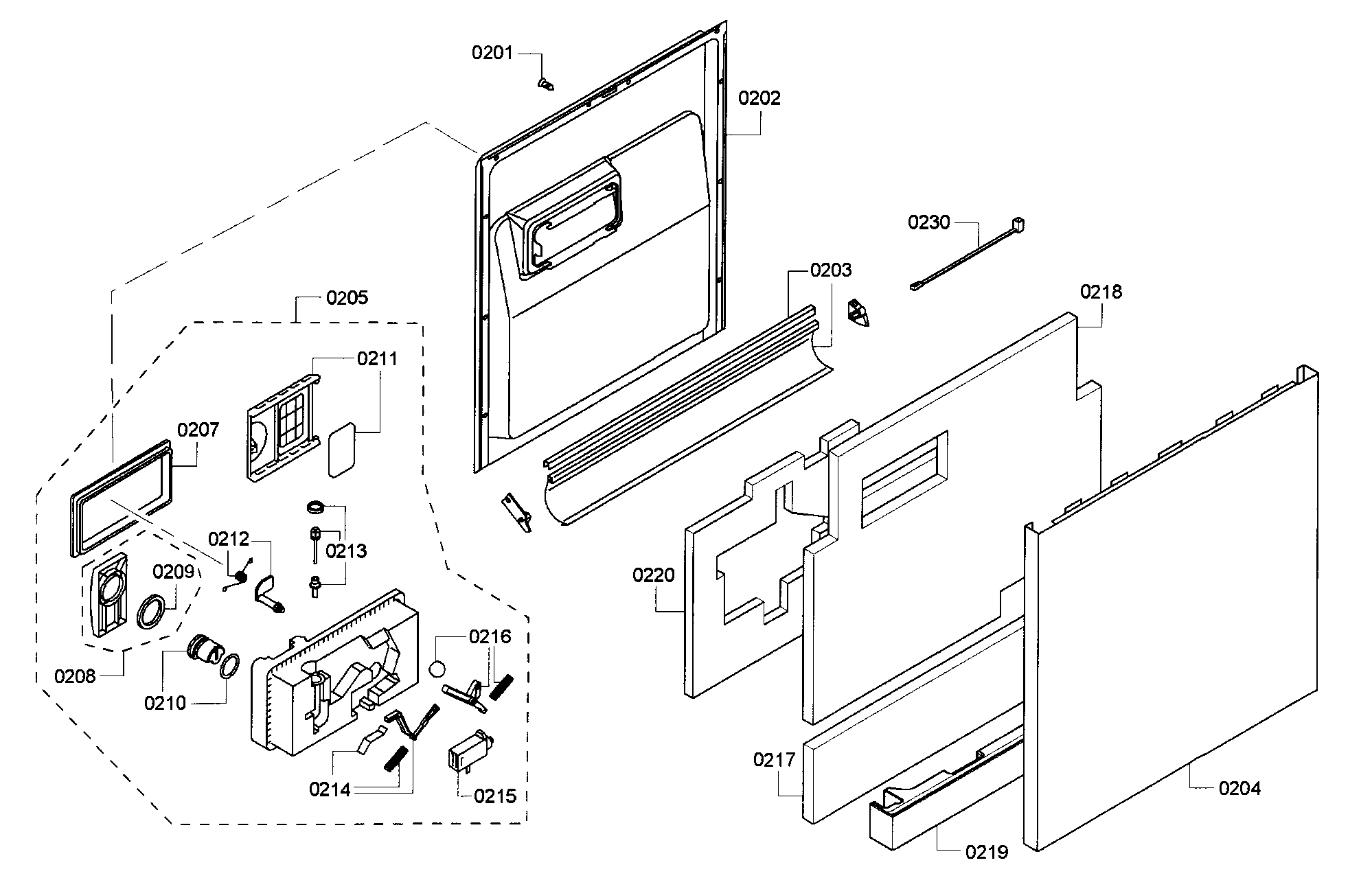

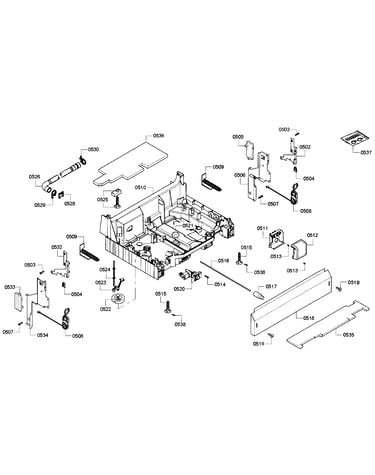

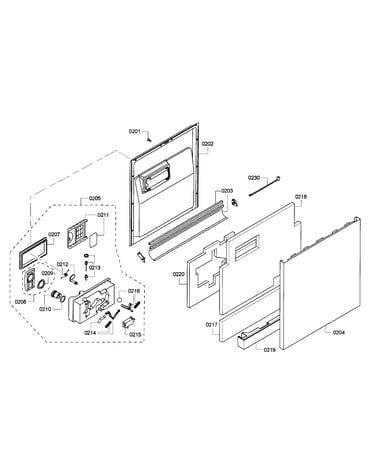

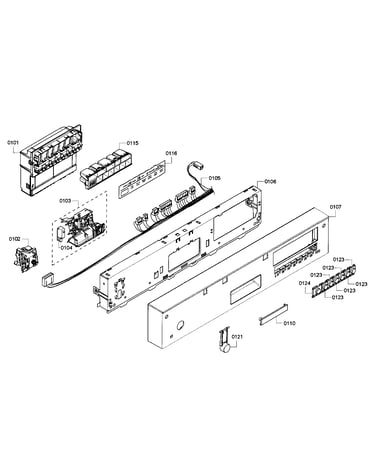

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for63077932010 Dishwasher

  • Dishwasher Recirculation Pump Assembly 442548
    #419

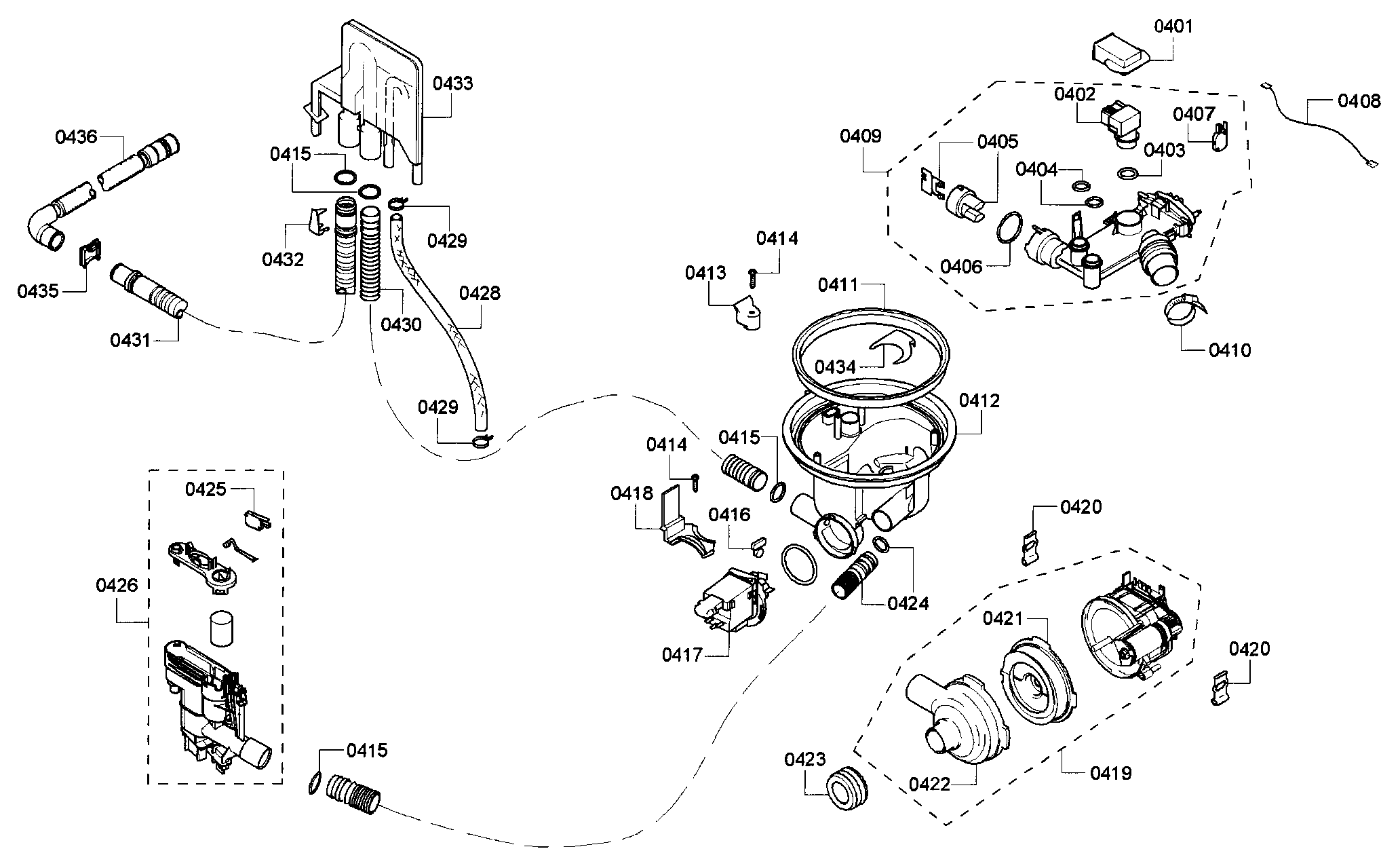

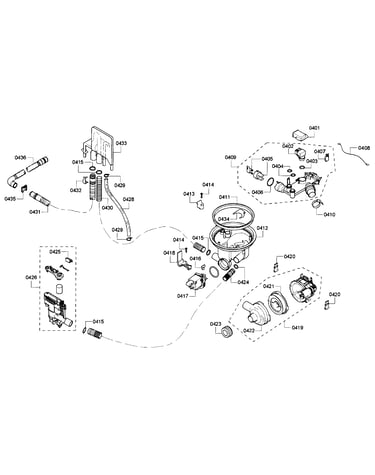

    Pump assy diagram

    Dishwasher recirculation pump assembly

    Part #442548

    Replaced by #00442548

    ?
    Manufacturer substitution
    This part replaces 442548. Substitute parts can look different from the original.
    BEST SELLER
    $243.67
    5% OFF Phone Price : $255.67
    In Stock
  • Door Gasket 494772
    #307

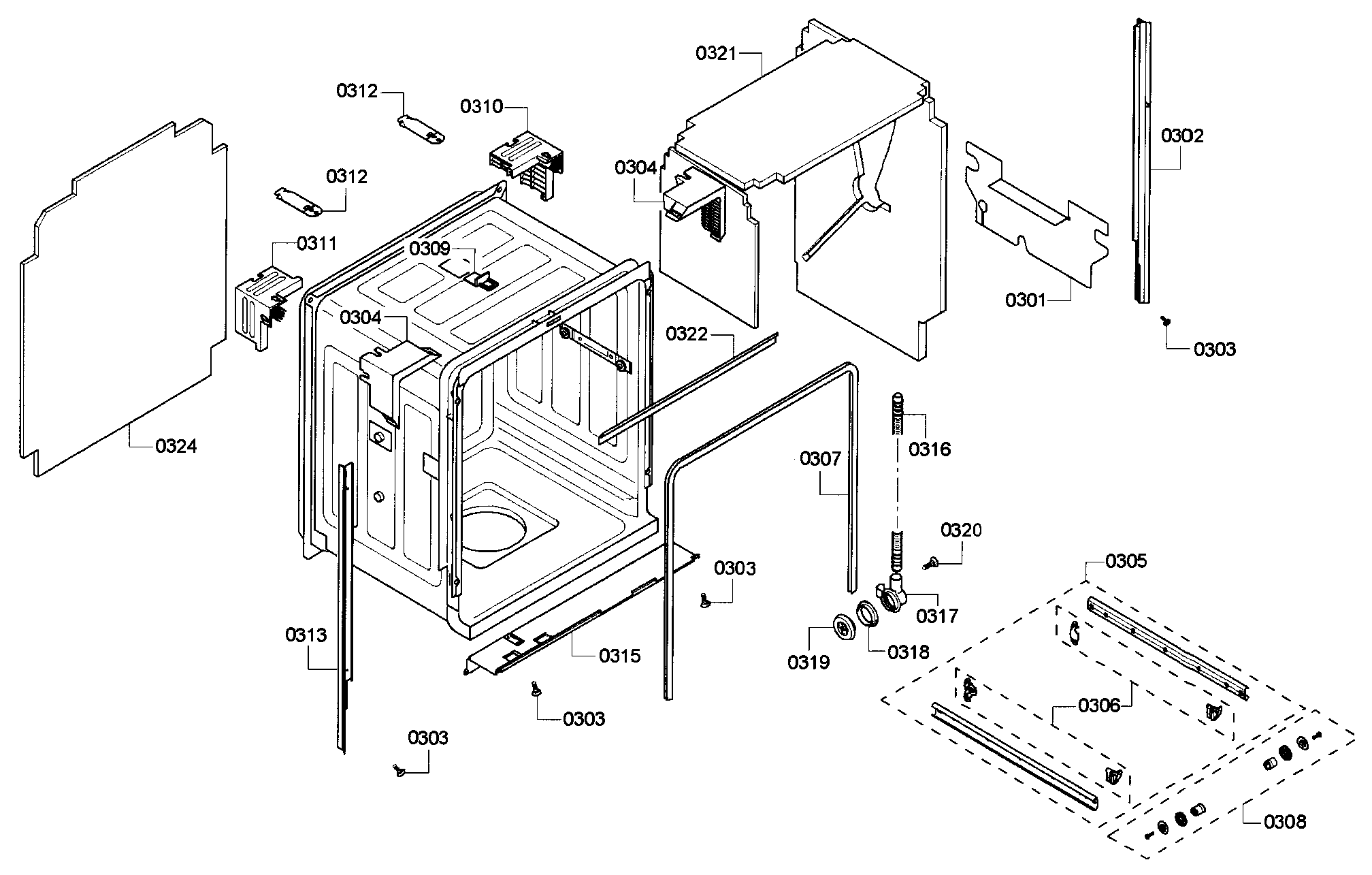

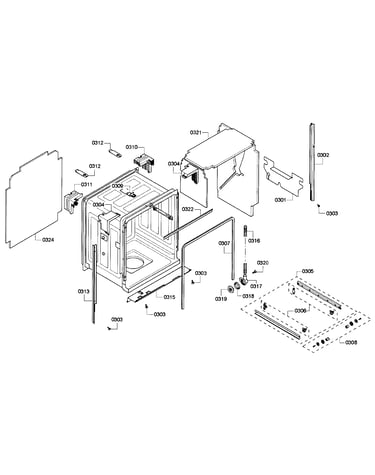

    Cabinet assy diagram

    Door gasket

    Part #494772

    Replaced by #00494772

    ?
    Manufacturer substitution
    This part replaces 494772. Substitute parts can look different from the original.
    BEST SELLER
    $29.72
    17% OFF Phone Price : $35.72
    In Stock
  • Hose Clamp 172272
    #410

    Pump assy diagram

    Hose clamp

    Part #172272

    Replaced by #00172272

    ?
    Manufacturer substitution
    This part replaces 172272. Substitute parts can look different from the original.
    BEST SELLER
    $28.11
    18% OFF Phone Price : $34.11
    In Stock
  • Drain Pump 642239
    #417

    Pump assy diagram

    Drain pump

    Part #642239

    Replaced by #00642239

    ?
    Manufacturer substitution
    This part replaces 642239. Substitute parts can look different from the original.
    BEST SELLER
    $126.36
    9% OFF Phone Price : $138.36
    In Stock
  • Dishwasher Drain Hose 668108
    Dishwasher drain hose

    Part #668108

    Replaced by #00668108

    ?
    Manufacturer substitution
    This part replaces 668108. Substitute parts can look different from the original.
    BEST SELLER
    $37.99
    14% OFF Phone Price : $43.99
    In Stock
  • Dishwasher Wash Pump Gasket 171598
    #423

    Pump assy diagram

    Dishwasher wash pump gasket

    Part #171598

    Replaced by #00171598

    ?
    Manufacturer substitution
    This part replaces 171598. Substitute parts can look different from the original.
    BEST SELLER
    $28.09
    18% OFF Phone Price : $34.09
    In Stock
  • Dishwasher Mounting Set 619985
    #312

    Cabinet assy diagram

    Dishwasher mounting set

    Part #619985

    Replaced by #00619985

    ?
    Manufacturer substitution
    This part replaces 619985. Substitute parts can look different from the original.
    $13.89
    13% OFF Phone Price : $15.89
    In Stock
  • Holder 616990
    #608

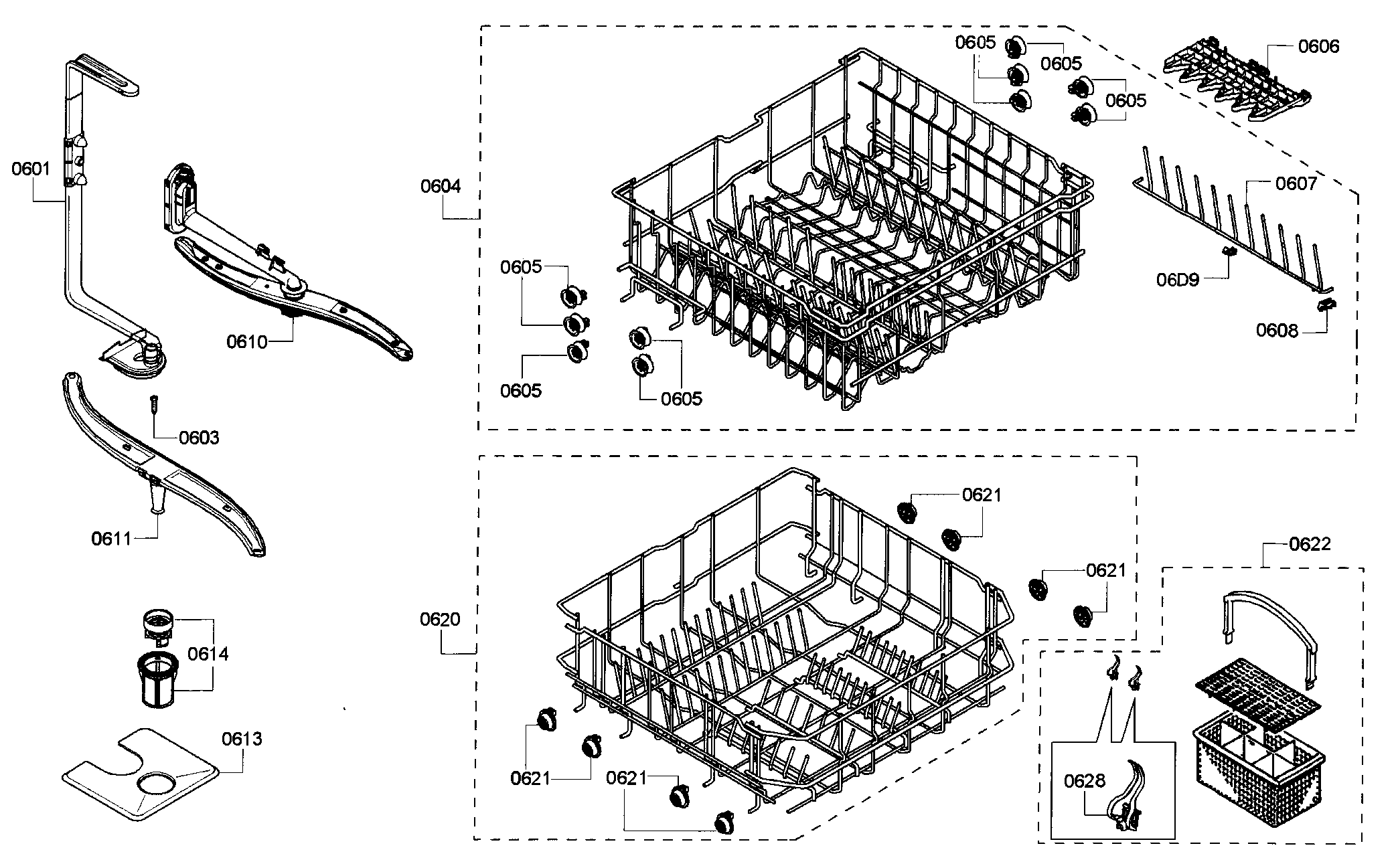

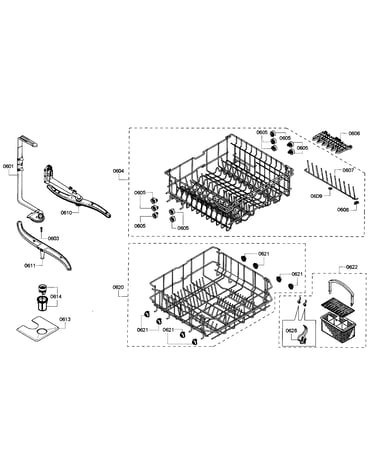

    Rack assy diagram

    Holder

    Part #616990

    The manufacturer no longer makes this part, and there's no substitute part

  • Diswasher Mesh Filter 615079
    #614

    Rack assy diagram

    Diswasher mesh filter

    Part #615079

    Replaced by #00615079

    ?
    Manufacturer substitution
    This part replaces 615079. Substitute parts can look different from the original.
    $48.75
    11% OFF Phone Price : $54.75
    In Stock
  • Holder 616989
    #609

    Rack assy diagram

    Holder

    Part #616989

    Replaced by #00616989

    ?
    Manufacturer substitution
    This part replaces 616989. Substitute parts can look different from the original.
    This item is not returnable
    $4.39
    19% OFF Phone Price : $5.39
    In Stock
