White-Westinghouse
Gas Range

Model # PGF716HXW4 Official White-Westinghouse gas range - lw32490040

Here are the diagrams and repair parts for Official White-Westinghouse PGF716HXW4 gas range - lw32490040, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Igniter 5308009420
#22

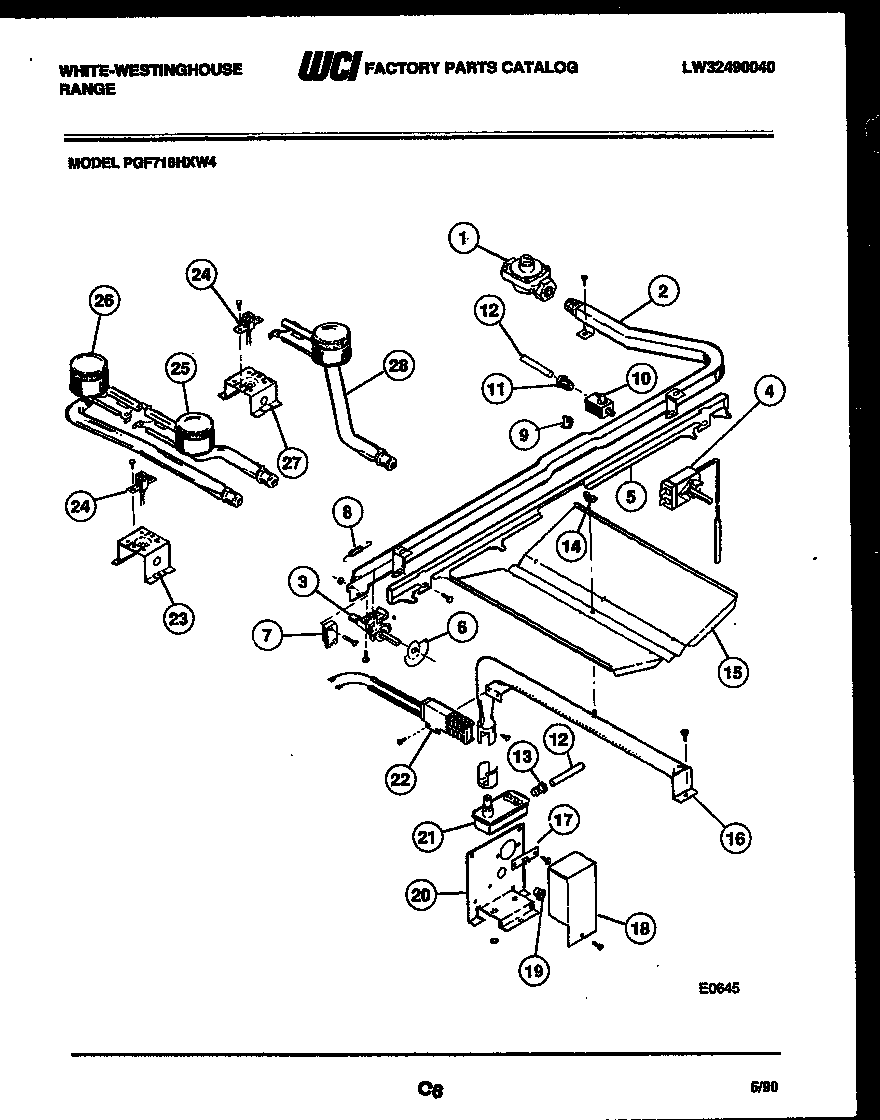

Burner, manifold and gas control diagram

Igniter

Part #5308009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#18

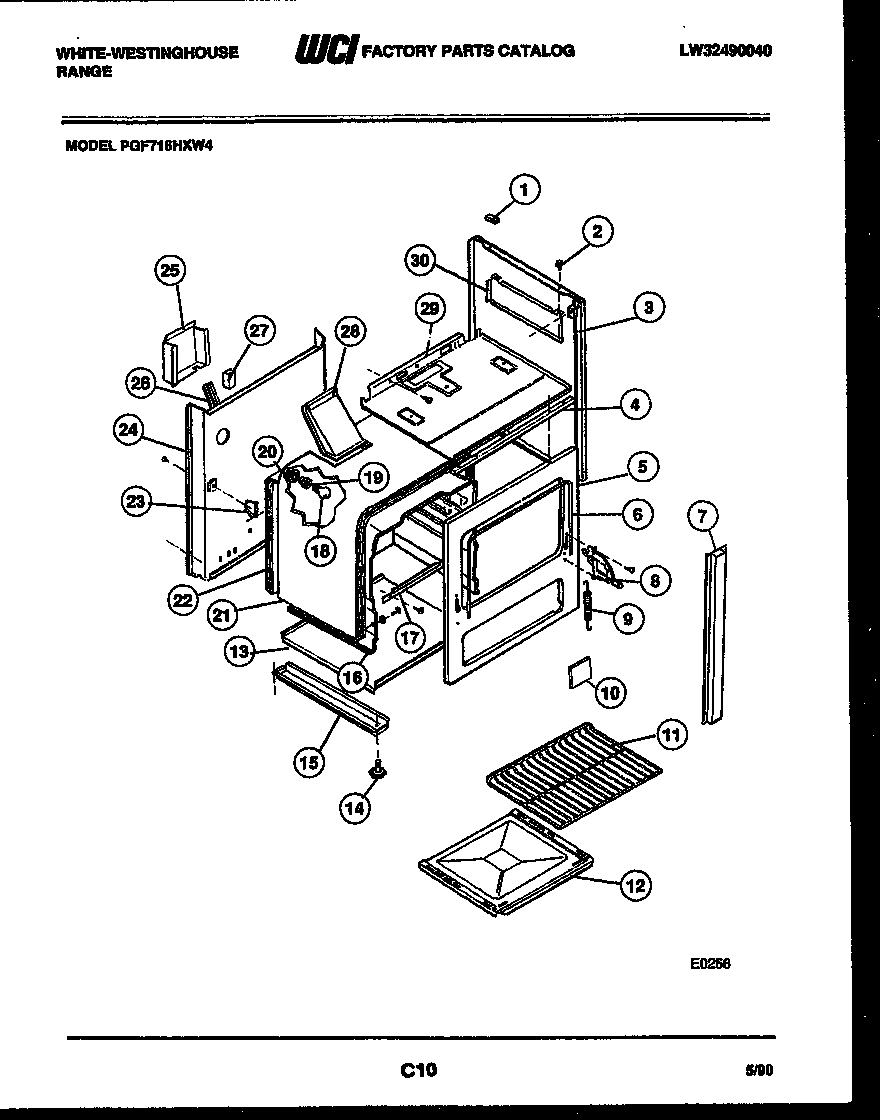

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 5303009410
#19

Body parts diagram

Receptacle

Part #5303009410

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5303009410. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Hinge 5303204672
#8A

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock

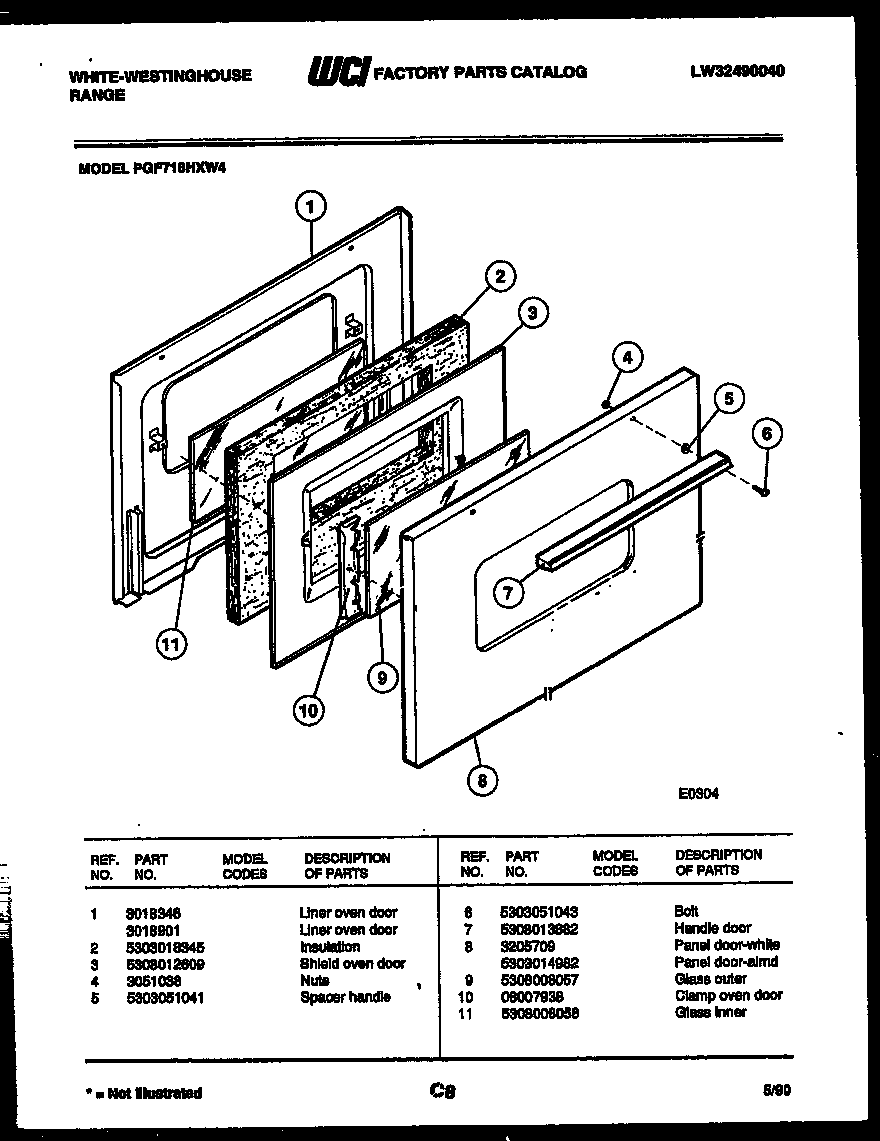

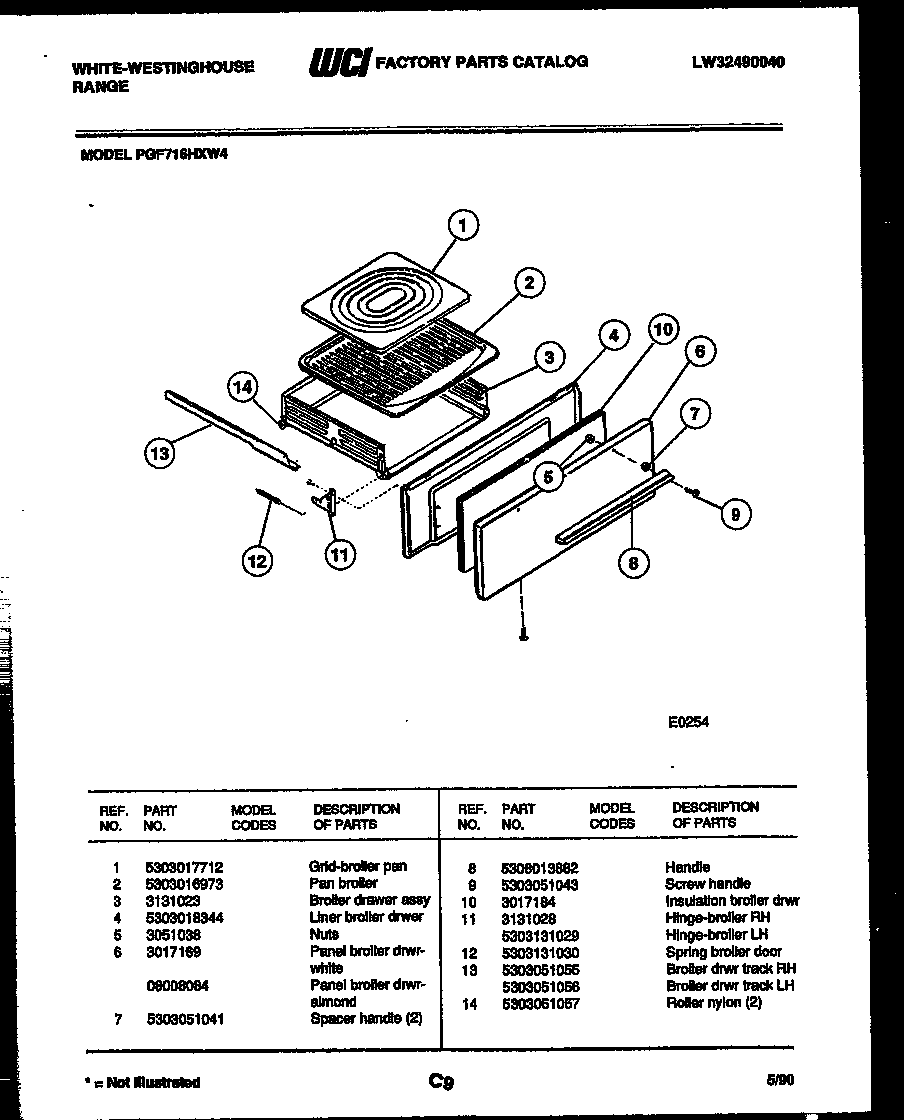

Nut 3051038
Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Glass Q000301907
#8

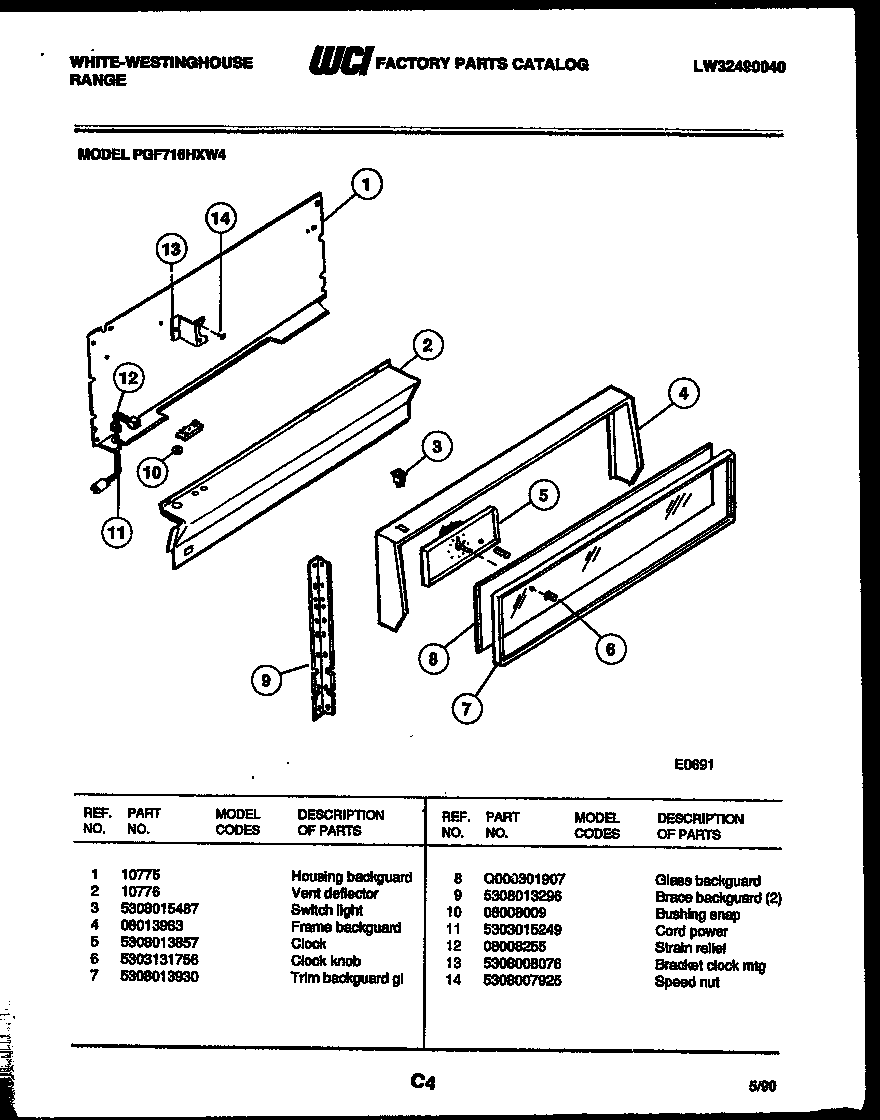

Backguard diagram

Glass

Part #Q000301907

$49.49
In Stock
Range Pressure Regulator 5308007974
#1

Burner, manifold and gas control diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Bushing 08008009
#10

Backguard diagram

Bushing

Part #08008009

$10.20
In Stock
Range Surface Burner Knob 5308013898
#7

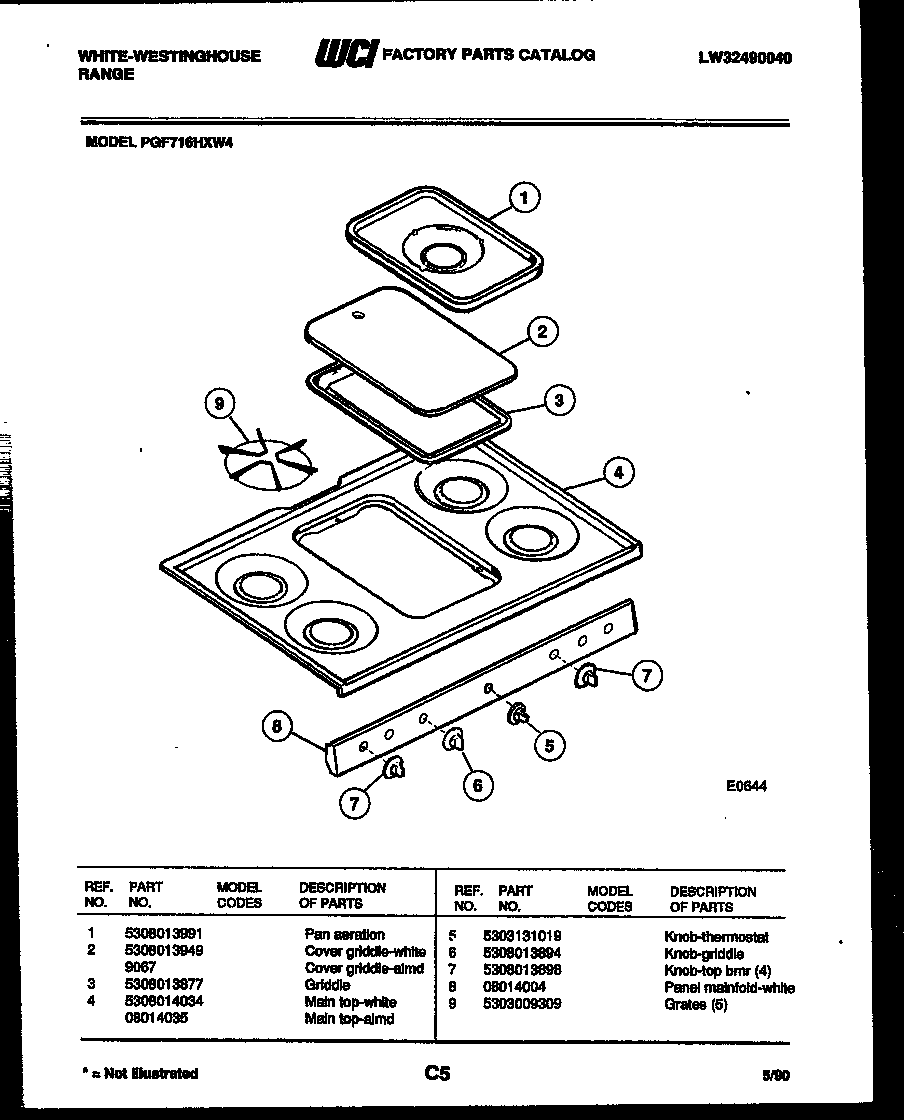

Cooktop parts diagram

Range surface burner knob

Part #5308013898

$26.73
In Stock
Range Rocker Switch 5308015487
#3

Backguard diagram

Range rocker switch

Part #5308015487

$49.40 |
11% OFF Phone Price : $55.40
In Stock
