DeWalt
Reciprocating Saw

Model # DC305K TYPE 1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DC305K-TYPE-1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Fan Baffle 613137-00
#4

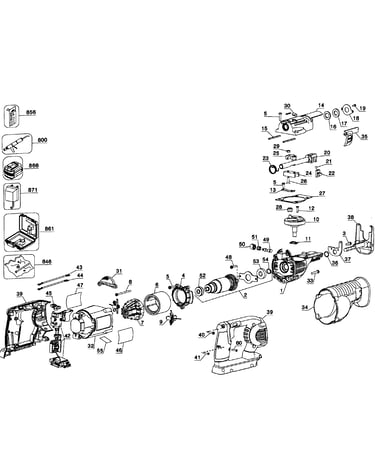

Main assy diagram

Fan baffle

Part #613137-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Kit Box 648633-00
#861

Main assy diagram

Dewalt kit box

Part #648633-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 621927-00
#30

Main assy diagram

Cover

Part #621927-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Housing 629919-00
#32

Main assy diagram

Dewalt housing

Part #629919-00

The manufacturer no longer makes this part, and there's no substitute part

Ball 000903-00
#21

Main assy diagram

Ball

Part #000903-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Label 632248-00
#46

Main assy diagram

Dewalt label

Part #632248-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-43
#19

Main assy diagram

Screw

Part #330045-43

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Shoe 623511-01
#38

Main assy diagram

Dewalt shoe

Part #623511-01

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 622485-00
#29

Main assy diagram

Lock nut

Part #622485-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Ire 634813-00
#43

Main assy diagram

Dewalt ire

Part #634813-00

The manufacturer no longer makes this part, and there's no substitute part
