Magic Chef
Top-Mount Refrigerator

Model # RB15GN-1PL Official Magic Chef refrigerator

Here are the diagrams and repair parts for Official Magic Chef RB15GN-1PL refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Refrigerator Light Switch 7050-0058
#39

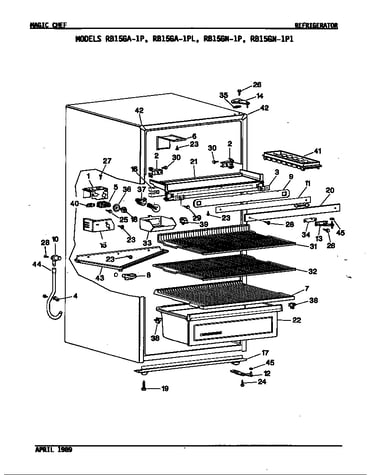

Fresh food compartment diagram

Refrigerator light switch

Part #7050-0058

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 7050-0058. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 7010-0013
#12

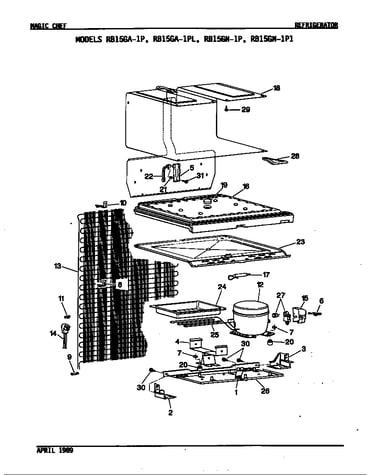

Unit compartment & system diagram

Refrigerator compressor

Part #7010-0013

Replaced by #W10439652

?
Manufacturer substitution
This part replaces 7010-0013. Substitute parts can look different from the original.
$265.04 |
$12.00 OFF Phone Price : $277.04
In Stock
Refrigerator Ice Tray 7050-0039
#41

Fresh food compartment diagram

Refrigerator ice tray

Part #7050-0039

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces 7050-0039. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Refrigerator Screw 7020-0051
#30

Fresh food compartment diagram

Refrigerator screw

Part #7020-0051

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7020-0051. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 7020-0023
#18

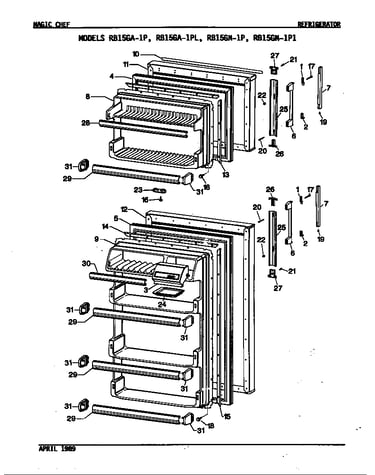

Doors diagram

Refrigerator screw

Part #7020-0023

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7020-0023. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Panel, Frz. Door (alm) - Series 11 NO LONGER AVAILABLE
Panel, frz. door (alm) - series 11

Part #NO LONGER AVAILABLE

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 7050-0046
#38

Fresh food compartment diagram

Refrigerator support

Part #7050-0046

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Kick Plate 7050-0015
#17

Fresh food compartment diagram

Refrigerator kick plate

Part #7050-0015

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Gasket 7030-0025
#5

Doors diagram

Refrigerator door gasket

Part #7030-0025

The manufacturer no longer makes this part, and there's no substitute part

Inner Mullion 7050-0036
#21

Fresh food compartment diagram

Inner mullion

Part #7050-0036

The manufacturer no longer makes this part, and there's no substitute part
