Here are the diagrams and repair parts for Official Kenmore 1451240 home electric bed, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for1451240 Home Electric Bed

#27

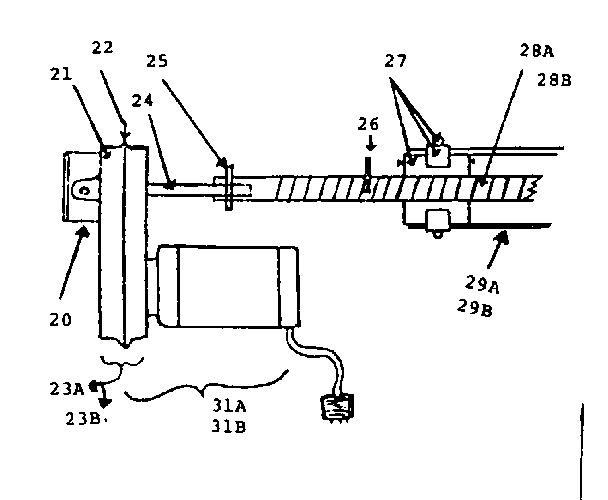

Electric motor actuators diagram
Pl nut ay
Part #300-1321
The manufacturer no longer makes this part, and there's no substitute part
#31B
Electric motor actuators diagram
Mot/gear ay
Part #LP-24
The manufacturer no longer makes this part, and there's no substitute part
#9

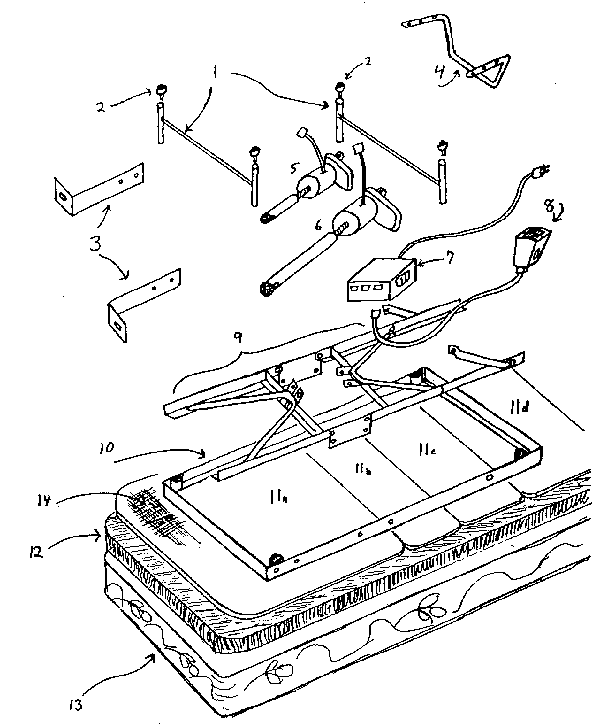

Lifting mechanism assembly diagram
Lifting mechanism assembly complete
Part #LP-009(T-OR-F)
The manufacturer no longer makes this part, and there's no substitute part
#3
Lifting mechanism assembly diagram
Hd bd brakts
Part #LP-003
The manufacturer no longer makes this part, and there's no substitute part
#10
Lifting mechanism assembly diagram
Main frame chassis complete
Part #LP-010(T-OR-F)
The manufacturer no longer makes this part, and there's no substitute part
#20
Electric motor actuators diagram
Bracket support
Part #LP-15
The manufacturer no longer makes this part, and there's no substitute part
#28A
Electric motor actuators diagram
Hd act screw
Part #LP-19
The manufacturer no longer makes this part, and there's no substitute part
#23
Electric motor actuators diagram
Ger box comp
Part #GB-2
The manufacturer no longer makes this part, and there's no substitute part
#29A
Electric motor actuators diagram
Hd act tube
Part #LP-21
The manufacturer no longer makes this part, and there's no substitute part
#28B
Electric motor actuators diagram
Ft act screw
Part #LP-20
The manufacturer no longer makes this part, and there's no substitute part
