Dacor
Warming Drawer

Model # EW30 Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor EW30 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

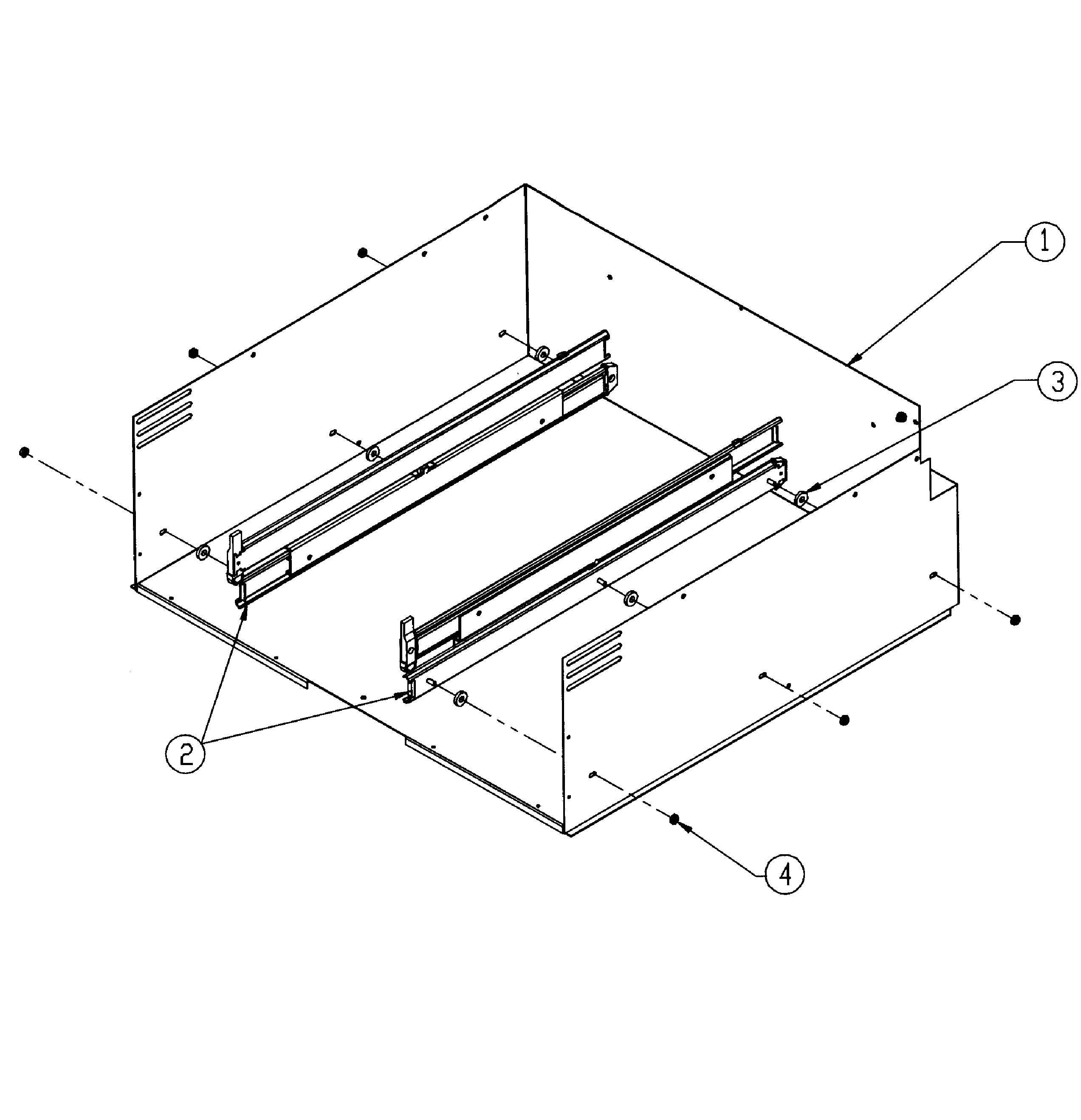

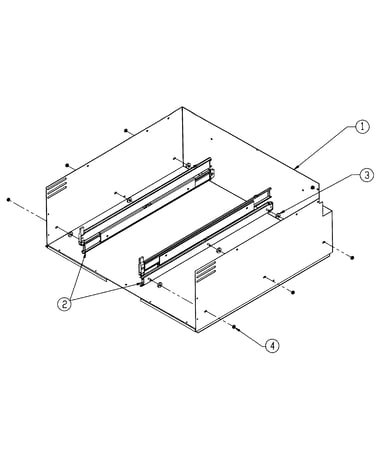

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Cover 26671
#2

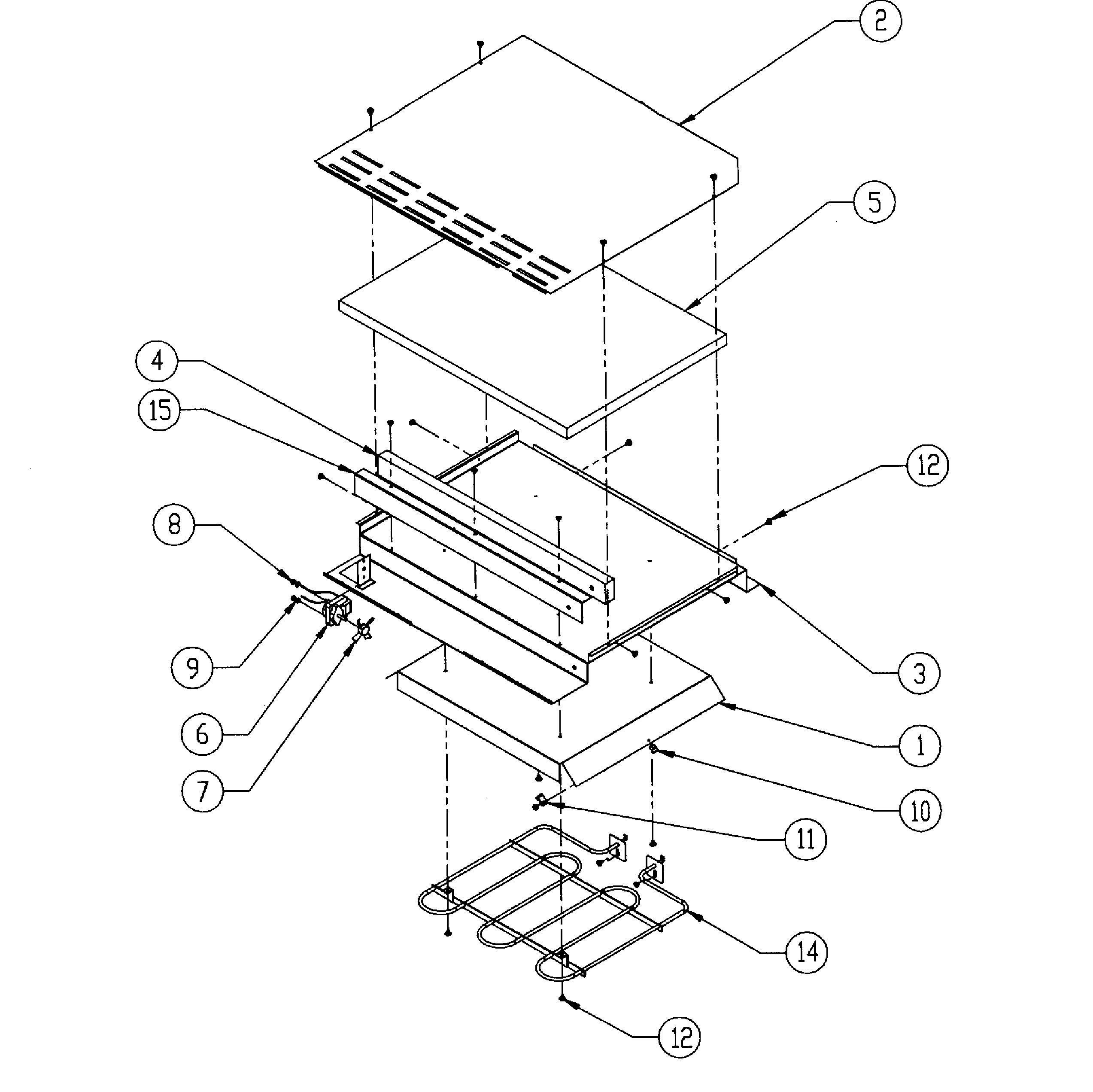

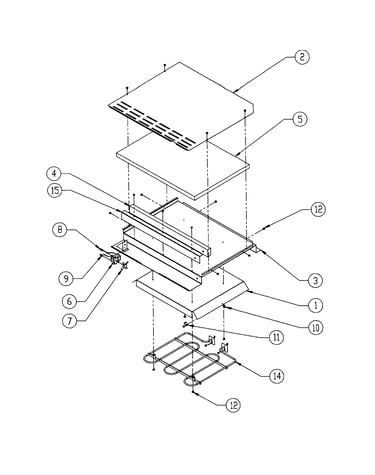

Top can assy diagram

Cover

Part #26671

In Stock
Nut 83308
#8

Top can assy diagram

Nut

Part #83308

This item is not returnable
In Stock
Fan Blade 92325
#7

Top can assy diagram

Fan blade

Part #92325

This item is not returnable
In Stock
Frame 27142B
#1

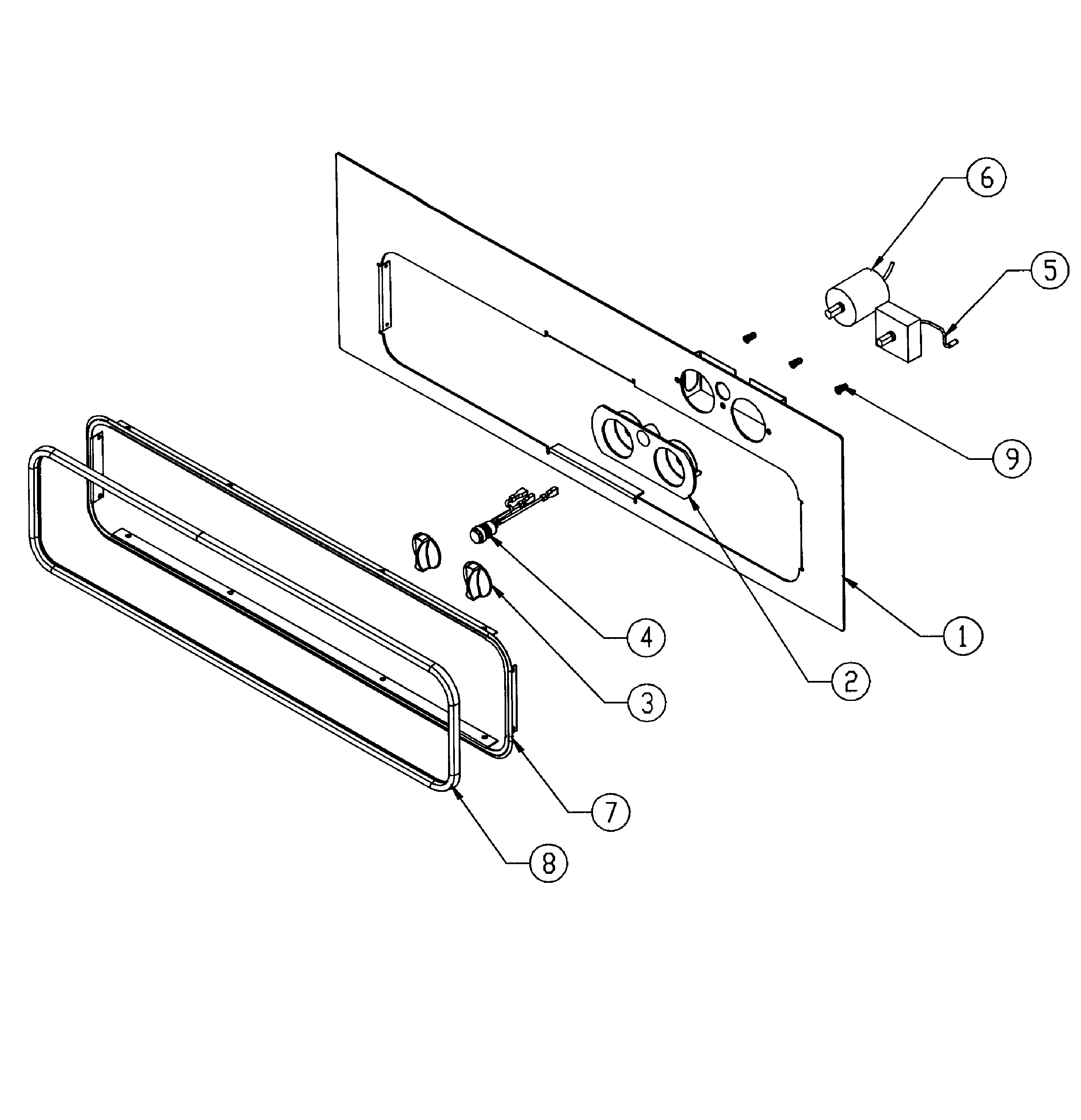

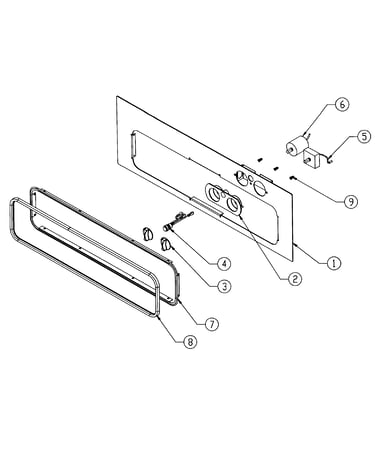

Front frame diagram

Frame

Part #27142B

In Stock
Tubular Fan 83266
#9

Front frame diagram

Tubular fan

Part #83266

This item is not returnable
In Stock
Warm Bezel 62786B
#2

Front frame diagram

Warm bezel

Part #62786B

In Stock
Insulation 26673
#15

Top can assy diagram

Insulation

Part #26673

This item is not returnable
In Stock
Reflector 26668
#1

Top can assy diagram

Reflector

Part #26668

In Stock
Door Handle 13659-009
#13C

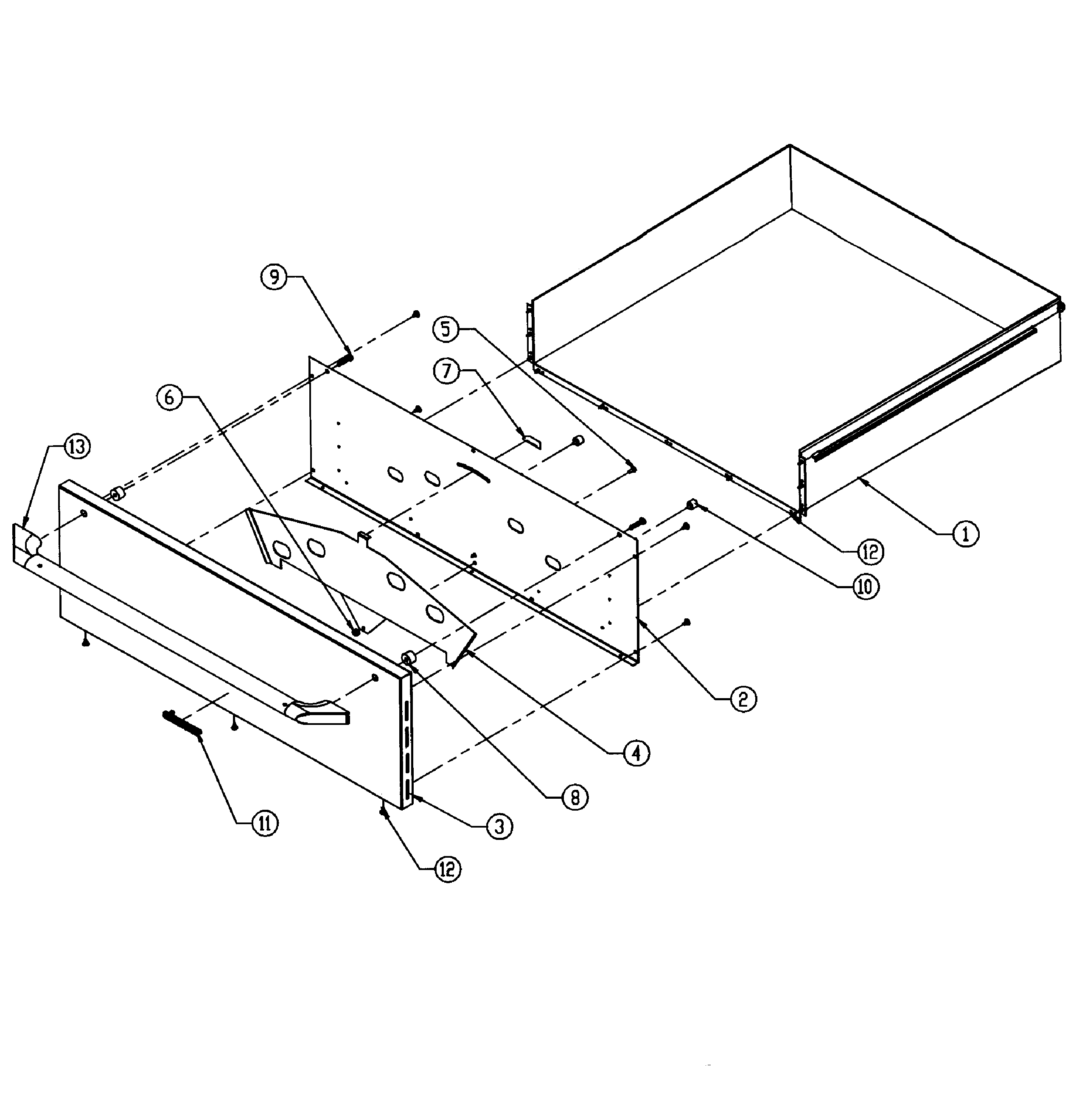

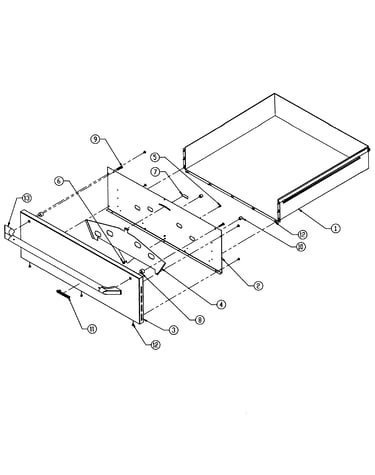

Drawer assy diagram

Door handle

Part #13659-009

In Stock
Drawer Wrap 701213
#1

Drawer assy diagram

Drawer wrap

Part #701213

In Stock
