Room Air Conditioner

Model # ASM14ABD1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE ASM14ABD1 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forASM14ABD1 Air Conditioner

  • Nut Washer WJ01X10119
    #403

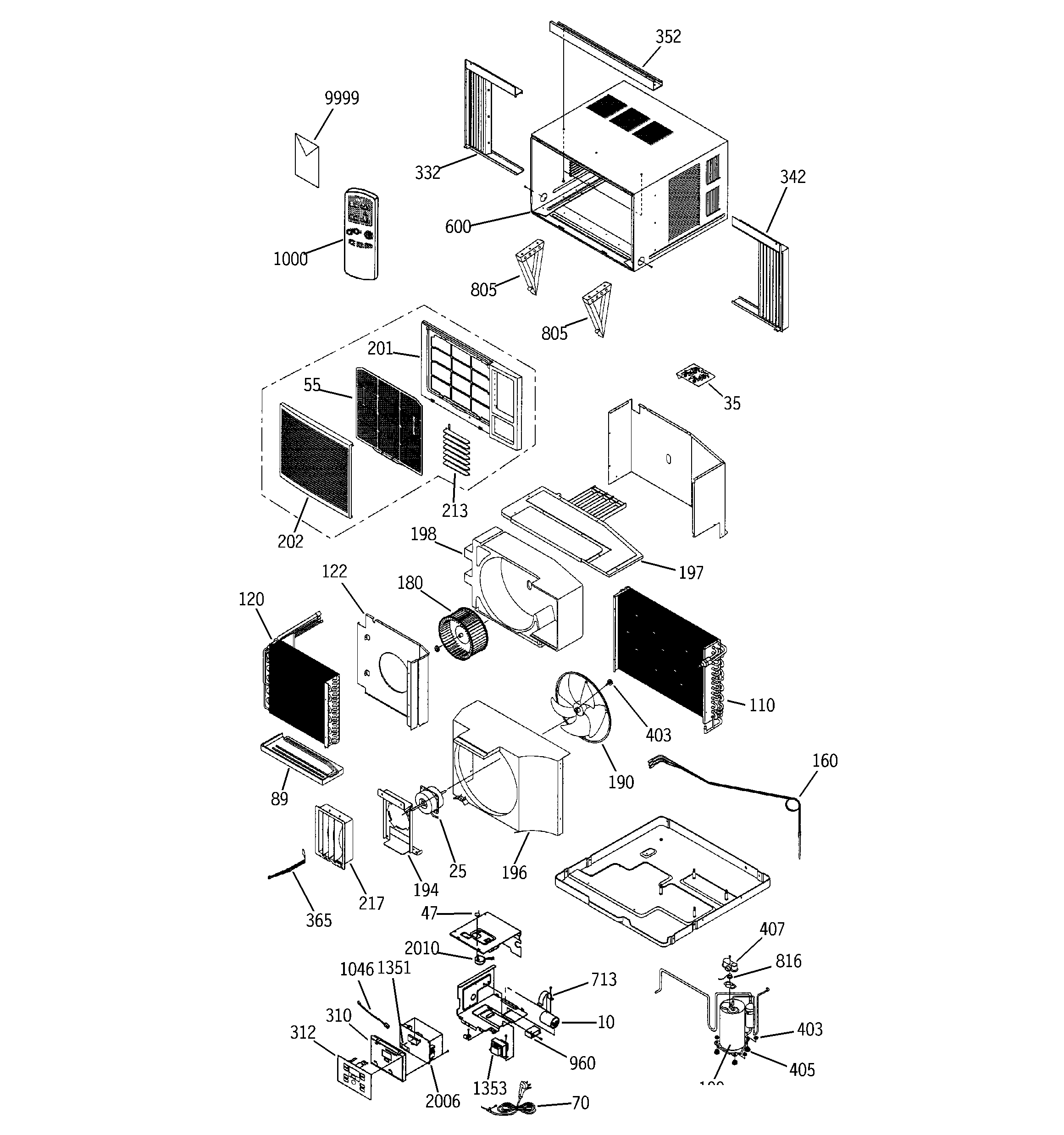

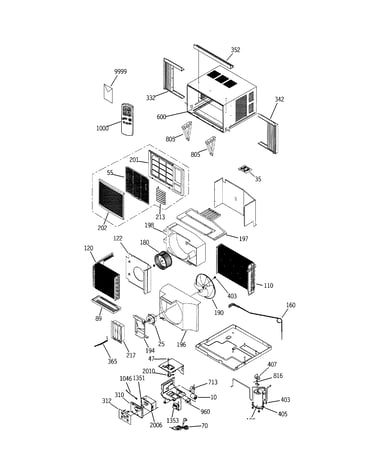

    Room air conditioner diagram

    Nut washer

    Part #WJ01X10119

    This item is not returnable
    $6.71
    In Stock
  • Evaporator Coil WJ01X10111
    #197

    Room air conditioner diagram

    Evaporator coil

    Part #WJ01X10111

    $81.09
    In Stock
  • Clip Capacitor WJ03X10022
    #713

    Room air conditioner diagram

    Clip capacitor

    Part #WJ03X10022

    This item is not returnable
    $4.03
    In Stock
  • Ast10 +20 49-7405
    #9999

    Room air conditioner diagram

    Ast10 +20

    Part #49-7405

    Replaced by #49-7405-2

    ?
    Manufacturer substitution
    This part replaces 49-7405. Substitute parts can look different from the original.
    $10.71
    In Stock
  • Condenser Ca WJ76X10088
    #196

    Room air conditioner diagram

    Condenser ca

    Part #WJ76X10088

    The manufacturer no longer makes this part, and there's no substitute part

  • Rotary Comp WJ98X10080
    #100

    Room air conditioner diagram

    Rotary comp

    Part #WJ98X10080

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Cord WJ35X10043
    #70

    Room air conditioner diagram

    Power cord

    Part #WJ35X10043

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor WJ94X10116
    #25

    Room air conditioner diagram

    Motor

    Part #WJ94X10116

    The manufacturer no longer makes this part, and there's no substitute part

  • Out Cabinet WJ90X10033
    #600

    Room air conditioner diagram

    Out cabinet

    Part #WJ90X10033

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor 45 WJ20X10059
    #10

    Room air conditioner diagram

    Capacitor 45

    Part #WJ20X10059

    The manufacturer no longer makes this part, and there's no substitute part
