Model # 143135022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143135022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

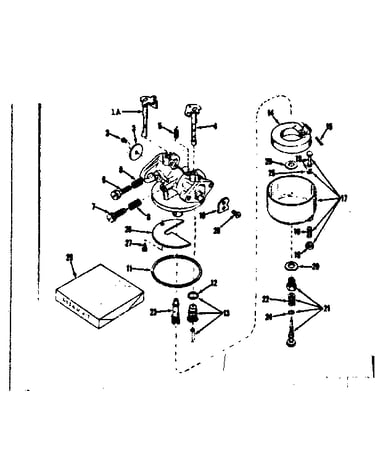

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Breather Element Air Filter 28424
#55

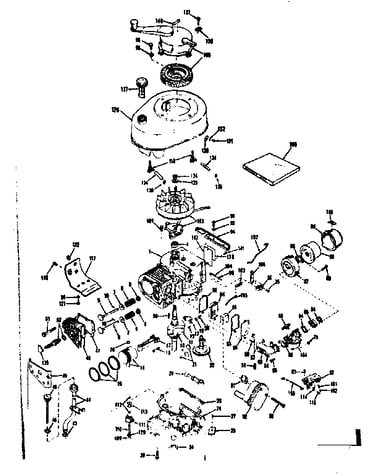

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#135

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#36

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 30590
#129

Basic engine diagram

Flat washer

Part #30590

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Recoil Starter Pawl 590148
#22

Replacement parts diagram

Lawn & garden equipment engine recoil starter pawl

Part #590148

This item is not returnable
$3.66
In Stock
Tractor Accessories Starter Cup 29709
#28

Replacement parts diagram

Tractor accessories starter cup

Part #29709

$23.38
In Stock
Spring 31342
#161

Basic engine diagram

Spring

Part #31342

The manufacturer no longer makes this part, and there's no substitute part

Breaker Assembly 30547
#6

Unit parts diagram

Breaker assembly

Part #30547

The manufacturer no longer makes this part, and there's no substitute part

Spring 30551
#2

Unit parts diagram

Spring

Part #30551

The manufacturer no longer makes this part, and there's no substitute part

Bolt 21718
#18

Basic engine diagram

Bolt

Part #21718

The manufacturer no longer makes this part, and there's no substitute part
