Craftsman
Gas Leaf Blower

Model # 360796790 Official Craftsman backpack air blower

Here are the diagrams and repair parts for Official Craftsman 360796790 backpack air blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Level Throttle 2800338
#13

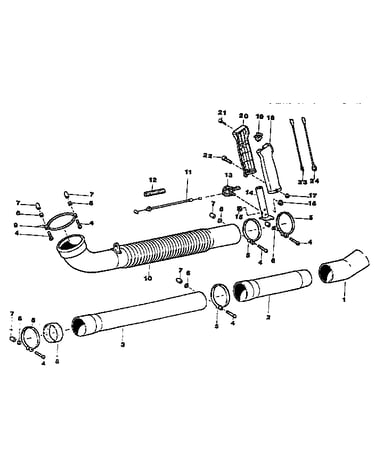

Tube and throttle assembly diagram

Level throttle

Part #2800338

The manufacturer no longer makes this part, and there's no substitute part

Straight Tube 4065173
#3

Tube and throttle assembly diagram

Straight tube

Part #4065173

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 0054256
#5

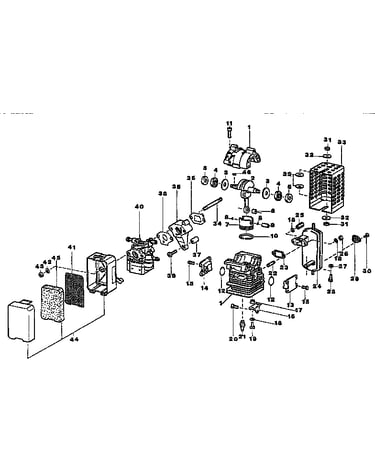

Engine diagram

Oil seal

Part #0054256

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank 2700270
#33

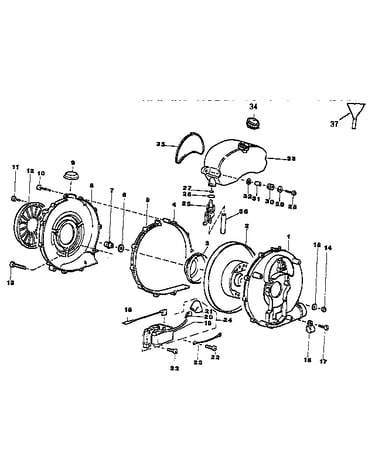

Blower assembly diagram

Fuel tank

Part #2700270

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing 4400280
#1

Blower assembly diagram

Blower housing

Part #4400280

The manufacturer no longer makes this part, and there's no substitute part

Washer 0031502
#3

Engine diagram

Washer

Part #0031502

The manufacturer no longer makes this part, and there's no substitute part

Spacer 0033375
#6

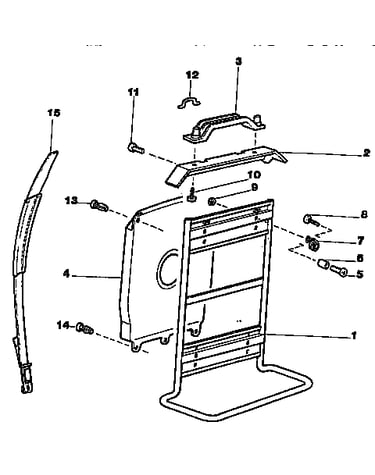

Backpack assembly diagram

Spacer

Part #0033375

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Recoil Starter Pulley 2074288
#5

Recoil starter diagram

Leaf blower recoil starter pulley

Part #2074288

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Curved Nozzle 4071281
#1

Tube and throttle assembly diagram

Leaf blower curved nozzle

Part #4071281

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Nut 0021130
#25

Engine diagram

Leaf blower nut

Part #0021130

The manufacturer no longer makes this part, and there's no substitute part
