Model # 5KSB650ACA1 Official KitchenAid 5-speed architect blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB650ACA1 5-speed architect blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Control W10371940
#3

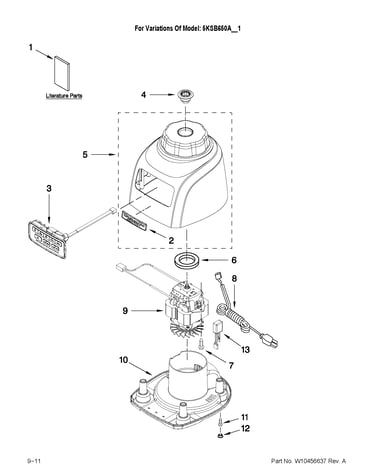

Unit parts diagram

Control

Part #W10371940

$60.04
In Stock
Housing W10321432
#5

Unit parts diagram

Housing

Part #W10321432

$66.69 |
8% OFF Phone Price : $72.69
In Stock
Power Cord W10452060
#8

Unit parts diagram

Power cord

Part #W10452060

$27.16
In Stock
Base W10243482
#10

Unit parts diagram

Base

Part #W10243482

$47.20
In Stock
Blender Screw W10001200
#11

Unit parts diagram

Blender screw

Part #W10001200

Replaced by #W11164114

?
Manufacturer substitution
This part replaces W10001200. Substitute parts can look different from the original.
This item is not returnable
$3.83
In Stock
Blender Lid Assembly 9709363
#1

Attachment parts diagram

Blender lid assembly

Part #9709363

Replaced by #WP9709363

?
Manufacturer substitution
This part replaces 9709363. Substitute parts can look different from the original.
$26.27 |
19% OFF Phone Price : $32.27
In Stock
Coupling W10279256
#4

Unit parts diagram

Coupling

Part #W10279256

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces W10279256. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Housing W10443267
#5C

Unit parts diagram

Housing

Part #W10443267

Replaced by #WPW10443267

?
Manufacturer substitution
This part replaces W10443267. Substitute parts can look different from the original.
$51.75
In Stock
Housing W10443266
#5A

Unit parts diagram

Housing

Part #W10443266

Replaced by #WPW10443266

?
Manufacturer substitution
This part replaces W10443266. Substitute parts can look different from the original.
$51.75
In Stock
Screw W10068250
#7

Unit parts diagram

Screw

Part #W10068250

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces W10068250. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
