GE
Side-By-Side Refrigerator

Model # TFG20JRVAWW Official GE side-by-side refrigerator

Here are the diagrams and repair parts for Official GE TFG20JRVAWW side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 321 parts  |
Refrigerator Filter Dryer WR86X96
#740

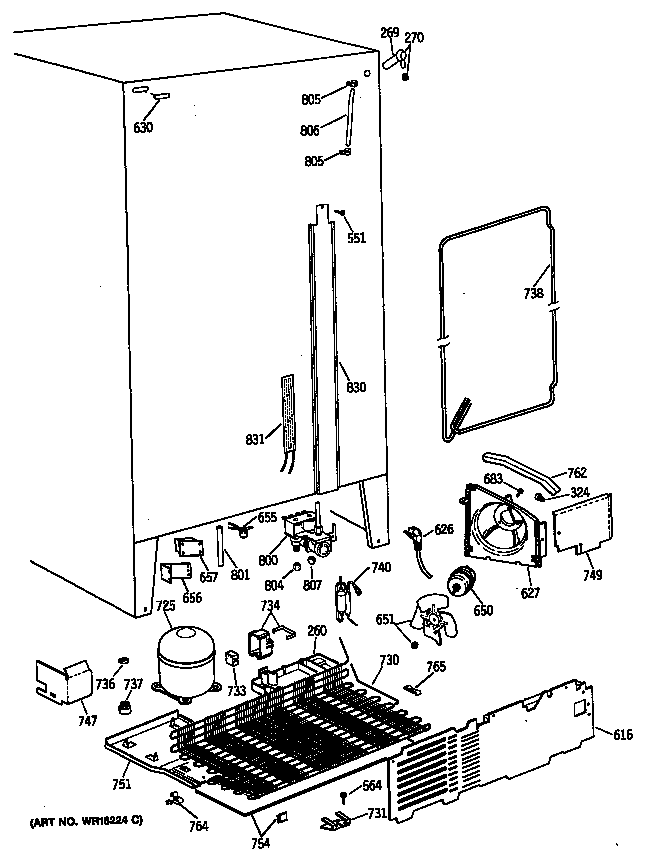

Compressor diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Nut&union As WR2X4048
#807

Compressor diagram

Nut&union as

Part #WR2X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR2X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Water Tube Fitting And Nut Kit WR2X8545
#80B

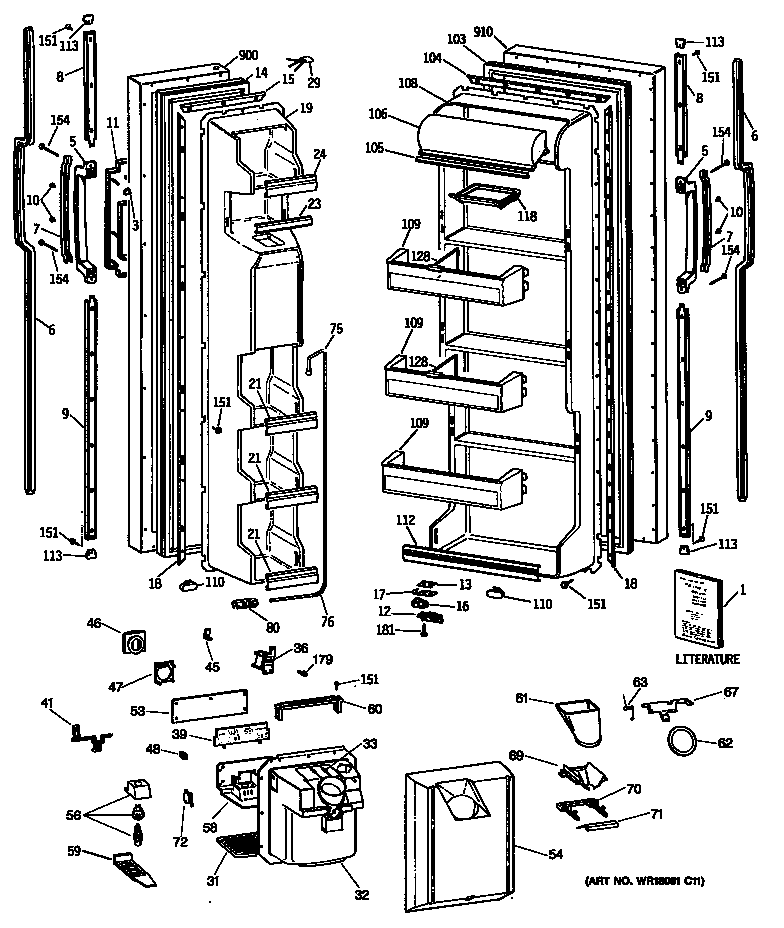

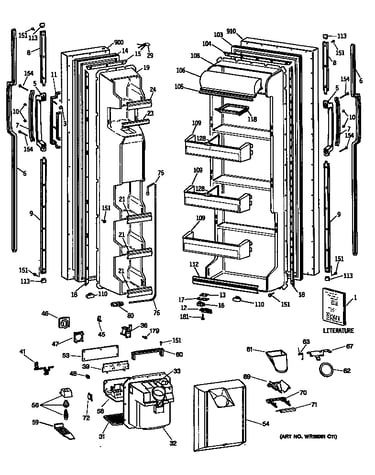

Doors diagram

Refrigerator water tube fitting and nut kit

Part #WR2X8545

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR2X8545. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Dr Reces Asm WR17X3093
#62

Doors diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x0122, Wr50x10014, Wr50x128) WR50X122
#240

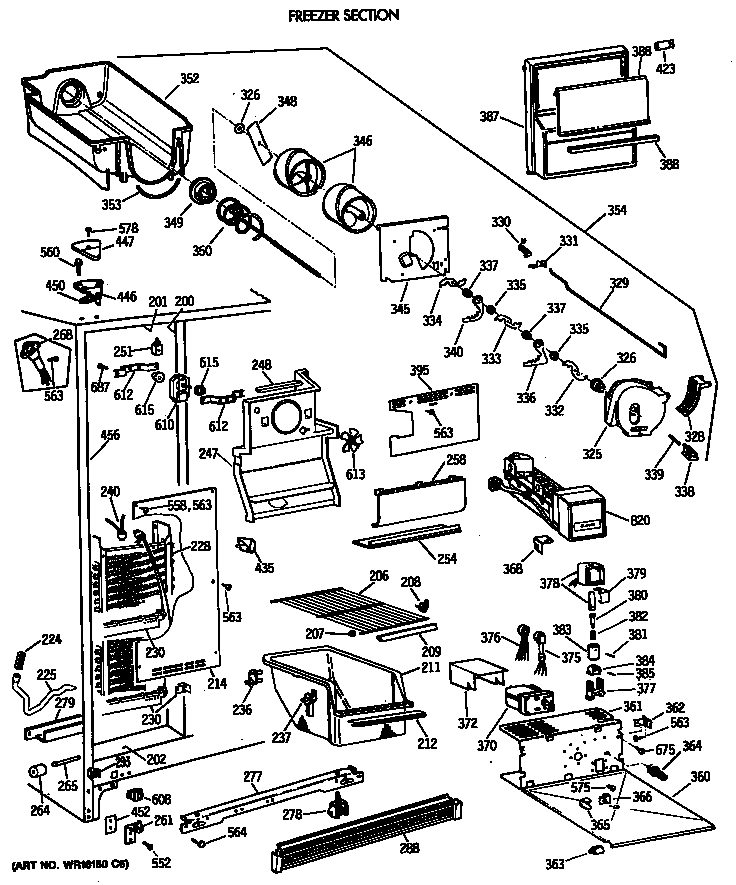

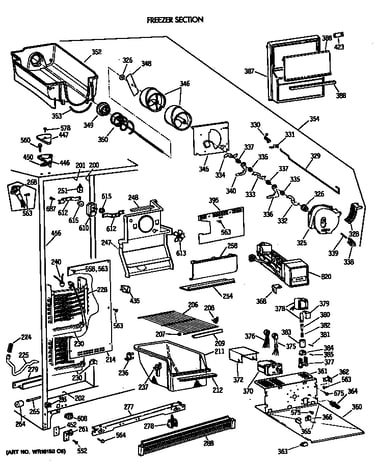

Freezer section diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x0122, wr50x10014, wr50x128)

Part #WR50X122

BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Tube WR17X3249
#812

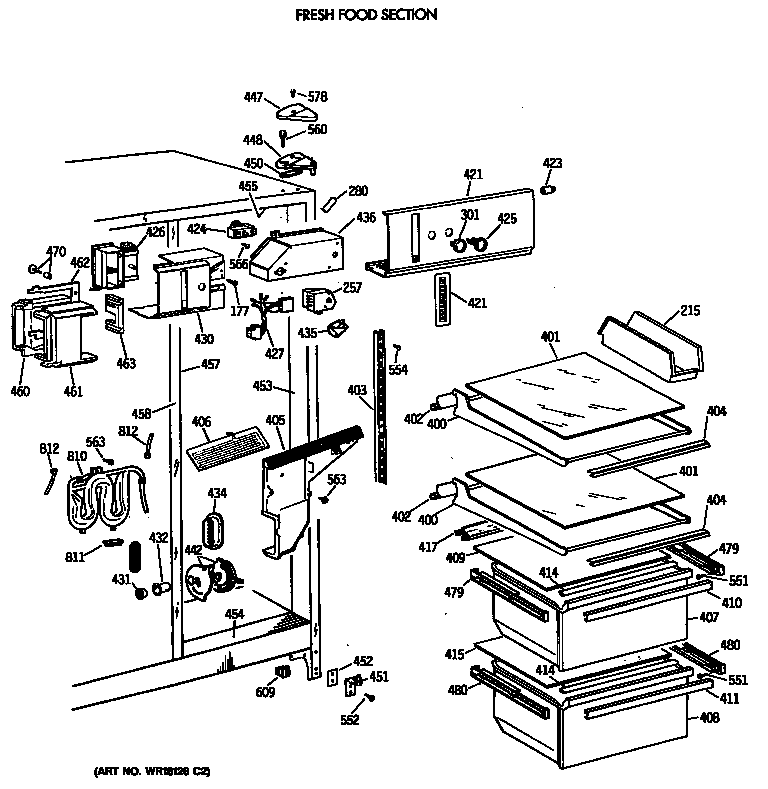

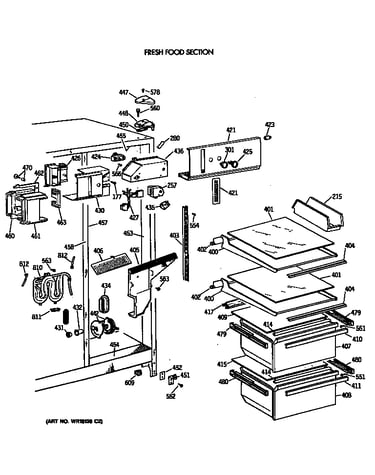

Fresh food section diagram

Refrigerator tube

Part #WR17X3249

Replaced by #WR17X2891

?
Manufacturer substitution
This part replaces WR17X3249. Substitute parts can look different from the original.
BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Refrigerator Door Closer Cam (replaces Swr2x4901, Wr02x4901) WR2X4901
#16

Doors diagram

Refrigerator door closer cam (replaces swr2x4901, wr02x4901)

Part #WR2X4901

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Ice Maker Fill Tube Seal WR2X8474
#270B

Compressor diagram

Refrigerator ice maker fill tube seal

Part #WR2X8474

$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Crisper Drawer Slide Rail, Left (replaces Wr72x0207, Wr72x156, Wr72x182, Wr72x203, Wr72x231, Wr72x86) WR72X207
#479B

Fresh food section diagram

Refrigerator crisper drawer slide rail, left (replaces wr72x0207, wr72x156, wr72x182, wr72x203, wr72x231, wr72x86)

Part #WR72X207

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Dryer Screw WH2X930

#NI

All parts diagram

Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
