Model # MLXE42RED4 Official Universal/Multiflex (Frigidaire) laundry center - p5995308367

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MLXE42RED4 laundry center - p5995308367, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

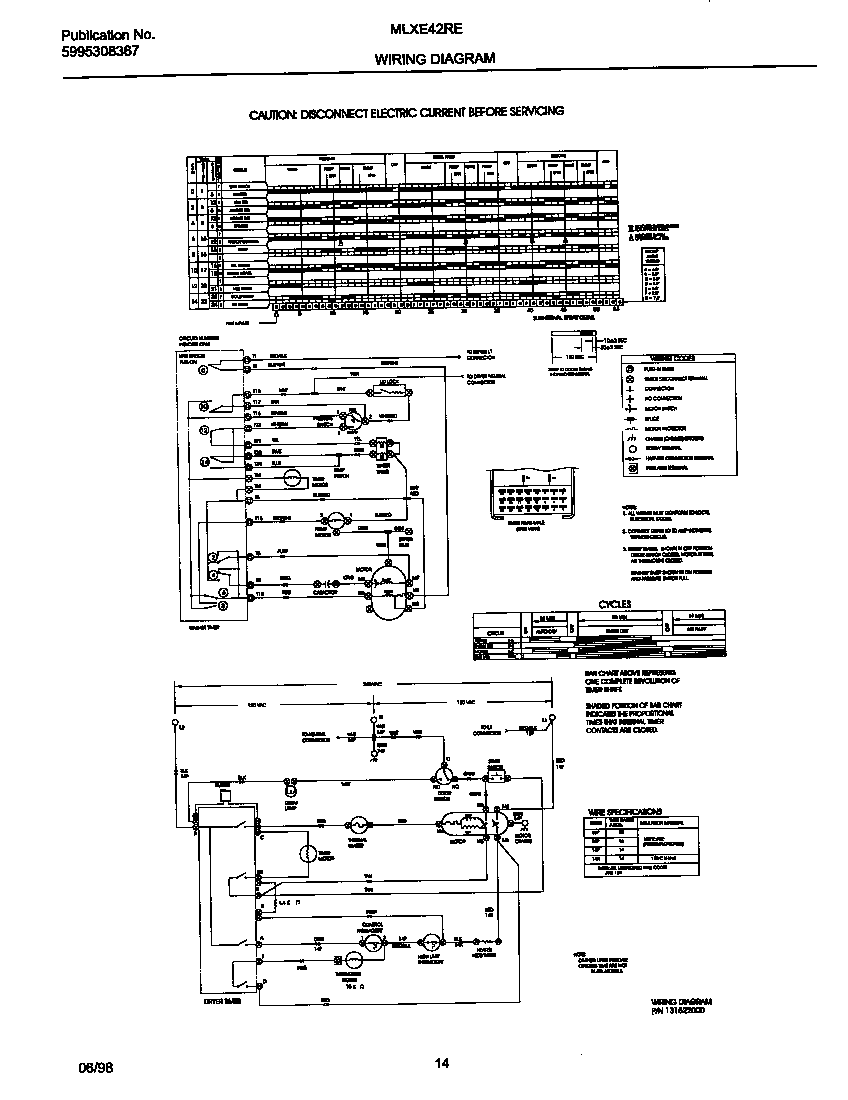

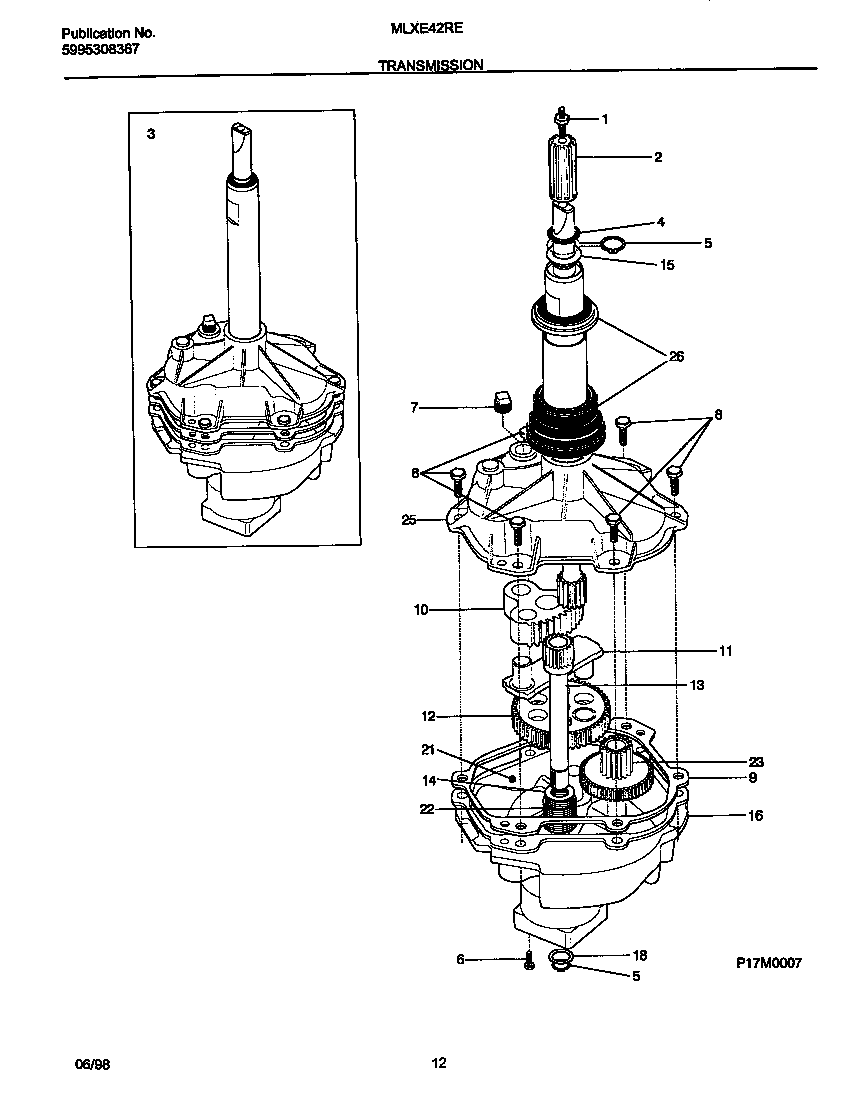

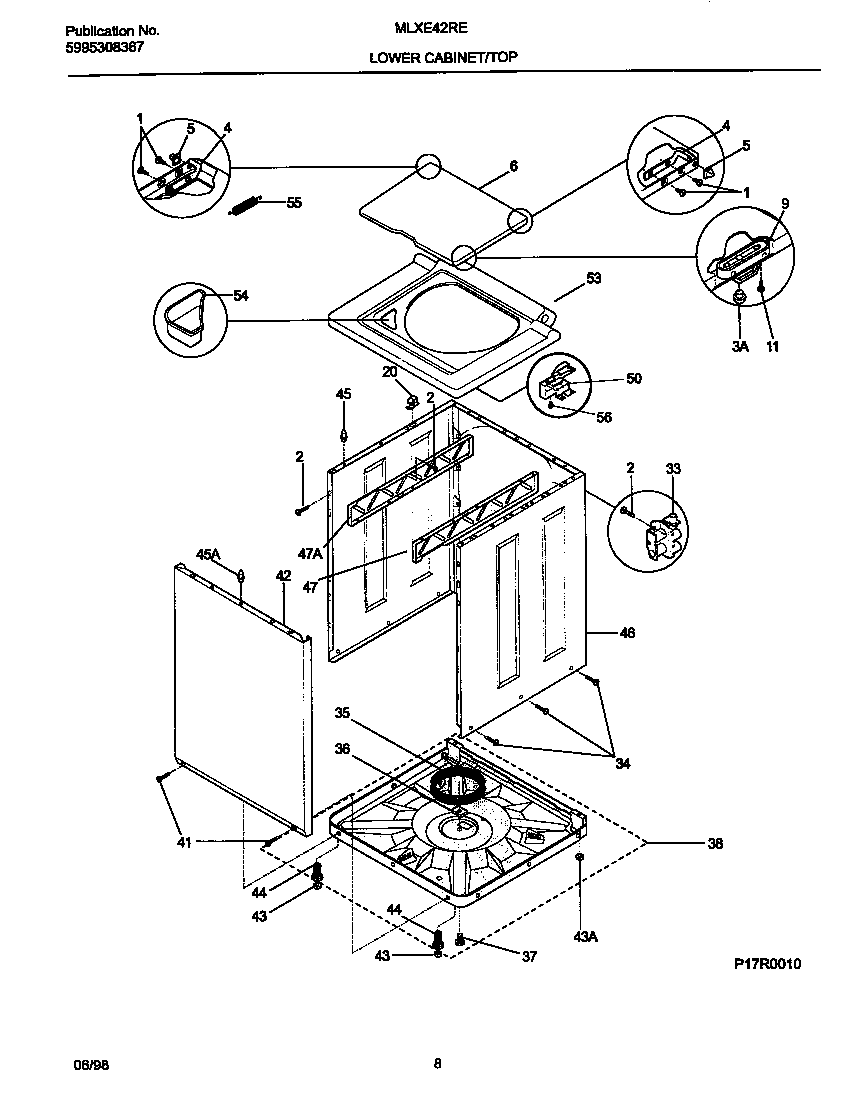

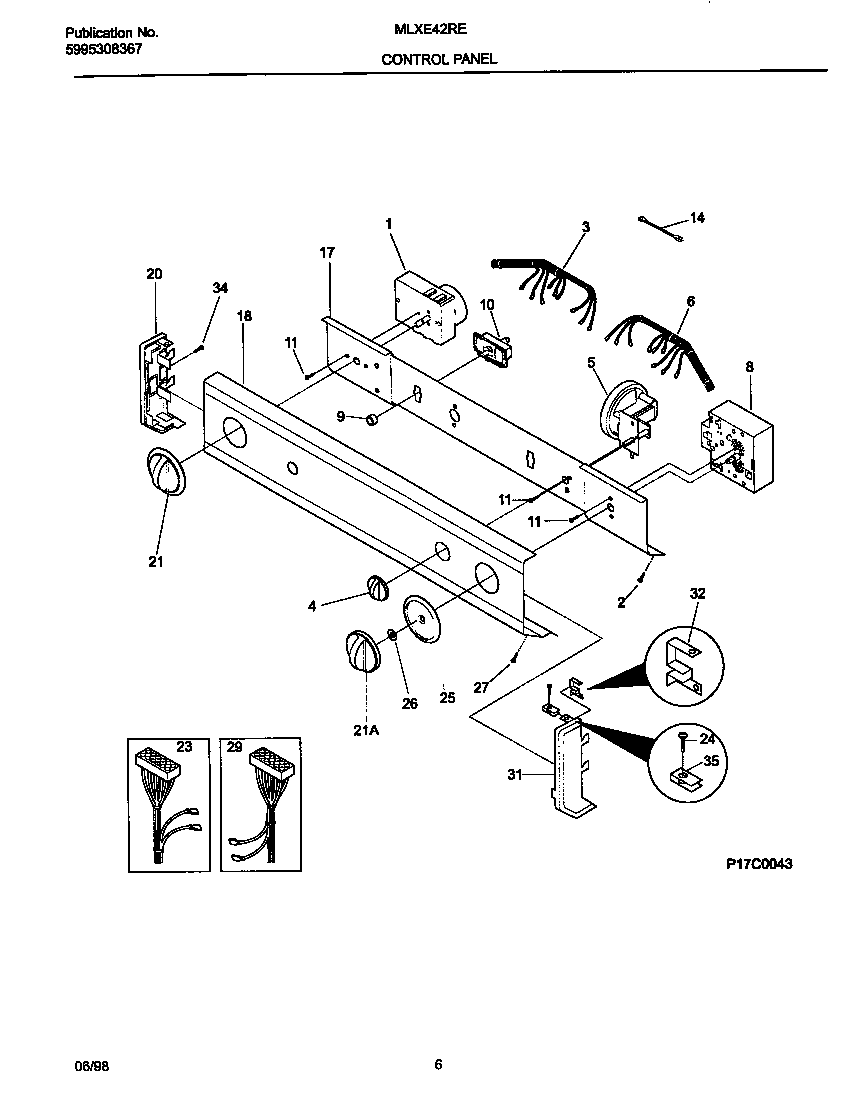

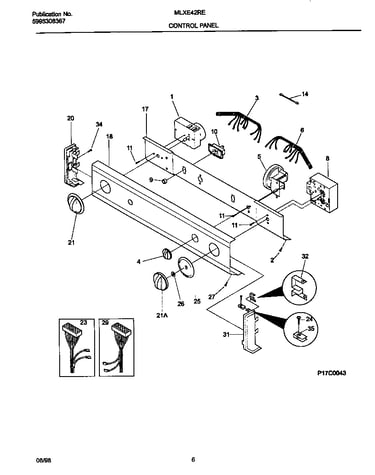

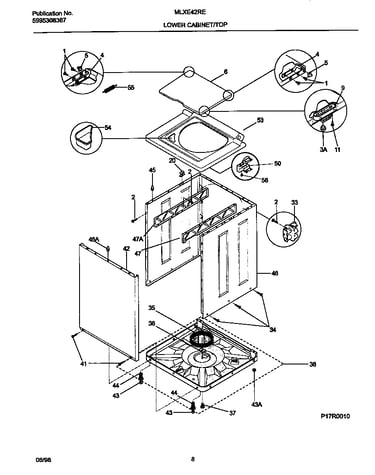

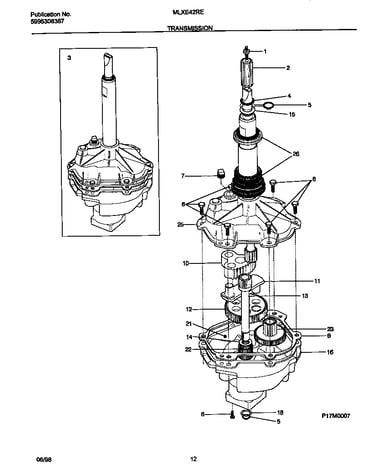

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Bearing 5303281008
#12

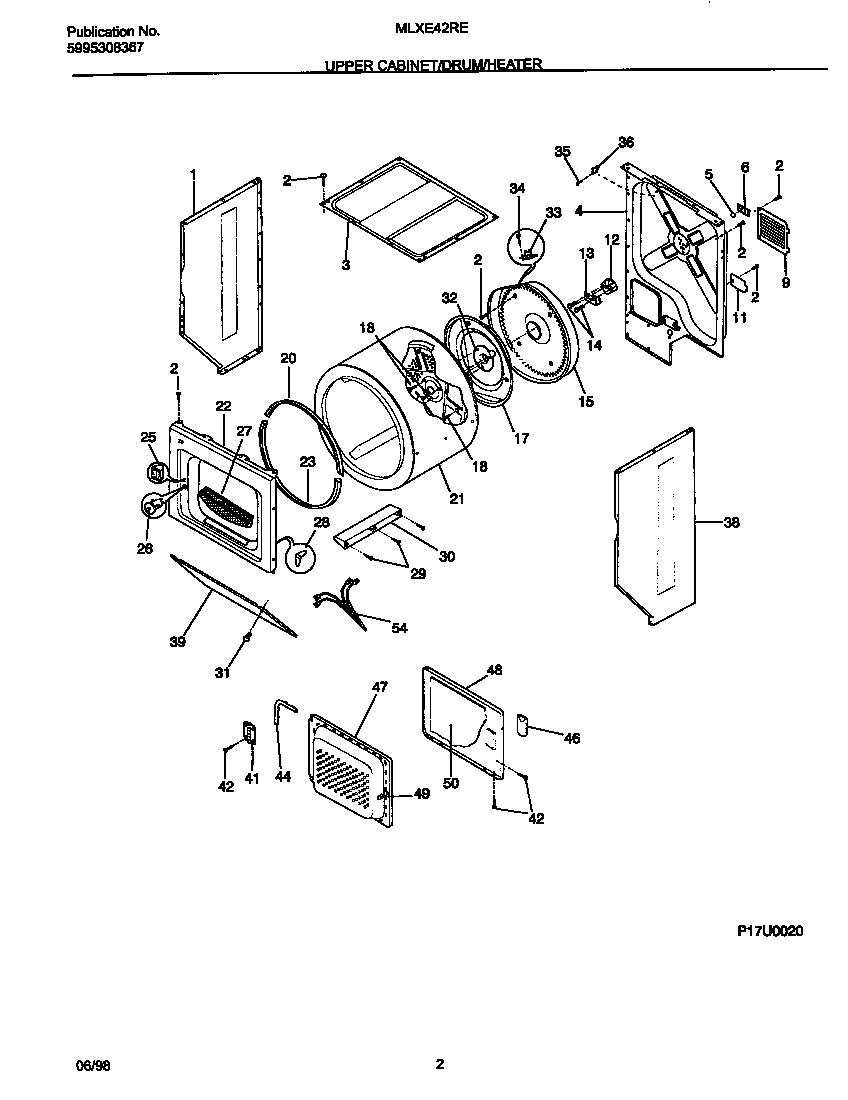

Upper cabinet/drum/heater diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Idler Arm 131623300
#23

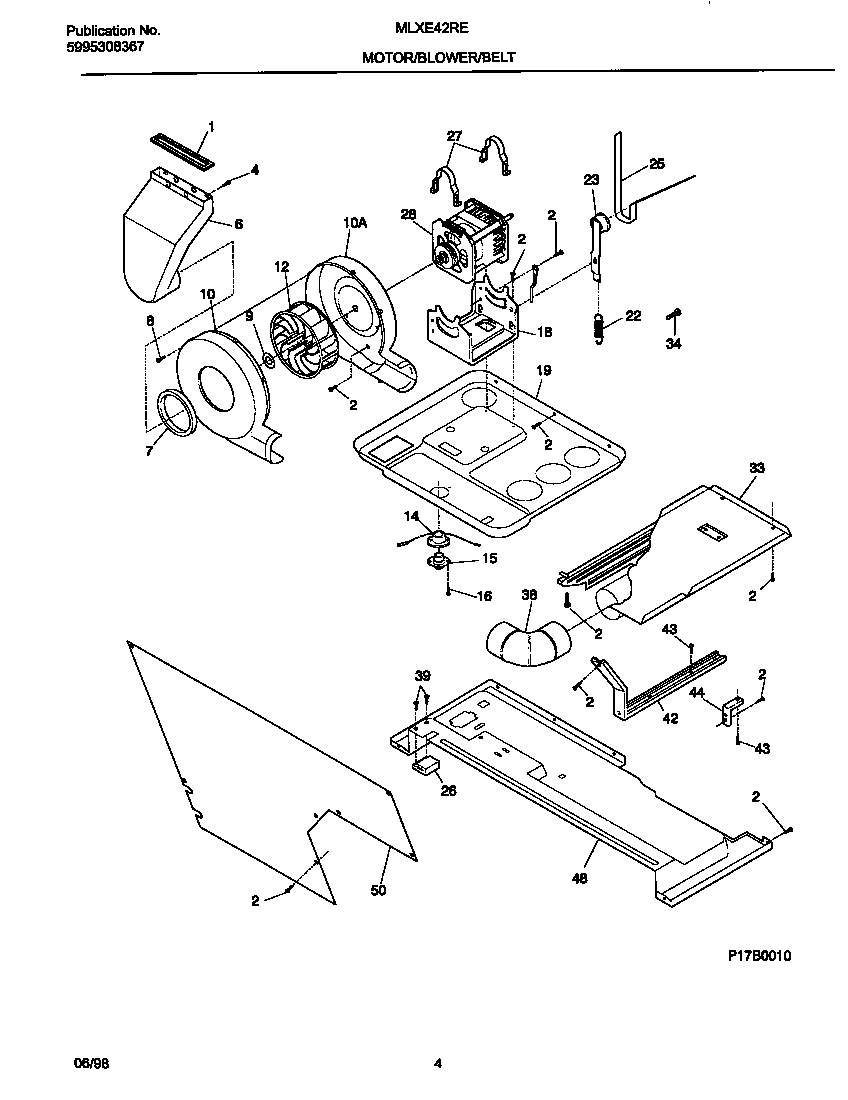

Motor/blower/belt diagram

Idler arm

Part #131623300

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131623300. Substitute parts can look different from the original.
BEST SELLER
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Shaft Drum 131378400
#32

Upper cabinet/drum/heater diagram

Shaft drum

Part #131378400

Replaced by #131777700

?
Manufacturer substitution
This part replaces 131378400. Substitute parts can look different from the original.
BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Washer Belt 131686100
#28

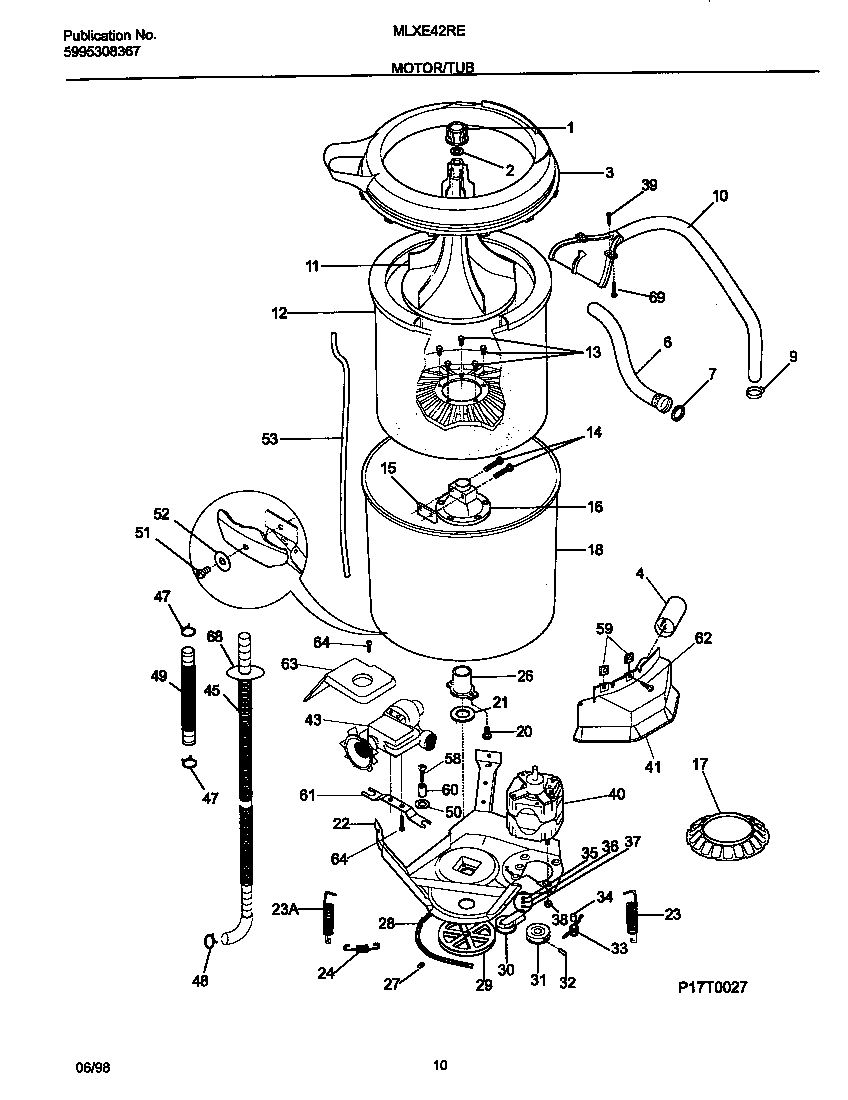

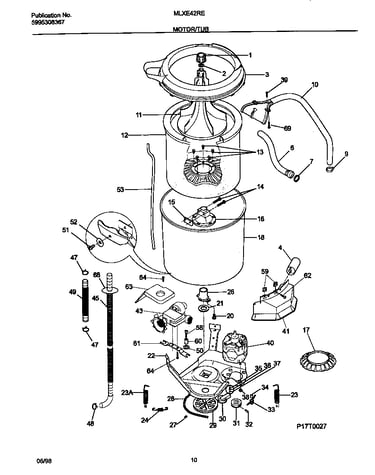

Motor/tub diagram

Washer belt

Part #131686100

The manufacturer no longer makes this part, and there's no substitute part

Lint Trap 131152700
#27

Upper cabinet/drum/heater diagram

Lint trap

Part #131152700

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131152700. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

Upper cabinet/drum/heater diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Dryer Felt And Glide Kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, F141811-000) 5303937139
#20

Upper cabinet/drum/heater diagram

Dryer felt and glide kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, f141811-000)

Part #5303937139

BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

Motor/blower/belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$46.20 |
11% OFF Phone Price : $52.20
In Stock
Heater Housing 131475300
#15

Upper cabinet/drum/heater diagram

Heater housing

Part #131475300

Replaced by #131475320

?
Manufacturer substitution
This part replaces 131475300. Substitute parts can look different from the original.
BEST SELLER
$139.24 |
8% OFF Phone Price : $151.24
In Stock
Thermostat 5303209192
#36

Upper cabinet/drum/heater diagram

Thermostat

Part #5303209192

Replaced by #134120900

?
Manufacturer substitution
This part replaces 5303209192. Substitute parts can look different from the original.
BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
