Model # 1810A Official Eureka built-in vacuum cleaning system

Here are the diagrams and repair parts for Official Eureka 1810A built-in vacuum cleaning system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

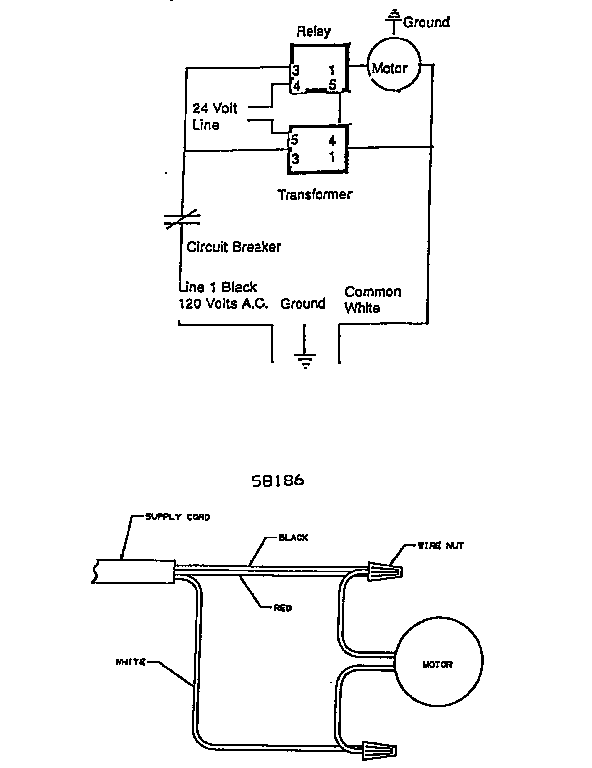

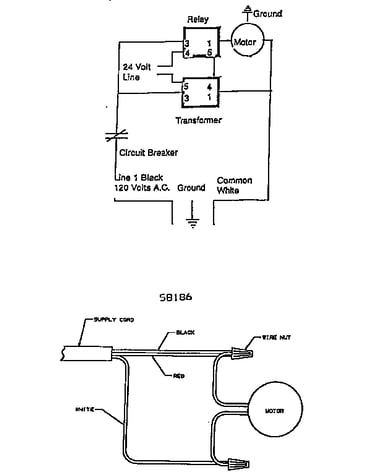

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Foam 55961
#6

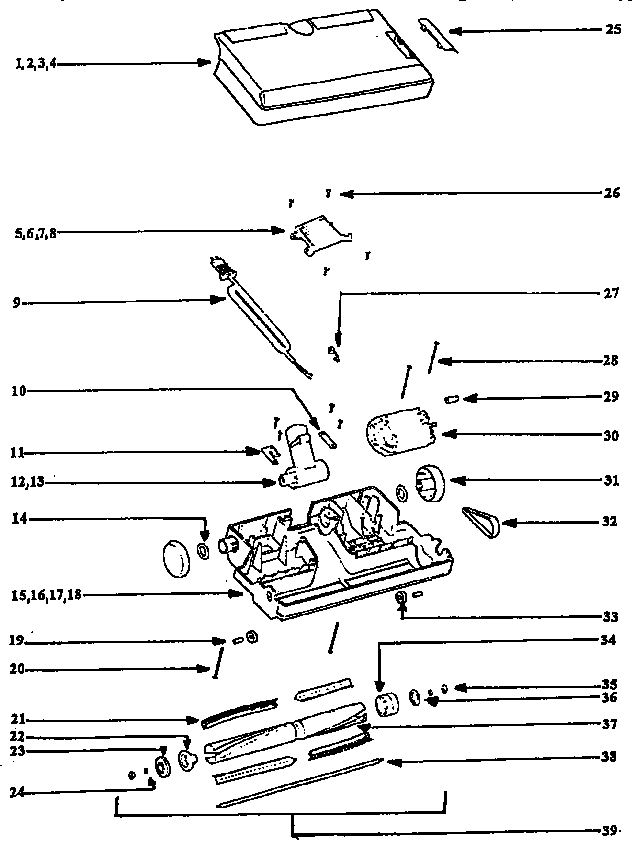

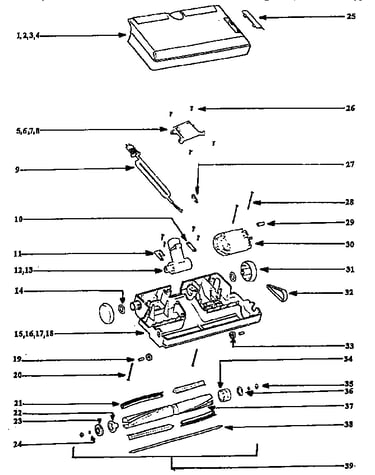

Nozzle and motor assembly diagram

Foam

Part #55961

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 56180
#14

Nozzle and motor assembly diagram

Felt washer

Part #56180

The manufacturer no longer makes this part, and there's no substitute part

Eureka Wiring Connection 26730-5
#4

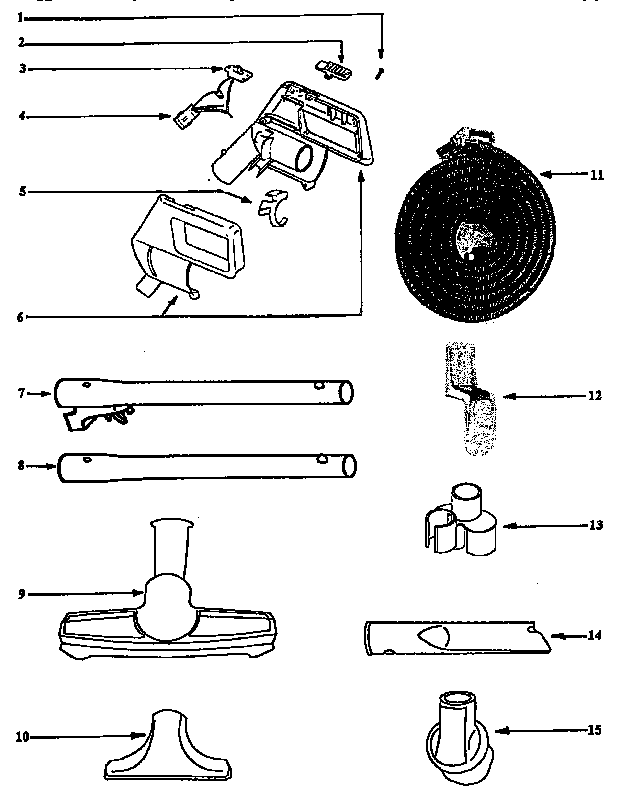

Attachment parts diagram

Eureka wiring connection

Part #26730-5

The manufacturer no longer makes this part, and there's no substitute part

Hood 01721-12
#25

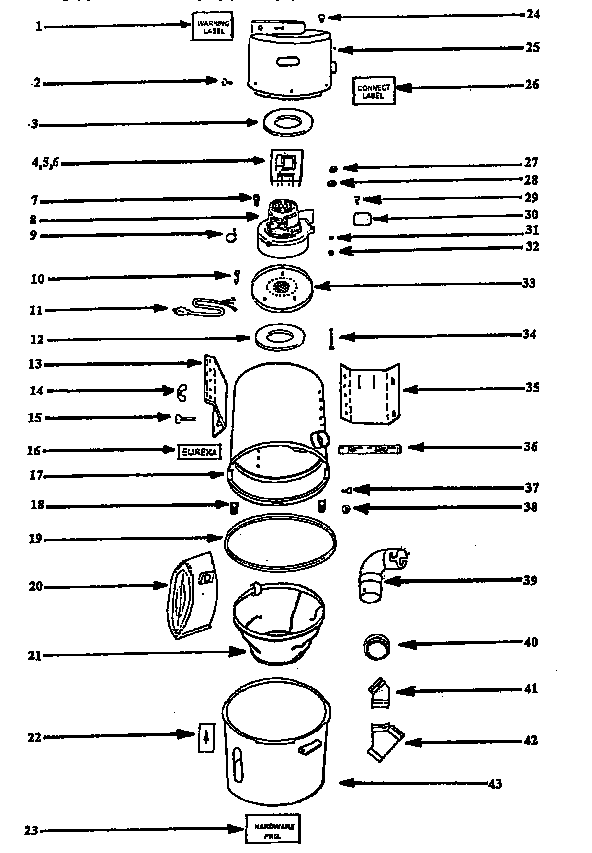

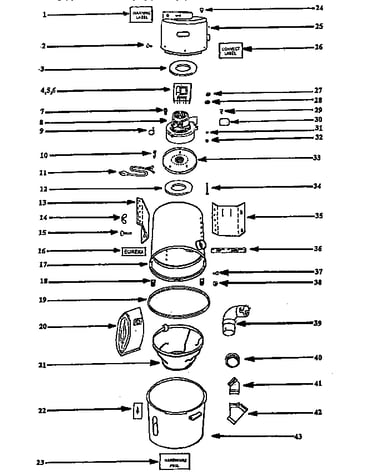

Unit parts diagram

Hood

Part #01721-12

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 53454-7
#10

Attachment parts diagram

Vacuum upholstery nozzle

Part #53454-7

The manufacturer no longer makes this part, and there's no substitute part

Tube 54634
#30

Unit parts diagram

Tube

Part #54634

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-18
#20

Nozzle and motor assembly diagram

Vacuum screw, 10-pack

Part #53238-18

The manufacturer no longer makes this part, and there's no substitute part

Bracket 01708-2
#13

Unit parts diagram

Bracket

Part #01708-2

The manufacturer no longer makes this part, and there's no substitute part

Felt Gasket 55968
#17

Nozzle and motor assembly diagram

Felt gasket

Part #55968

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part
