Model # 24A-424G063 Official Troybilt chipper/shredder

Here are the diagrams and repair parts for Official Troybilt 24A-424G063 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Chipper Blade 742-0544
#9

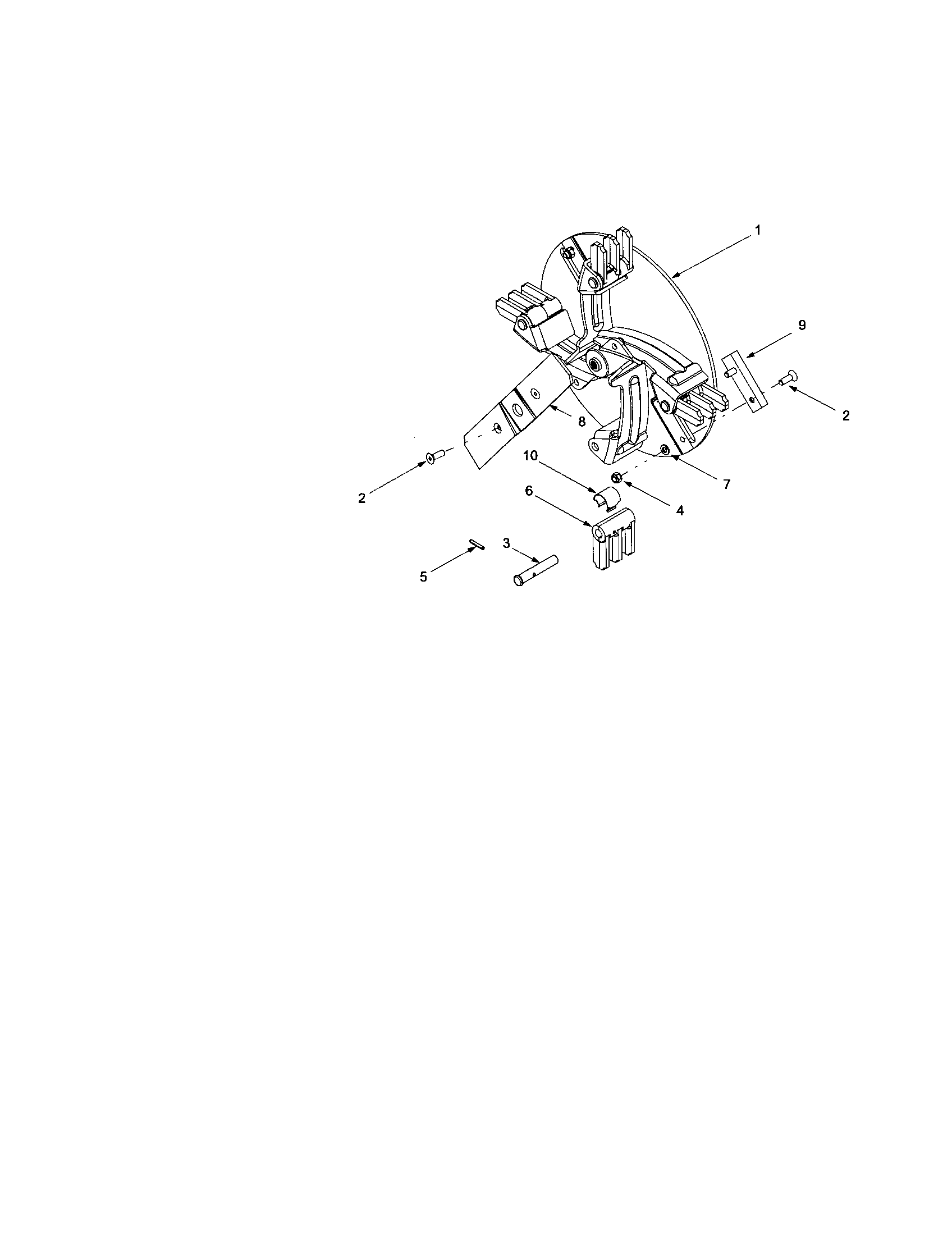

Impeller/chipper blade diagram

Chipper blade

Part #742-0544

Replaced by #742-0544B

?
Manufacturer substitution
This part replaces 742-0544. Substitute parts can look different from the original.
$40.88 |
13% OFF Phone Price : $46.88
In Stock
Chipper/shredder Flail Blade 719-0329
#6

Impeller/chipper blade diagram

Chipper/shredder flail blade

Part #719-0329

Get free shipping with Automatic Reorder

$32.18 |
16% OFF Phone Price : $38.18
In Stock
Lawn Vacuum Chipper/shredder Retainer Clip 781-0735
#10

Impeller/chipper blade diagram

Lawn vacuum chipper/shredder retainer clip

Part #781-0735

This item is not returnable
$6.55 |
13% OFF Phone Price : $7.55
In Stock
Lawn & Garden Equipment Screw 710-1054
#2

Impeller/chipper blade diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Vacuum Chipper/shredder Roll Pin 715-0166
#5

Impeller/chipper blade diagram

Lawn vacuum chipper/shredder roll pin

Part #715-0166

This item is not returnable
$10.46 |
16% OFF Phone Price : $12.46
In Stock
Lawn & Garden Equipment Push Cap (replaces 1917798, 926-0214) 726-0214
#48

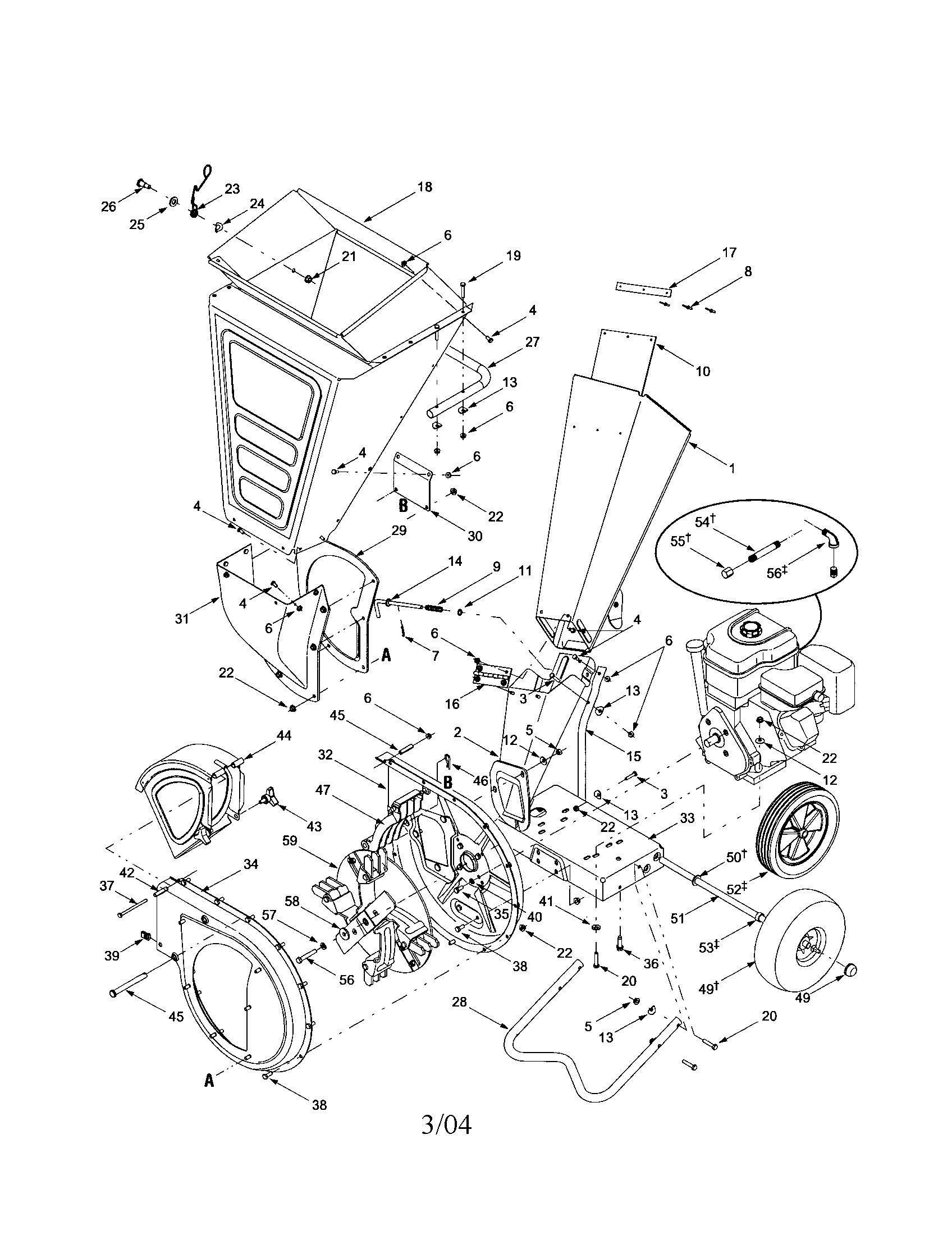

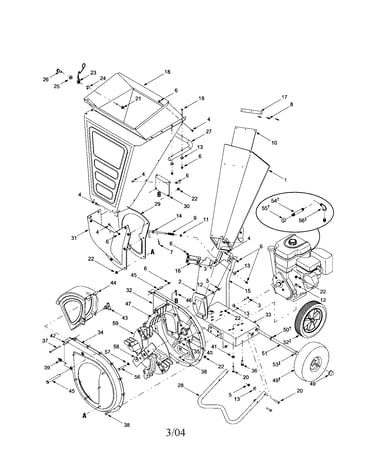

Upper chipper chute/shredder hopper diagram

Lawn & garden equipment push cap (replaces 1917798, 926-0214)

Part #726-0214

This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Hex Flange 712-3027
#6

Upper chipper chute/shredder hopper diagram

Hex flange

Part #712-3027

Replaced by #912-3027

?
Manufacturer substitution
This part replaces 712-3027. Substitute parts can look different from the original.
This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Ryobi Lawn & Garden Equipment Hex Nut (replaces 912-3010) 712-3010
#5

Upper chipper chute/shredder hopper diagram

Ryobi lawn & garden equipment hex nut (replaces 912-3010)

Part #712-3010

$7.71
In Stock
Knob Assembly 681-0048
#43

Upper chipper chute/shredder hopper diagram

Knob assembly

Part #681-0048

Replaced by #720-0170

?
Manufacturer substitution
This part replaces 681-0048. Substitute parts can look different from the original.
This item is not returnable
$17.33 |
10% OFF Phone Price : $19.33
In Stock
Belt 742-04050
#8

Impeller/chipper blade diagram

Belt

Part #742-04050

Replaced by #742-04050-0637

?
Manufacturer substitution
This part replaces 742-04050. Substitute parts can look different from the original.
$47.24
In Stock
