Craftsman
Drill/Driver

Model # 973110770 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 973110770 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

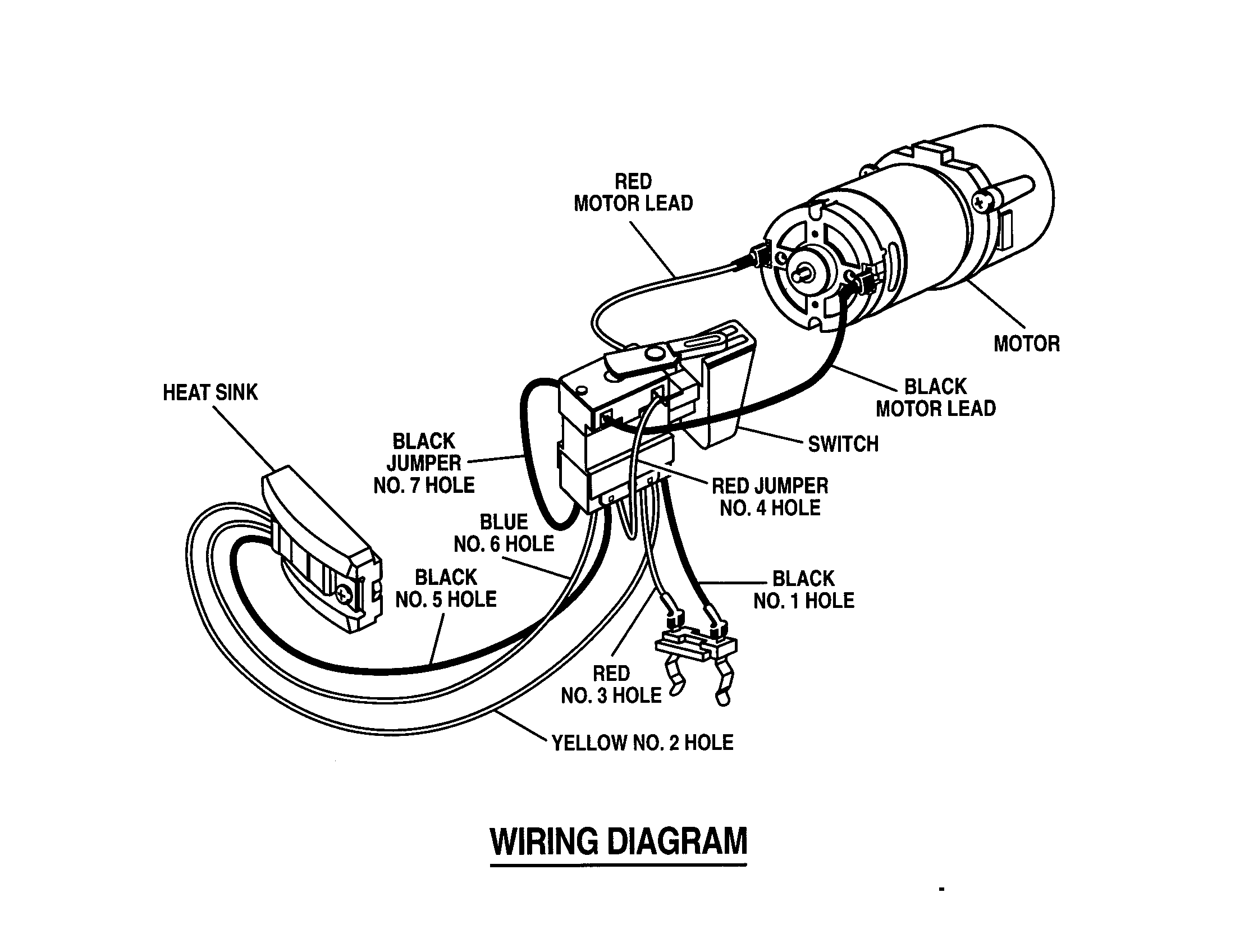

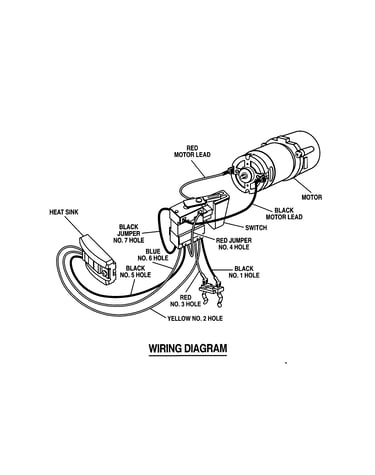

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Owner's Manual 972000-682

#NI

All parts diagram

Owner's manual

Part #972000-682

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973094-001
#2

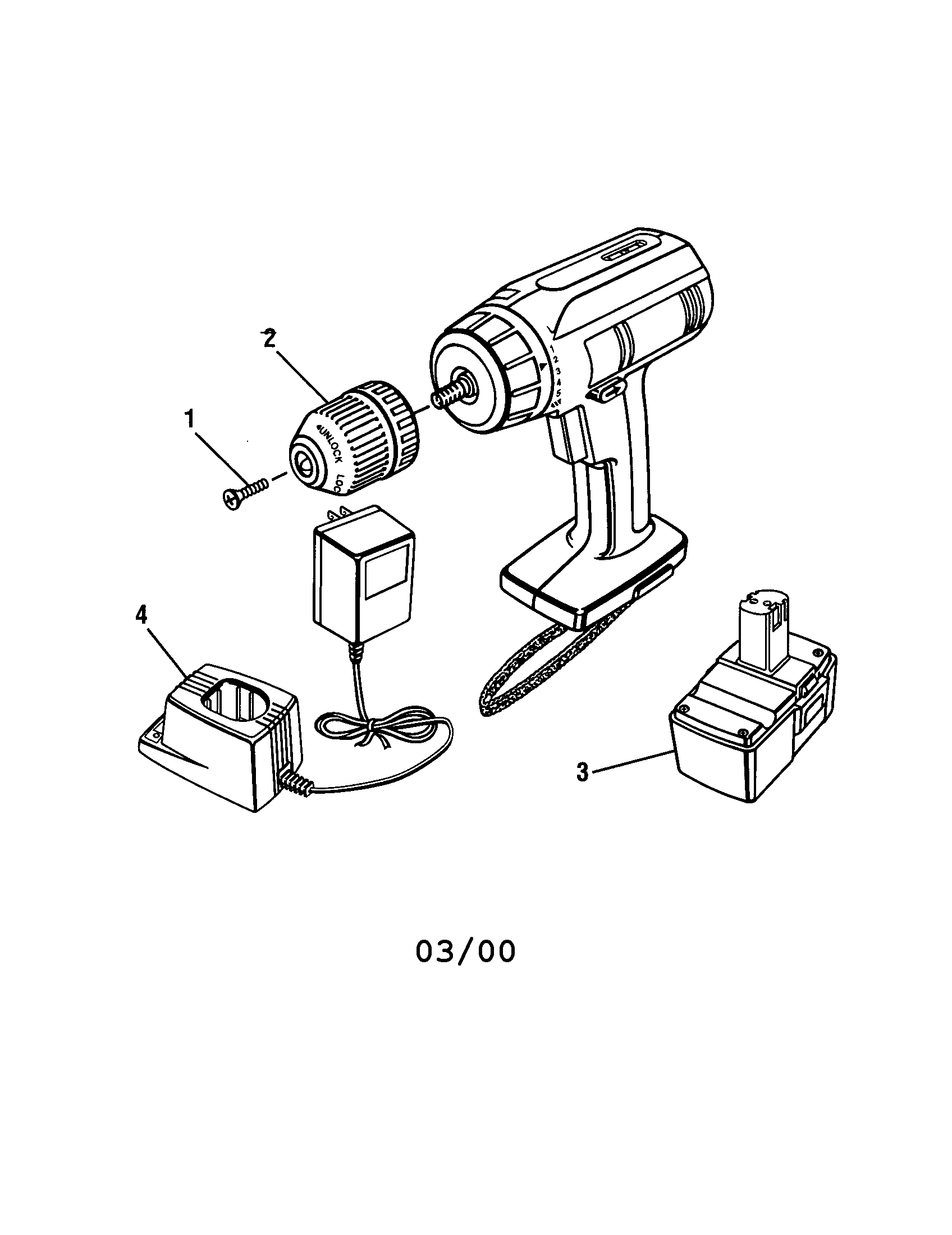

Drill diagram

Chuck

Part #973094-001

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 977374-000
#5

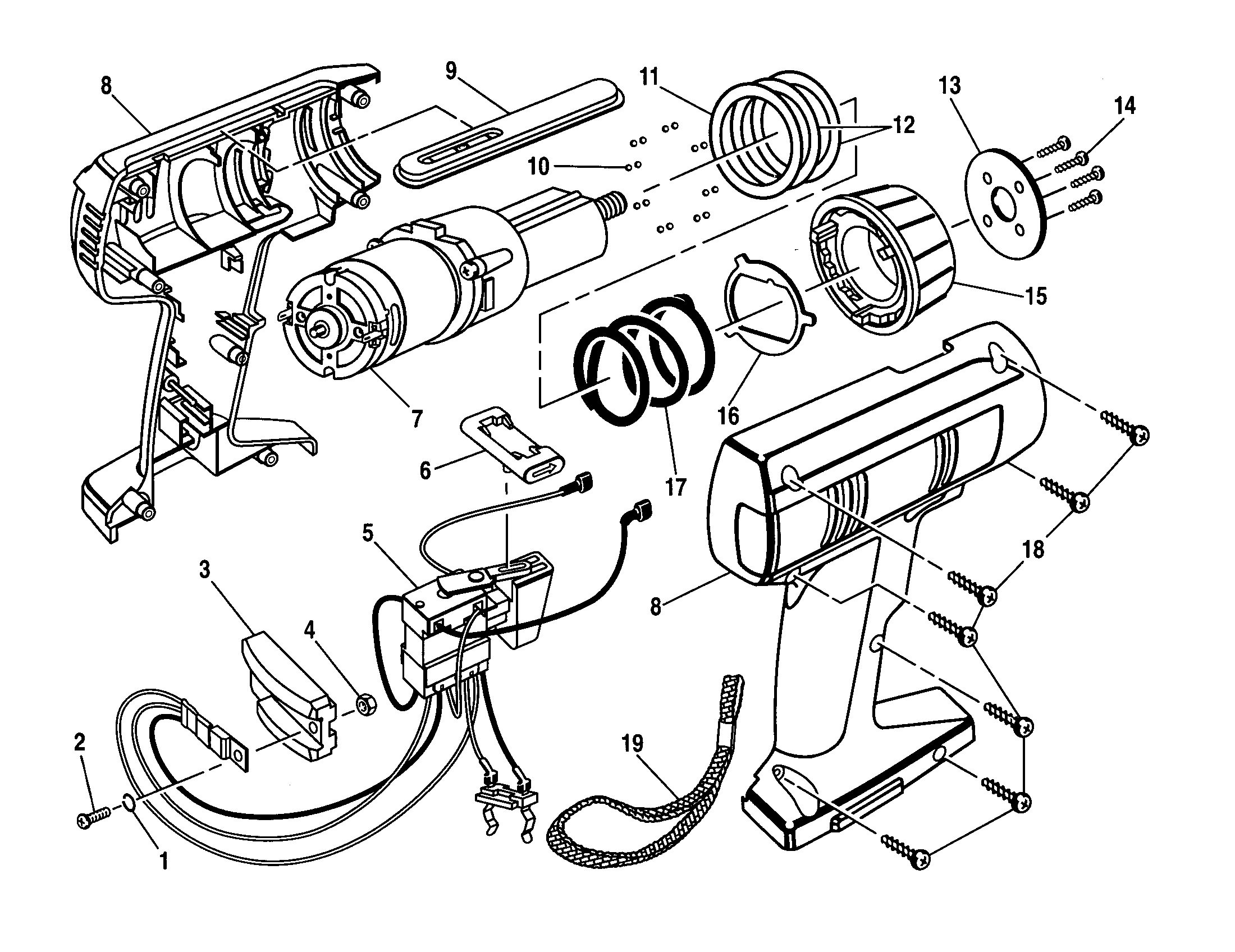

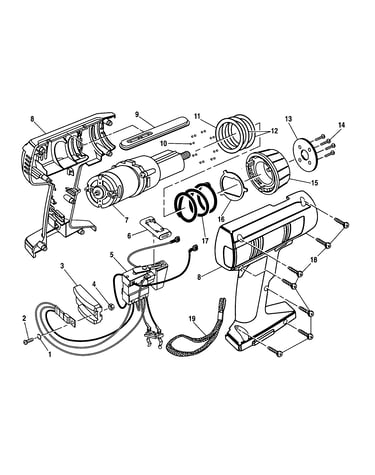

Housing assembly diagram

Switch assembly

Part #977374-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 981720-000
#11

Housing assembly diagram

Washer

Part #981720-000

The manufacturer no longer makes this part, and there's no substitute part

Strap 967216-003
#19

Housing assembly diagram

Strap

Part #967216-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 970861-000
#18

Housing assembly diagram

Screw

Part #970861-000

The manufacturer no longer makes this part, and there's no substitute part

Glamor Cap 979844-000
#15

Housing assembly diagram

Glamor cap

Part #979844-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 977395-000
#3

Housing assembly diagram

Heat sink

Part #977395-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 9-11074
#3

Drill diagram

Battery pack

Part #9-11074

The manufacturer no longer makes this part, and there's no substitute part

Charg/stand 9-11070
#4

Drill diagram

Charg/stand

Part #9-11070

The manufacturer no longer makes this part, and there's no substitute part
