Craftsman
Reciprocating Saw

Model # 315172280 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 315172280 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Gear Assembly 975233-000
#29

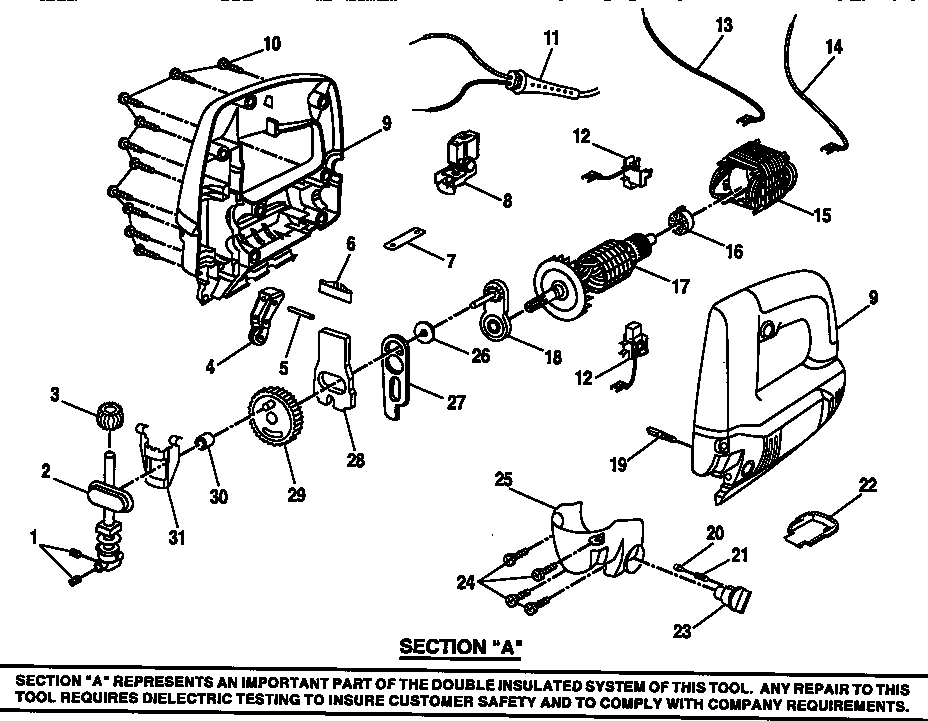

Field and armature assembly diagram

Gear assembly

Part #975233-000

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 975230-001
#9

Field and armature assembly diagram

Housing assembly

Part #975230-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 974298-002
#27

Field and armature assembly diagram

Plate

Part #974298-002

The manufacturer no longer makes this part, and there's no substitute part

Saw Bar As 974301-001
#2

Field and armature assembly diagram

Saw bar as

Part #974301-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 643526-003
#10

Field and armature assembly diagram

Screw

Part #643526-003

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 975684-001
#1

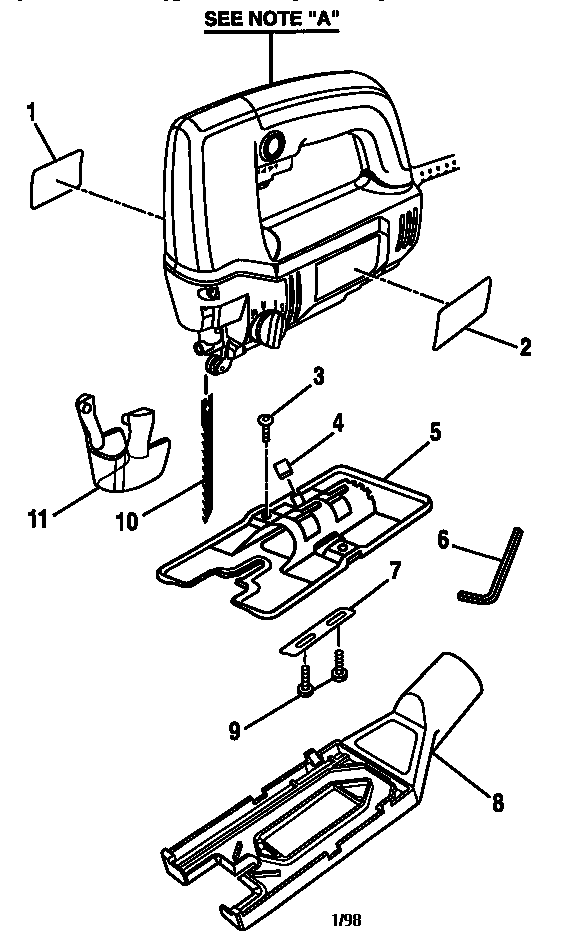

Base assembly diagram

Data plate

Part #975684-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-343
#26

Field and armature assembly diagram

Washer

Part #706382-343

The manufacturer no longer makes this part, and there's no substitute part

Chip Shield 974312-001
#11

Base assembly diagram

Chip shield

Part #974312-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 975231-000
#12

Field and armature assembly diagram

Brush assembly

Part #975231-000

The manufacturer no longer makes this part, and there's no substitute part

White Lead 975028-001
#14

Field and armature assembly diagram

White lead

Part #975028-001

The manufacturer no longer makes this part, and there's no substitute part
