Craftsman
Lawn Edger

Model # 358796490 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 358796490 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Screw 530016248
#20

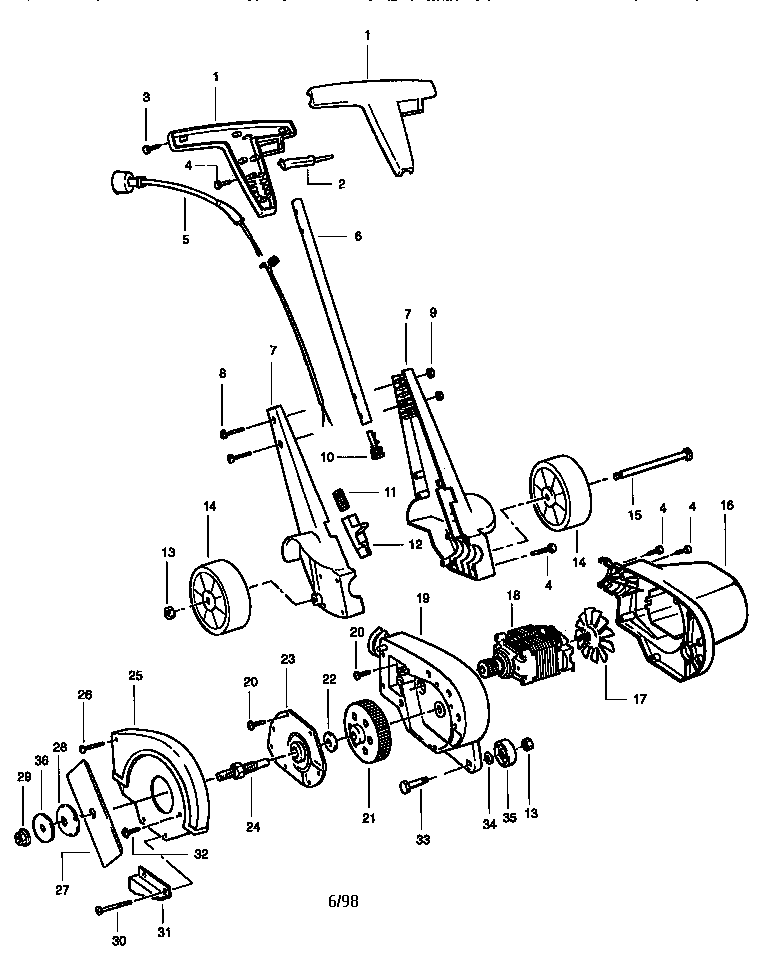

Edger diagram

Screw

Part #530016248

Replaced by #530015814

?
Manufacturer substitution
This part replaces 530016248. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Motor Assembly 530402926
#18

Edger diagram

Motor assembly

Part #530402926

The manufacturer no longer makes this part, and there's no substitute part

Washer 530016276
#36

Edger diagram

Washer

Part #530016276

The manufacturer no longer makes this part, and there's no substitute part

Screw 530016246
#3

Edger diagram

Screw

Part #530016246

The manufacturer no longer makes this part, and there's no substitute part

Edger Bearing 530402912
#23

Edger diagram

Edger bearing

Part #530402912

The manufacturer no longer makes this part, and there's no substitute part

Blade 71-85717
#27

Edger diagram

Blade

Part #71-85717

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Axle Assembly 530402876
#15

Edger diagram

Lawn mower axle assembly

Part #530402876

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Handle 530402925
#1

Edger diagram

Lawn mower handle

Part #530402925

The manufacturer no longer makes this part, and there's no substitute part

Edger Bolt 530402907
#33

Edger diagram

Edger bolt

Part #530402907

The manufacturer no longer makes this part, and there's no substitute part

Wheel 530095126
#14

Edger diagram

Wheel

Part #530095126

The manufacturer no longer makes this part, and there's no substitute part
