Electric Range

Model # JCSP42DN3WW Official GE electric range

Here are the diagrams and repair parts for Official GE JCSP42DN3WW electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

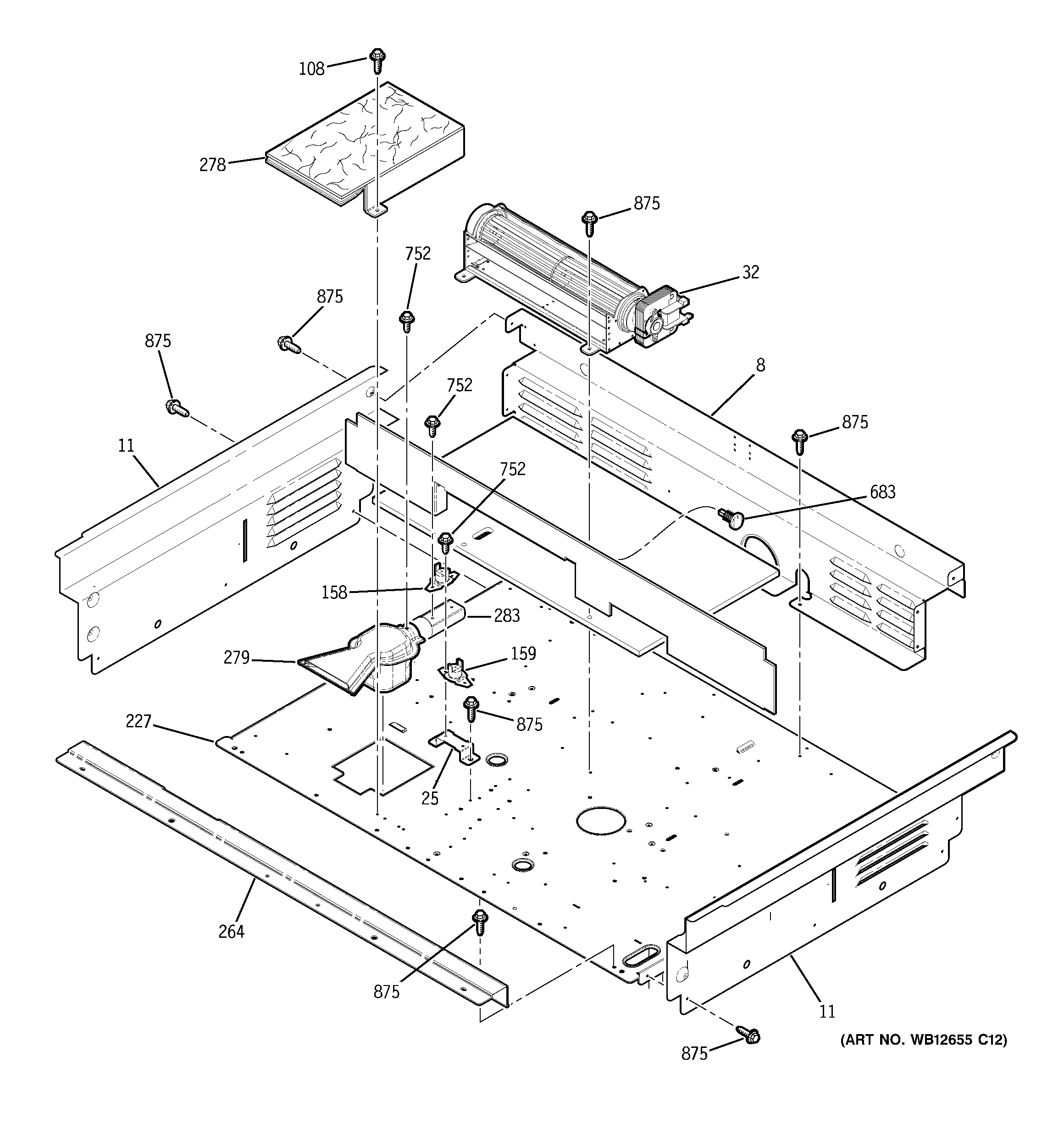

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JCSP42DN3WW Ranges
Oven Lamp WB08T10022
#257

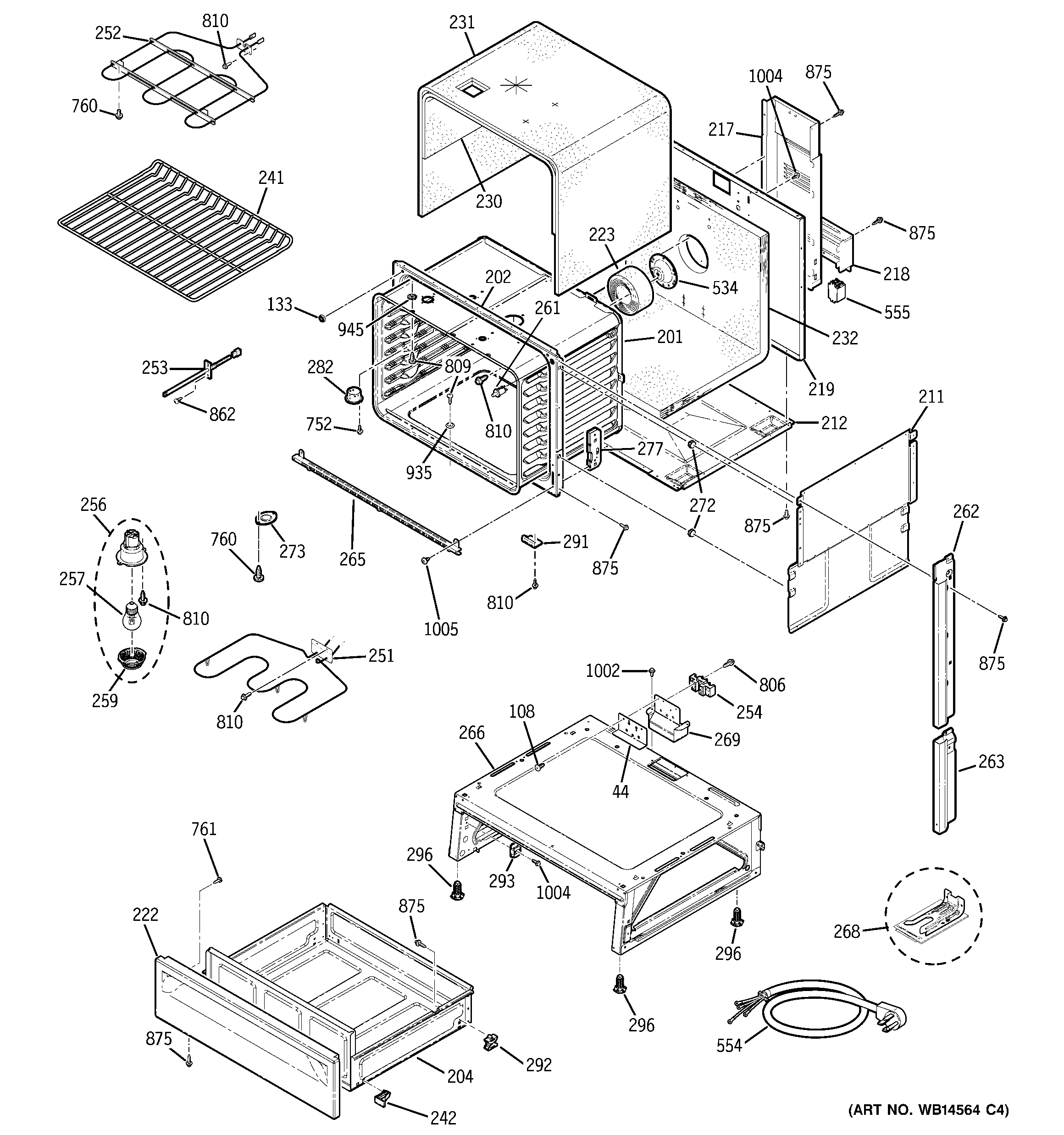

Body parts diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Wall Oven Temperature Sensor WB23T10015
#253

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$31.60 |
16% OFF Phone Price : $37.60
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

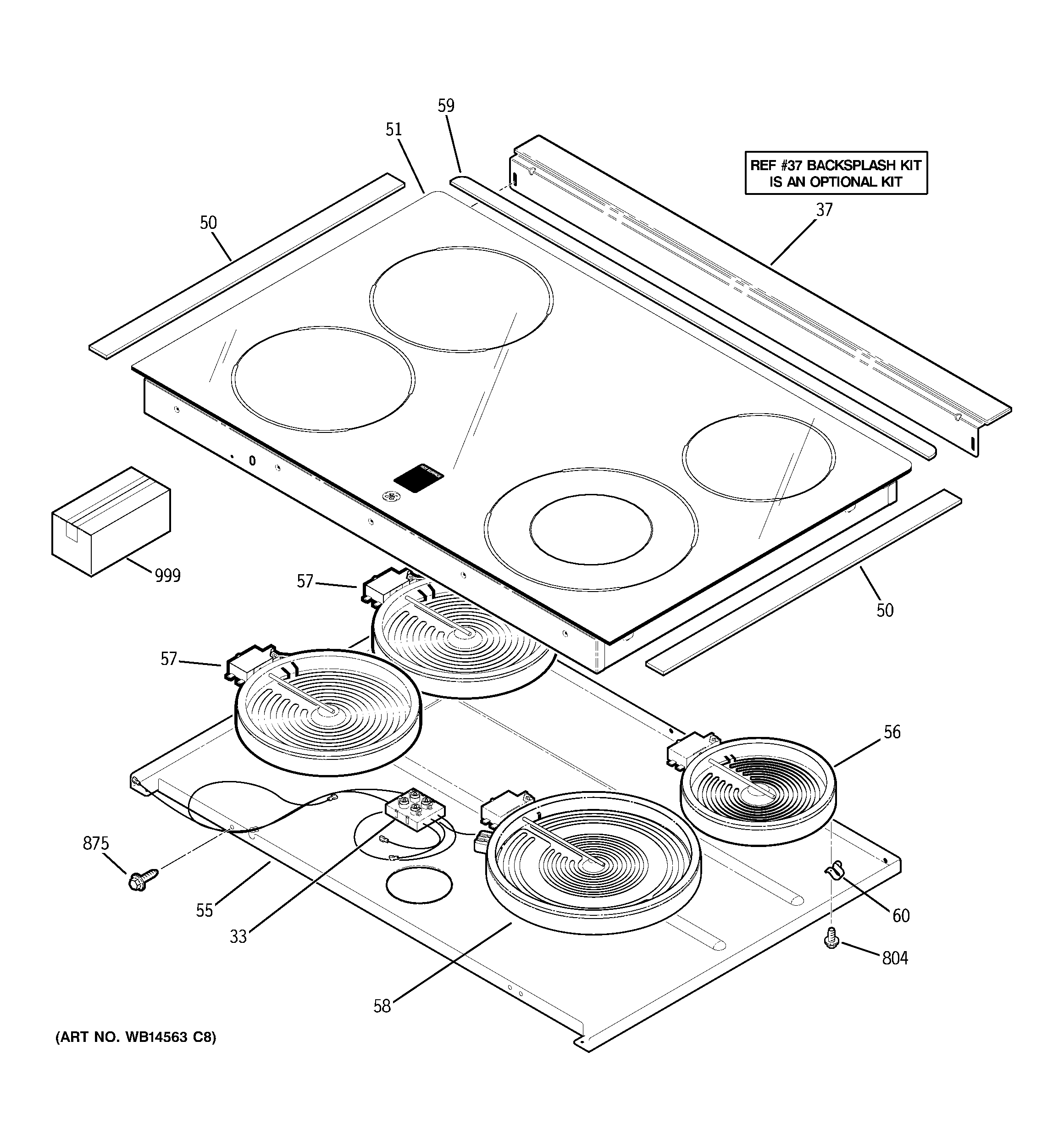

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$55.49 |
10% OFF Phone Price : $61.49
In Stock
Pack Window WB56T10152
#338

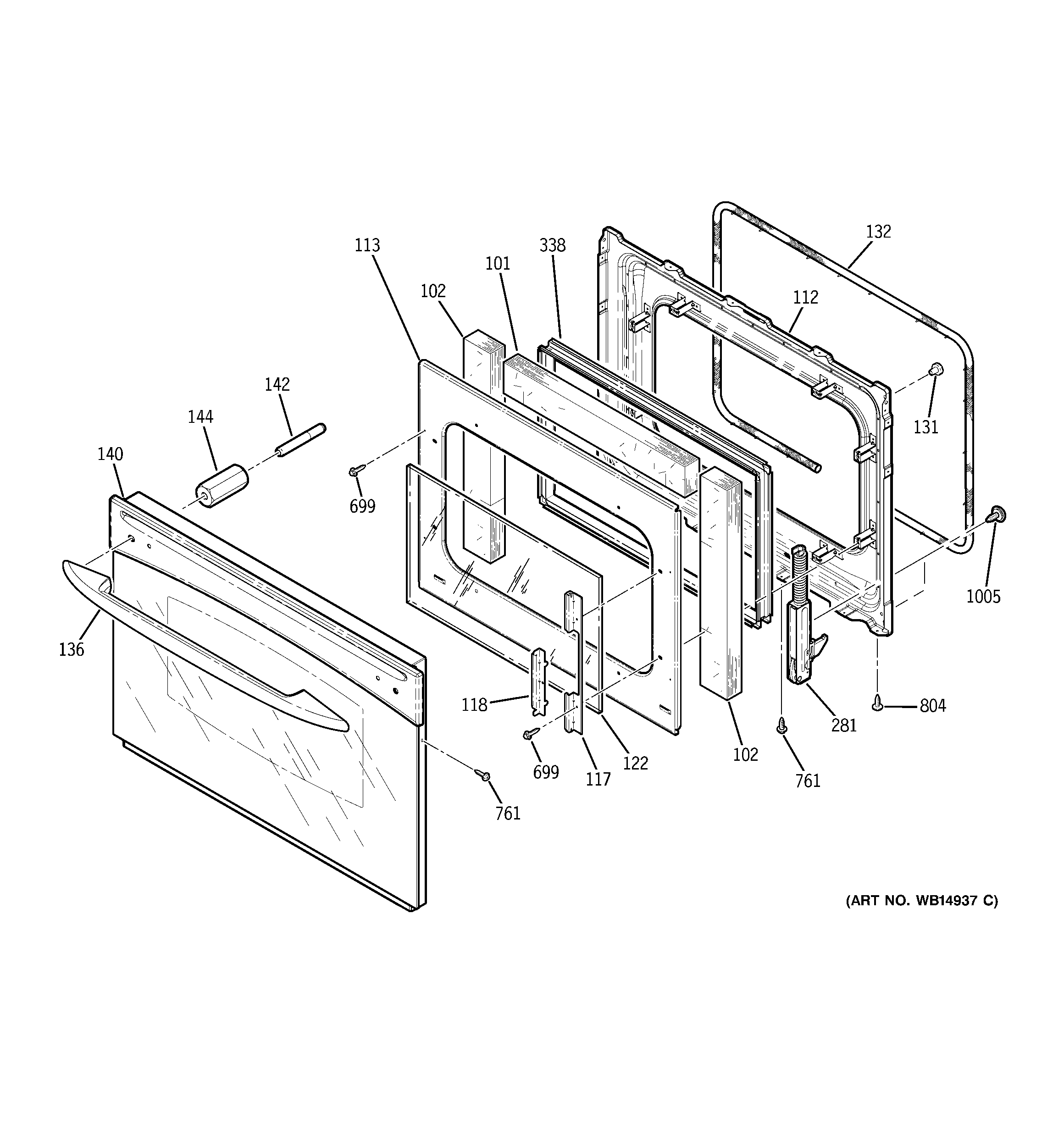

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$342.90 |
$12.00 OFF Phone Price : $354.90
In Stock
Oven Lamp Holder WB08T10002
#256

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Terminal Block WB17T10012
#254

Body parts diagram

Terminal block

Part #WB17T10012

Replaced by #WB17T10011

?
Manufacturer substitution
This part replaces WB17T10012. Substitute parts can look different from the original.
BEST SELLER
$51.84 |
10% OFF Phone Price : $57.84
In Stock
Range Broil Element (replaces Wb44k10007) WB44T10043
#252

Body parts diagram

Range broil element (replaces wb44k10007)

Part #WB44T10043

$89.53 |
6% OFF Phone Price : $95.53
In Stock
Range Radiant Surface Element, 6-in (replaces Wb30t10125) WB30T10129
#56

Cooktop diagram

Range radiant surface element, 6-in (replaces wb30t10125)

Part #WB30T10129

$100.00 |
11% OFF Phone Price : $112.00
In Stock
Range Oven Control Board WB27T10416
#16

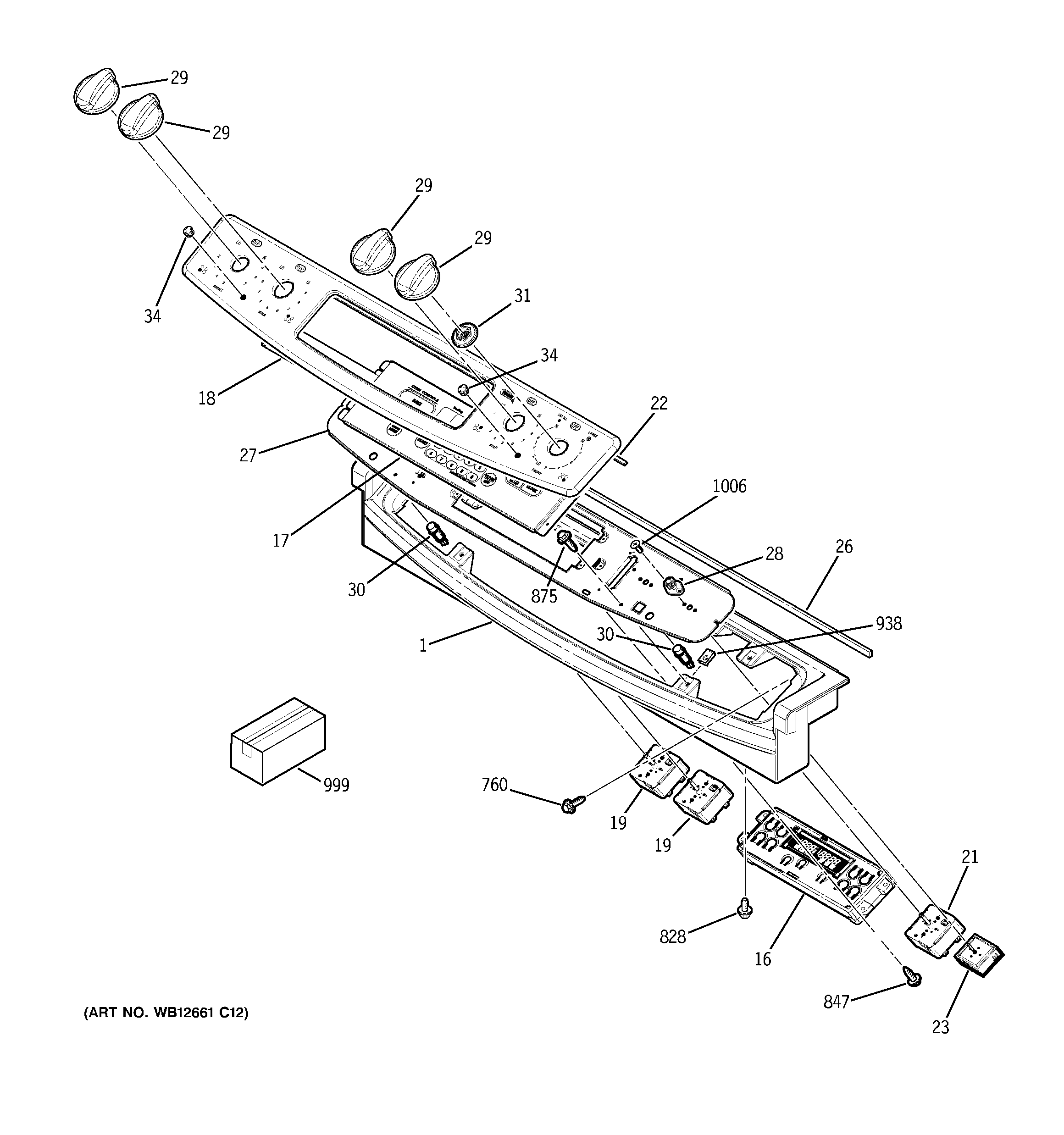

Control panel diagram

Range oven control board

Part #WB27T10416

This item is not returnable
$257.02 |
$12.00 OFF Phone Price : $269.02
In Stock
Range Surface Element Control Switch WB24T10134
#23

Control panel diagram

Range surface element control switch

Part #WB24T10134

$142.35 |
8% OFF Phone Price : $154.35
In Stock
