Tappan
Gas Range

Model # VG30CW2 Official Tappan gas range - lv32489040

Here are the diagrams and repair parts for Official Tappan VG30CW2 gas range - lv32489040, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

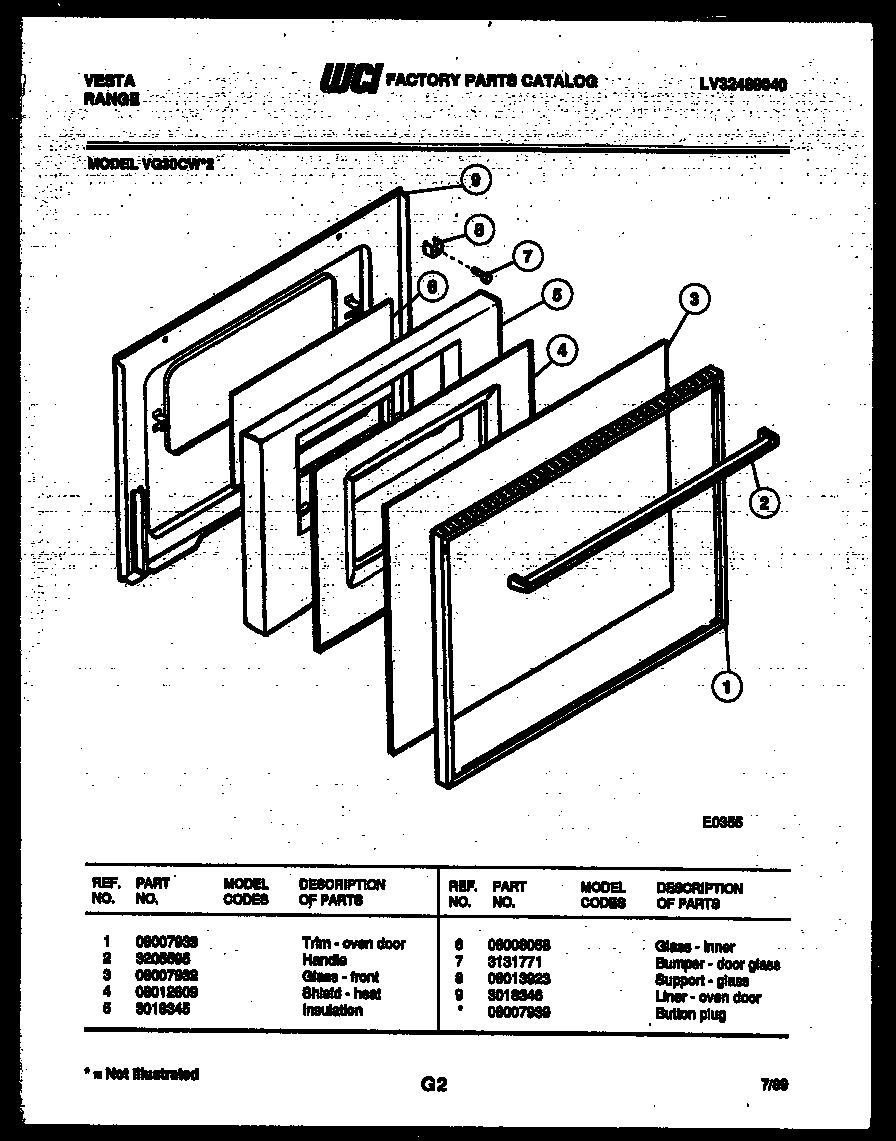

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Light 3013071
#25

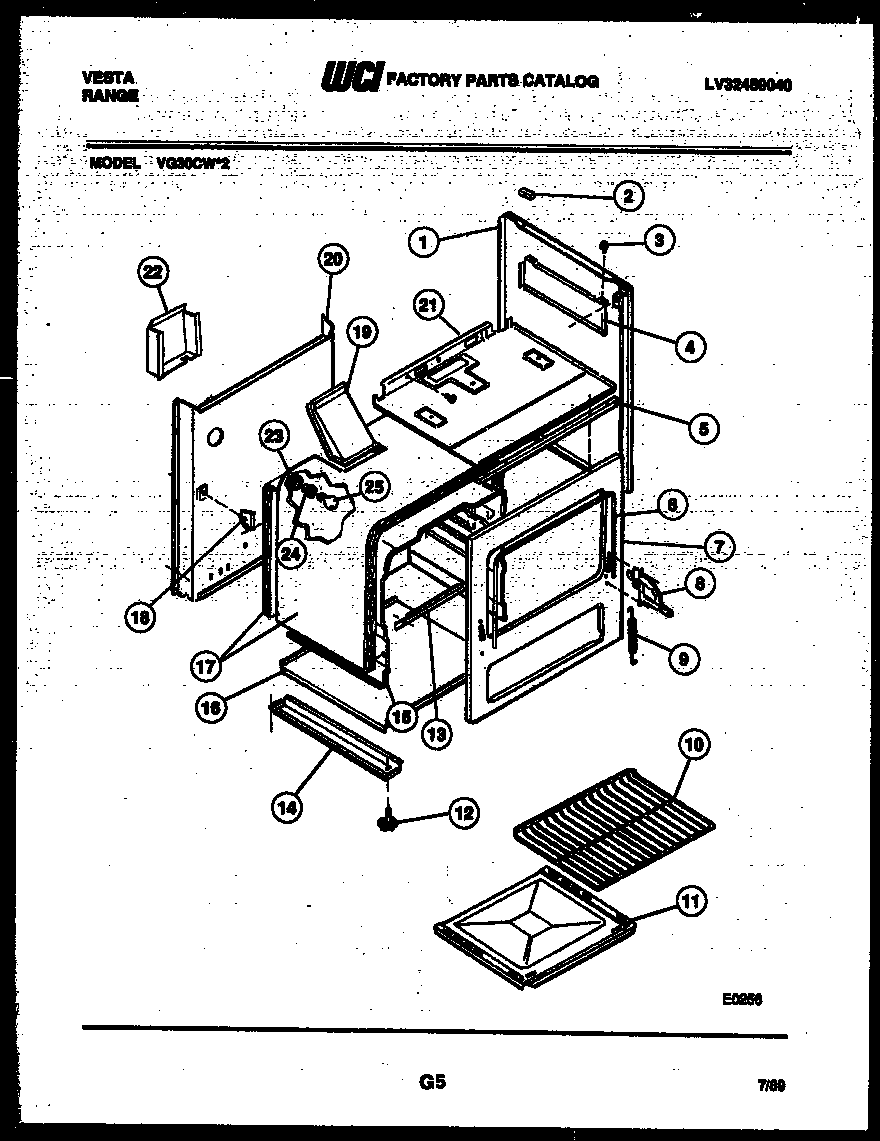

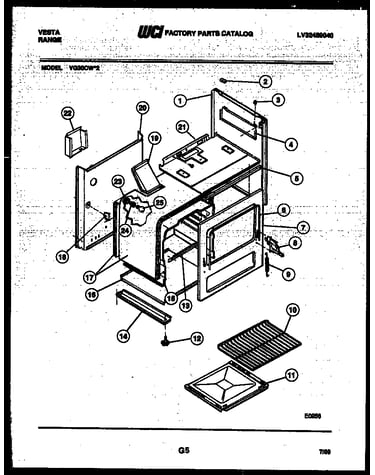

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Light Socket 3131807
#24

Body parts diagram

Light socket

Part #3131807

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3131807. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Nut 3051038
#5

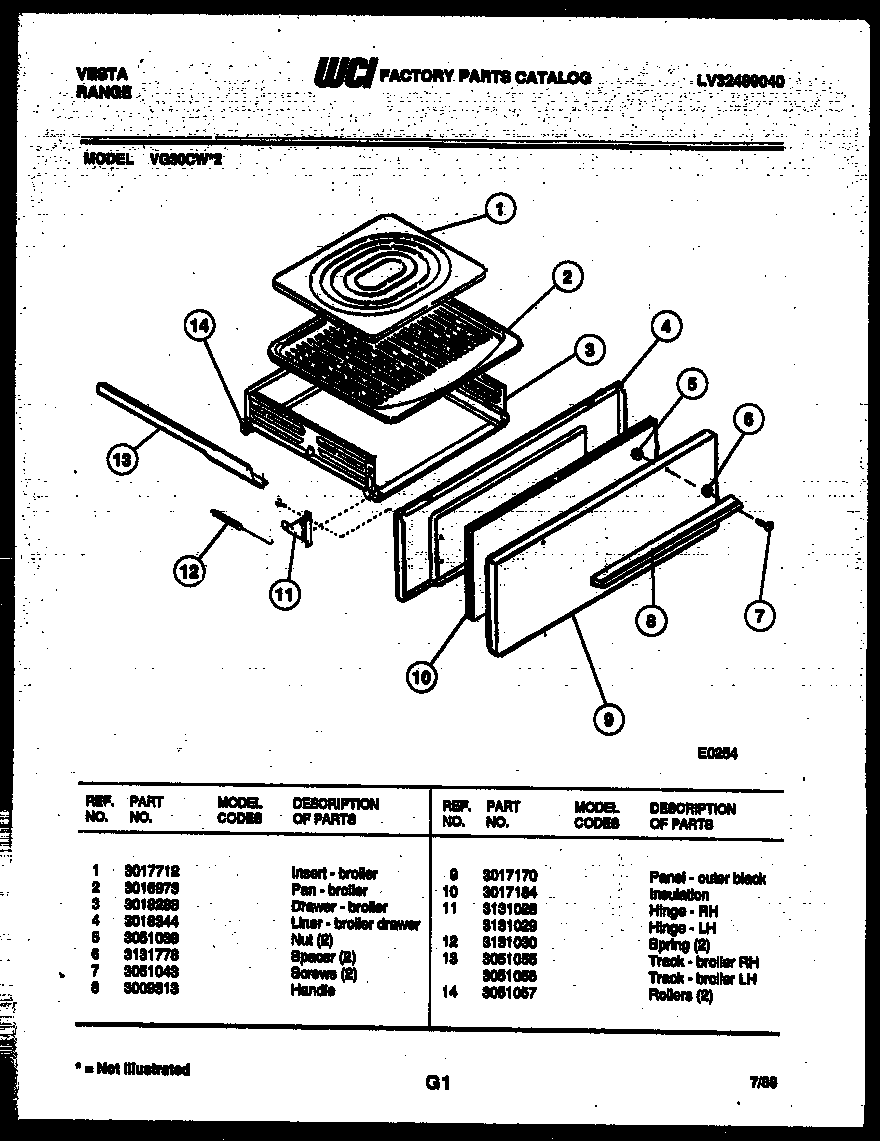

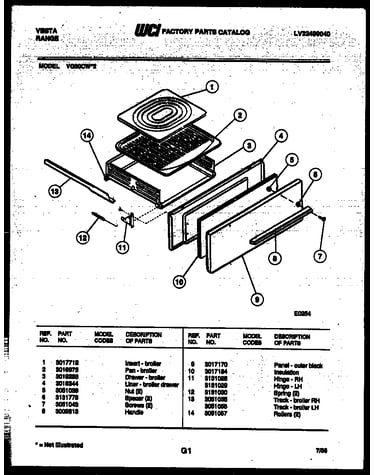

Broiler drawer parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Bushing 08008009
#9

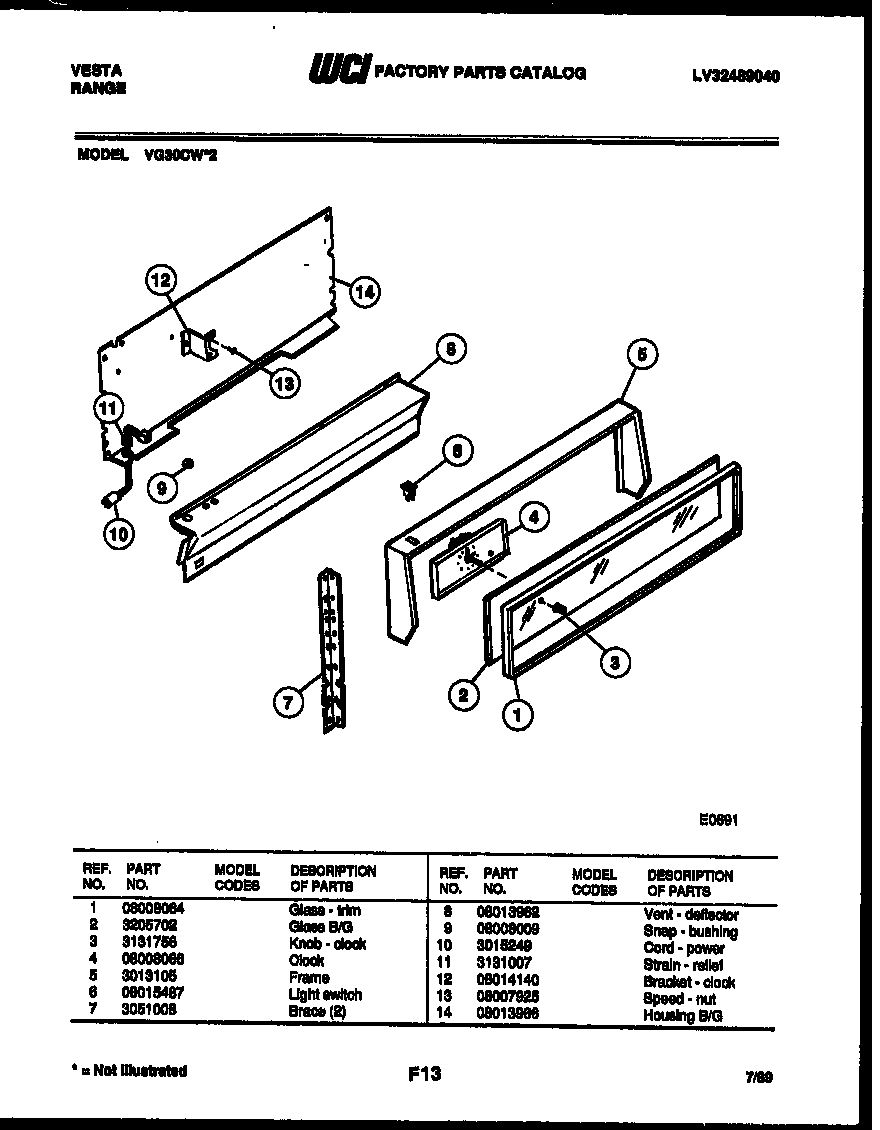

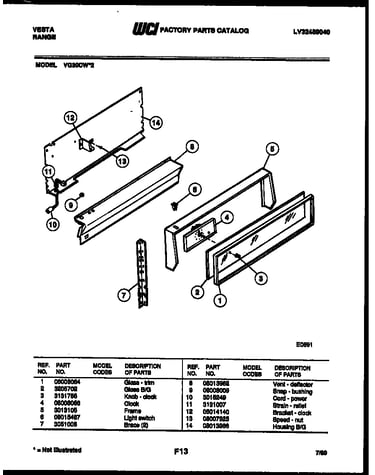

Backguard diagram

Bushing

Part #08008009

$10.20
In Stock
Regulator 08007974
#1

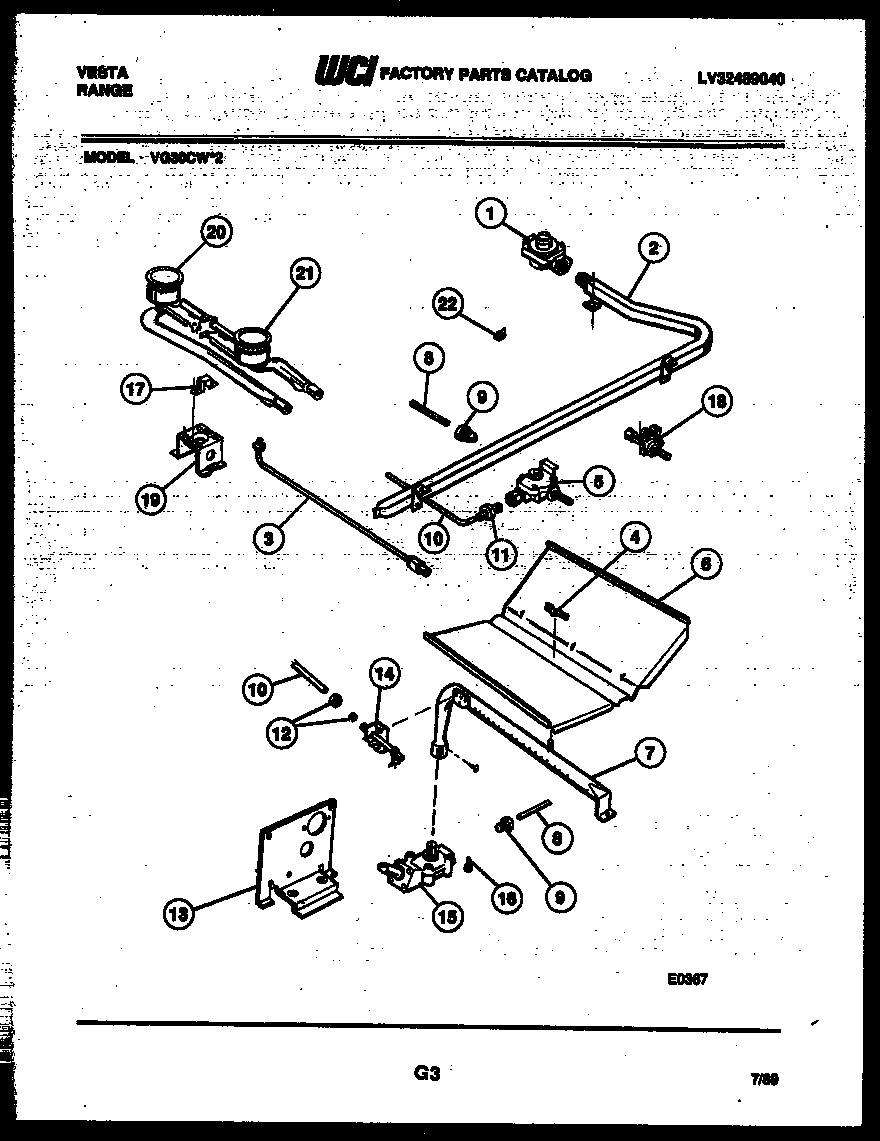

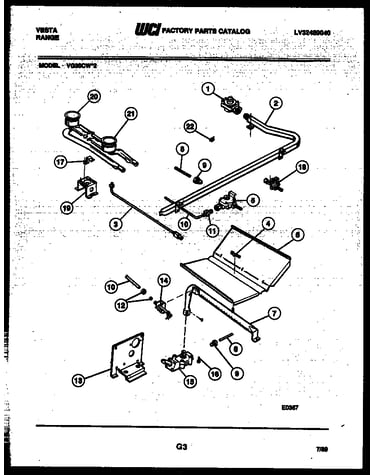

Burner, manifold and gas control diagram

Regulator

Part #08007974

Replaced by #5308007974

?
Manufacturer substitution
This part replaces 08007974. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Hinge 3204672
#8A

Body parts diagram

Hinge

Part #3204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Deflector 08013962
#8

Backguard diagram

Deflector

Part #08013962

Replaced by #5308013962

?
Manufacturer substitution
This part replaces 08013962. Substitute parts can look different from the original.
$33.99
In Stock
Thermostat 08013927
#5

Burner, manifold and gas control diagram

Thermostat

Part #08013927

The manufacturer no longer makes this part, and there's no substitute part

Bracket 08014140
#12

Backguard diagram

Bracket

Part #08014140

Replaced by #5308008076

?
Manufacturer substitution
This part replaces 08014140. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Knob 08013898
#3

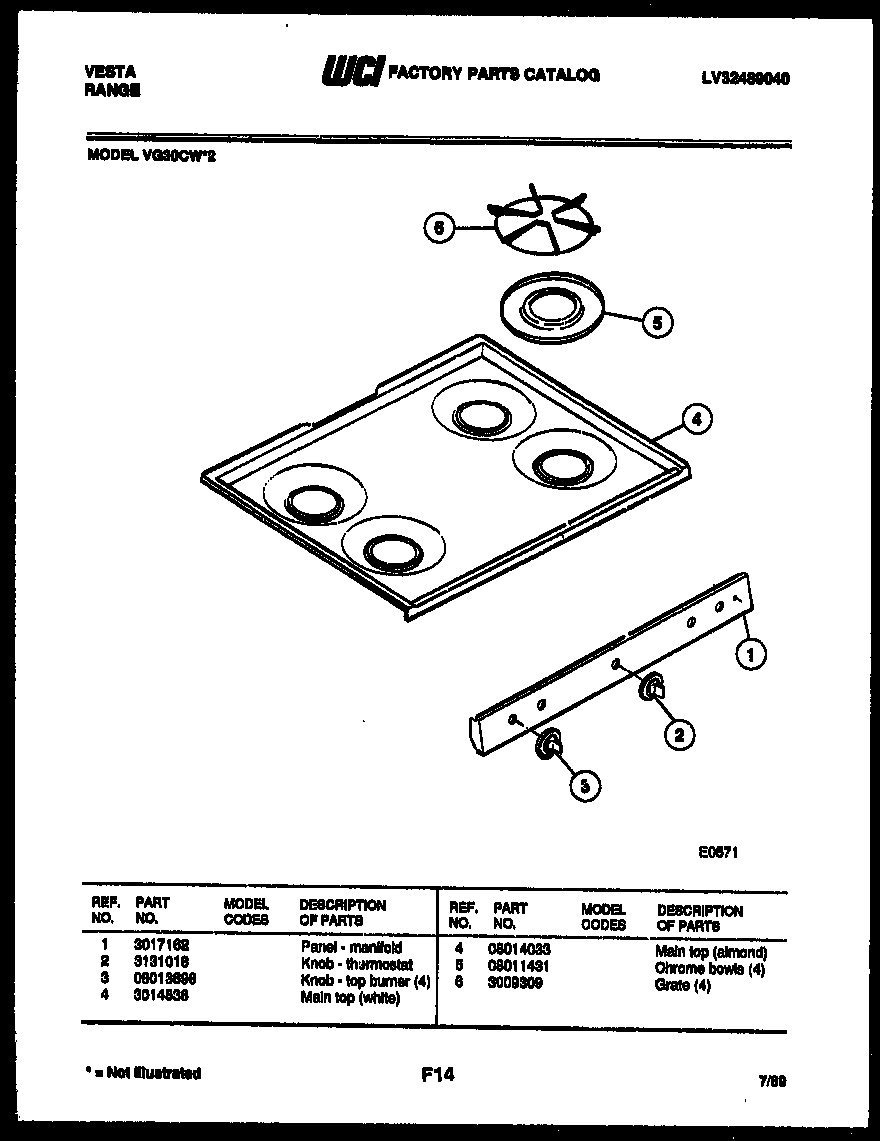

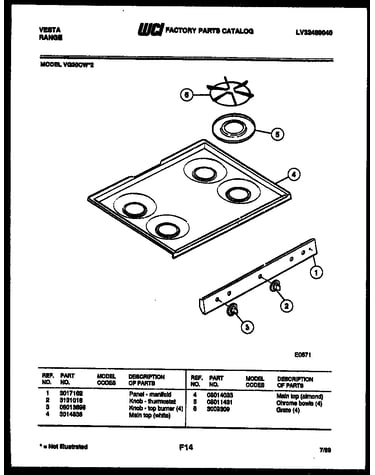

Cooktop parts diagram

Knob

Part #08013898

Replaced by #5308013898

?
Manufacturer substitution
This part replaces 08013898. Substitute parts can look different from the original.
$26.73
In Stock
