Model # 220339000 Official Kenmore 50-gallon gas water heater
Here are the diagrams and repair parts for Official Kenmore 220339000 50-gallon gas water heater, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

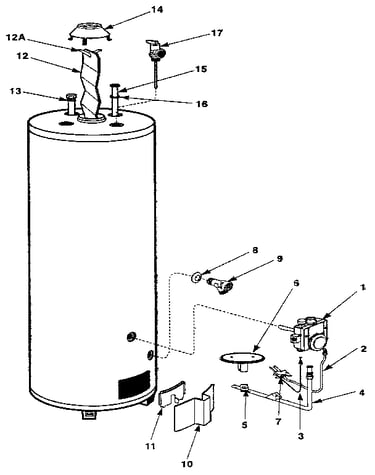

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 19 parts |
#11
Replacement parts diagram
Door
Part #AS29501
Replaced by #AS29501-3
?
Manufacturer substitution
This part replaces AS29501. Substitute parts can look different from the original.
This item is not returnable
$24.09 |
20% OFF Phone Price : $30.09
Back Order
#12
Replacement parts diagram
Flue baffle
Part #AS25812A
Replaced by #AM25812
?
Manufacturer substitution
This part replaces AS25812A. Substitute parts can look different from the original.
$48.56
In Stock
#1
Replacement parts diagram
Thermostat
Part #AP8855B
Replaced by #SP20164
?
Manufacturer substitution
This part replaces AP8855B. Substitute parts can look different from the original.
$166.39 |
7% OFF Phone Price : $178.39
In Stock
#3
Replacement parts diagram
Themocple
Part #AP6379K
Replaced by #AM35050EFF
?
Manufacturer substitution
This part replaces AP6379K. Substitute parts can look different from the original.
$130.28 |
8% OFF Phone Price : $142.28
In Stock
#6
Replacement parts diagram
Burner
Part #AS29458AB
Replaced by #AM35050EFF
?
Manufacturer substitution
This part replaces AS29458AB. Substitute parts can look different from the original.
$130.28 |
8% OFF Phone Price : $142.28
In Stock
#13
Replacement parts diagram
Anode
Part #AS35693AC
Replaced by #SP11309C
?
Manufacturer substitution
This part replaces AS35693AC. Substitute parts can look different from the original.
$109.29
In Stock
#15
Replacement parts diagram
Dip tube
Part #AS21064Q
Replaced by #SP11248R
?
Manufacturer substitution
This part replaces AS21064Q. Substitute parts can look different from the original.
$27.20
Back Order
#4
Replacement parts diagram
Brnr sply tb
Part #AP8964E
Replaced by #AM35050EFF
?
Manufacturer substitution
This part replaces AP8964E. Substitute parts can look different from the original.
$130.28 |
8% OFF Phone Price : $142.28
In Stock
#9
Replacement parts diagram
Drain valve
Part #AP10424B
Replaced by #100108605
?
Manufacturer substitution
This part replaces AP10424B. Substitute parts can look different from the original.
$27.78
In Stock
#7
Replacement parts diagram
Burner
Part #AP8980B
Replaced by #SP8980C
?
Manufacturer substitution
This part replaces AP8980B. Substitute parts can look different from the original.
$37.60
In Stock
