Model # DE-251C Official Norcold refrigerator

Here are the diagrams and repair parts for Official Norcold DE-251C refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Blind Covr 244712
#50

Cabinet diagram

Blind covr

Part #244712

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Sheet 144349
#25

Cabinet diagram

Refrigerator sheet

Part #144349

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 340901600
#37

Cabinet diagram

Refrigerator support

Part #340901600

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cord Assembly 191201010
#91

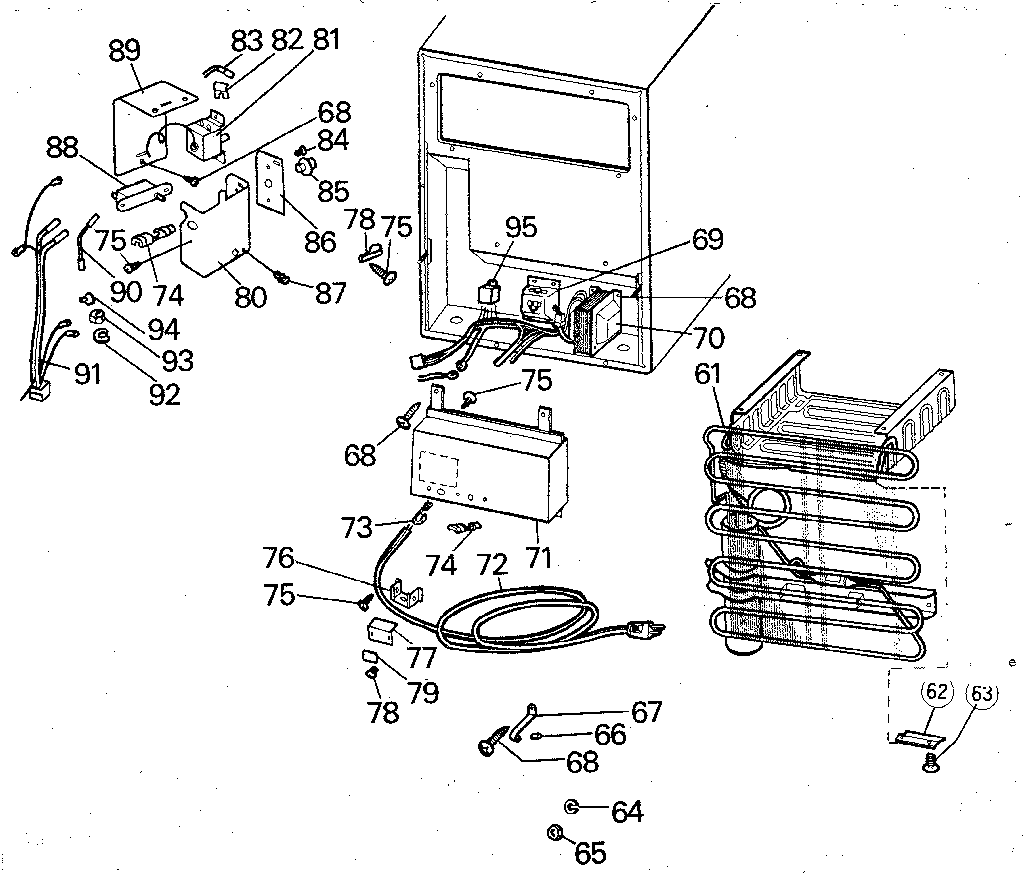

Cooling unit assembly diagram

Refrigerator cord assembly

Part #191201010

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mark 545002300
#86

Cooling unit assembly diagram

Refrigerator mark

Part #545002300

The manufacturer no longer makes this part, and there's no substitute part

Holder Cush 144185
#66

Cooling unit assembly diagram

Holder cush

Part #144185

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 603200100
#81

Cooling unit assembly diagram

Refrigerator thermostat

Part #603200100

The manufacturer no longer makes this part, and there's no substitute part

Butter Hold 245122
#8

Door assembly diagram

Butter hold

Part #245122

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 800005012
#29

Cabinet diagram

Refrigerator screw

Part #800005012

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cord 190903700
#90

Cooling unit assembly diagram

Refrigerator cord

Part #190903700

The manufacturer no longer makes this part, and there's no substitute part
