Kenmore
Upright Vacuum

Model # 11639712990 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11639712990 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Vacuum Drive Belt 4369591
#29

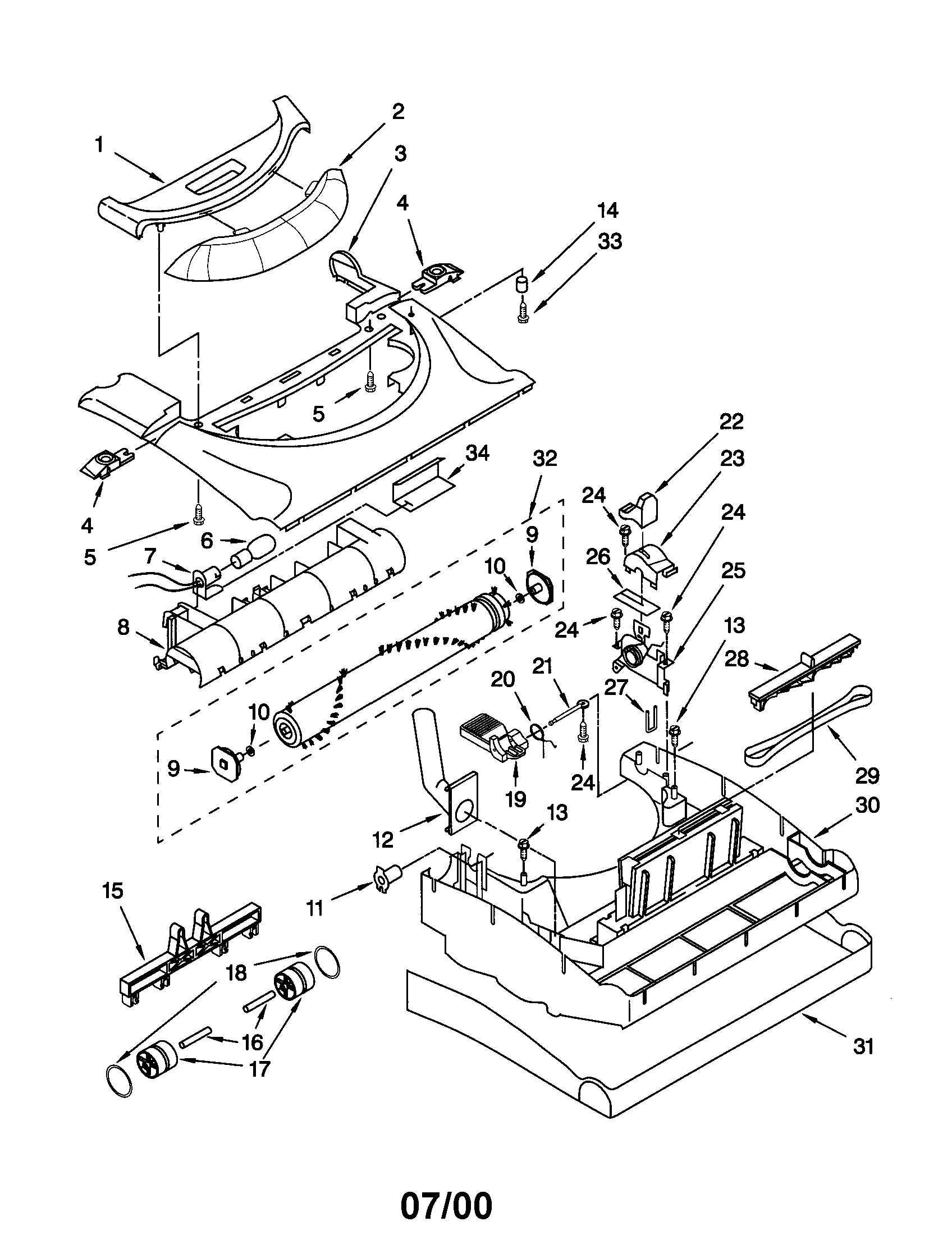

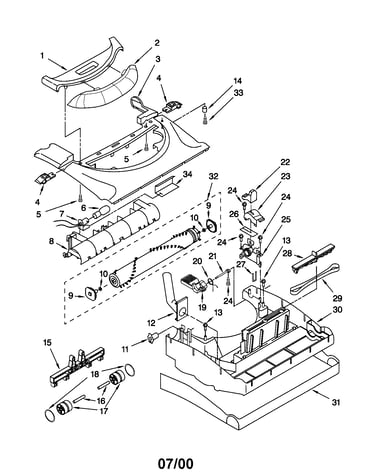

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#3

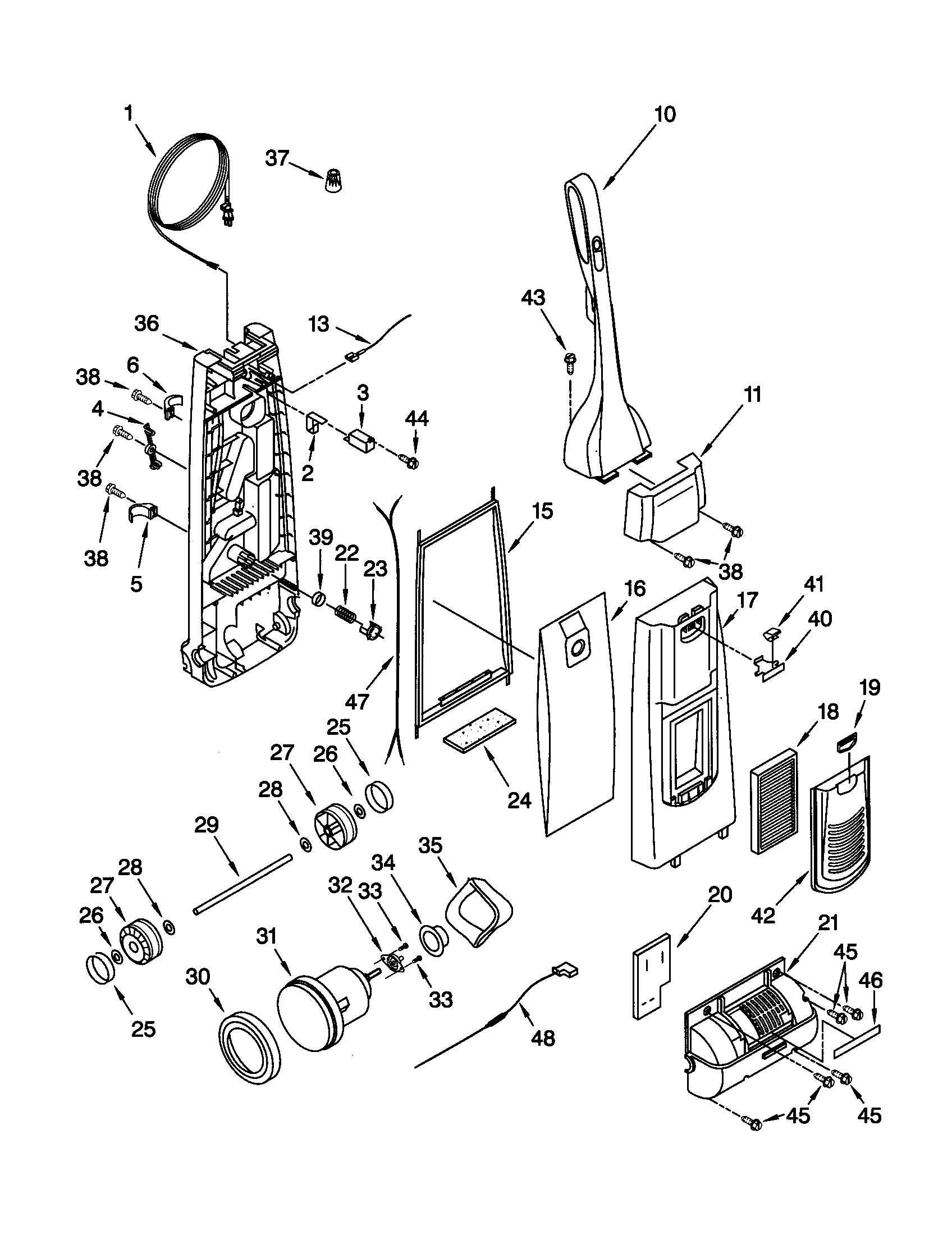

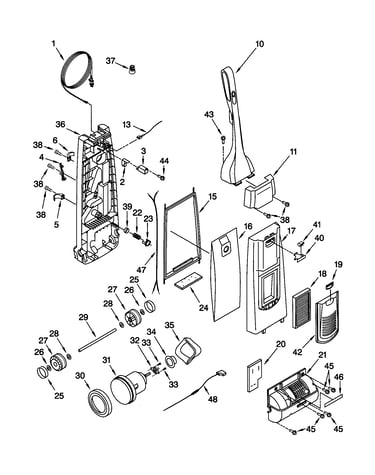

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

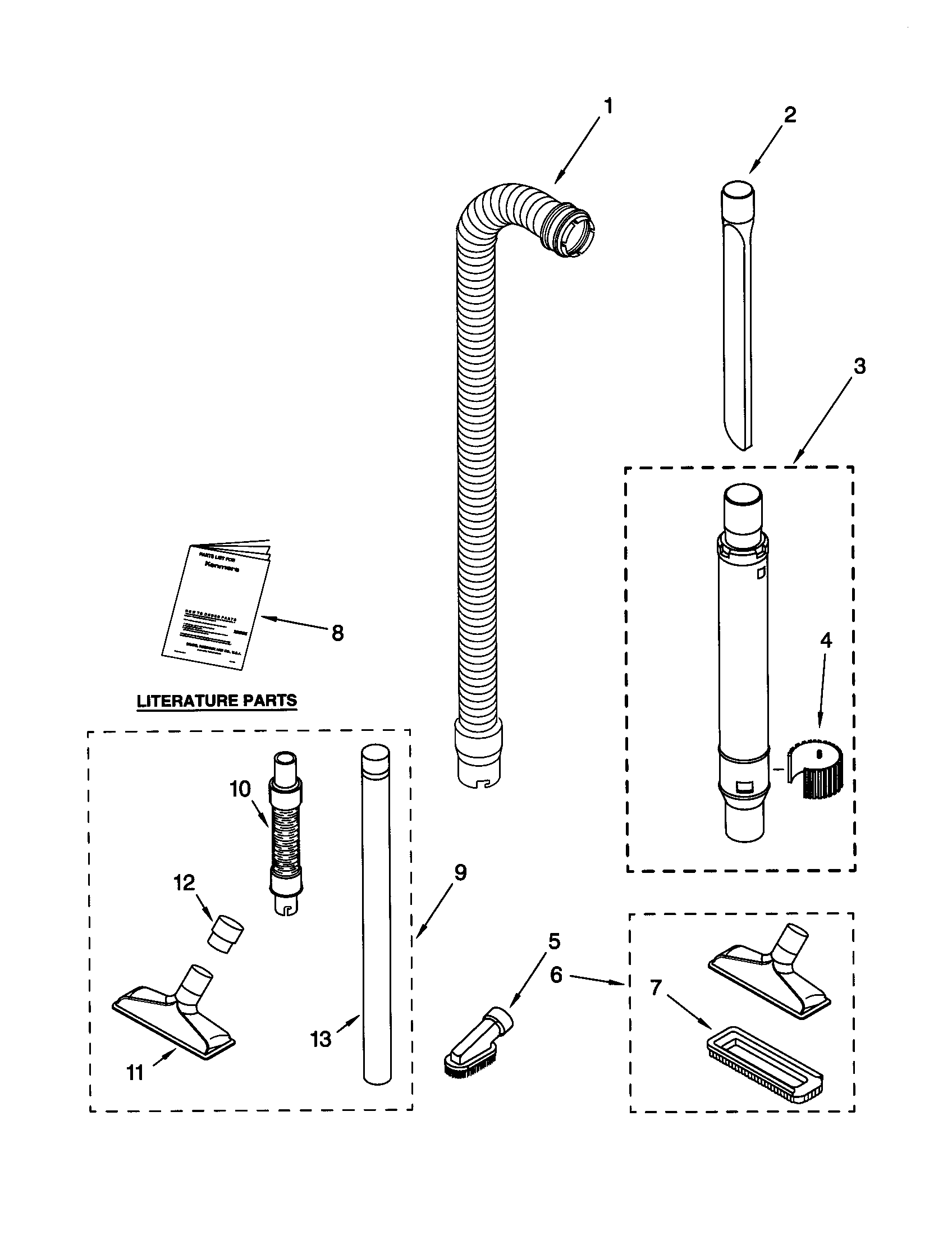

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Screw, Switch Mounting 4270280
#44

Dust compartment and motor diagram

Screw, switch mounting

Part #4270280

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 8174951
#10

Dust compartment and motor diagram

Vacuum handle

Part #8174951

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 4370858
#48

Dust compartment and motor diagram

Lead wire

Part #4370858

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 4370417
#18

Dust compartment and motor diagram

Filter, 1-pack

Part #4370417

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter (black) 4370405
#20

Dust compartment and motor diagram

Vacuum filter (black)

Part #4370405

The manufacturer no longer makes this part, and there's no substitute part

Bearing (silver) 4370532
#9

Nozzle diagram

Bearing (silver)

Part #4370532

The manufacturer no longer makes this part, and there's no substitute part
