Jenn-Air
Electric Cooktop

Model # JEC0536ADW12 Official Jenn-Air 36" electric built-in cooktop

Here are the diagrams and repair parts for Official Jenn-Air JEC0536ADW12 36" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Range Surface Element Support 8004P093-60
#6

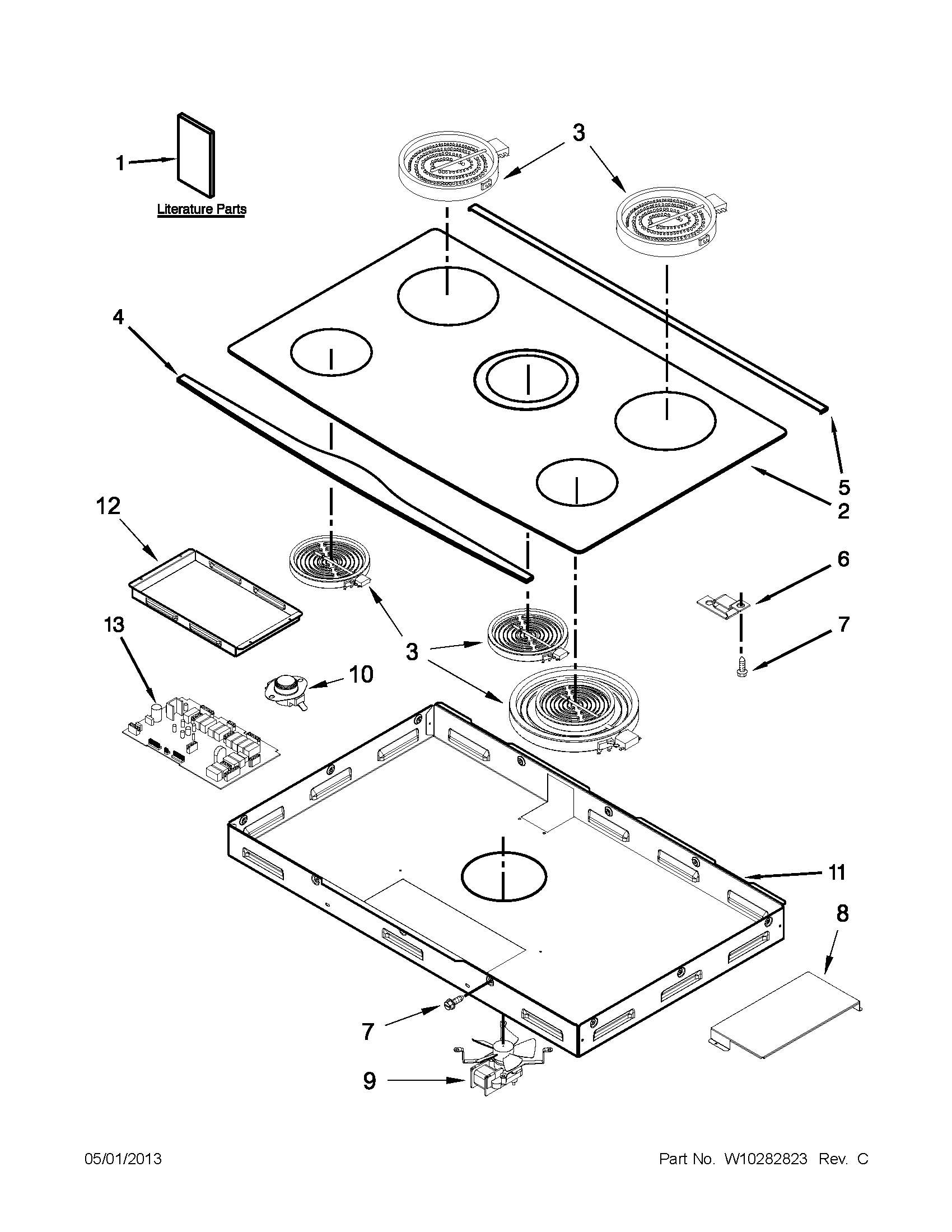

Cooktop parts diagram

Range surface element support

Part #8004P093-60

This item is not returnable
$7.01
In Stock
Main Top 7920P219-60
#2

Cooktop parts diagram

Main top

Part #7920P219-60

Replaced by #W10207850

?
Manufacturer substitution
This part replaces 7920P219-60. Substitute parts can look different from the original.
$730.51 |
$12.00 OFF Phone Price : $742.51
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1C

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Cooktop Trim, Rear (stainless) W10168884
#5

Cooktop parts diagram

Cooktop trim, rear (stainless)

Part #W10168884

$208.99 |
5% OFF Phone Price : $220.99
In Stock
Surface Element 7406P395-60
#3A

Cooktop parts diagram

Surface element

Part #7406P395-60

Replaced by #WP74010157

?
Manufacturer substitution
This part replaces 7406P395-60. Substitute parts can look different from the original.
$133.42
In Stock
Cooktop Trim W10168880
#4

Cooktop parts diagram

Cooktop trim

Part #W10168880

Replaced by #WPW10168880

?
Manufacturer substitution
This part replaces W10168880. Substitute parts can look different from the original.
$155.00
In Stock
Surface Element 7406P401-60
#3D

Cooktop parts diagram

Surface element

Part #7406P401-60

Replaced by #WP74009899

?
Manufacturer substitution
This part replaces 7406P401-60. Substitute parts can look different from the original.
$105.09 |
10% OFF Phone Price : $117.09
In Stock
Machine Screw STD510805
#7

Cooktop parts diagram

Machine screw

Part #STD510805

The manufacturer no longer makes this part, and there's no substitute part

Main Harness 5171P399-60
#NI

Optional parts diagram

Main harness

Part #5171P399-60

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Electronic Control 8507P200-60
#13

Cooktop parts diagram

Cooktop electronic control

Part #8507P200-60

The manufacturer no longer makes this part, and there's no substitute part
