Model # DW960K-2 TYPE2 Official DeWalt cordless drill

Here are the diagrams and repair parts for Official DeWalt DW960K-2-TYPE2 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Drill/driver Clamshell Assembly 652045-00
#1

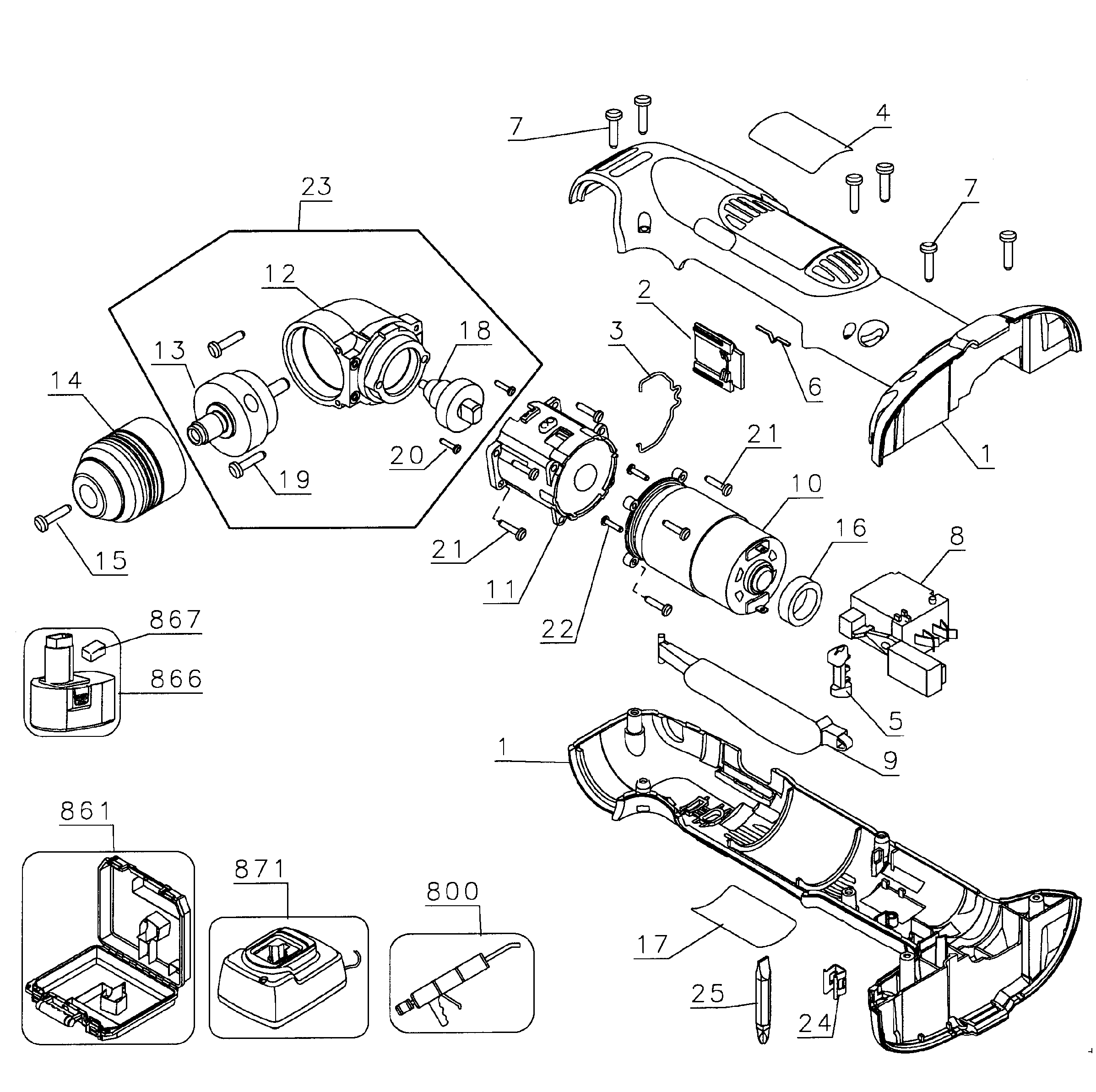

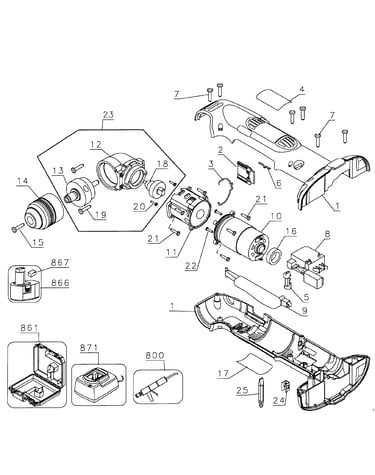

Drill cordless diagram

Drill/driver clamshell assembly

Part #652045-00

The manufacturer no longer makes this part, and there's no substitute part

Gearbox 604790-00SV
#23

Drill cordless diagram

Gearbox

Part #604790-00SV

The manufacturer no longer makes this part, and there's no substitute part

Space Ring 391564-00
#16

Drill cordless diagram

Space ring

Part #391564-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Battry Cap 645221-00
#867

Drill cordless diagram

Black & decker battry cap

Part #645221-00

The manufacturer no longer makes this part, and there's no substitute part

Shift Butt 383842-02
#2

Drill cordless diagram

Shift butt

Part #383842-02

The manufacturer no longer makes this part, and there's no substitute part

Spindle 615066-00
#13

Drill cordless diagram

Spindle

Part #615066-00

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 616995-00
#12

Drill cordless diagram

Gear case

Part #616995-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Grease 283484-01
#800A

Drill cordless diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Bit Scrwdr 607918-55
#25

Drill cordless diagram

Dewalt bit scrwdr

Part #607918-55

The manufacturer no longer makes this part, and there's no substitute part

Shifter Spring 144658-00
#6

Drill cordless diagram

Shifter spring

Part #144658-00

The manufacturer no longer makes this part, and there's no substitute part
