Model # NUG3050AFB1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NUG3050AFB1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

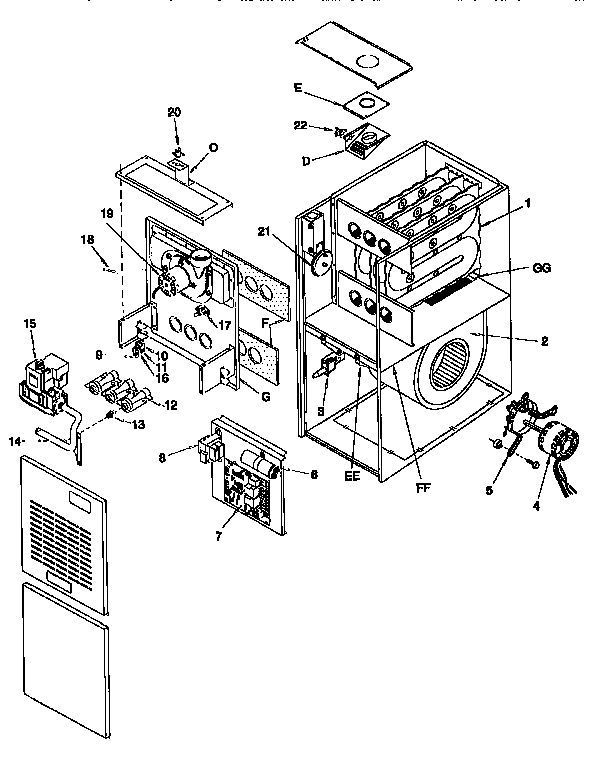

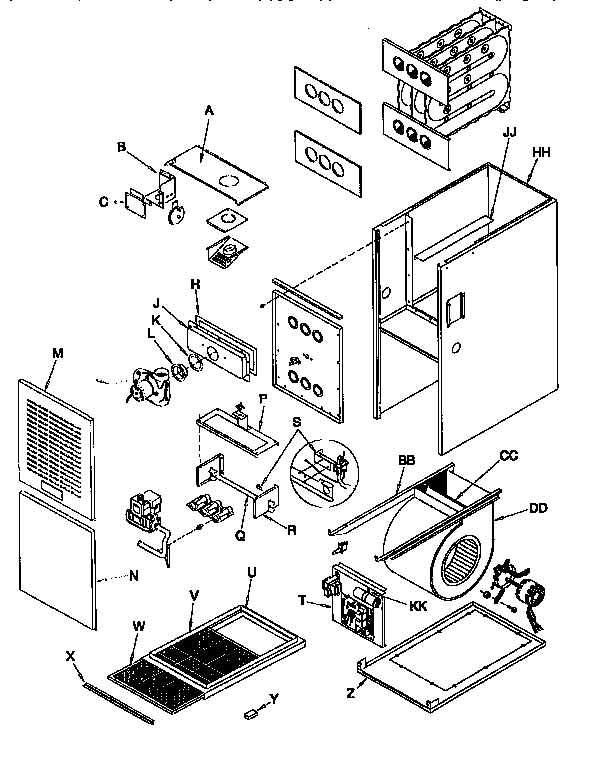

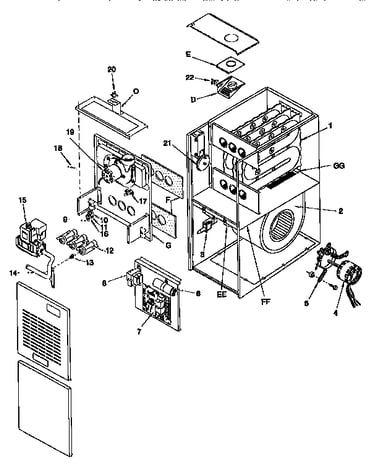

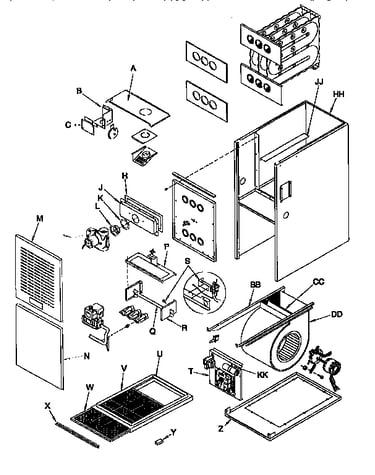

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Trans 40 Va 1008782

#8

All parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 503344

#16

All parts diagram

Thermocouple

Part #503344

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 503344. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Lp Gas Valve 1004613

#15A

All parts diagram

Lp gas valve

Part #1004613

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 1004613. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
N Gas Valve 1004612

#15

All parts diagram

N gas valve

Part #1004612

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 1004612. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Cap Rnrd 1094954

#6

All parts diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Switch 1005548

#22

All parts diagram

Switch

Part #1005548

Replaced by #1013101

?
Manufacturer substitution
This part replaces 1005548. Substitute parts can look different from the original.
$19.09
In Stock
Rail Galv Bl 57059

#EE

All parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Tubing 64930

#11

All parts diagram

Tubing

Part #64930

$77.80
In Stock
Furnace Blower Fan Motor Mounting Kit 609227

#5

All parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Baffle 707010031

#JJ

All parts diagram

Baffle

Part #707010031

$49.47
In Stock
