Model # 4010-4 Official Footedana transaxle

Here are the diagrams and repair parts for Official Footedana 4010-4 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Puck 2277J
#45

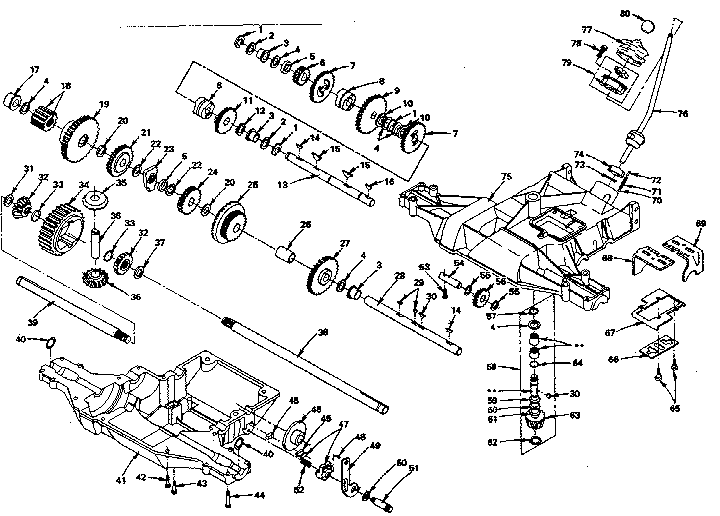

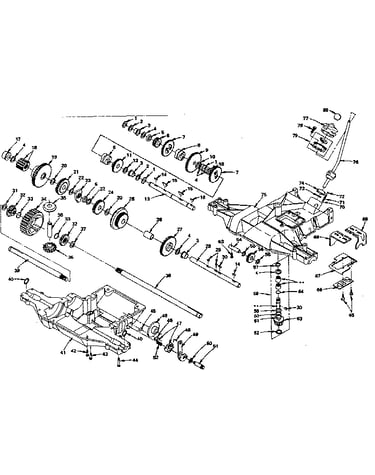

Replacement parts diagram

Puck

Part #2277J

Replaced by #583775101

?
Manufacturer substitution
This part replaces 2277J. Substitute parts can look different from the original.
$46.64
In Stock
Washer 2264J
Washer

Part #2264J

Replaced by #583729701

?
Manufacturer substitution
This part replaces 2264J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 2226J
#4

Replacement parts diagram

Washer

Part #2226J

Replaced by #583728901

?
Manufacturer substitution
This part replaces 2226J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Gear 2269J
#35

Replacement parts diagram

Gear

Part #2269J

The manufacturer no longer makes this part, and there's no substitute part

Gear 2268J
#34

Replacement parts diagram

Gear

Part #2268J

The manufacturer no longer makes this part, and there's no substitute part

Washer 2260J
#55C

Replacement parts diagram

Washer

Part #2260J

The manufacturer no longer makes this part, and there's no substitute part

Shaft 2259J
#54

Replacement parts diagram

Shaft

Part #2259J

The manufacturer no longer makes this part, and there's no substitute part

Ring 3418J
#33

Replacement parts diagram

Ring

Part #3418J

The manufacturer no longer makes this part, and there's no substitute part

Gear 2254J
#27

Replacement parts diagram

Gear

Part #2254J

The manufacturer no longer makes this part, and there's no substitute part

Lever 1633J
#76

Replacement parts diagram

Lever

Part #1633J

The manufacturer no longer makes this part, and there's no substitute part
