Brinley
Lawn Tractor Attachment

Model # DD-1000 Official Brinley hardy disk harrow

Here are the diagrams and repair parts for Official Brinley DD-1000 hardy disk harrow, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

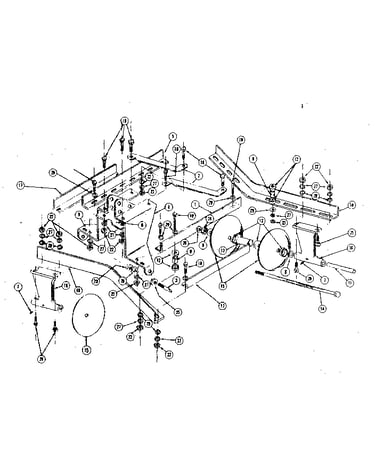

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Spacer D-169P
#13

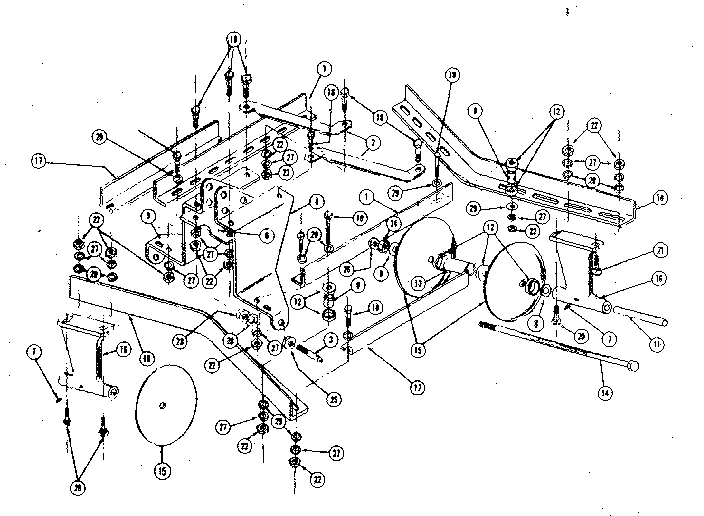

Replacement parts diagram

Spacer

Part #D-169P

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt 10M1632P
#21

Replacement parts diagram

Lawn & garden equipment bolt

Part #10M1632P

The manufacturer no longer makes this part, and there's no substitute part

Strut Frame B-720
#2

Replacement parts diagram

Strut frame

Part #B-720

The manufacturer no longer makes this part, and there's no substitute part

Washer 45M1717P
#29

Replacement parts diagram

Washer

Part #45M1717P

The manufacturer no longer makes this part, and there's no substitute part

Tube D-167
#11

Replacement parts diagram

Tube

Part #D-167

The manufacturer no longer makes this part, and there's no substitute part

Nut 31M2000P
#25

Replacement parts diagram

Nut

Part #31M2000P

The manufacturer no longer makes this part, and there's no substitute part

Disc Blade D-171
#15

Replacement parts diagram

Disc blade

Part #D-171

The manufacturer no longer makes this part, and there's no substitute part

Angle Frame D-161
#10

Replacement parts diagram

Angle frame

Part #D-161

The manufacturer no longer makes this part, and there's no substitute part

Hanger D-180
#16

Replacement parts diagram

Hanger

Part #D-180

The manufacturer no longer makes this part, and there's no substitute part

Frame, Right B-1362
#5

Replacement parts diagram

Frame, right

Part #B-1362

The manufacturer no longer makes this part, and there's no substitute part
