Model # 2295133 Official Kenmore oil-fired boiler

Here are the diagrams and repair parts for Official Kenmore 2295133 oil-fired boiler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for2295133 Oil-Fired Boiler

  • Gauge 13-11
    #1

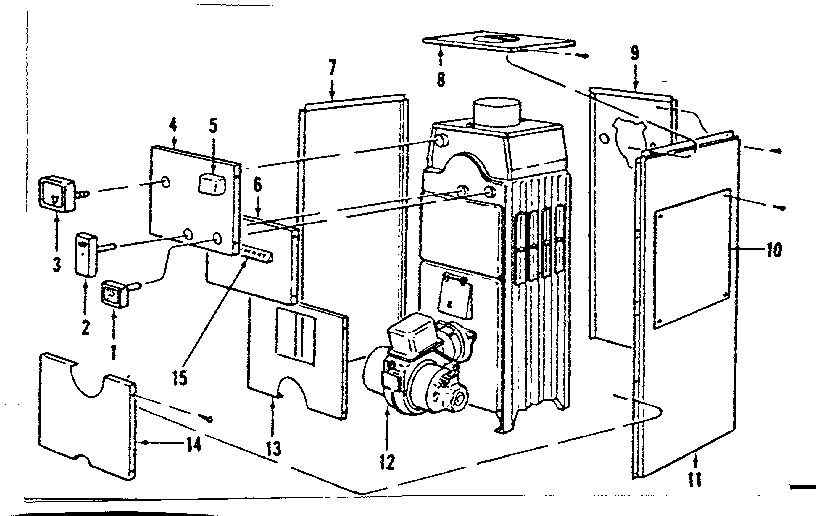

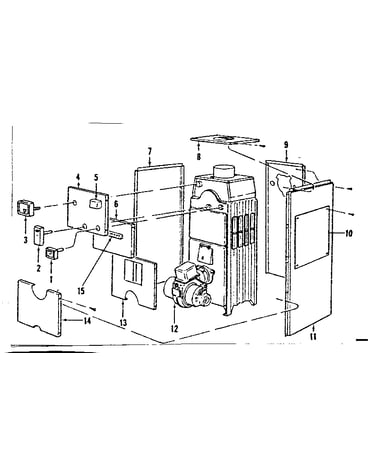

    Jacket parts and controls diagram

    Gauge

    Part #13-11

    Replaced by #1260006SP

    ?
    Manufacturer substitution
    This part replaces 13-11. Substitute parts can look different from the original.
    In Stock
  • Chamber 13-32-5
    #12A

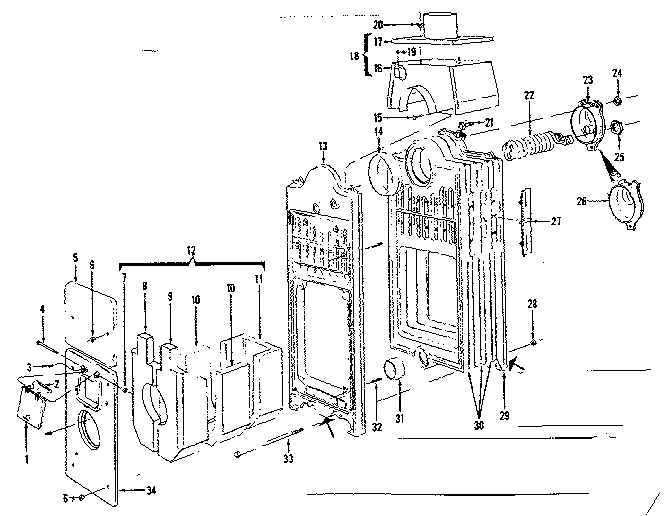

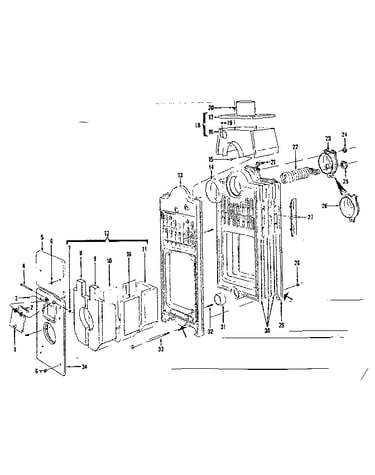

    Boiler parts diagram

    Chamber

    Part #13-32-5

    Replaced by #2272184

    ?
    Manufacturer substitution
    This part replaces 13-32-5. Substitute parts can look different from the original.
    $346.14
    $12.00 OFF Phone Price : $358.14
    In Stock
  • Plate 13-6A
    #27

    Boiler parts diagram

    Plate

    Part #13-6A

    The manufacturer no longer makes this part, and there's no substitute part

  • Rear Chamber 13-32-6D
    #11B

    Boiler parts diagram

    Rear chamber

    Part #13-32-6D

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner Oil 13-50
    #12

    Jacket parts and controls diagram

    Burner oil

    Part #13-50

    The manufacturer no longer makes this part, and there's no substitute part

  • Aquastat 13-29
    #2A

    Jacket parts and controls diagram

    Aquastat

    Part #13-29

    The manufacturer no longer makes this part, and there's no substitute part

  • Chmbr R-frnt 13-32-5B
    #9A

    Boiler parts diagram

    Chmbr r-frnt

    Part #13-32-5B

    The manufacturer no longer makes this part, and there's no substitute part

  • Chambr L-frn 13-32-6A
    #8B

    Boiler parts diagram

    Chambr l-frn

    Part #13-32-6A

    The manufacturer no longer makes this part, and there's no substitute part

  • Chamber 13-32-5A
    #8A

    Boiler parts diagram

    Chamber

    Part #13-32-5A

    The manufacturer no longer makes this part, and there's no substitute part

  • Side Tile 13-32-7C
    #10A

    Boiler parts diagram

    Side tile

    Part #13-32-7C

    The manufacturer no longer makes this part, and there's no substitute part
