Kenmore Elite
Bottom-Mount Refrigerator

Model # 79577729700 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79577729700 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Genuine Kenmore Refrigerator Water Filter 9990 5231JA2006E
#624A

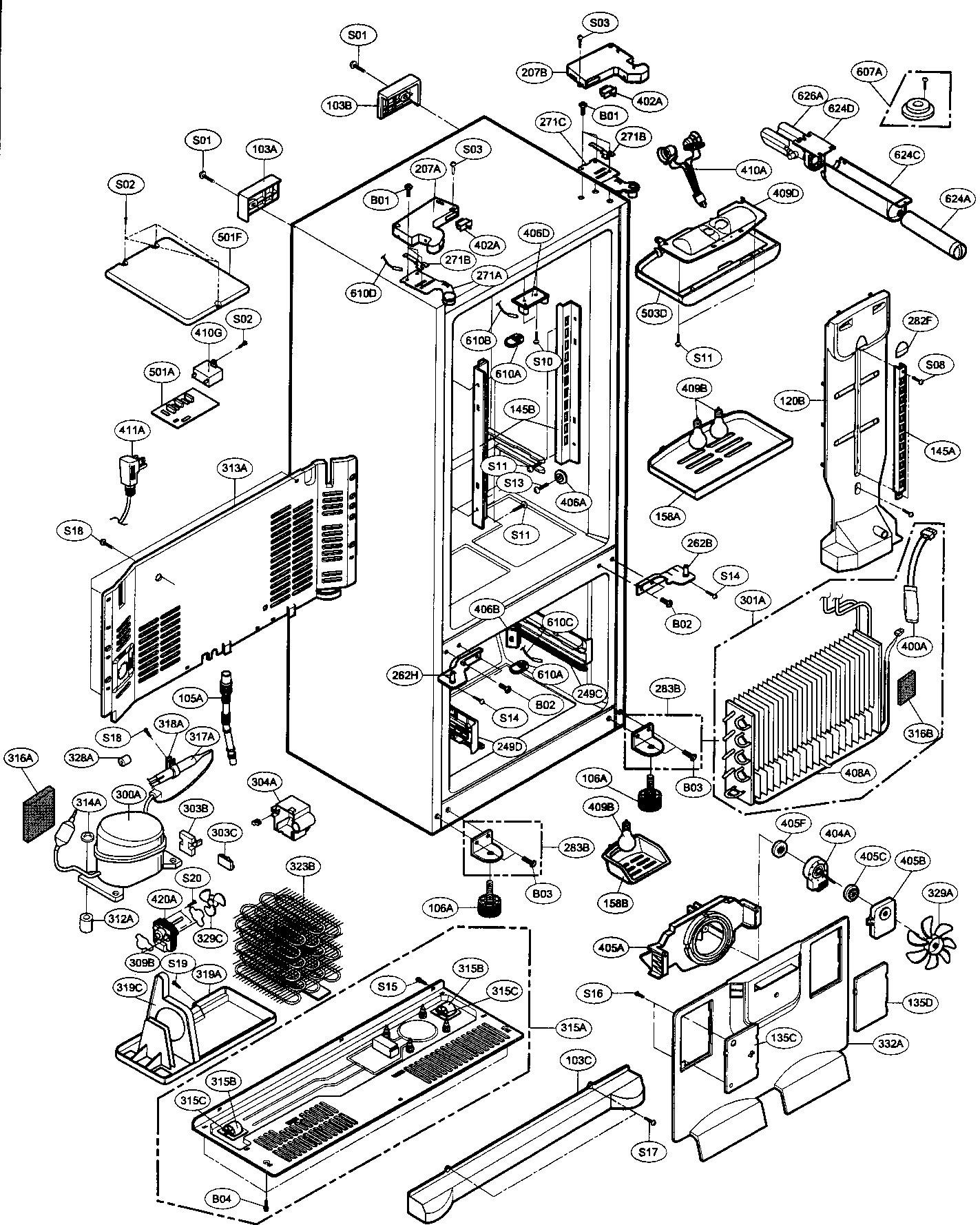

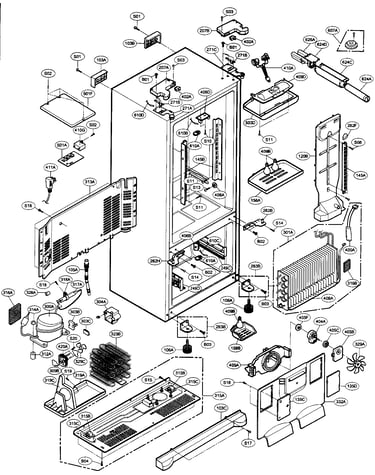

Case parts diagram

Genuine kenmore refrigerator water filter 9990

Part #5231JA2006E

Replaced by #5231JA2006E

?
Manufacturer substitution
This part replaces 5231JA2006E. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Water Tubing 5210JA3004R
#NI

Case parts diagram

Refrigerator water tubing

Part #5210JA3004R

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces 5210JA3004R. Substitute parts can look different from the original.
BEST SELLER
$13.94 |
13% OFF Phone Price : $15.94
In Stock
Refrigerator Water Tubing 5210JA3004U
#NI

Case parts diagram

Refrigerator water tubing

Part #5210JA3004U

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces 5210JA3004U. Substitute parts can look different from the original.
BEST SELLER
$13.94 |
13% OFF Phone Price : $15.94
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3013b, Mcd38280802, Mcd38280805, Mcd61866802, Mcd61866804) 4932JA3002C
#NI

Case parts diagram

Refrigerator water tube fitting (replaces 4932ja3013b, mcd38280802, mcd38280805, mcd61866802, mcd61866804)

Part #4932JA3002C

BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Water Inlet Valve (replaces 5220jb2009a, 5221jb1004n, 5221jb2006a, Aju72909001, Aju72932601) 5221JB2006K
Refrigerator water inlet valve (replaces 5220jb2009a, 5221jb1004n, 5221jb2006a, aju72909001, aju72932601)

Part #5221JB2006K

BEST SELLER
$131.00 |
8% OFF Phone Price : $143.00
In Stock
Refrigerator Water Inlet Valve 5221JB1004N
#NI

Case parts diagram

Refrigerator water inlet valve

Part #5221JB1004N

Replaced by #5221JB2006K

?
Manufacturer substitution
This part replaces 5221JB1004N. Substitute parts can look different from the original.
BEST SELLER
$131.00 |
8% OFF Phone Price : $143.00
In Stock
Refrigerator Defrost Sensor Assembly (replaces 6007ja3006r, 6615jb2005m) 6615JB2005H
#400A

Case parts diagram

Refrigerator defrost sensor assembly (replaces 6007ja3006r, 6615jb2005m)

Part #6615JB2005H

BEST SELLER
$22.07 |
21% OFF Phone Price : $28.07
In Stock
Refrigerator Motor Assembly 4681JK1004D
#404A

Case parts diagram

Refrigerator motor assembly

Part #4681JK1004D

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JK1004D. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Temperature Sensor (replaces 6500jb1003g, 6500jb1005j, 6500jk1003a, Ead62043201) 6500JB2001B
#610D

Case parts diagram

Refrigerator temperature sensor (replaces 6500jb1003g, 6500jb1005j, 6500jk1003a, ead62043201)

Part #6500JB2001B

BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
