Murray
Gas Walk-Behind Mower

Model # 22315X8C Official Murray rotary lawn mower

Here are the diagrams and repair parts for Official Murray 22315X8C rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Wing Nut 71294
#4

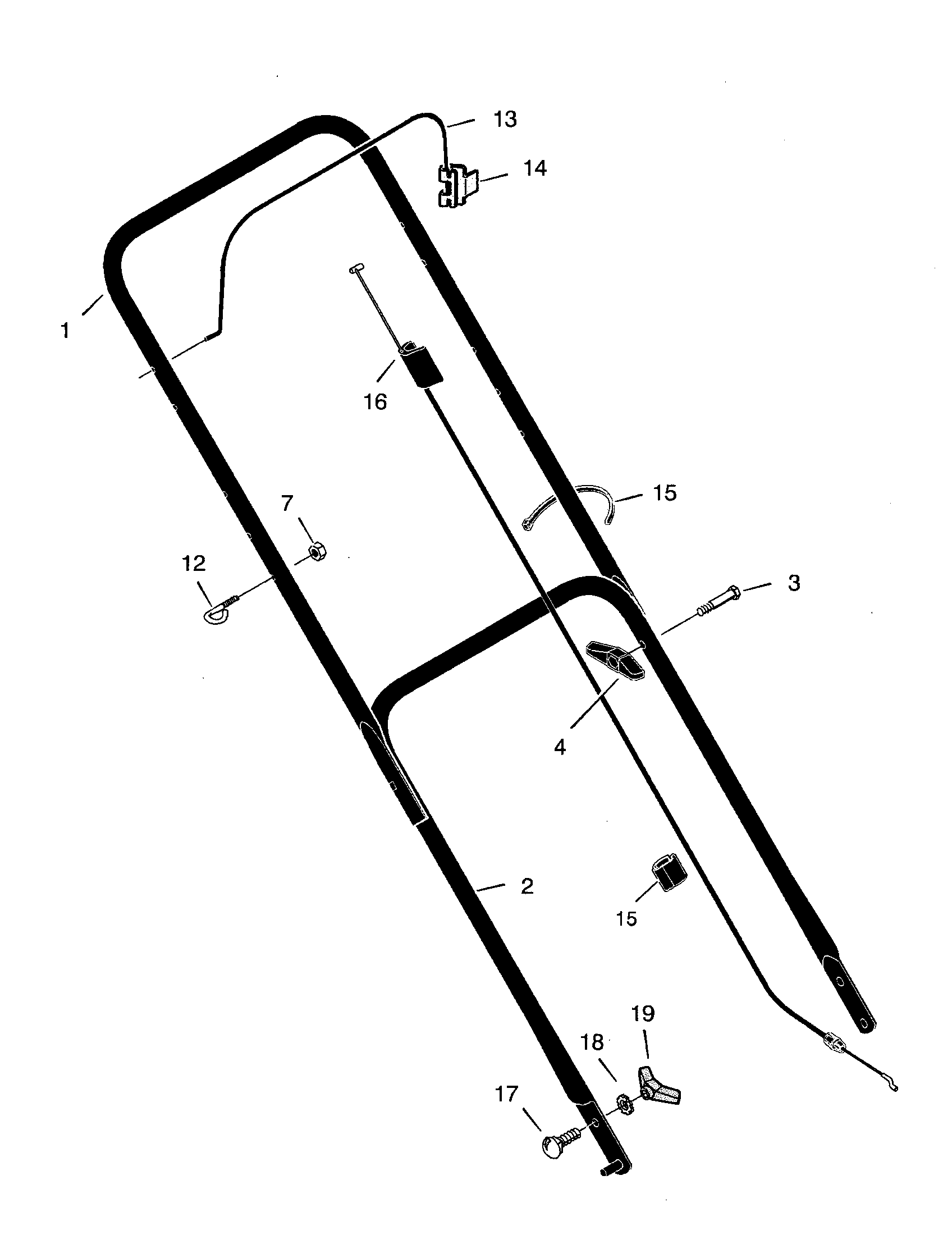

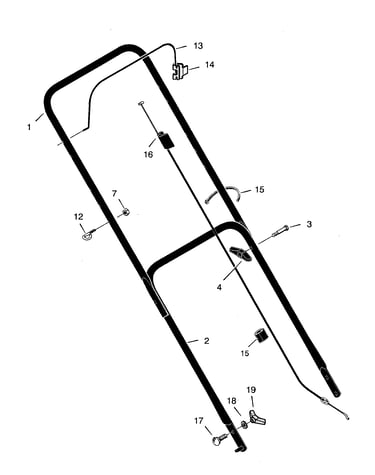

Handle assembly diagram

Wing nut

Part #71294

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 71294. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Wing Nut 71495
#19

Handle assembly diagram

Wing nut

Part #71495

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 71495. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Lawn Tractor Hex Flange Nut 015X84
#13

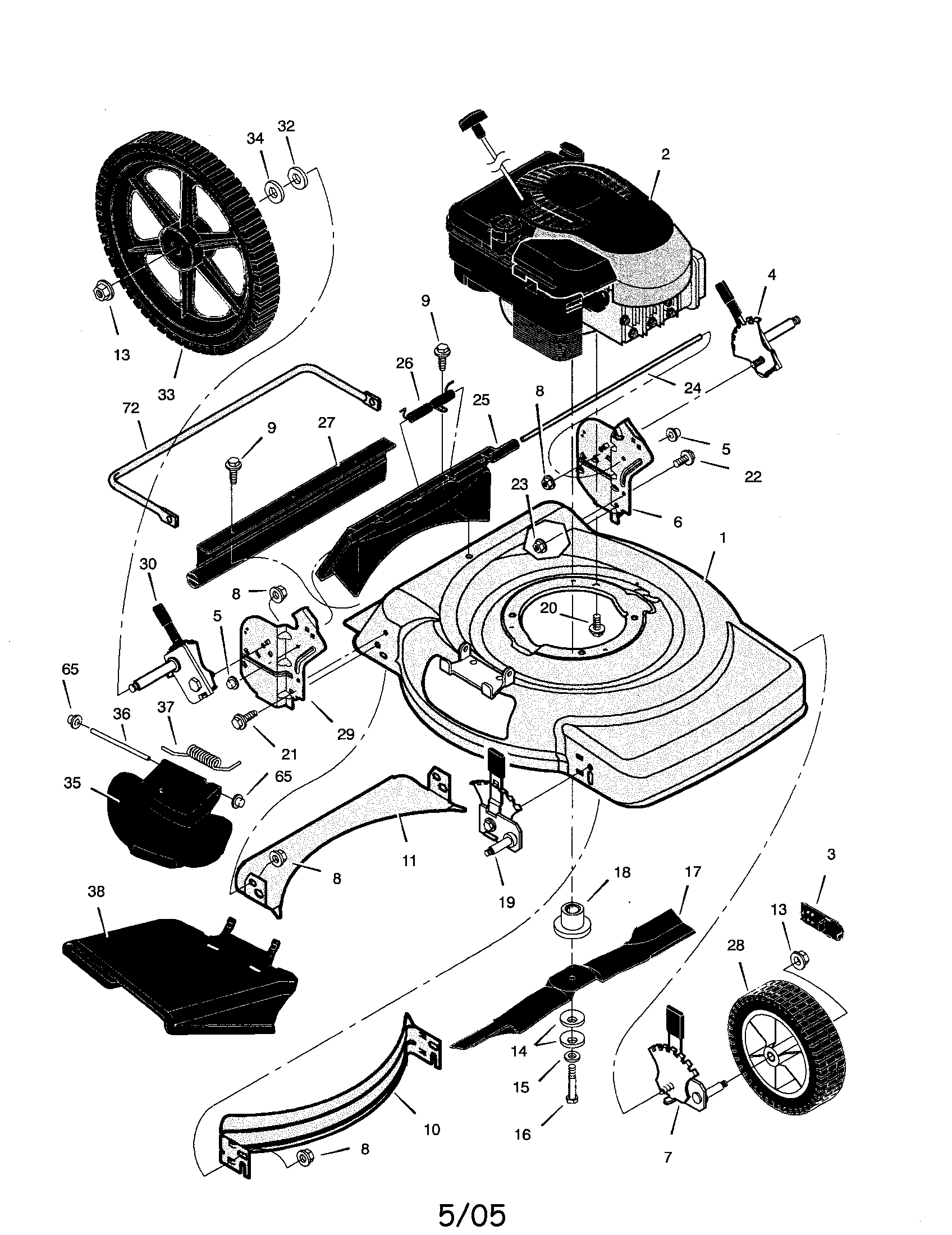

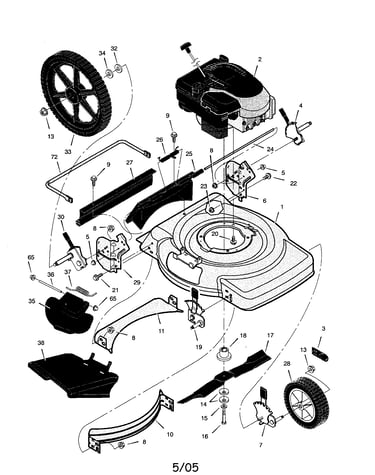

Engine/housing/blade/wheels diagram

Lawn tractor hex flange nut

Part #015X84

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw 26X245
#9

Engine/housing/blade/wheels diagram

Tapping screw

Part #26X245

Replaced by #26X245MA

?
Manufacturer substitution
This part replaces 26X245. Substitute parts can look different from the original.
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Wheel (dark Gray) 71132
#28

Engine/housing/blade/wheels diagram

Wheel (dark gray)

Part #71132

Replaced by #71132MA

?
Manufacturer substitution
This part replaces 71132. Substitute parts can look different from the original.
$52.09
In Stock
Torsion Spring 166X44
#26

Engine/housing/blade/wheels diagram

Torsion spring

Part #166X44

Replaced by #166X44MA

?
Manufacturer substitution
This part replaces 166X44. Substitute parts can look different from the original.
$25.66
In Stock
Washer 17X124
#15

Engine/housing/blade/wheels diagram

Washer

Part #17X124

Replaced by #17X124MA

?
Manufacturer substitution
This part replaces 17X124. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
Bag 22rb Bla 1101034
#3

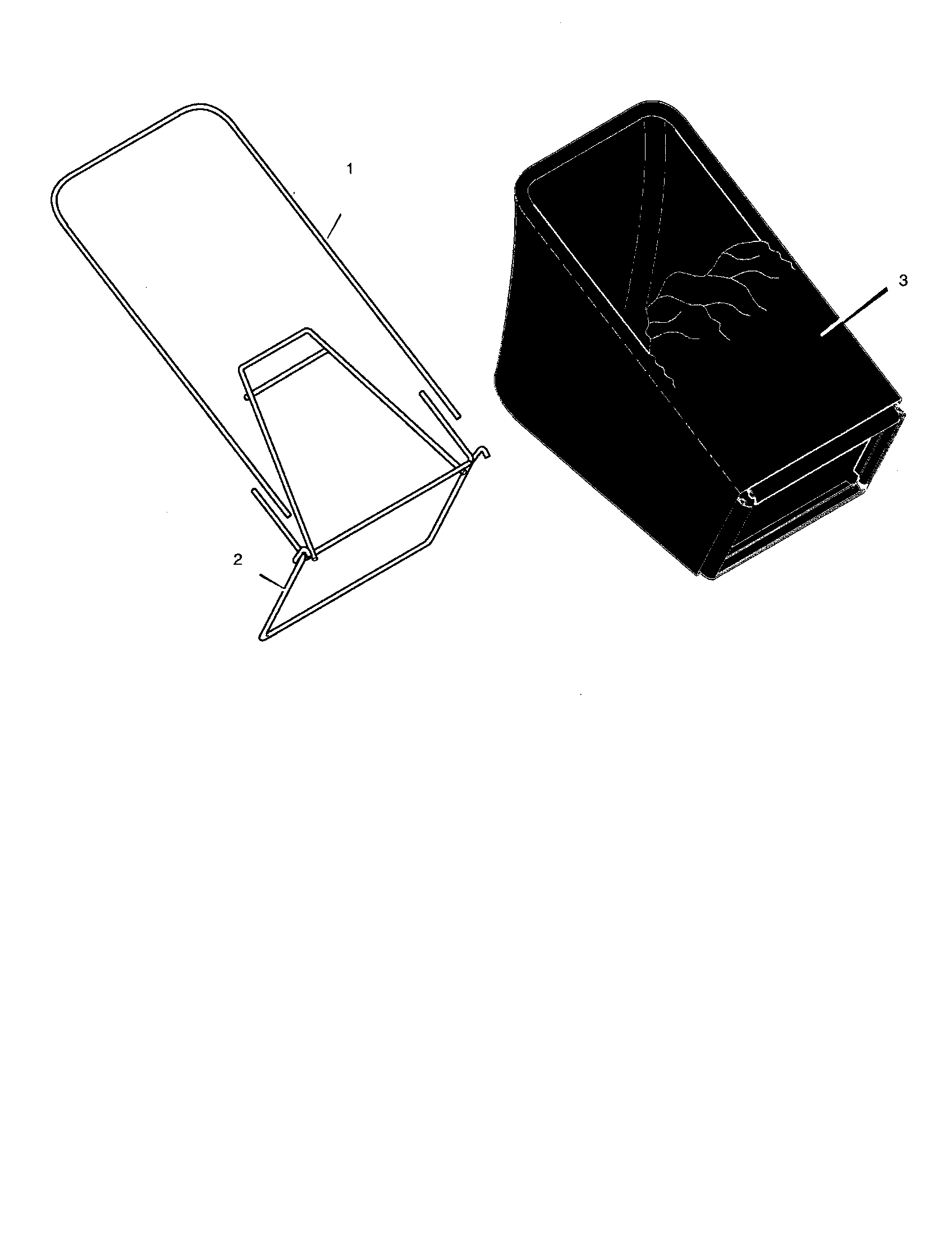

Bag assembly diagram

Bag 22rb bla

Part #1101034

Replaced by #1101005MA

?
Manufacturer substitution
This part replaces 1101034. Substitute parts can look different from the original.
$220.24
In Stock
Chute Deflector 1101097
#38

Engine/housing/blade/wheels diagram

Chute deflector

Part #1101097

Replaced by #1101097MA

?
Manufacturer substitution
This part replaces 1101097. Substitute parts can look different from the original.
$50.58 |
11% OFF Phone Price : $56.58
In Stock
Rod.25dx17.5 215X21
#24

Engine/housing/blade/wheels diagram

Rod.25dx17.5

Part #215X21

Replaced by #215X21MA

?
Manufacturer substitution
This part replaces 215X21. Substitute parts can look different from the original.
$14.60
In Stock
