Model # EBCC3600MBM/P9846203C Official Amana high-efficiency universal blower unit

Here are the diagrams and repair parts for Official Amana EBCC3600MBM-P9846203C high-efficiency universal blower unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

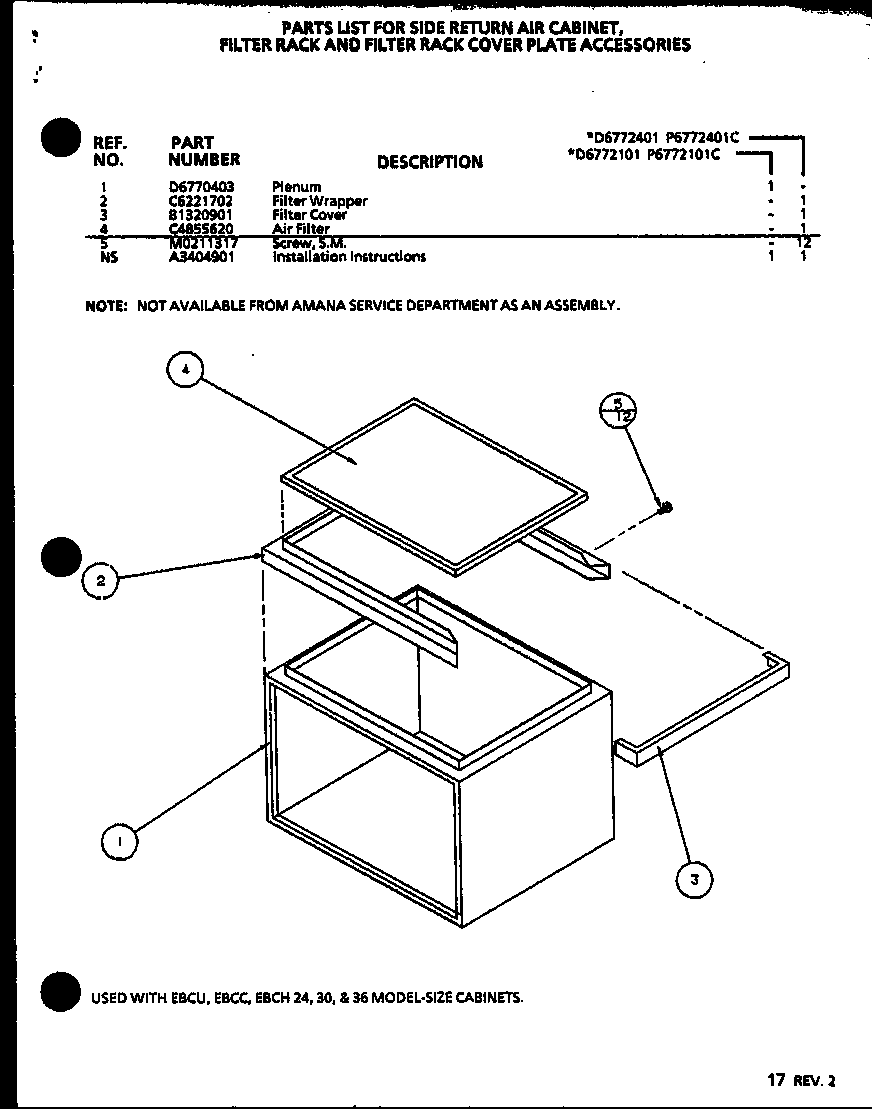

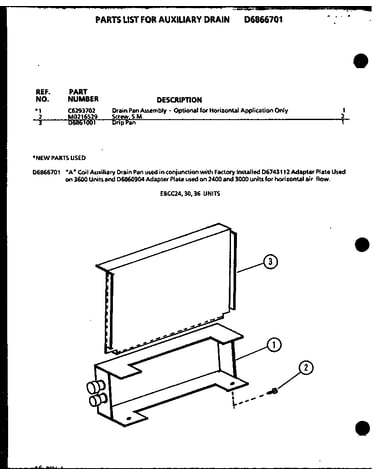

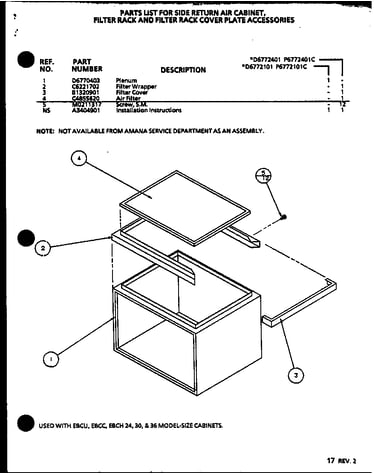

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Screw M0211217
Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Nut M0282009
Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
In Stock
Screw M0267144
#4

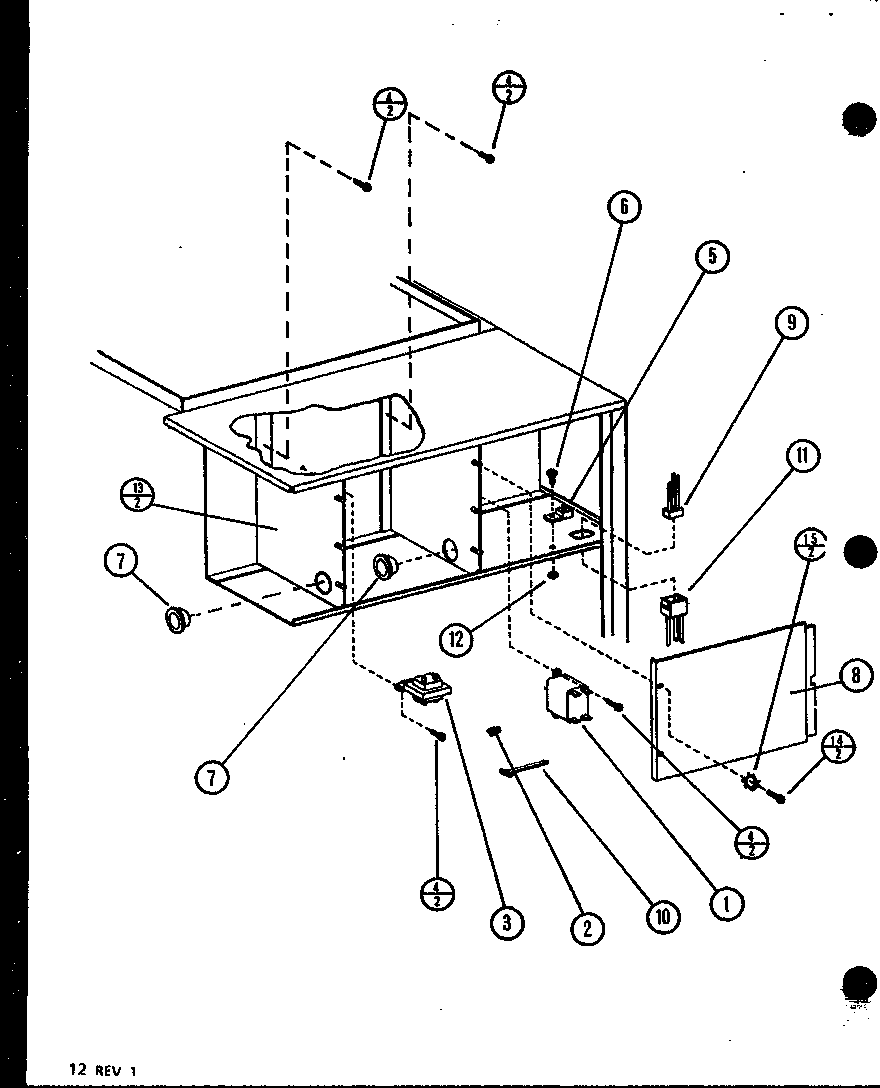

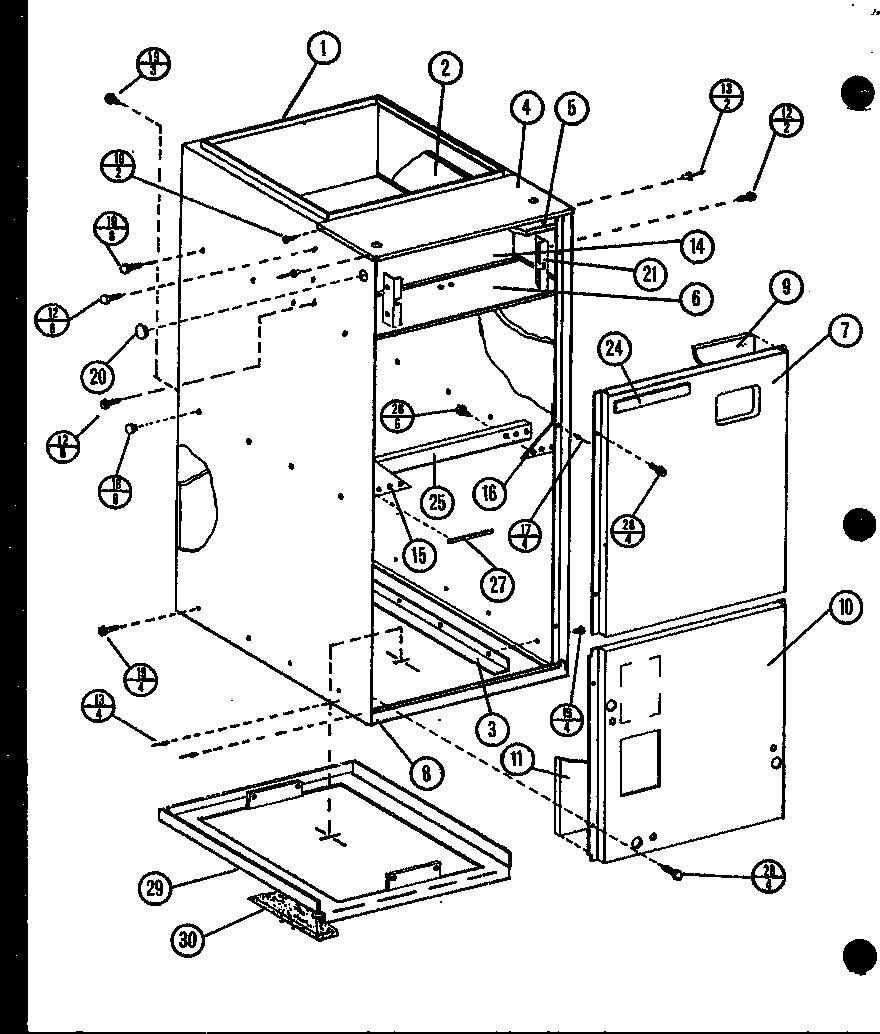

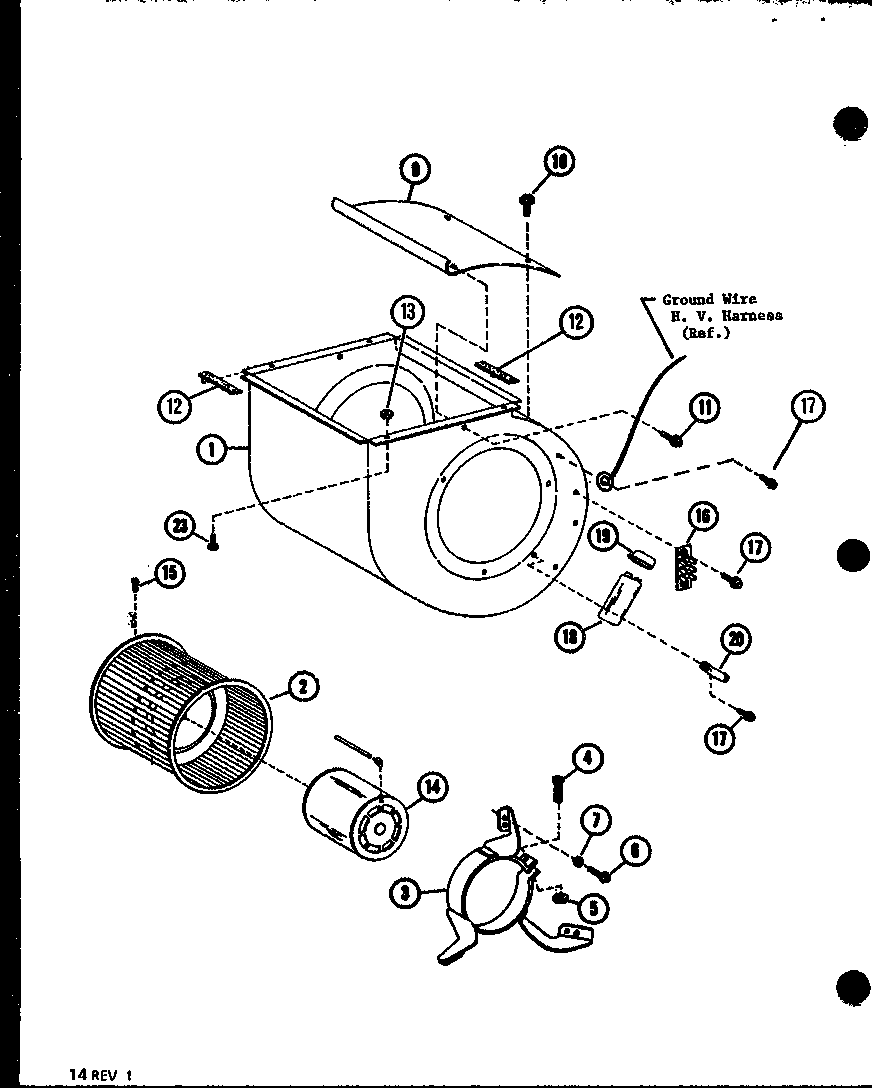

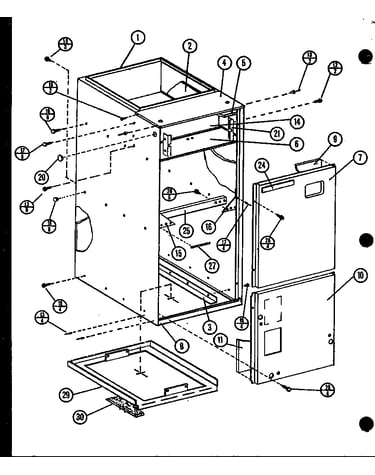

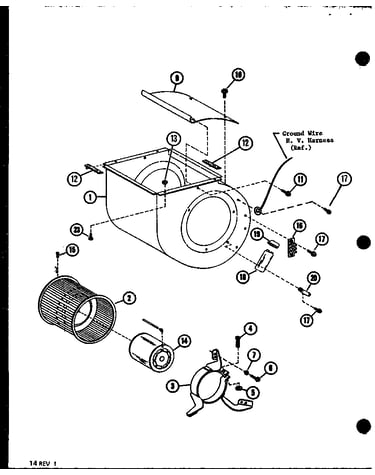

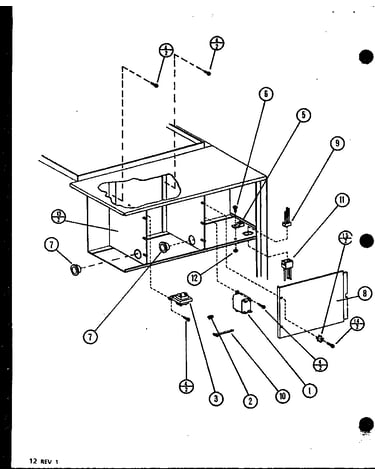

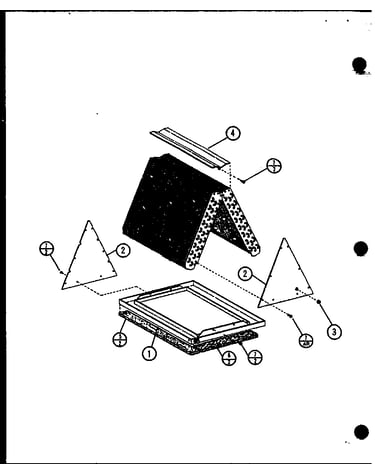

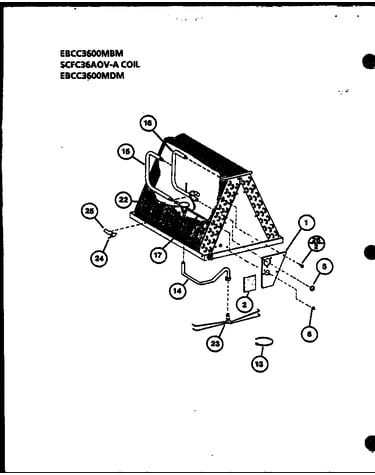

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc3600mbm/p9846203c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) (ebcc3600mdm/p9846206c) diagram

Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
Screw M0211016
#10

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc3600mbm/p9846203c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) (ebcc3600mdm/p9846206c) diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw M0250558
#6

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc3600mbm/p9846203c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) (ebcc3600mdm/p9846206c) diagram

Screw

Part #M0250558

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing D5581239
#1B

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc3600mbm/p9846203c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) (ebcc3600mdm/p9846206c) diagram

Air conditioner blower housing

Part #D5581239

The manufacturer no longer makes this part, and there's no substitute part

Gusset, L.h. C6495801
#15

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc3600mbm/p9846203c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) (ebcc3600mdm/p9846206c) diagram

Gusset, l.h.

Part #C6495801

The manufacturer no longer makes this part, and there's no substitute part

Tube, Equalizer B1352501
#7A

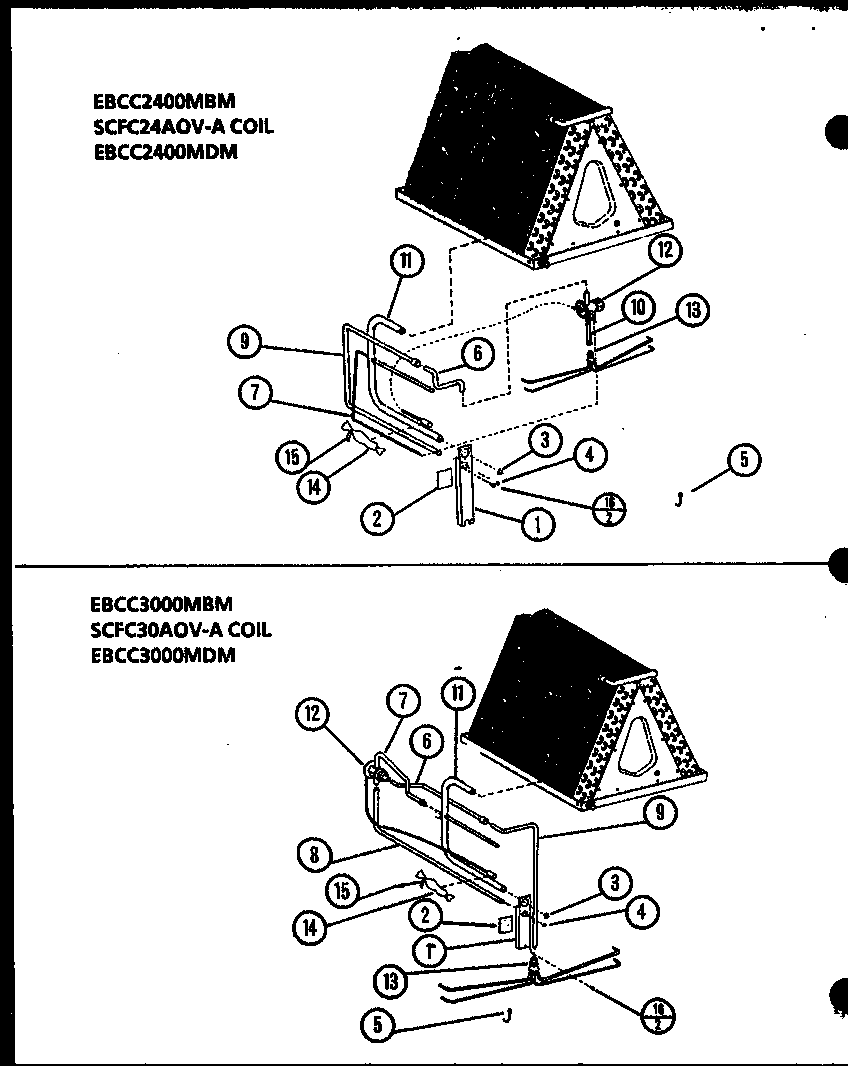

(ebcc2400mbm/9846201c) (ebcc3000mbm/p9846202c) (ebcc2400mdm/p9846204c) (ebcc3000mdm/p9846205c) diagram

Tube, equalizer

Part #B1352501

The manufacturer no longer makes this part, and there's no substitute part
