Washer

Model # SWT420LA Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWT420LA commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 266 parts  |
Washer Main Bearing 28944RP
#11

Brake assy diagram

Washer main bearing

Part #28944RP

The manufacturer no longer makes this part, and there's no substitute part

Pullet 38225P
#15

Motor assy diagram

Pullet

Part #38225P

The manufacturer no longer makes this part, and there's no substitute part

Ring Assembly 39837
#1A

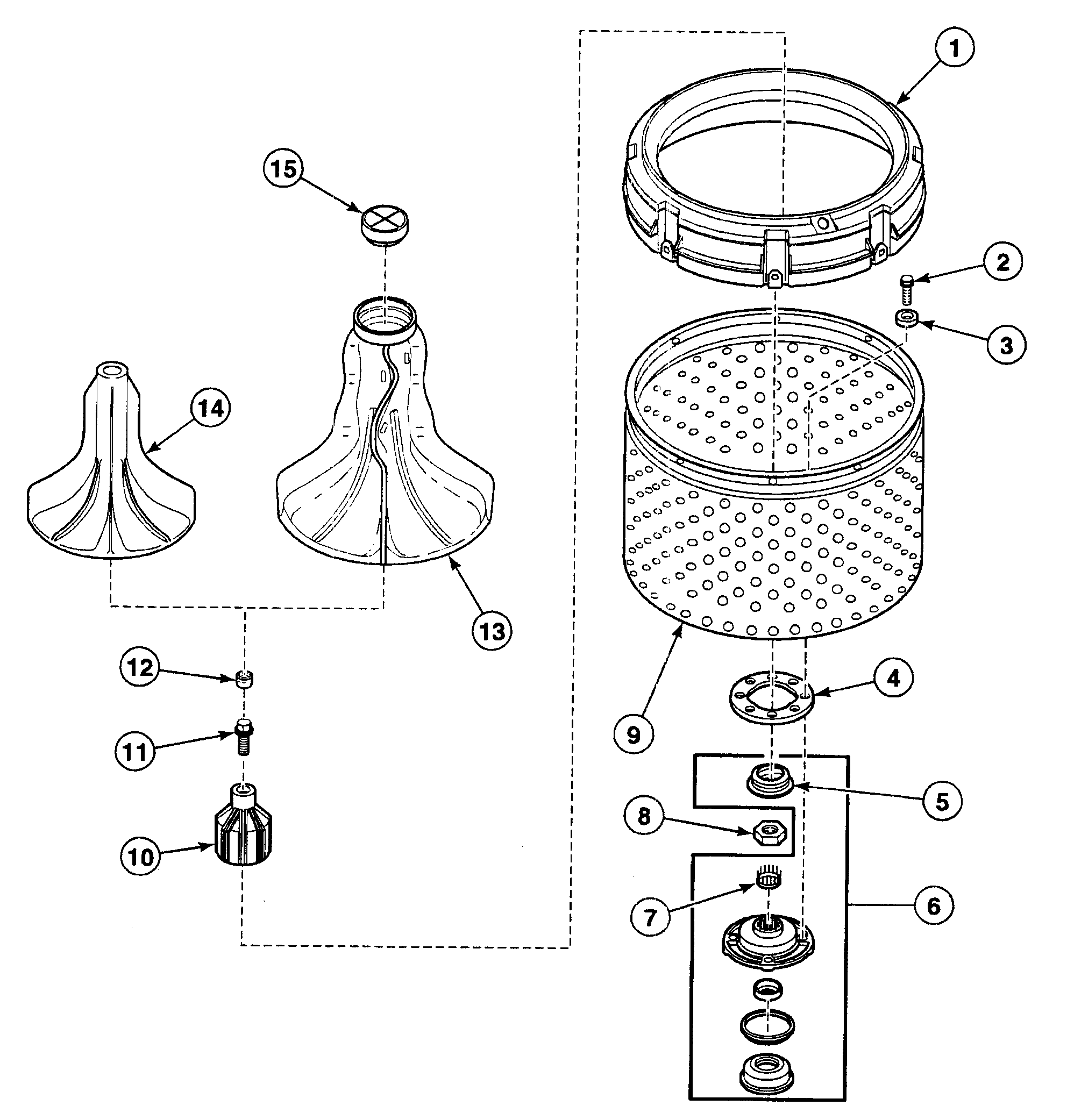

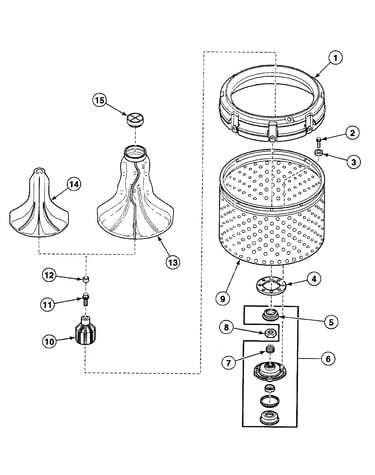

Agitator diagram

Ring assembly

Part #39837

The manufacturer no longer makes this part, and there's no substitute part

Washer 52549
#13

Motor assy diagram

Washer

Part #52549

The manufacturer no longer makes this part, and there's no substitute part

Ring 23748
#14

Motor assy diagram

Ring

Part #23748

The manufacturer no longer makes this part, and there's no substitute part

Ring 37937
#14

Cabinet diagram

Ring

Part #37937

The manufacturer no longer makes this part, and there's no substitute part

Bracket 200941
#24

Motor assy diagram

Bracket

Part #200941

$53.09
In Stock
Motor Switch 35632P
#30

Motor assy diagram

Motor switch

Part #35632P

$54.89
In Stock
Oneway Vlv 34500
#13

Valve assy diagram

Oneway vlv

Part #34500

This item is not returnable
$6.83
In Stock
Hose Clamp 39282
#17

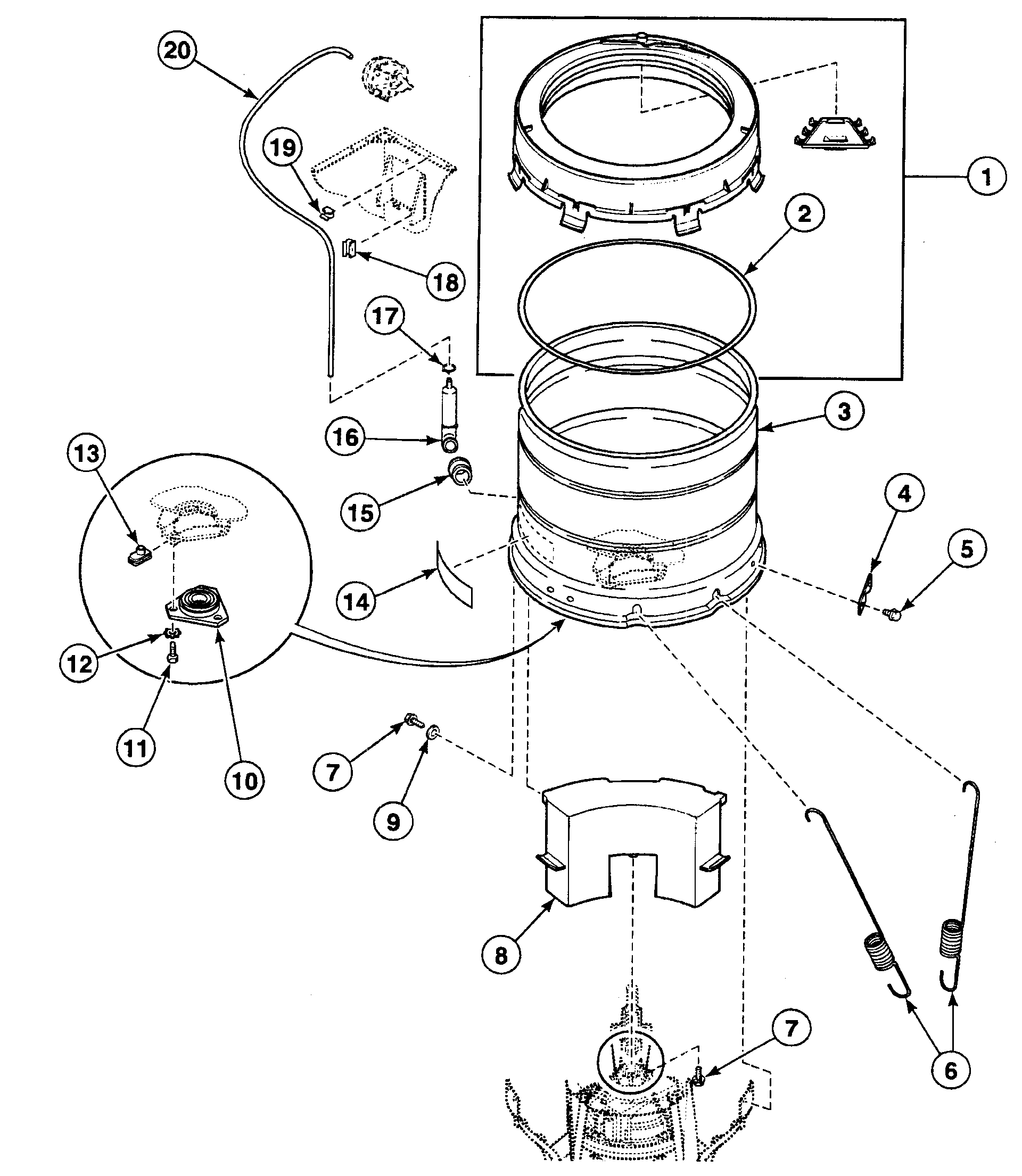

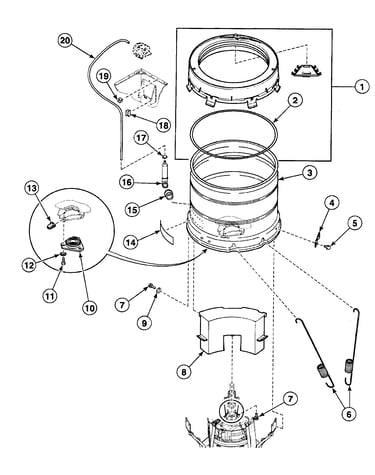

Tub assy diagram

Hose clamp

Part #39282

This item is not returnable
$3.86
In Stock
