Model # 45-0285-206 Official Agri-Fab tow sprayer

Here are the diagrams and repair parts for Official Agri-Fab 45-0285-206 tow sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#57

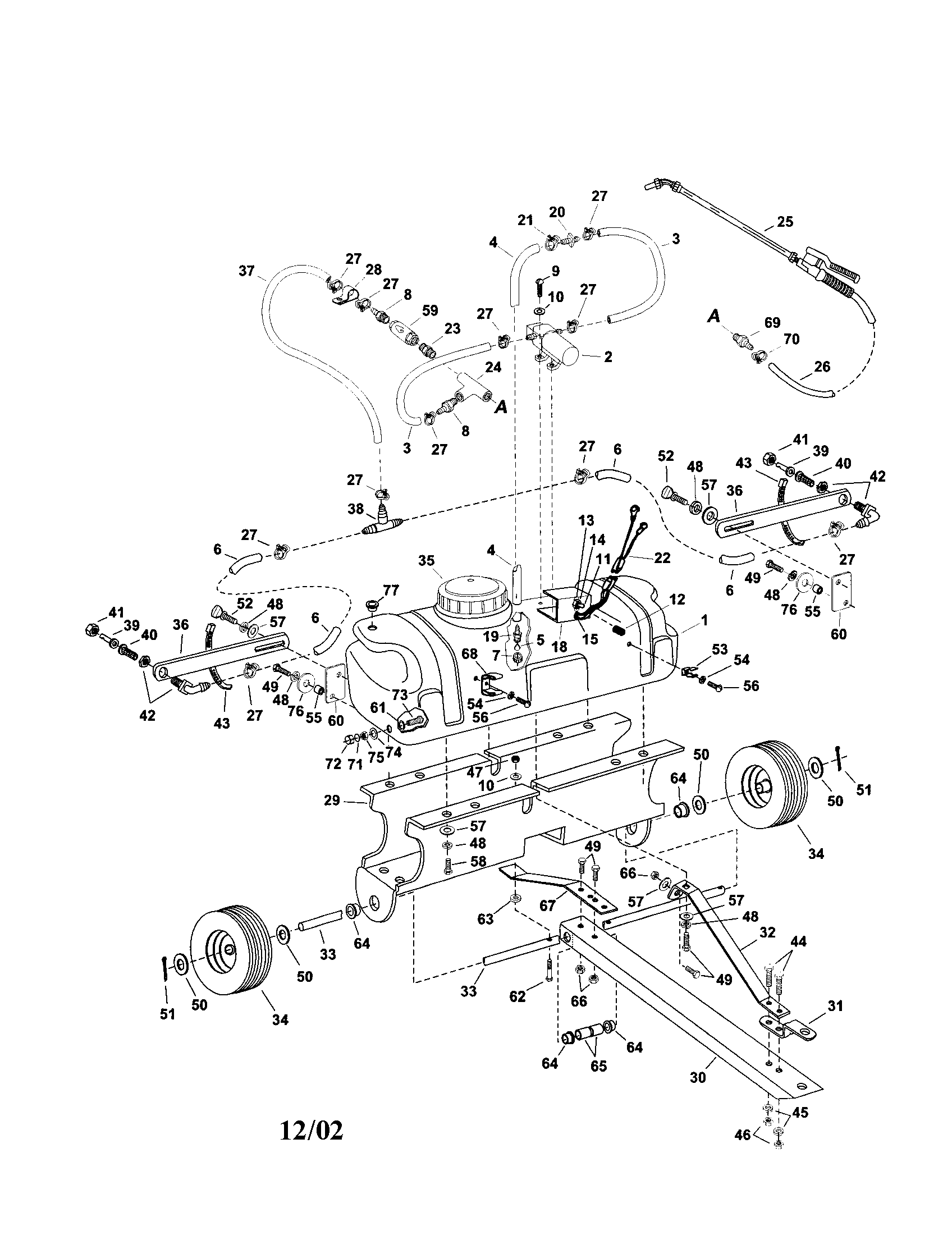

15 gallon homeowner tow sprayer diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#48

15 gallon homeowner tow sprayer diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#45

15 gallon homeowner tow sprayer diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Lock Nut 43082
#46

15 gallon homeowner tow sprayer diagram

Lawn & garden equipment lock nut

Part #43082

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Cable Tie (replaces 725-0157, 926-0240, Gw-h212980) 726-0178
#43

15 gallon homeowner tow sprayer diagram

Lawn tractor cable tie (replaces 725-0157, 926-0240, gw-h212980)

Part #726-0178

This item is not returnable
In Stock
Lawn Tractor Sprayer Attachment Boom Bar Spray Nozzle 45028
#39

15 gallon homeowner tow sprayer diagram

Lawn tractor sprayer attachment boom bar spray nozzle

Part #45028

This item is not returnable
$3.19
24% OFF Phone Price : $4.19
In Stock
Lawn Tractor Tow Bar Attachment Hitch Bracket 23014
#31

15 gallon homeowner tow sprayer diagram

Lawn tractor tow bar attachment hitch bracket

Part #23014

Replaced by #23014BL1

?
Manufacturer substitution
This part replaces 23014. Substitute parts can look different from the original.
This item is not returnable
$15.80
11% OFF Phone Price : $17.80
Back Order
Lawn Tractor Attachment Cotter Pin, 1/8 X 3/4-in 142
#51

15 gallon homeowner tow sprayer diagram

Lawn tractor attachment cotter pin, 1/8 x 3/4-in

Part #142

This item is not returnable
In Stock
Tractor Accessories Lawn & Garden Equipment Washer 1543-69
#63

15 gallon homeowner tow sprayer diagram

Tractor accessories lawn & garden equipment washer

Part #1543-69

This item is not returnable
Back Order
Lawn Tractor Lawn Sprayer Attachment Conduit Clamp 47413
#28

15 gallon homeowner tow sprayer diagram

Lawn tractor lawn sprayer attachment conduit clamp

Part #47413

Replaced by #48917

?
Manufacturer substitution
This part replaces 47413. Substitute parts can look different from the original.
This item is not returnable
In Stock
