GE
Countertop Microwave

Model # JES611WC001 Official GE microwave

Here are the diagrams and repair parts for Official GE JES611WC001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Microwave Micro-switch (replaces Wb24x0829, Wb24x10038, Wb24x414, Wb24x429, Wb24x441, Wb24x5227, Wb24x796, Wb24x801) WB24X829
#28

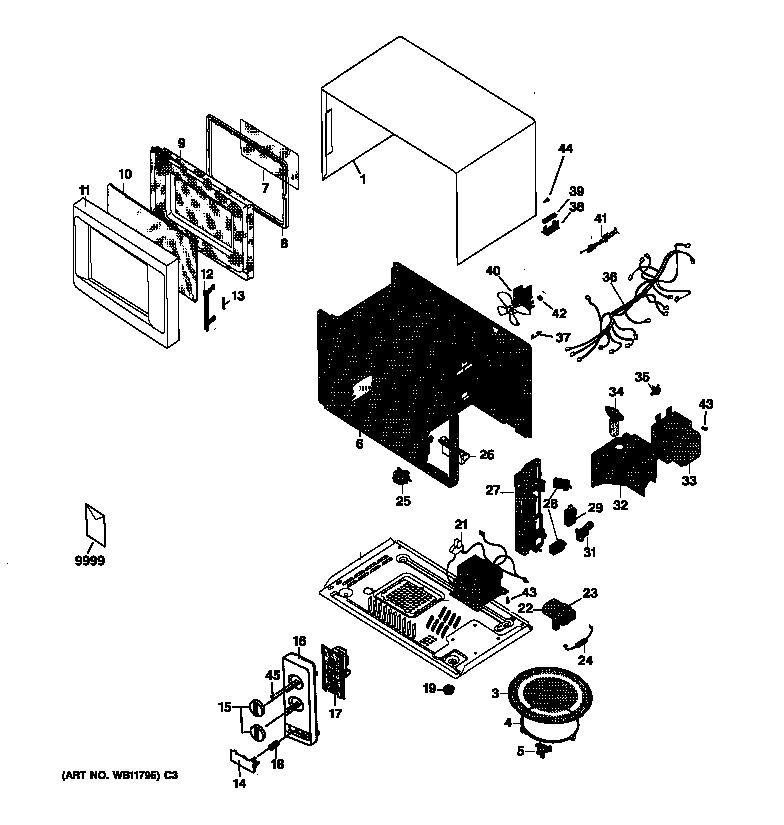

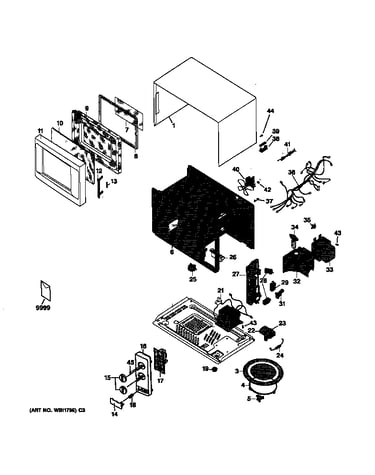

Microwave diagram

Microwave micro-switch (replaces wb24x0829, wb24x10038, wb24x414, wb24x429, wb24x441, wb24x5227, wb24x796, wb24x801)

Part #WB24X829

BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#24

Microwave diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Fuse Mda2 WB2X8151
#39

Microwave diagram

Fuse mda2

Part #WB2X8151

Replaced by #WB27X10454

?
Manufacturer substitution
This part replaces WB2X8151. Substitute parts can look different from the original.
This item is not returnable
$14.34 |
12% OFF Phone Price : $16.34
In Stock
Microwave Turntable Motor WB26X10024
#25

Microwave diagram

Microwave turntable motor

Part #WB26X10024

$27.49
In Stock
Foot WB6X10194
#19

Microwave diagram

Foot

Part #WB6X10194

Replaced by #WB06X10194

?
Manufacturer substitution
This part replaces WB6X10194. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Magnetron WB27X10362
#33

Microwave diagram

Magnetron

Part #WB27X10362

The manufacturer no longer makes this part, and there's no substitute part

Lever Doo WB6X10186
#26

Microwave diagram

Lever doo

Part #WB6X10186

Replaced by #WB06X10186

?
Manufacturer substitution
This part replaces WB6X10186. Substitute parts can look different from the original.
$9.77
In Stock
Cooking Tray WB49X10034
#3

Microwave diagram

Cooking tray

Part #WB49X10034

Replaced by #WB49X10097

?
Manufacturer substitution
This part replaces WB49X10034. Substitute parts can look different from the original.
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Use And Care Manual 49-4024
#9999B

Microwave diagram

Use and care manual

Part #49-4024

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB18X10109
#41

Microwave diagram

Power cord

Part #WB18X10109

The manufacturer no longer makes this part, and there's no substitute part
