Model # R-501FK Official Sharp microwave
Here are the diagrams and repair parts for Official Sharp R-501FK microwave, as well as links to manuals and error code tables, if available.

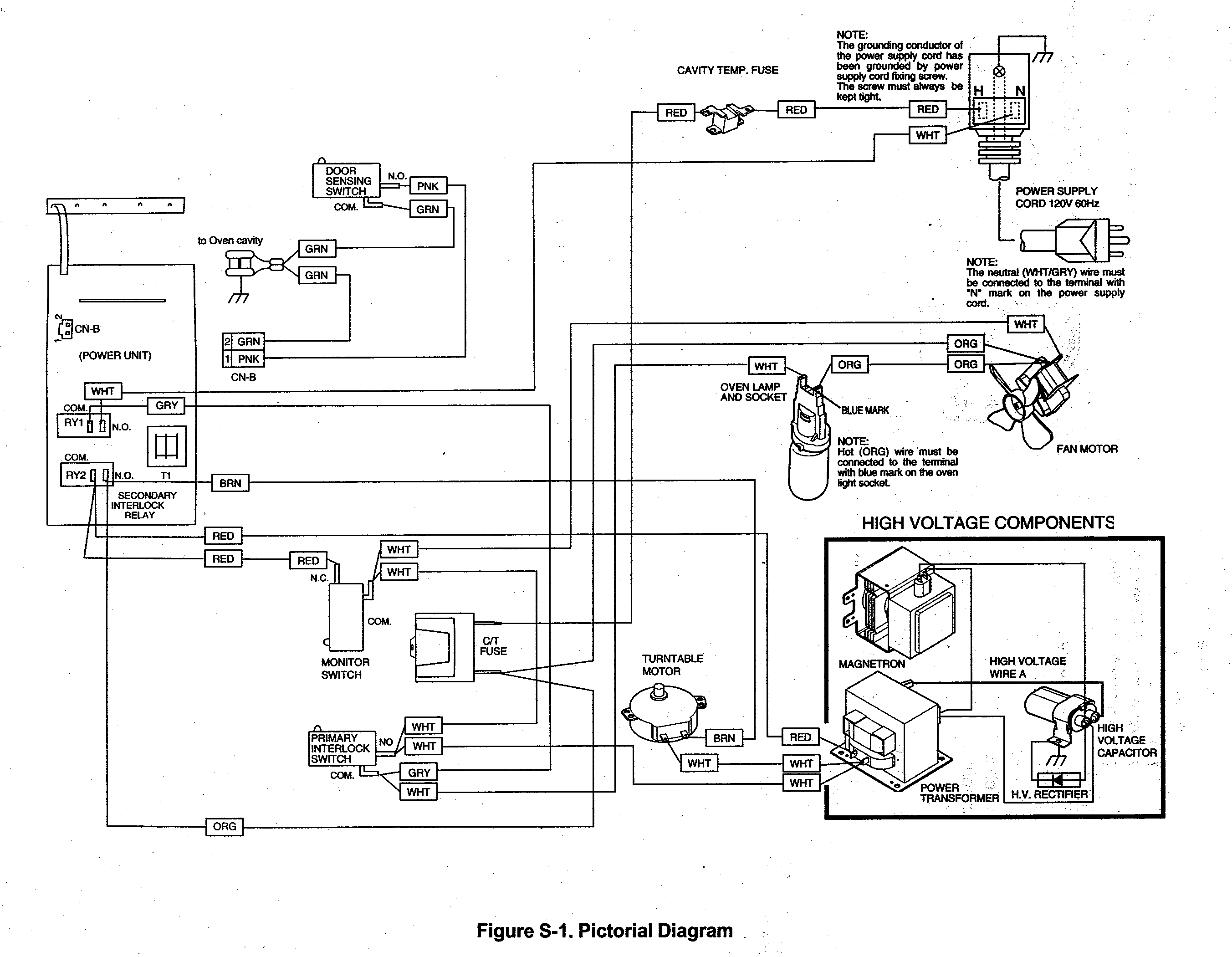

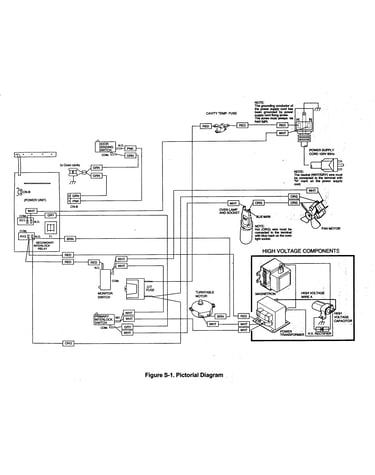

By Schematic
SELECT DIAGRAM
Browse Parts for
R-501FK Microwaves
#10

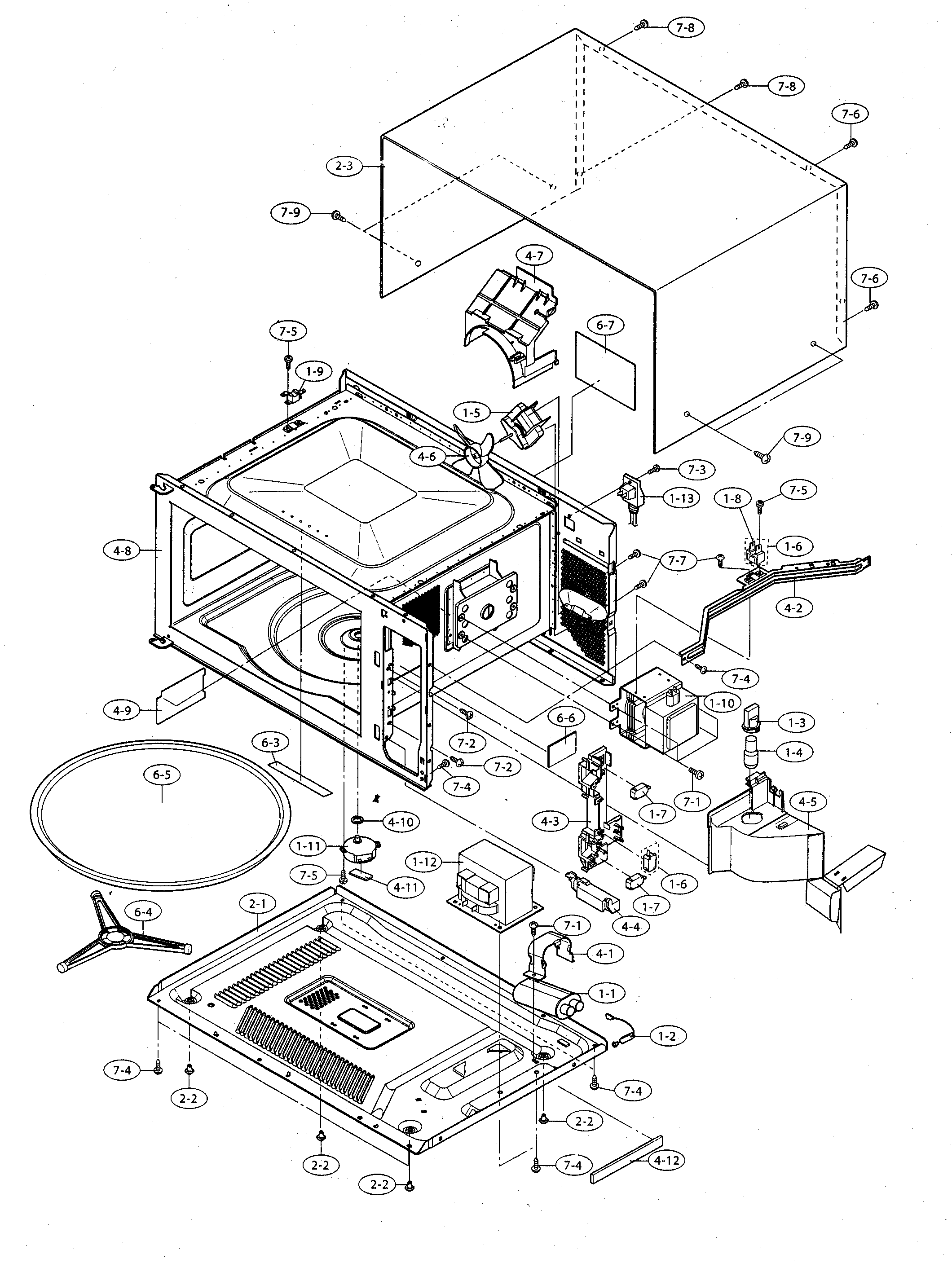

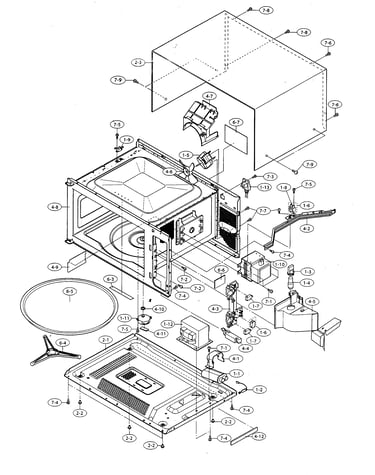

Oven/cabinet parts diagram
Magnetron
Part #RV-MZA293WRE0
The manufacturer no longer makes this part, and there's no substitute part
#4-4
Oven/cabinet parts diagram
Microwave door release lever
Part #MLEVPB016MRF0
The manufacturer no longer makes this part, and there's no substitute part
#5-1

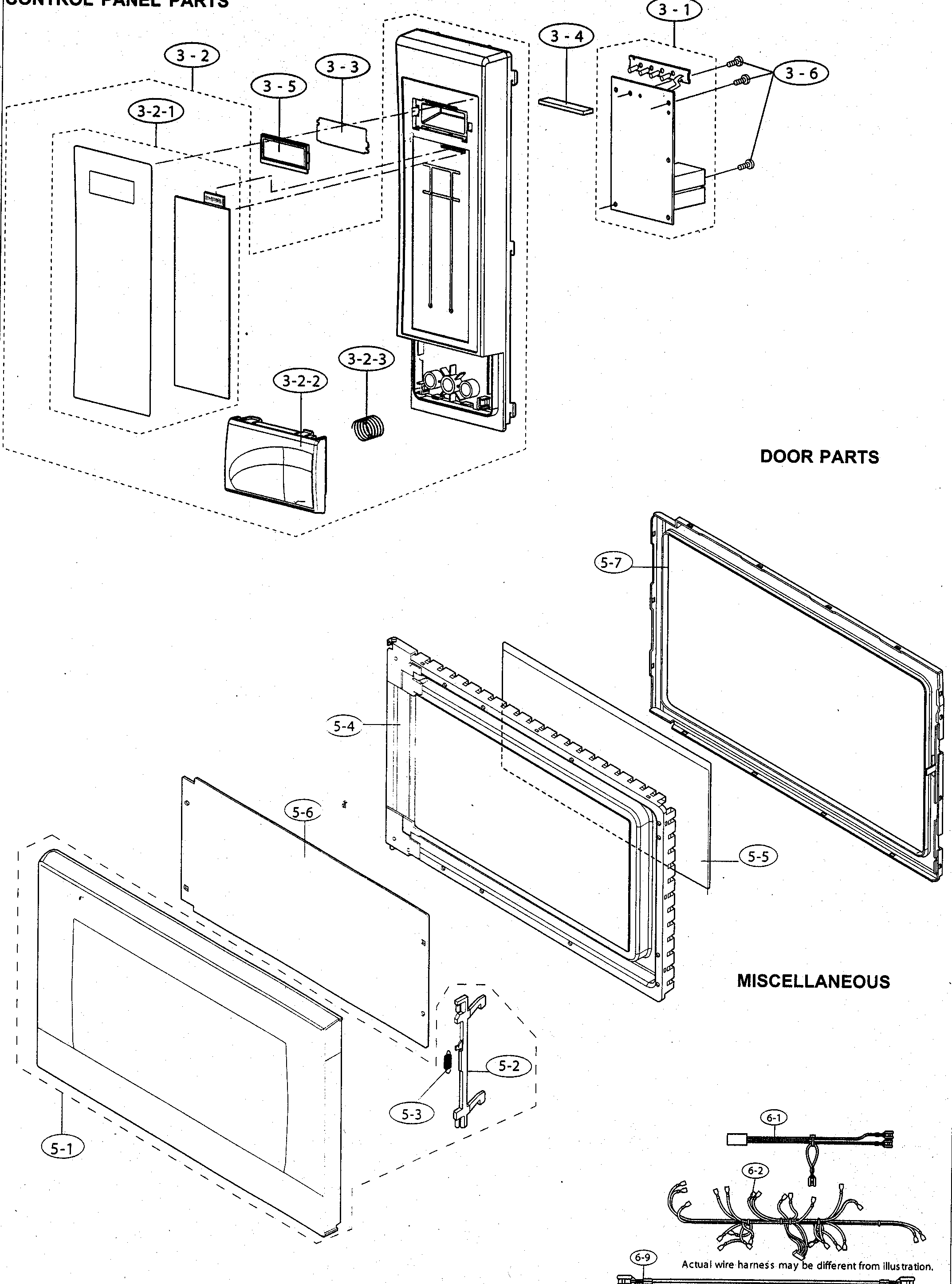

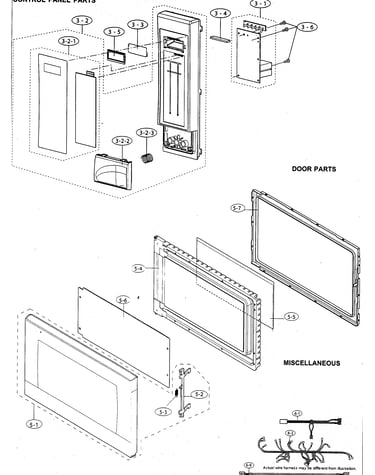

Control panel/door/miscellaneous diagram
Sharp door frame
Part #FCOV-B204MRK0
The manufacturer no longer makes this part, and there's no substitute part
#3-4
Control panel/door/miscellaneous diagram
Connector
Part #QCNC-B001MRE0
The manufacturer no longer makes this part, and there's no substitute part
#3-22
Control panel/door/miscellaneous diagram
Sharp control panel
Part #FPNLCB388/KIT
The manufacturer no longer makes this part, and there's no substitute part
#3-5
Control panel/door/miscellaneous diagram
Lcd
Part #RLCDSA107DRZZ
The manufacturer no longer makes this part, and there's no substitute part
#3-1
Control panel/door/miscellaneous diagram
Microwave electronic control board
Part #CPWBFB063MRU0
The manufacturer no longer makes this part, and there's no substitute part
#4-11
Oven/cabinet parts diagram
Cushion
Part #PCUSGB037MRP0
The manufacturer no longer makes this part, and there's no substitute part
#3-21
Control panel/door/miscellaneous diagram
Sharp key unit
Part #FUNTKB336/KIT
The manufacturer no longer makes this part, and there's no substitute part
#3-2
Control panel/door/miscellaneous diagram
Sharp button
Part #JBTN-B120MRF0
The manufacturer no longer makes this part, and there's no substitute part
