Whirlpool
Microwave/Hood Combo

Model # YWMH53520AS0 Official Whirlpool 2.0 cubic foot microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YWMH53520AS0 2.0 cubic foot microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

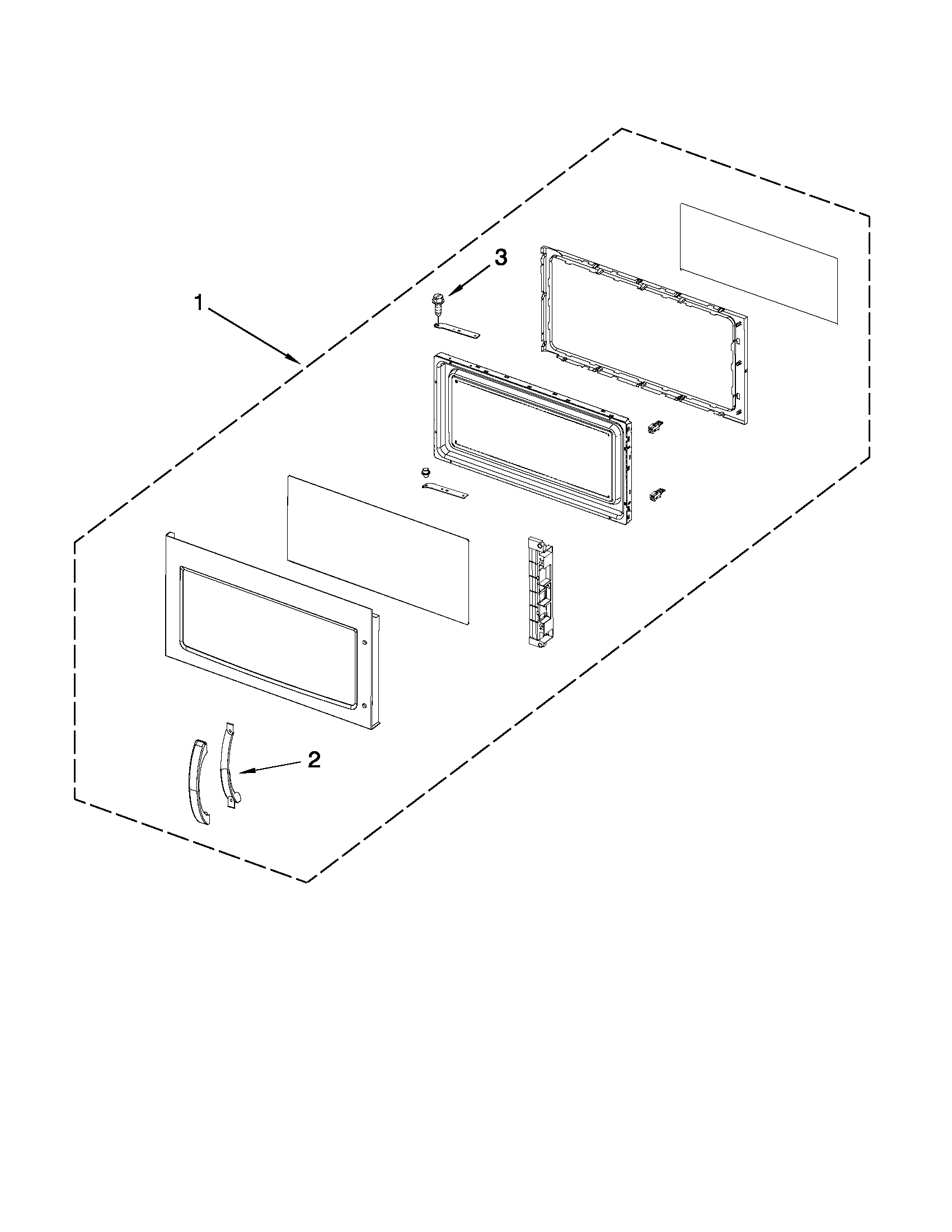

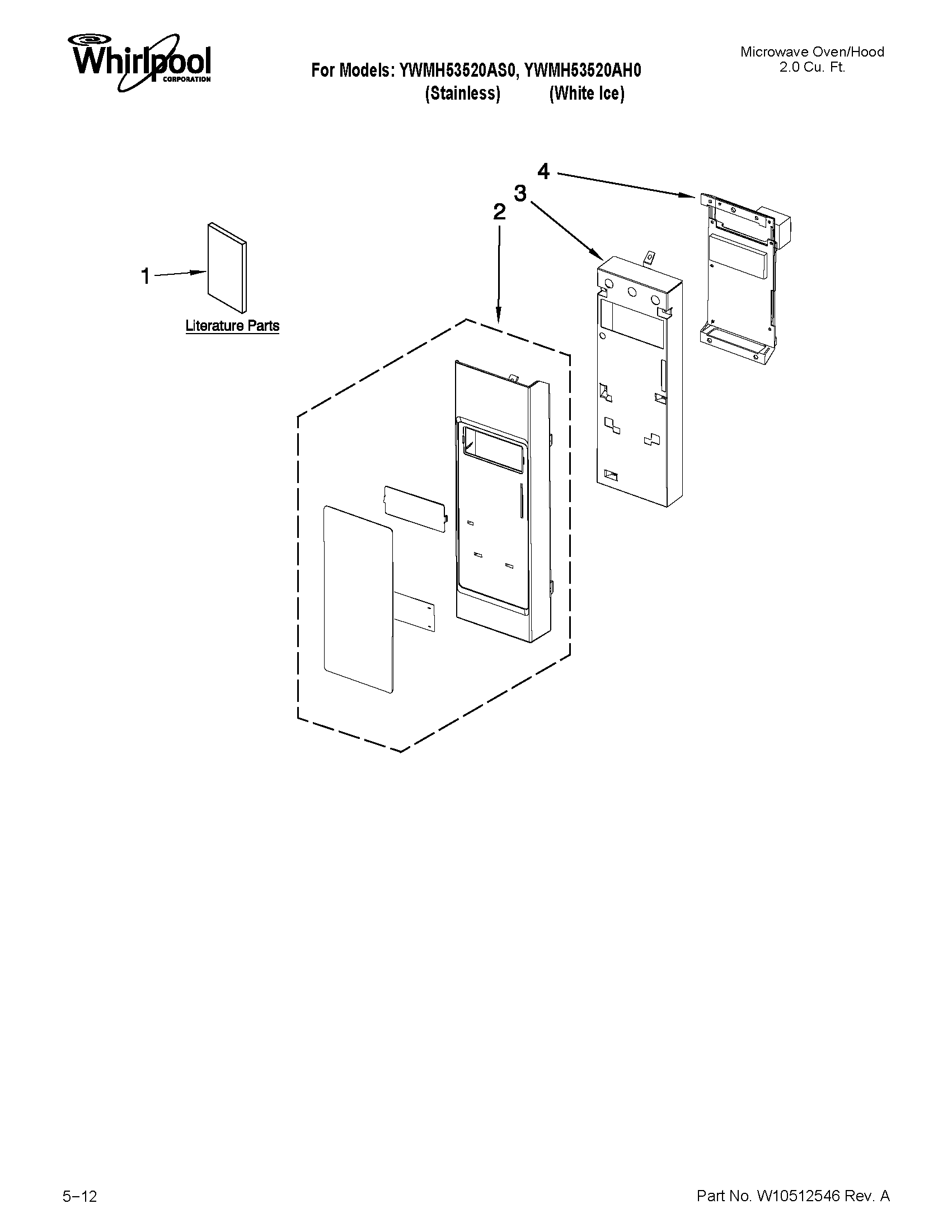

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Microwave High-voltage Diode W10492278
#13

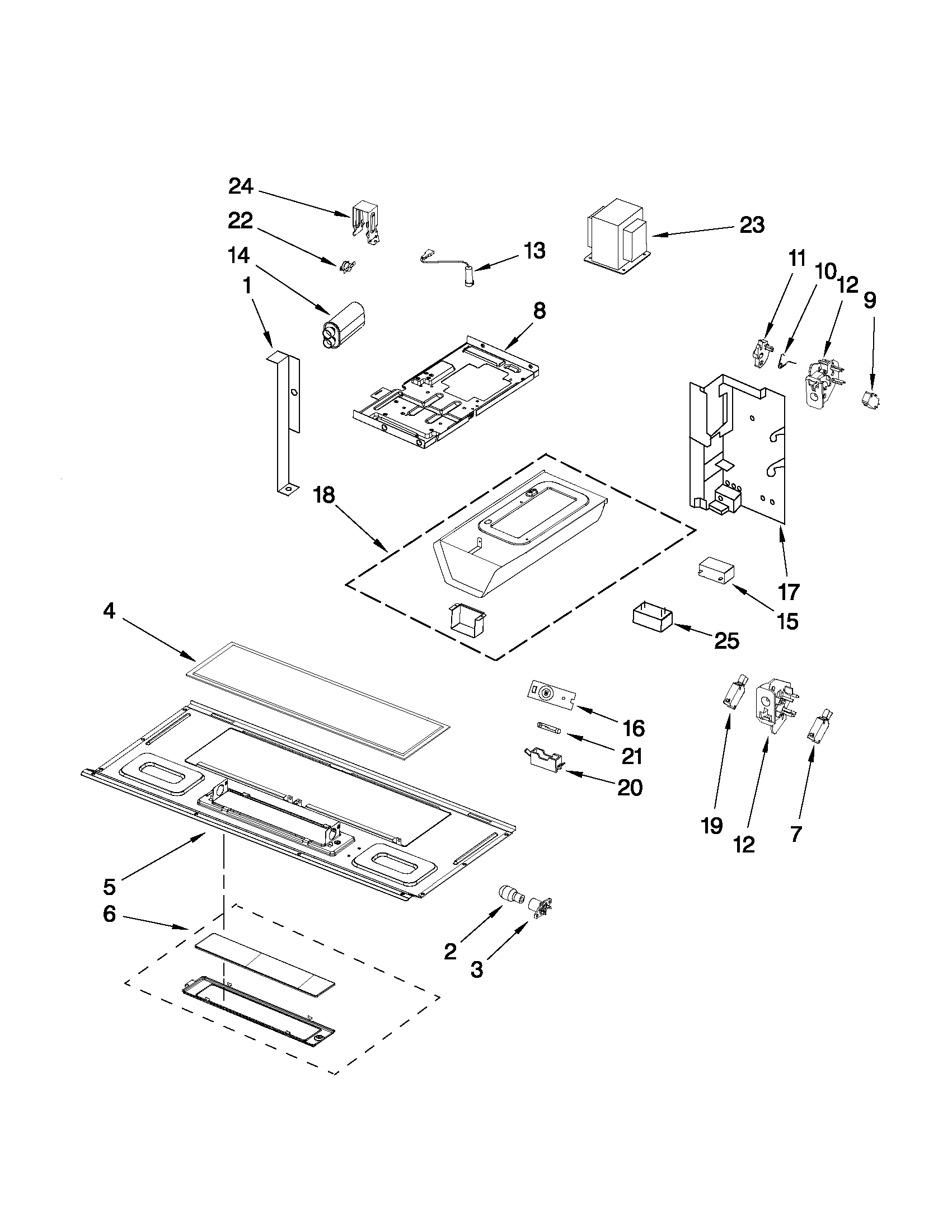

Interior and ventilation parts diagram

Microwave high-voltage diode

Part #W10492278

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10492278. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Door Switch W10269457
#19

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.84 |
17% OFF Phone Price : $5.84
In Stock
Interlock W10156813
#12A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Microwave Door Interlock Support, Upper 8206419
#12

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Microwave Magnetron (replaces 423107844635, 4375072, 8205791) W10245183
#15

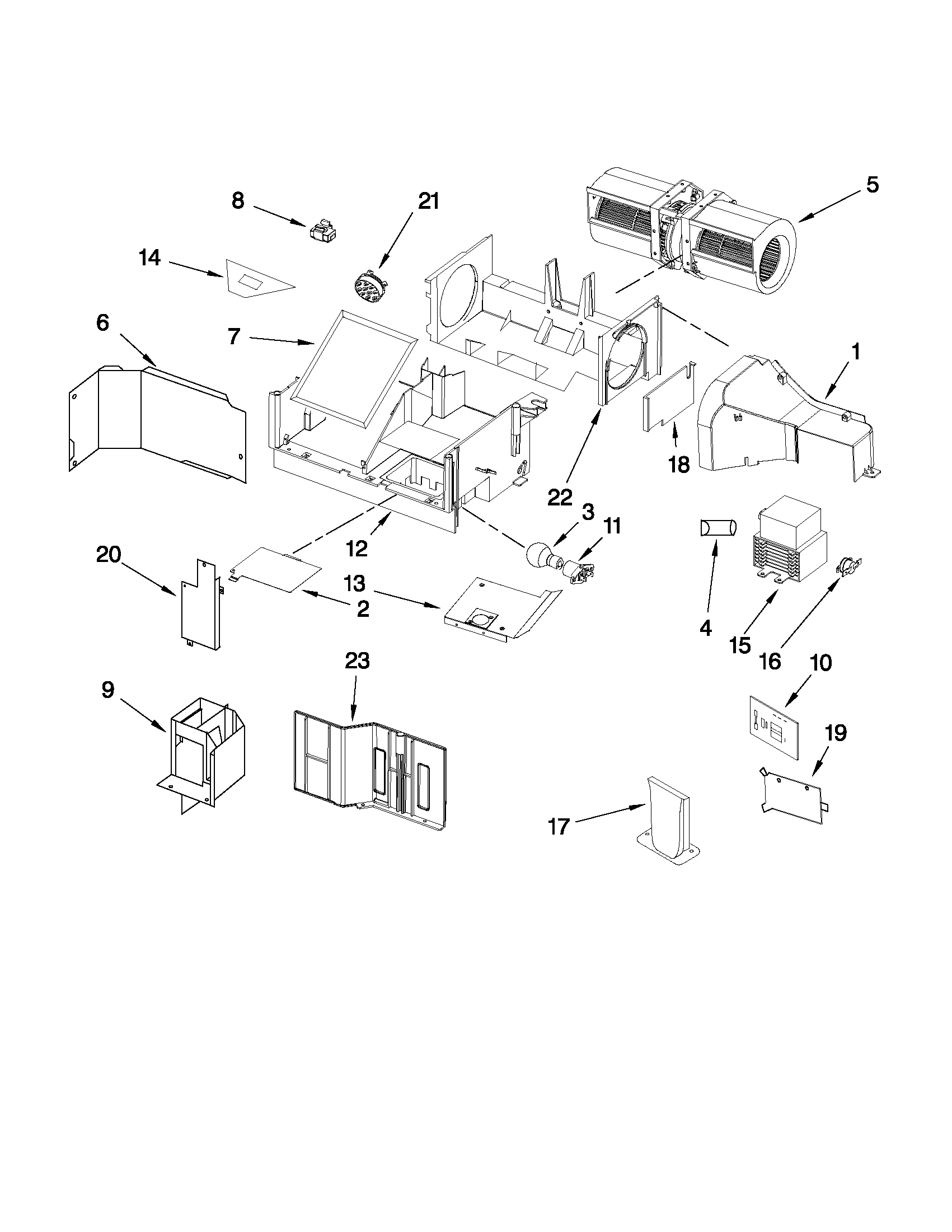

Air flow parts diagram

Microwave magnetron (replaces 423107844635, 4375072, 8205791)

Part #W10245183

BEST SELLER
$179.69 |
6% OFF Phone Price : $191.69
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Microwave Mounting Plate W10440498
#1

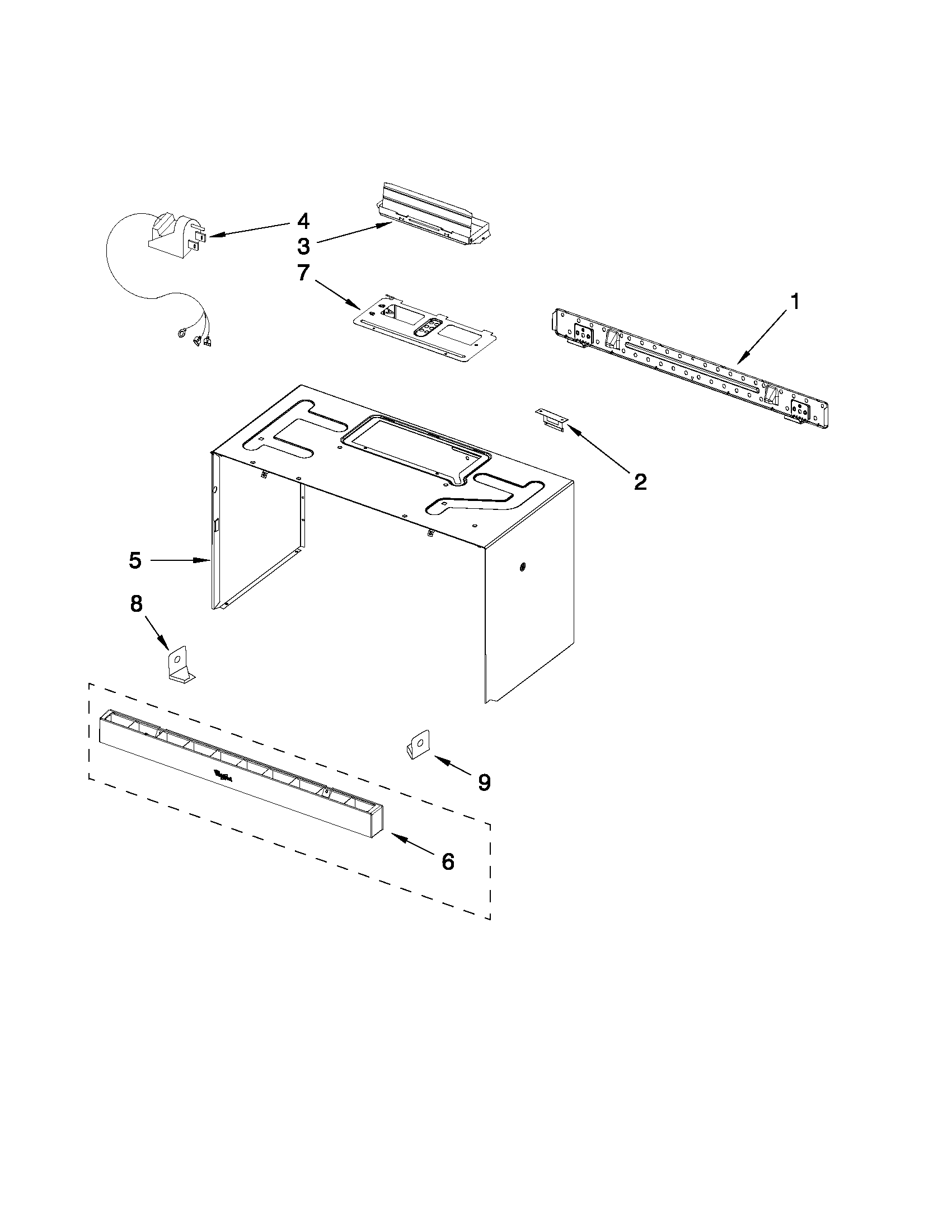

Cabinet and installation parts diagram

Microwave mounting plate

Part #W10440498

Replaced by #W11025649

?
Manufacturer substitution
This part replaces W10440498. Substitute parts can look different from the original.
$12.77 |
14% OFF Phone Price : $14.77
In Stock
Thermostat 8206342
#16

Air flow parts diagram

Thermostat

Part #8206342

Replaced by #W10598693

?
Manufacturer substitution
This part replaces 8206342. Substitute parts can look different from the original.
$32.65 |
16% OFF Phone Price : $38.65
In Stock
Microwave Turntable Support Ring W10435114
#3

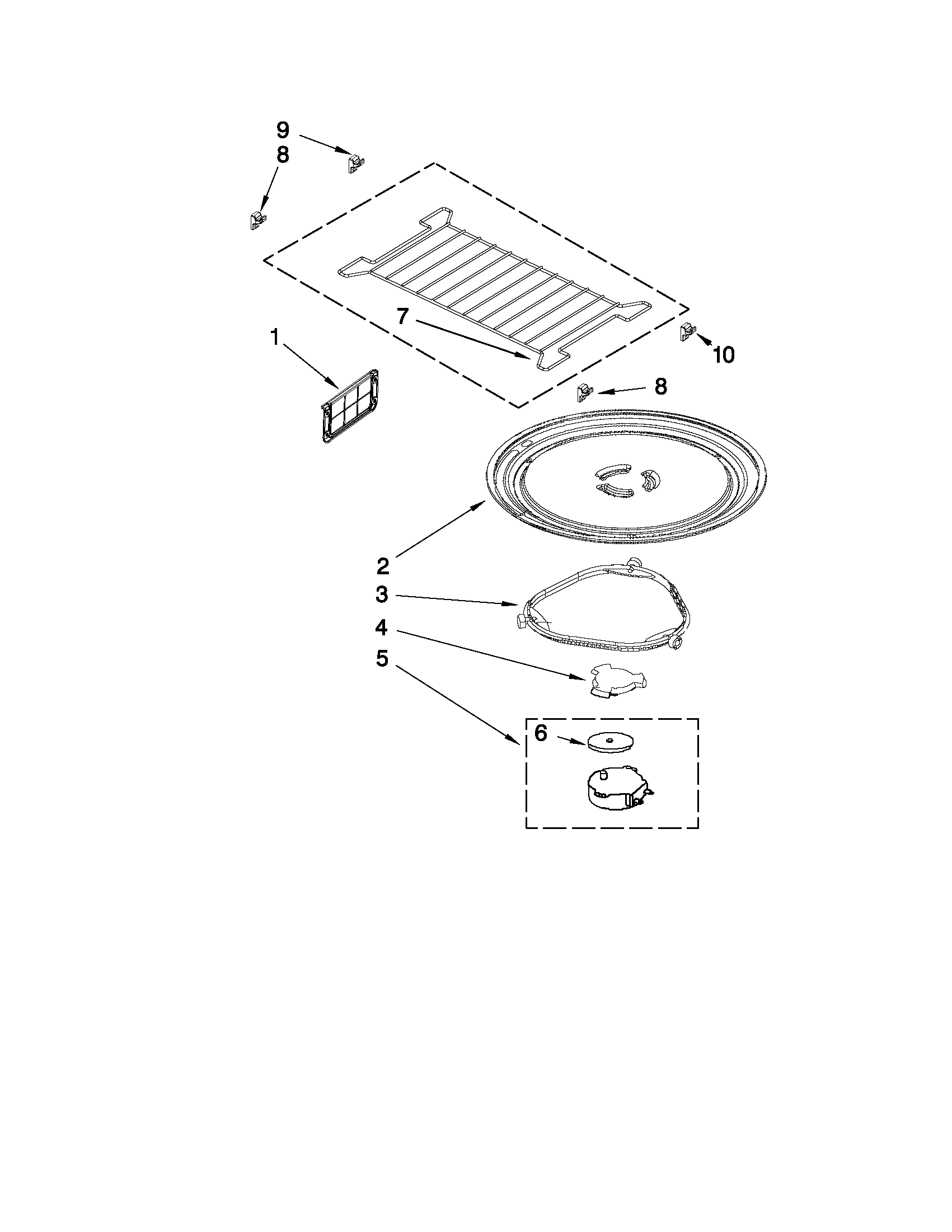

Turntable parts diagram

Microwave turntable support ring

Part #W10435114

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W10435114. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Microwave Turntable Tray (replaces 8206226) 4393799
#2

Turntable parts diagram

Microwave turntable tray (replaces 8206226)

Part #4393799

$52.95 |
10% OFF Phone Price : $58.95
In Stock
