Model # 58492880 Official LXI projector

Here are the diagrams and repair parts for Official LXI 58492880 projector, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Knob 36705
#22

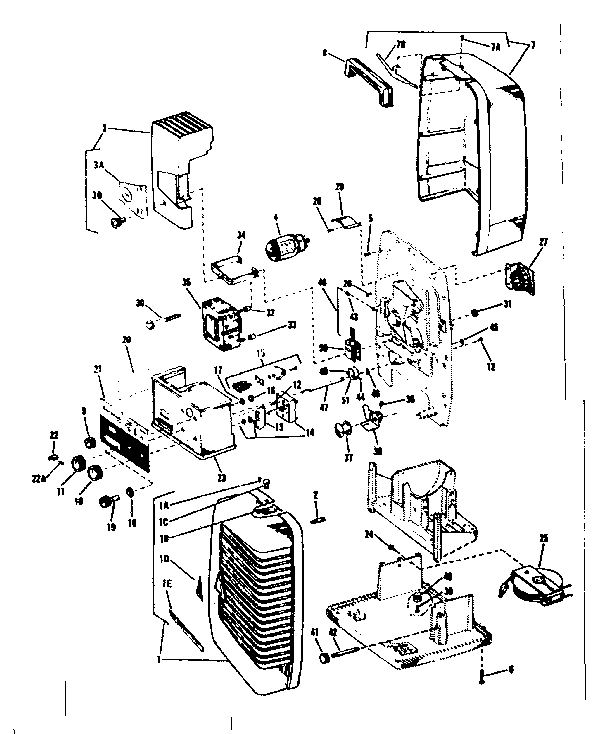

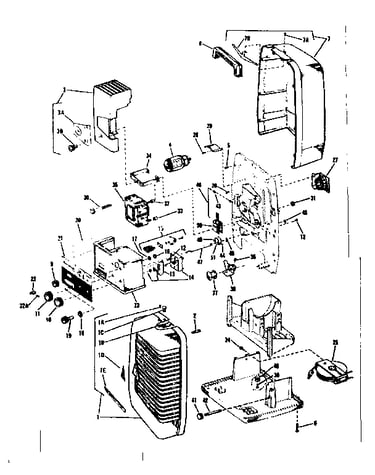

Covers and lamp diagram

Knob

Part #36705

The manufacturer no longer makes this part, and there's no substitute part

Shaft 33038
#42

Covers and lamp diagram

Shaft

Part #33038

The manufacturer no longer makes this part, and there's no substitute part

Bracket 33588
#27

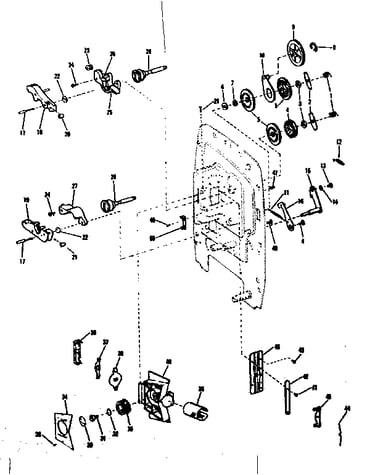

Sprockets, loop formers, and lens carrier diagram

Bracket

Part #33588

The manufacturer no longer makes this part, and there's no substitute part

Knob 36712
#11

Covers and lamp diagram

Knob

Part #36712

The manufacturer no longer makes this part, and there's no substitute part

Spring 7477
Spring

Part #7477

The manufacturer no longer makes this part, and there's no substitute part

Nut 29248
#28

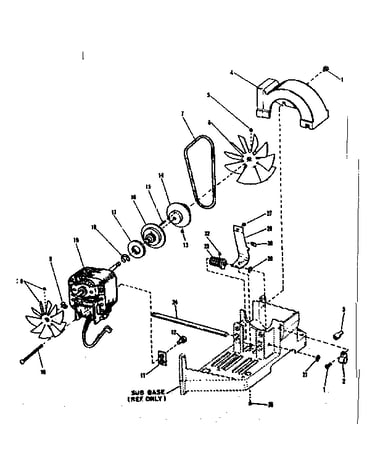

Motor, fan, and speed control diagram

Nut

Part #29248

The manufacturer no longer makes this part, and there's no substitute part

Spacer 35317
#22

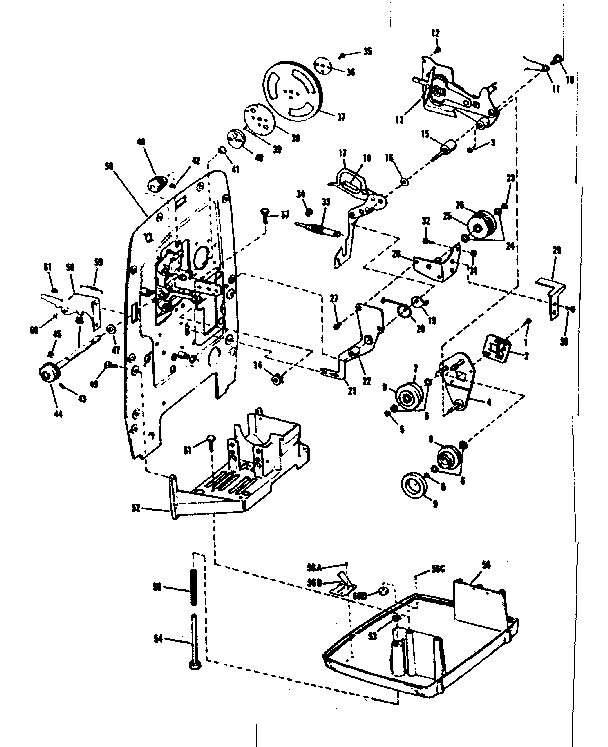

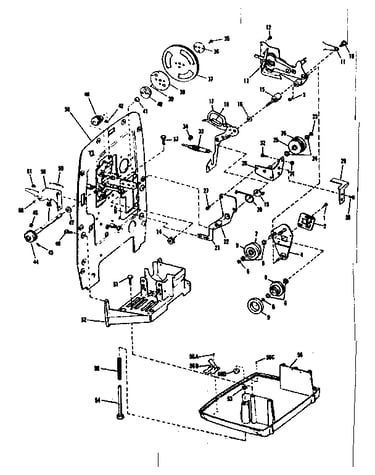

Shutter and shuttle mechanism diagram

Spacer

Part #35317

The manufacturer no longer makes this part, and there's no substitute part

Switch 34035
#40

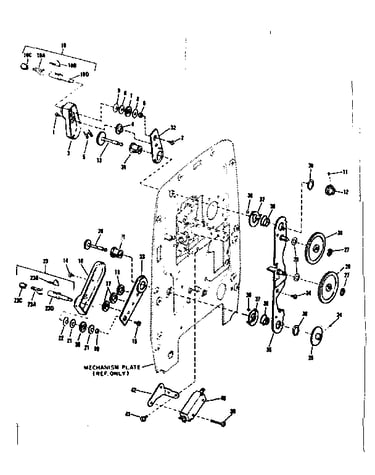

Reel arms and gears diagram

Switch

Part #34035

The manufacturer no longer makes this part, and there's no substitute part

Shaft 33079
#47

Covers and lamp diagram

Shaft

Part #33079

The manufacturer no longer makes this part, and there's no substitute part

Spacer 36694
#33

Covers and lamp diagram

Spacer

Part #36694

The manufacturer no longer makes this part, and there's no substitute part
