Craftsman
Reciprocating Saw

Model # 31517220 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 31517220 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Screw 1-930993-01
#21

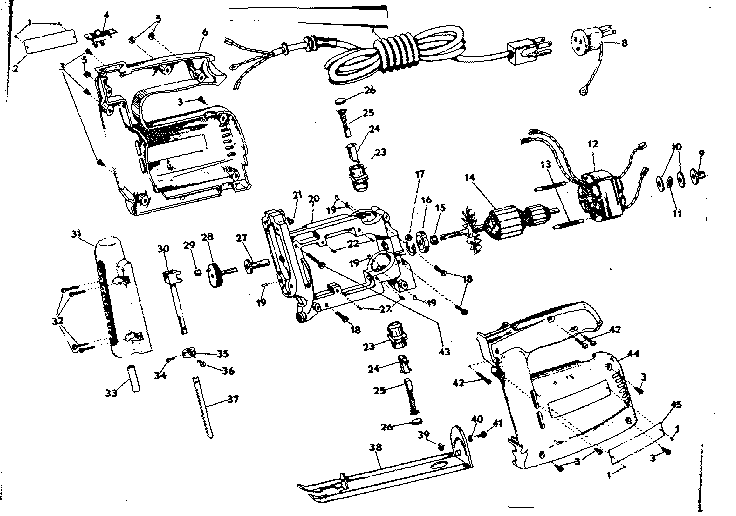

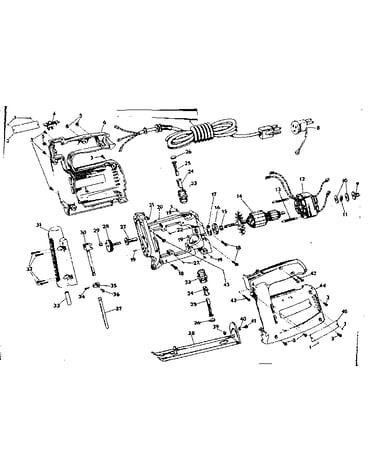

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Housing 5-615886-01
#6

Unit parts diagram

Housing

Part #5-615886-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-622140-31
#3

Unit parts diagram

Screw

Part #1-622140-31

The manufacturer no longer makes this part, and there's no substitute part

Nut 1-709863-801
#39

Unit parts diagram

Nut

Part #1-709863-801

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-615876-01
#12

Unit parts diagram

Field core

Part #3-615876-01

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-615873-01
#14

Unit parts diagram

Armature

Part #2-615873-01

The manufacturer no longer makes this part, and there's no substitute part

Drive Screw 1-795247-06
#1

Unit parts diagram

Drive screw

Part #1-795247-06

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-726693-07
#42

Unit parts diagram

Screw

Part #1-726693-07

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-703432-30
#43

Unit parts diagram

Screw

Part #1-703432-30

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1-930687-06
#22

Unit parts diagram

Set screw

Part #1-930687-06

The manufacturer no longer makes this part, and there's no substitute part
