Model # PV-GS29P Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic PV-GS29P digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Panasonic Lcd Shield LSXY0939
#35

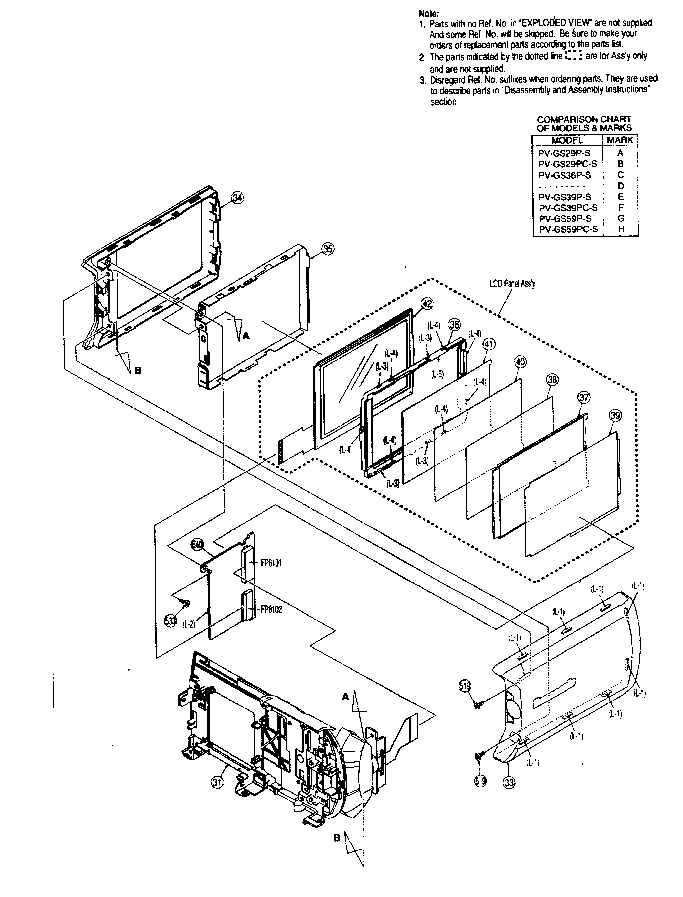

R shaft case/lcd assy diagram

Panasonic lcd shield

Part #LSXY0939

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual MKE0601400CE
#NI

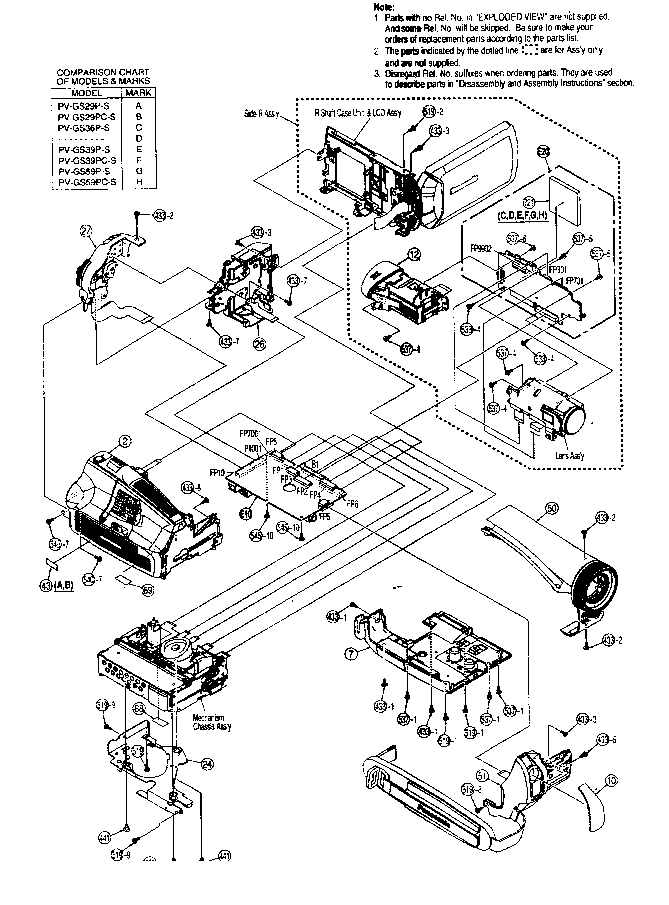

Cabinet parts diagram

Owner's manual

Part #MKE0601400CE

The manufacturer no longer makes this part, and there's no substitute part

Front Pcb LSEP8332B1
#E30

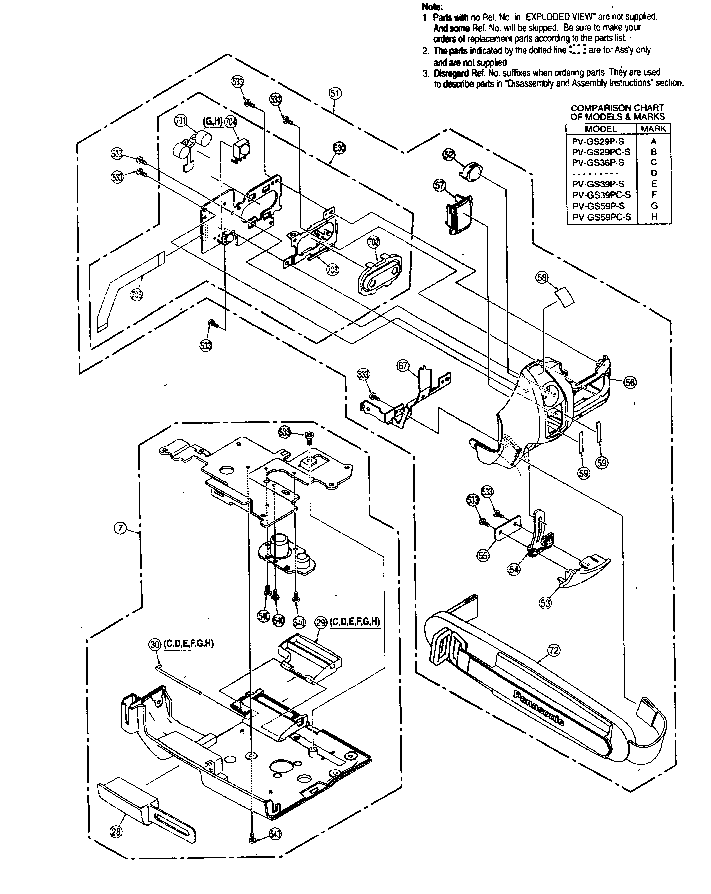

Front/bottom case diagram

Front pcb

Part #LSEP8332B1

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit MN31121SASE1
#NI

Cabinet parts diagram

Integrated circuit

Part #MN31121SASE1

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1ZBZ0002602
#NI

Cabinet parts diagram

Integrated circuit

Part #C1ZBZ0002602

The manufacturer no longer makes this part, and there's no substitute part

Focus Motor L6HA66NB0006
#66

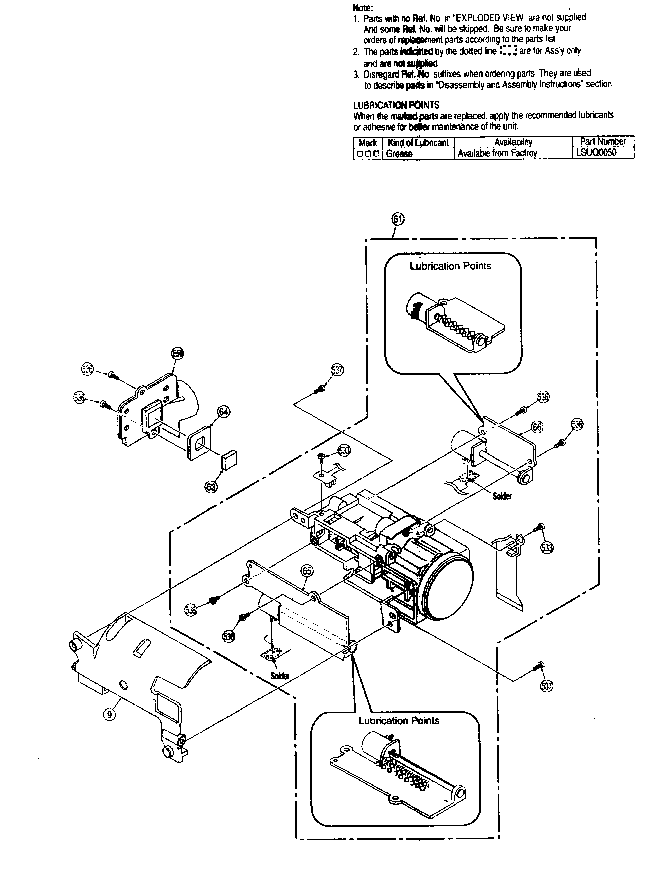

Ccd/lens assy diagram

Focus motor

Part #L6HA66NB0006

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Lcd Backli LSEP8334A1
#E40

R shaft case/lcd assy diagram

Panasonic lcd backli

Part #LSEP8334A1

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0ABAA000046
#NI

Cabinet parts diagram

Integrated circuit

Part #C0ABAA000046

The manufacturer no longer makes this part, and there's no substitute part

Front Flex LSJB8337
#705

Front/bottom case diagram

Front flex

Part #LSJB8337

The manufacturer no longer makes this part, and there's no substitute part

Bef Sheet LSGL0406
#46

R shaft case/lcd assy diagram

Bef sheet

Part #LSGL0406

The manufacturer no longer makes this part, and there's no substitute part
