Crosley
Countertop Microwave

Model # CR151KWH Official Crosley microwave

Here are the diagrams and repair parts for Official Crosley CR151KWH microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

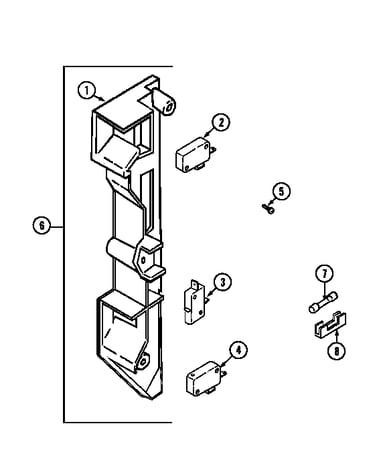

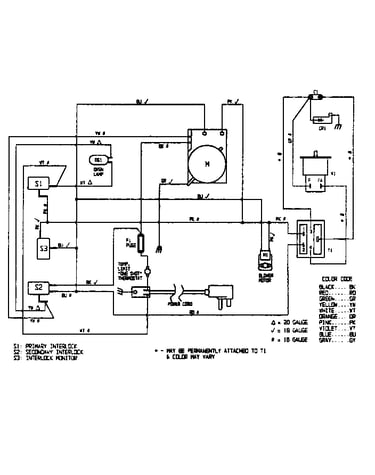

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Screw 03020068
#13

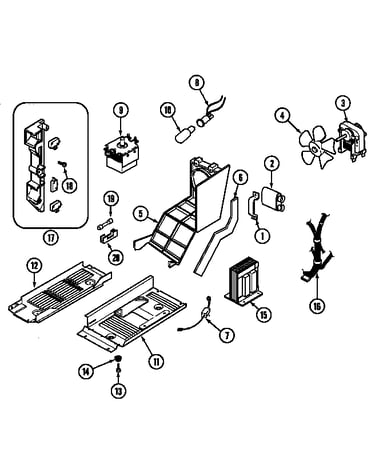

Internal controls diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Capacitor (7 51001071
#2

Internal controls diagram

Capacitor (7

Part #51001071

Replaced by #59001651

?
Manufacturer substitution
This part replaces 51001071. Substitute parts can look different from the original.
$31.49
In Stock
Screw 03020099
#4A

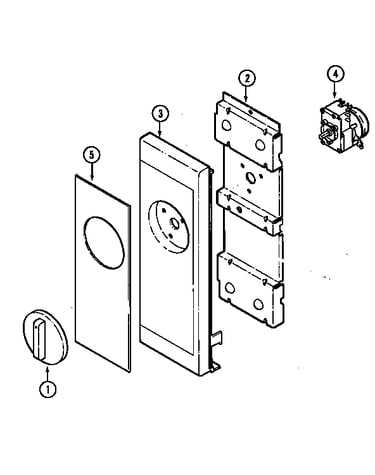

Control diagram

Screw

Part #03020099

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020099. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Control Bracket 51001067
#2

Control diagram

Control bracket

Part #51001067

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness 51001102
#16

Internal controls diagram

Wiring harness

Part #51001102

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 51001095
#8

Internal controls diagram

Receptacle

Part #51001095

The manufacturer no longer makes this part, and there's no substitute part

Foot Base 02230009
#14A

Internal controls diagram

Foot base

Part #02230009

The manufacturer no longer makes this part, and there's no substitute part

Door Choke 51001154
#2

Door diagram

Door choke

Part #51001154

The manufacturer no longer makes this part, and there's no substitute part

Tray 51001072
#8

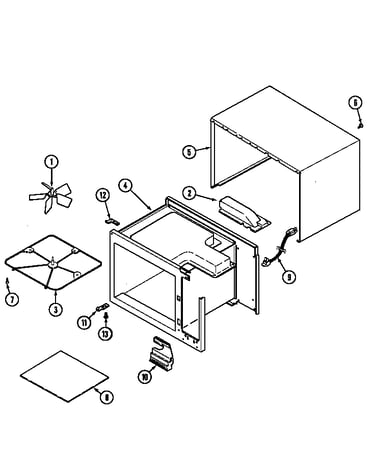

Base diagram

Tray

Part #51001072

The manufacturer no longer makes this part, and there's no substitute part

Door Button 51001156
#10

Base diagram

Door button

Part #51001156

The manufacturer no longer makes this part, and there's no substitute part
