Model # C9HE/V5ZUC Official Maytag freezer
Here are the diagrams and repair parts for Official Maytag C9HE/V5ZUC freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forC9HE/V5ZUC Freezer
- #21

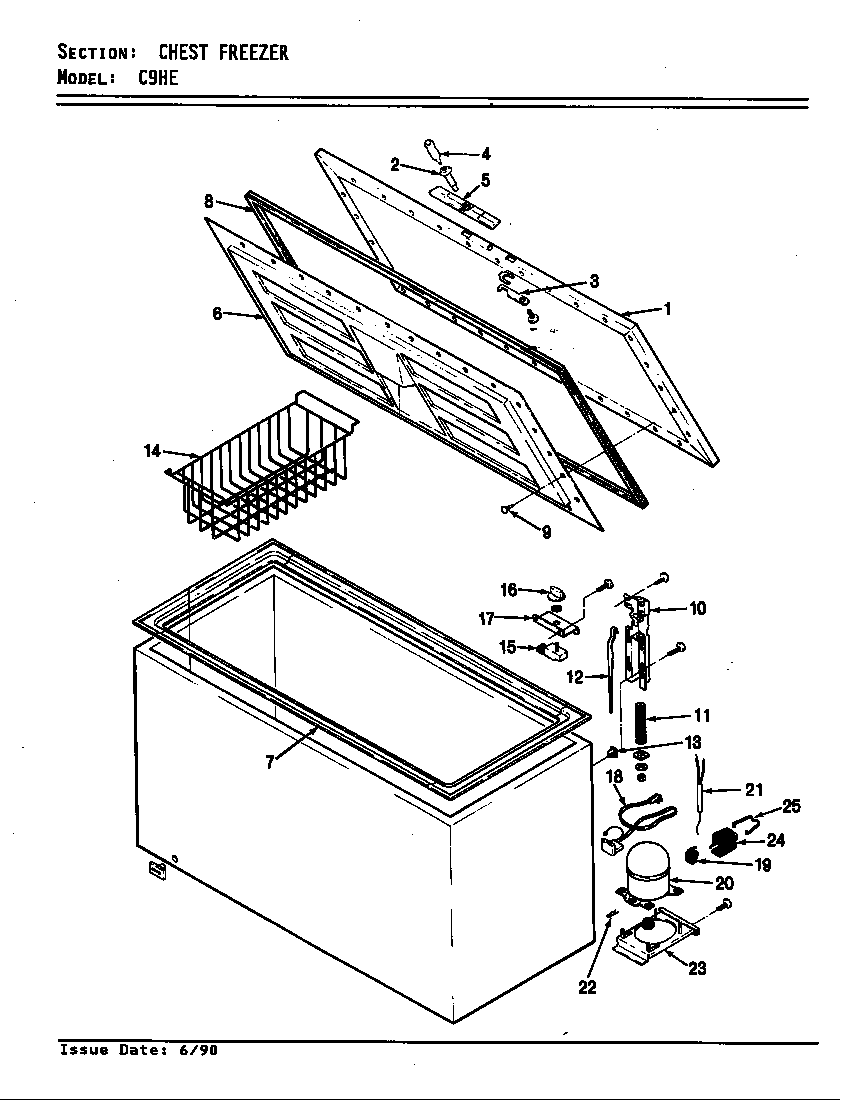

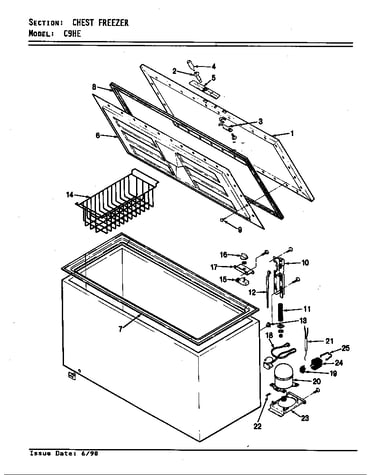

Chest freezer diagram
DrierPart #09100009
Replaced by #WPW10143759
?Manufacturer substitutionThis part replaces 09100009. Substitute parts can look different from the original.$20.04 |23% OFF Phone Price : $26.04In Stock - Screw
Part #09100105
Replaced by #4356491
?Manufacturer substitutionThis part replaces 09100105. Substitute parts can look different from the original.$15.49In Stock - #23A
Chest freezer diagram
Touch-up paiPart #09100024
Replaced by #72017
?Manufacturer substitutionThis part replaces 09100024. Substitute parts can look different from the original.$7.13 |14% OFF Was : $8.29In Stock - #5D
Chest freezer diagram
Clip for hanPart #09100002
Replaced by #3-24059-024
?Manufacturer substitutionThis part replaces 09100002. Substitute parts can look different from the original.$13.77In Stock - #23D
Chest freezer diagram
Drain adapterPart #09100110
Replaced by #W11663505
?Manufacturer substitutionThis part replaces 09100110. Substitute parts can look different from the original.$11.26In Stock - #18A
Chest freezer diagram
ClipPart #09100010
Replaced by #488946
?Manufacturer substitutionThis part replaces 09100010. Substitute parts can look different from the original.$18.77In Stock - Panel, frz. door (alm) - series 11
Part #NO LONGER AVAILABLE
The manufacturer no longer makes this part, and there's no substitute part
- #5
Chest freezer diagram
HandlePart #09100014
The manufacturer no longer makes this part, and there's no substitute part
- #19A
Chest freezer diagram
ProtectorPart #09100047
The manufacturer no longer makes this part, and there's no substitute part
- #20
Chest freezer diagram
Refrigerator compressorPart #09100038
The manufacturer no longer makes this part, and there's no substitute part
