Model # RFS518S-P1330216M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RFS518S-P1330216M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

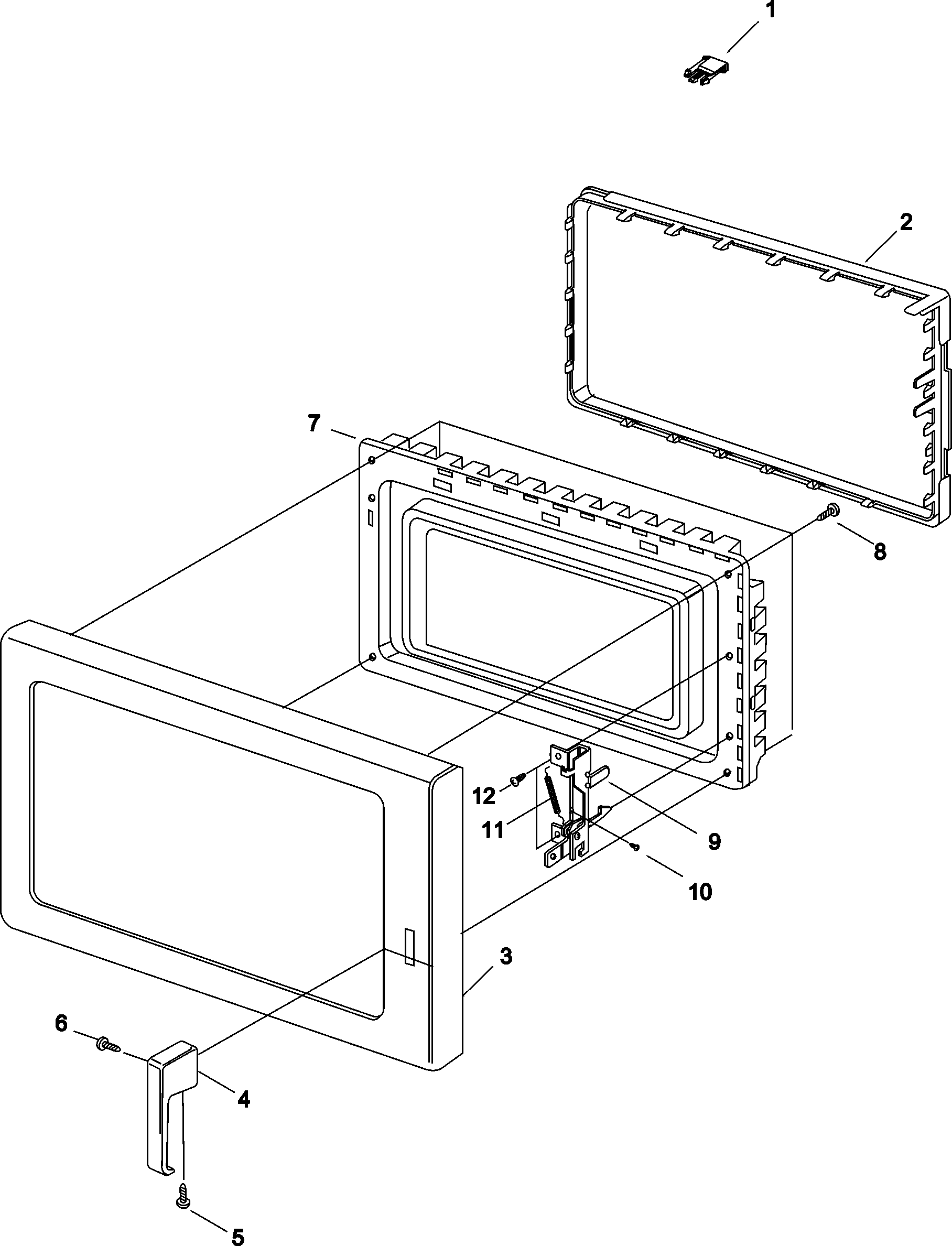

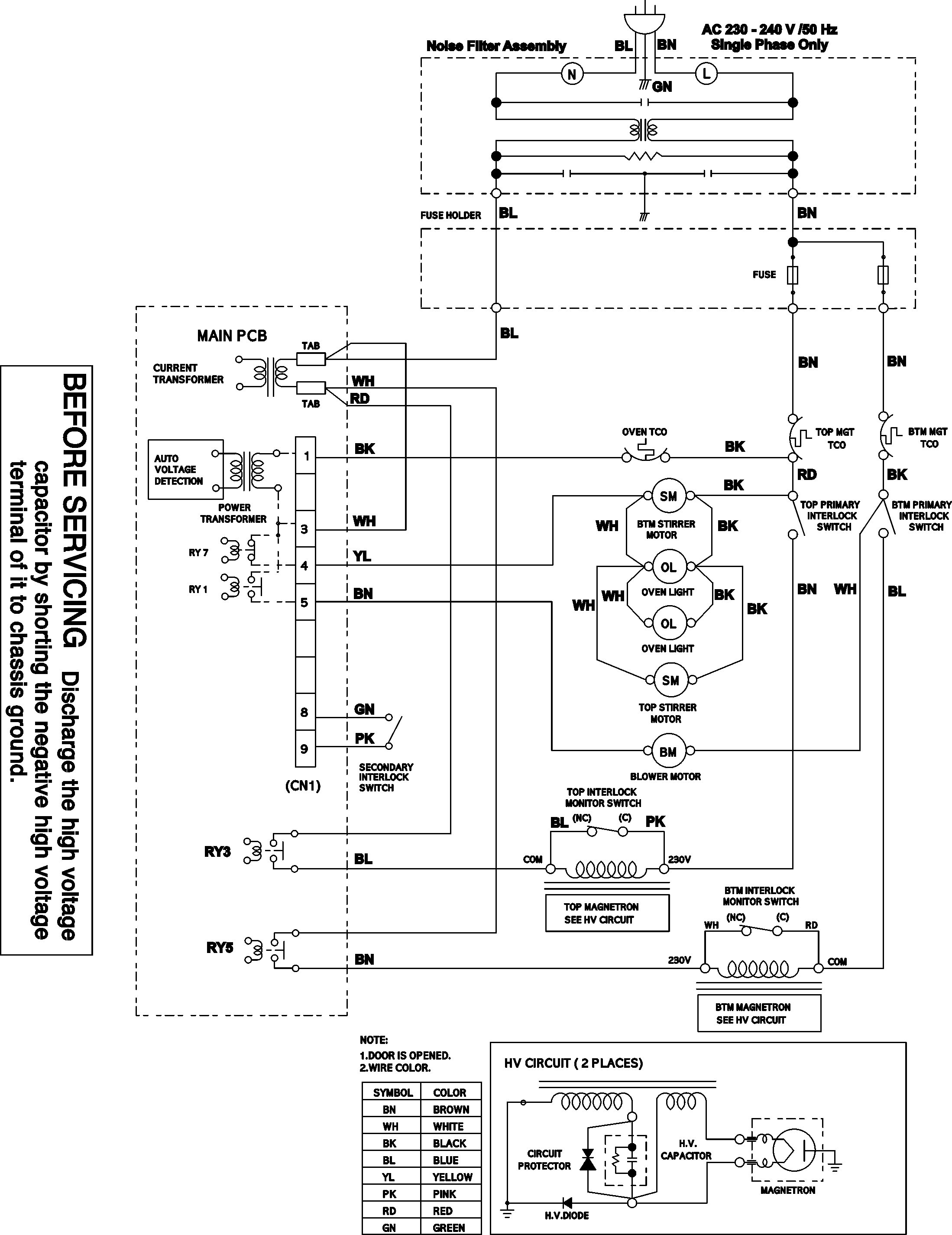

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Microwave Diode R9800486
#25

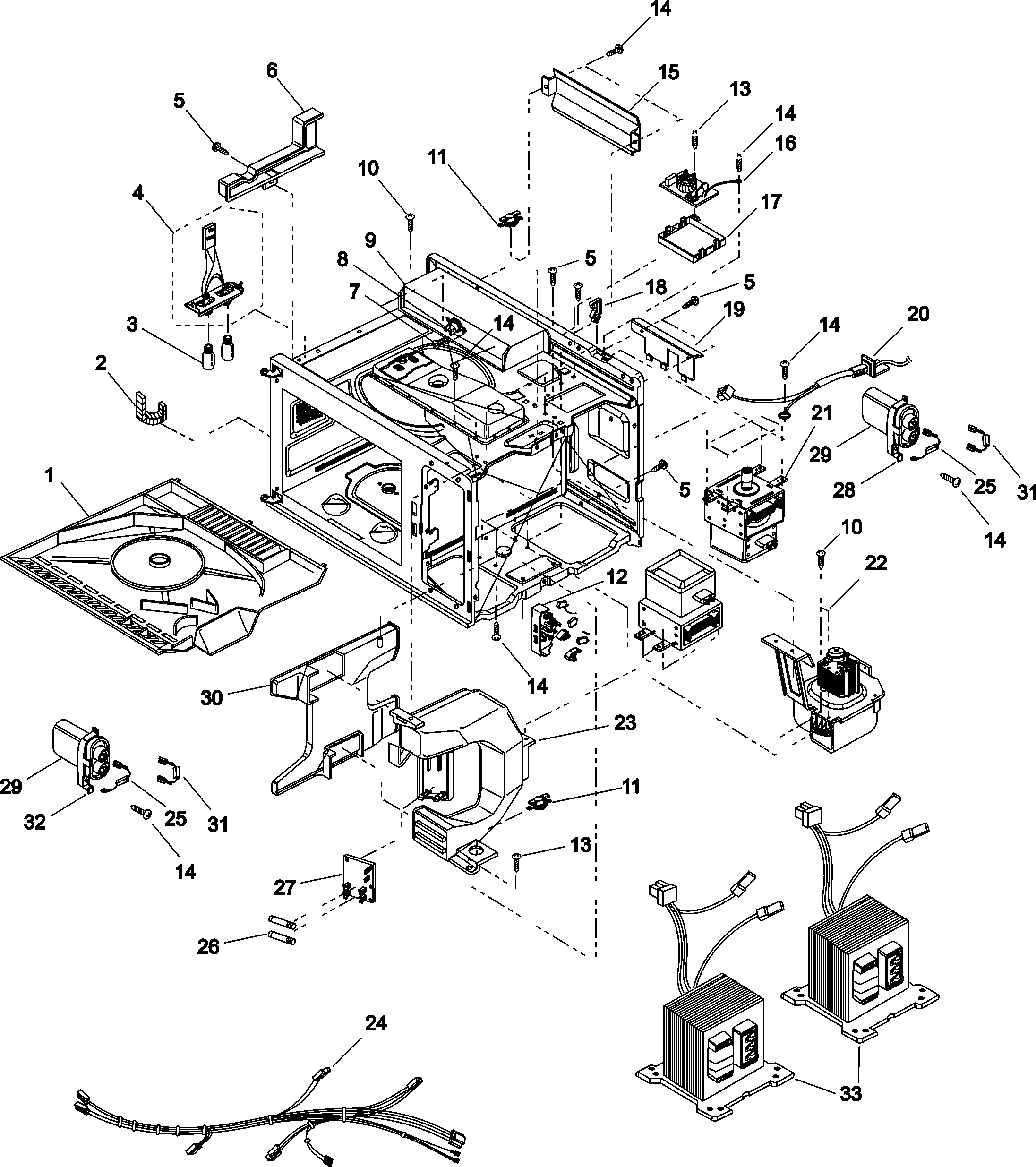

Electrical, grease shield, ducts, diagram

Microwave diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Plate Screw R0654036
#3

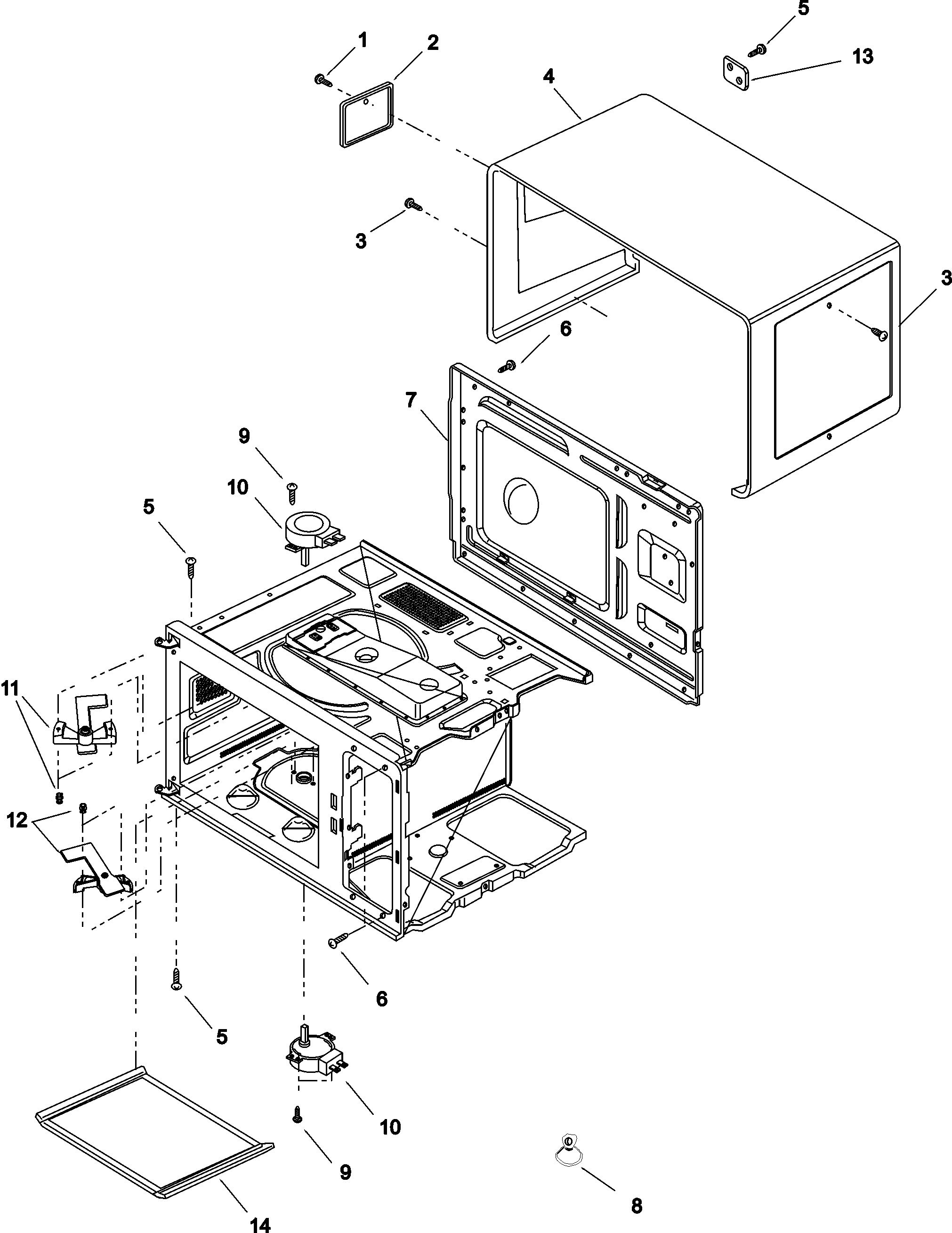

Antenna, tray, outercase, diagram

Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Microwave Thermostat 53001561
#8

Electrical, grease shield, ducts, diagram

Microwave thermostat

Part #53001561

Replaced by #W10864742

?
Manufacturer substitution
This part replaces 53001561. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
"screw, Binin" R0654028
"screw, binin"

Part #R0654028

Replaced by #4344826

?
Manufacturer substitution
This part replaces R0654028. Substitute parts can look different from the original.
$12.49
In Stock
Air Filter 53001571
#7

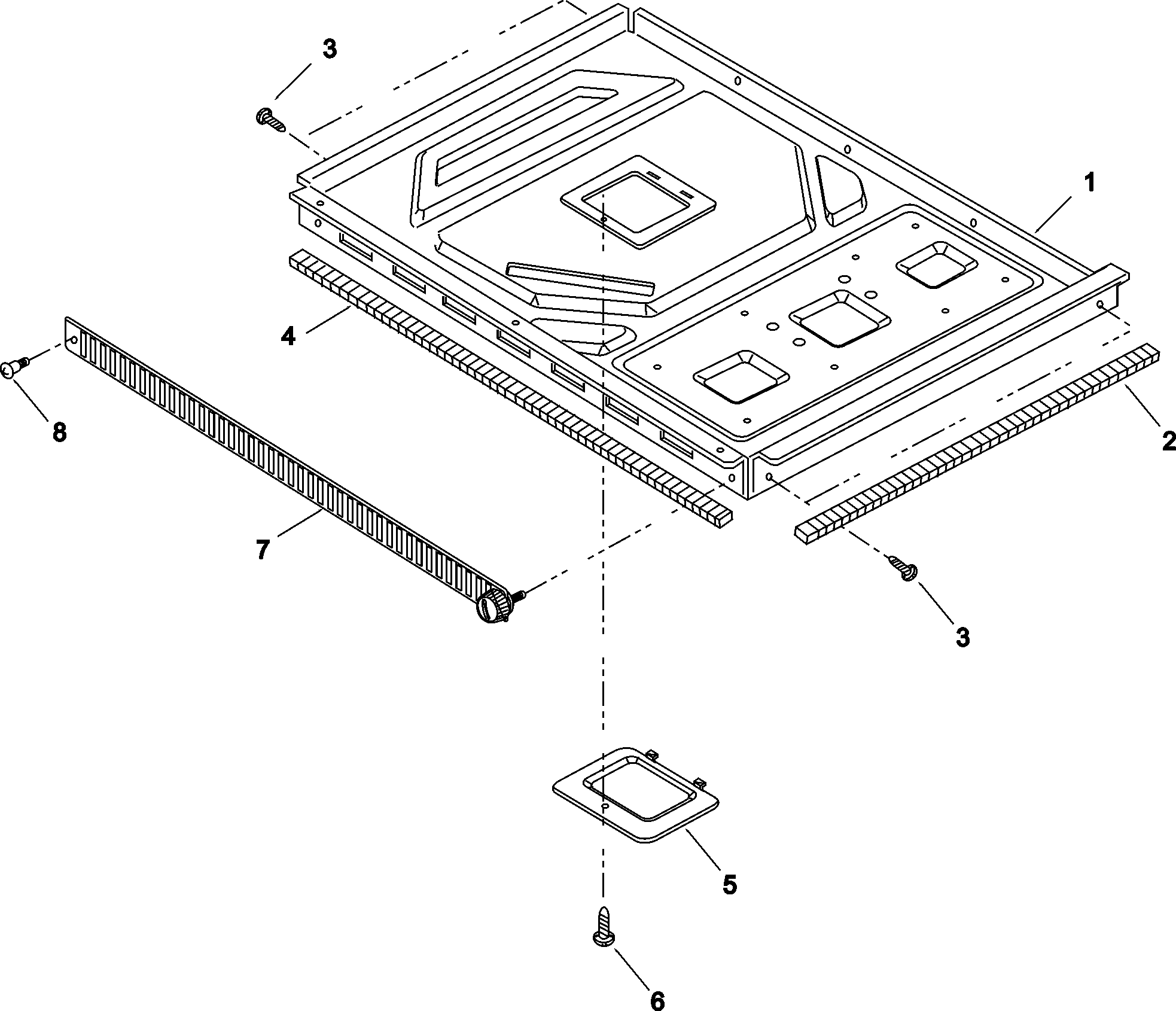

Base and filter diagram

Air filter

Part #53001571

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 53001863
#2A

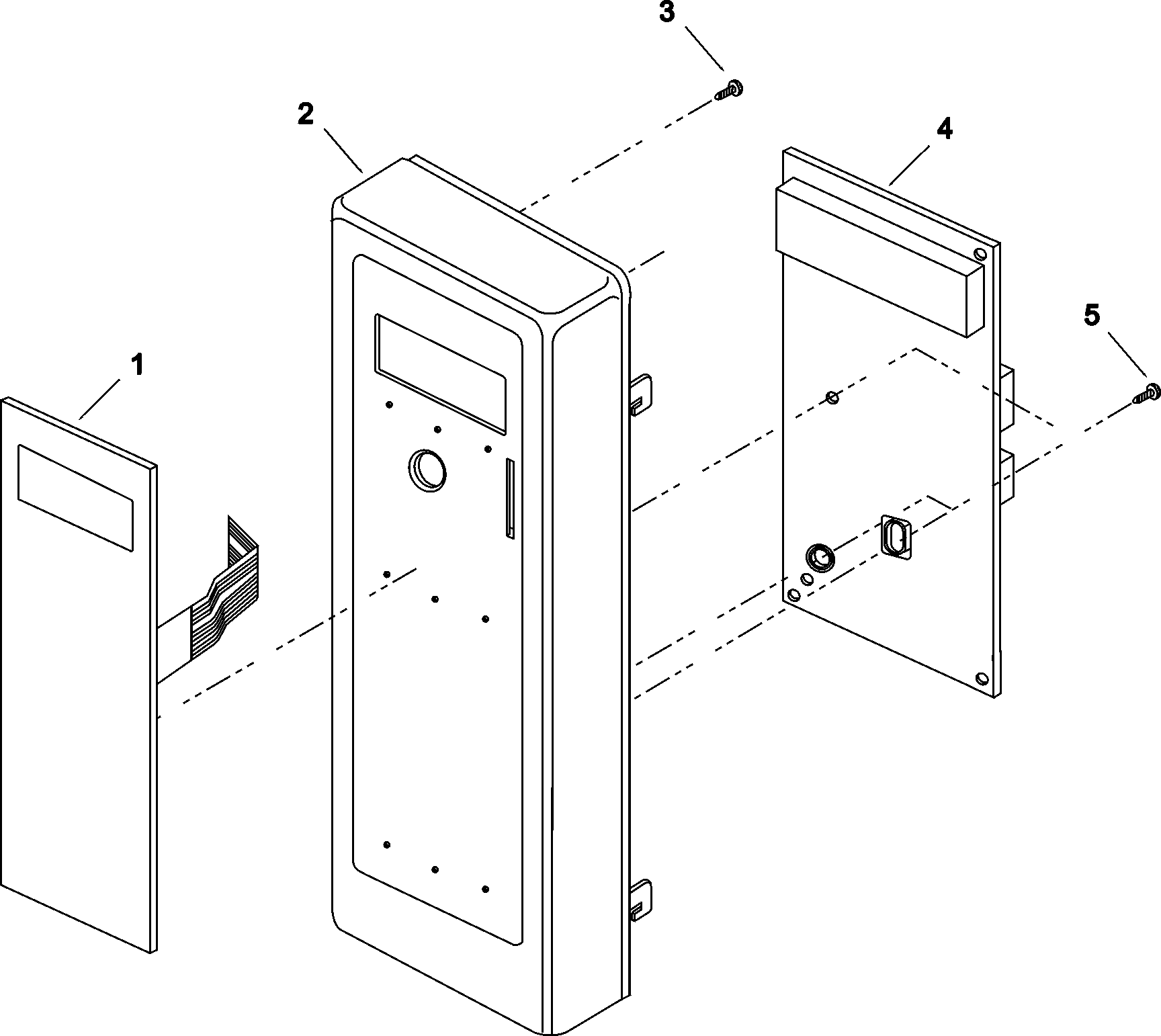

Timer and escutcheon diagram

Escutcheon

Part #53001863

The manufacturer no longer makes this part, and there's no substitute part

Screw Tappin 53001609
#1

Antenna, tray, outercase, diagram

Screw tappin

Part #53001609

The manufacturer no longer makes this part, and there's no substitute part

Bracket 53001620
#15

Electrical, grease shield, ducts, diagram

Bracket

Part #53001620

The manufacturer no longer makes this part, and there's no substitute part

Door Switch 53001600
#12

Electrical, grease shield, ducts, diagram

Door switch

Part #53001600

The manufacturer no longer makes this part, and there's no substitute part
