Milwaukee
Drill/Driver

Model # 0522-20 Official Milwaukee drill/driver

Here are the diagrams and repair parts for Official Milwaukee 0522-20 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Battery 48-11-2200

#NI

All parts diagram

Battery

Part #48-11-2200

The manufacturer no longer makes this part, and there's no substitute part

Connector 22-56-0200
#1105

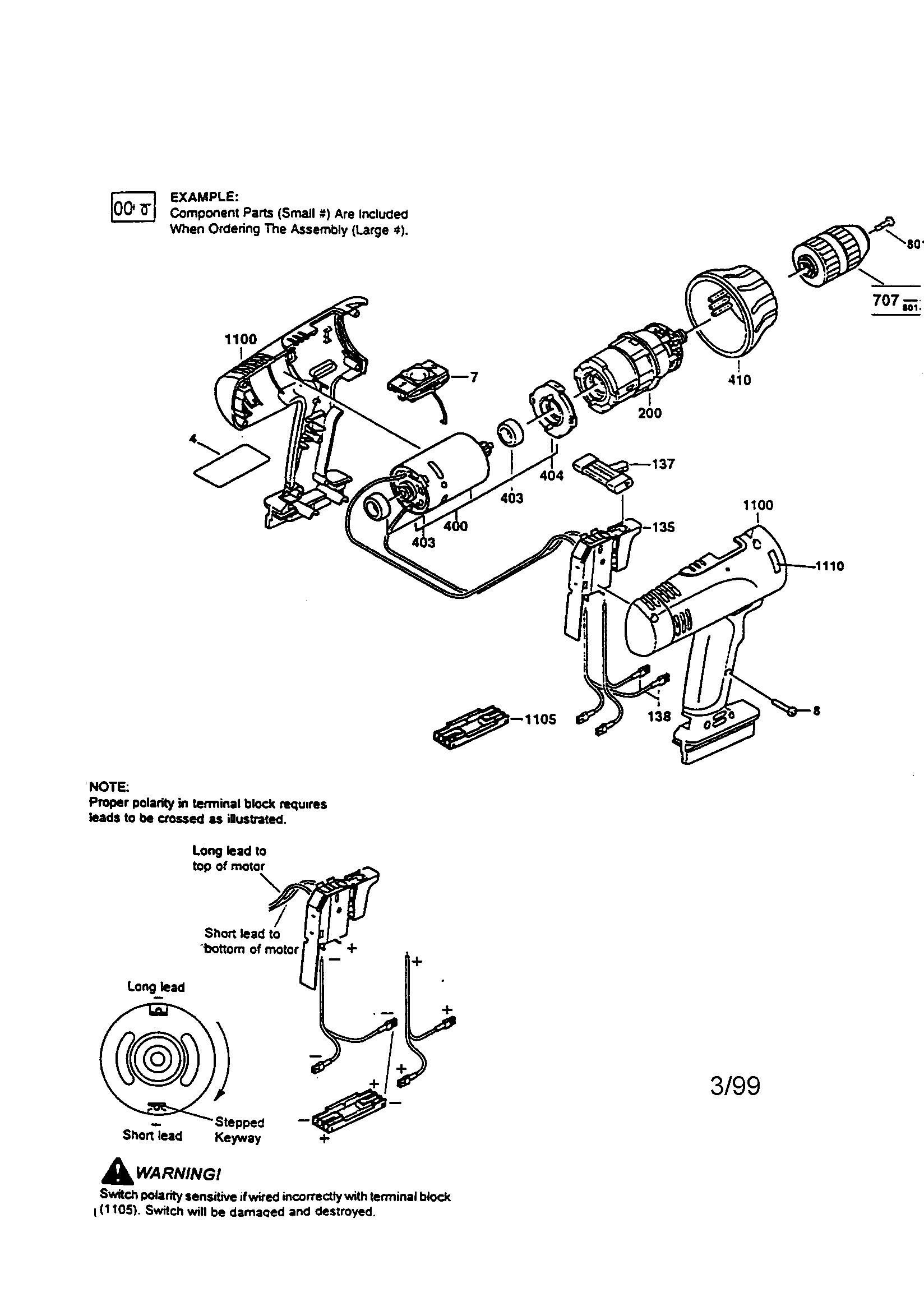

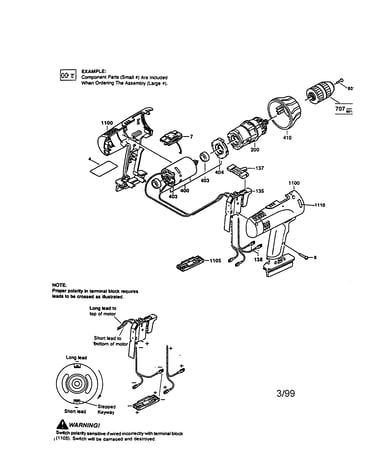

18 volt 1/2" power plus diagram

Connector

Part #22-56-0200

The manufacturer no longer makes this part, and there's no substitute part

Gearbox As 14-29-0110
#200

18 volt 1/2" power plus diagram

Gearbox as

Part #14-29-0110

The manufacturer no longer makes this part, and there's no substitute part

Chuck 48-66-0365
#707

18 volt 1/2" power plus diagram

Chuck

Part #48-66-0365

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-7236
#8

18 volt 1/2" power plus diagram

Screw

Part #06-82-7236

The manufacturer no longer makes this part, and there's no substitute part

Rubber Sleeve 46-22-0360
#403

18 volt 1/2" power plus diagram

Rubber sleeve

Part #46-22-0360

The manufacturer no longer makes this part, and there's no substitute part

Shuttle 45-24-0500
#137

18 volt 1/2" power plus diagram

Shuttle

Part #45-24-0500

The manufacturer no longer makes this part, and there's no substitute part

Slide High 45-24-0090
#7

18 volt 1/2" power plus diagram

Slide high

Part #45-24-0090

The manufacturer no longer makes this part, and there's no substitute part

Power Ii F 48-59-0241

#NI

All parts diagram

Power ii f

Part #48-59-0241

The manufacturer no longer makes this part, and there's no substitute part

Label 10-15-0190
#1110

18 volt 1/2" power plus diagram

Label

Part #10-15-0190

The manufacturer no longer makes this part, and there's no substitute part
