Model # GTS18TBSABB Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTS18TBSABB refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

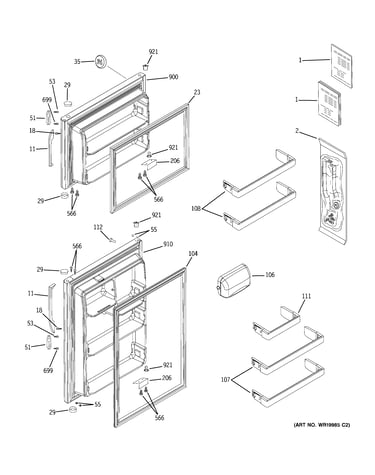

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Dryer Filter WR86X0096
#740

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Fresh food section diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Compressor A WR87X10141
#725

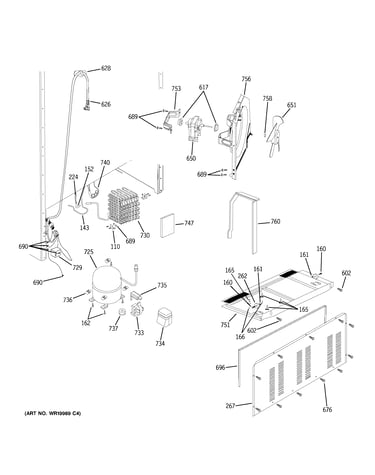

Unit parts diagram

Compressor a

Part #WR87X10141

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10141. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Defrost Control WR09X10130
#648

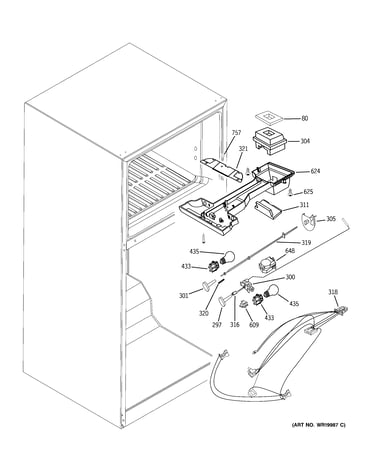

Fresh food section diagram

Refrigerator defrost control

Part #WR09X10130

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X10130. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Condenser Motor WR60X10198
#650

Unit parts diagram

Condenser motor

Part #WR60X10198

Replaced by #WR60X10170

?
Manufacturer substitution
This part replaces WR60X10198. Substitute parts can look different from the original.
$41.40 |
13% OFF Phone Price : $47.40
In Stock
Refrigerator Door Switch WR23X10320
#609

Fresh food section diagram

Refrigerator door switch

Part #WR23X10320

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X10320. Substitute parts can look different from the original.
$8.11
In Stock
Evaporator Motor WR60X10197
#610

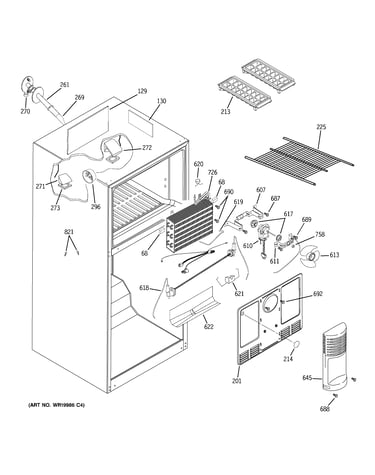

Freezer section diagram

Evaporator motor

Part #WR60X10197

Replaced by #WR60X10172

?
Manufacturer substitution
This part replaces WR60X10197. Substitute parts can look different from the original.
$49.62 |
11% OFF Phone Price : $55.62
In Stock
Refrigerator Starter Relay WR07X10077
#733

Unit parts diagram

Refrigerator starter relay

Part #WR07X10077

Replaced by #WR07X10057

?
Manufacturer substitution
This part replaces WR07X10077. Substitute parts can look different from the original.
$71.19 |
8% OFF Phone Price : $77.19
In Stock
Refrigerator Cantilever Shelf WR32X10551
#242

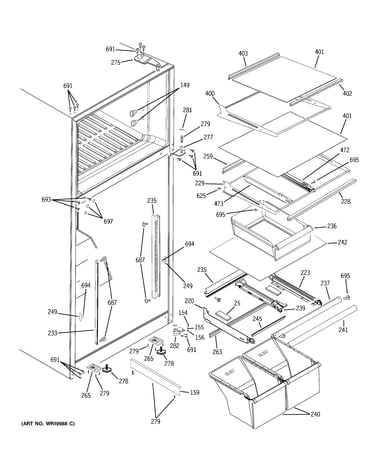

Fresh food shelves diagram

Refrigerator cantilever shelf

Part #WR32X10551

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hinge WR13X10413
#277

Fresh food shelves diagram

Refrigerator hinge

Part #WR13X10413

The manufacturer no longer makes this part, and there's no substitute part
