Weber
Gas Grill

Model # 267002, GREEN Official Weber outdoor grill - 425 ng

Here are the diagrams and repair parts for Official Weber 267002-GREEN outdoor grill - 425 ng, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Kenmore Gas Grill Igniter Kit 40826403
#12

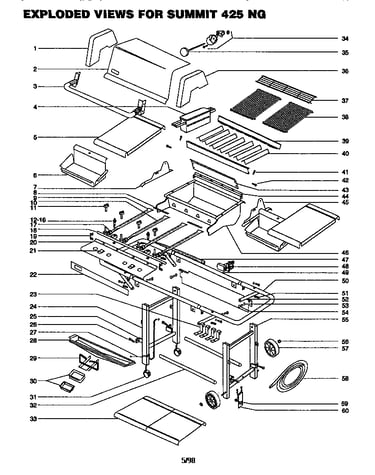

Replacement parts diagram

Kenmore gas grill igniter kit

Part #40826403

The manufacturer no longer makes this part, and there's no substitute part

Switch 97140
#21

Replacement parts diagram

Switch

Part #97140

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Grease Tray Support 85915
#29

Replacement parts diagram

Gas grill grease tray support

Part #85915

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 97126
#42

Replacement parts diagram

Hinge pin

Part #97126

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Screw 63723
Gas grill screw

Part #63723

The manufacturer no longer makes this part, and there's no substitute part

Connector 92233
#32

Replacement parts diagram

Connector

Part #92233

The manufacturer no longer makes this part, and there's no substitute part

Water Pan 48984471
#4A

Replacement parts diagram

Water pan

Part #48984471

The manufacturer no longer makes this part, and there's no substitute part

Chain 96835
#27B

Replacement parts diagram

Chain

Part #96835

The manufacturer no longer makes this part, and there's no substitute part

Wheel Frame 98351
#55

Replacement parts diagram

Wheel frame

Part #98351

The manufacturer no longer makes this part, and there's no substitute part

Shelf 97259
#33

Replacement parts diagram

Shelf

Part #97259

The manufacturer no longer makes this part, and there's no substitute part
